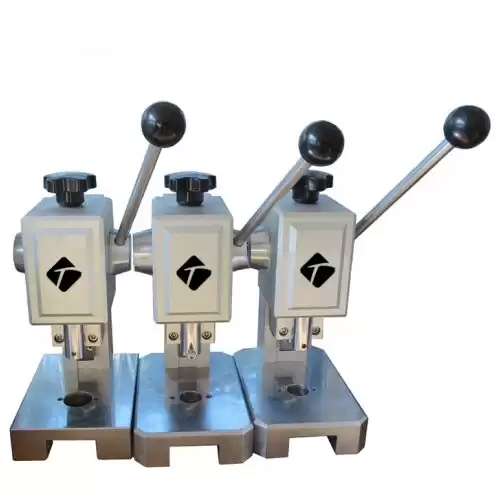

Manual Coin Cell Electrode Disc Cutting Machine
The Coin cell disc cutter machines used for coin cell electrode punching with customized cutting die. It's operation is simple with light weight, The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researches.
|
Machine model
|
Disc cutter for coin cell electrode punch TMAX-CP60
|
|
Operating
|
Manual
|
|
Punching size
|
Standard configuration : φ14mm punching die,
φ8-24mm can be chosen
|
|
Application Notes
|
For make CR2016, CR2025 or/and CR2032 coin cell batteries,
we will need at least three cutting dies:
A 15mm
B 16mm
C 19 mm (for separator to fully separate the electrodes)
For CR2450 coin cell:
20mm cutting die can be used for cutting electrode discs and the
23mm cutting die for separator disc.
|
|
Punching stroke
|
25mm
|
|
Punching thickness
|
0.005-0.5mm electrode and separator
|
|
Advantages
|
Simple operation
Light weight
Can both cut electrode and separator
|
|
Dimension
|
110*150*235mm
|
|
Weight
|
About 6kg
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Reference Pictures
|

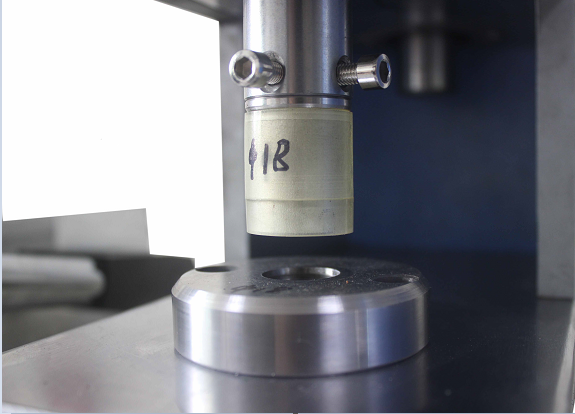

Disc cutter dies:

|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
