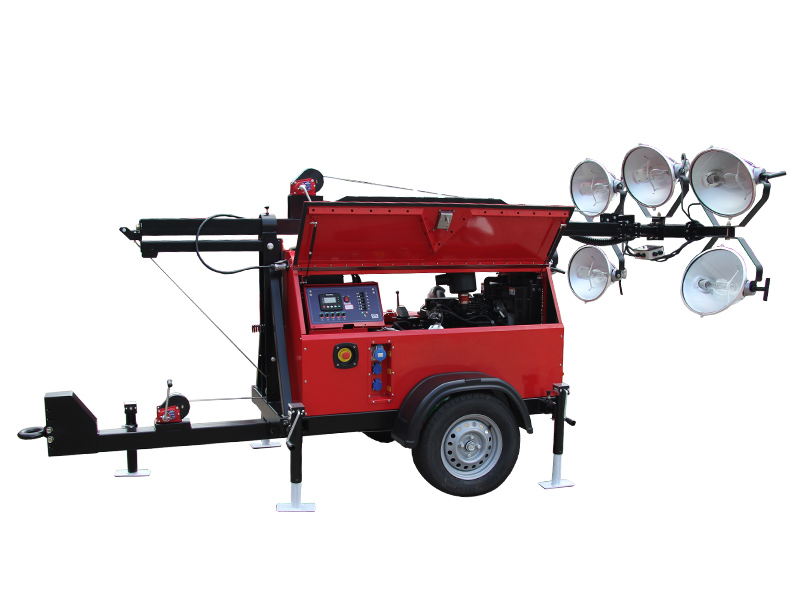

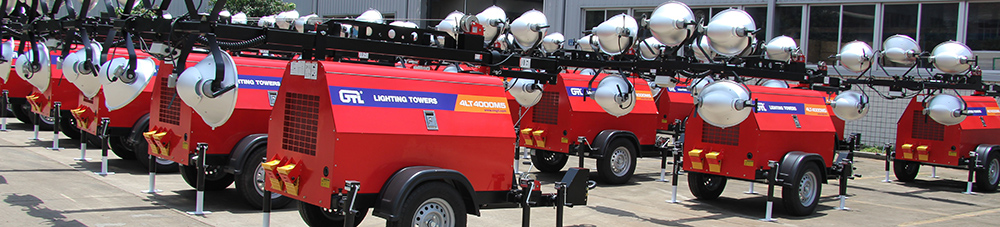

Manual Light Towers

The GTL series of lighting towers are durable and reliable. These  lighting towers  can cover up to 110,000 ㎡ of lighting area and work continuously for nearly 7 days, suitable for any terrain and environment. The height of the light tower can extend to 9 meters, and it can move with wheels for convenient transportation.



Click here for Manual Light Towers technical data

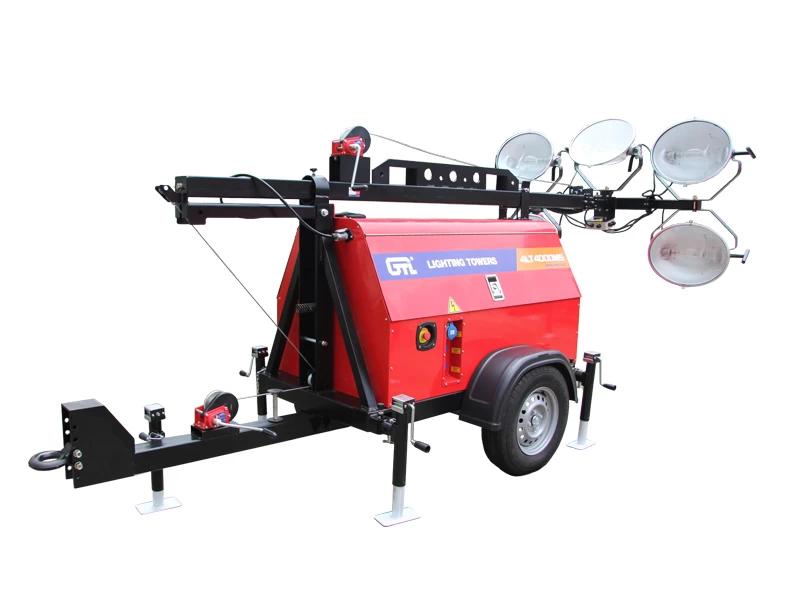

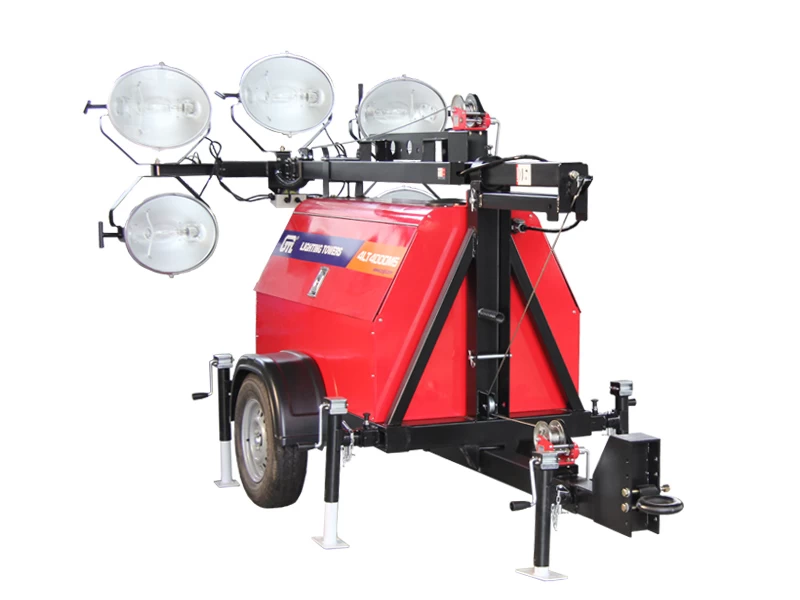

gtl lighting towers 4LT4000M5


Telescoping mast, with 360-degree rotation and position lock; Extends 12' to 30' with two, hand-operated winches and patented automatic safety brake; Mast retracts and stows horizontally for travel. Combination hitch with 3" pintle eye and 2" ball hitch.

MITSUBISHI(Made in Japan) water-cooled diesel engine
Complies with EPA Tier 4 and Stage EU Stage IIIA emission regulations. These are the most stringent emissions regulations in the world in this classPerfect compatibility and reliability with worldwide service network in more than 81 countries and areas

Powerful floodlight
4x1000W Metal Halide lamp(IP65) .Each lamp socket rotates to 180 degree. Casing molding of high purity aluminum,anodized, corrosion-resistant, high strength with good heat dissipation. High temperature resistance and waterproof silicone sealing gaskets, with superior anti-corrosion properties.
5mm tempered glass with excellent light transmission, longer lamp life, High-strength bracket with polyester spraying processing, corrosion and durable.
with anti-vibration system to improve light bulb working life time.

Strong and durable canopy
Heavy-duty canopy adopting high-quality steel, anti-aging and withstands corrosion Stainless steel door locks, hinges and fasteners, anti-rust and easily clean

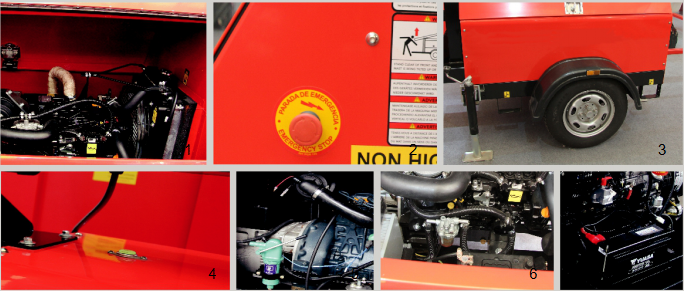

Security and protection, operability and maintainability
Well protected cooling fan, charging system, exhaust system
▣ Emergency stop
▣ Forklift pockets and lifting eyes included
▣ Positioning levels
▣ Manual drain pump
▣ Water separator
▣ Maintenance-free battery and battery disconnector


Protected control panel
GTL tower light control system can realize single unit control automation, such as start & stop capability via time setting or remote SMS messaging or remote input port, and turn on & off lamp(s) in order. It integrates advanced techniques of digital, intelligent and networking. With complete data measurement, alarm protection system and remote control functions.

Ambient temperature
With 50 radiator, it can be used in ambient temperatures ranging from -10 to +50 . A version suited to use at lower ambient temperatures is also available.

Road standard trailer chassis easy to transport
It features a fully galvanized ALKO chassis as standard. This not only ensures long-term value retention, but also makes transportation simple. Max. speed: 80km/hr

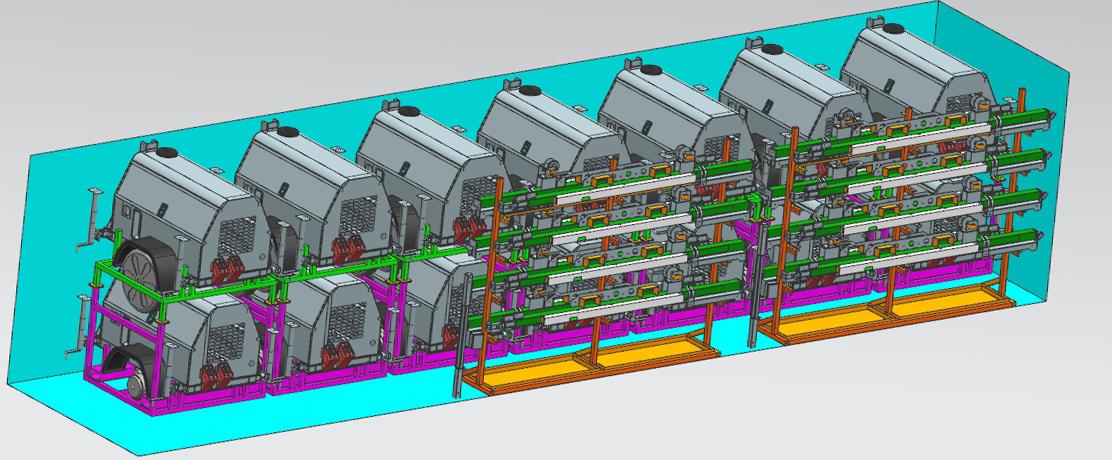

Container load & storing
Its design and reduced dimensions make the product easy to move, storing up to 14 units in a 40ft container.

gtl container load & storing
