Manufacture Reusable Wall Column Steel Panel formwork

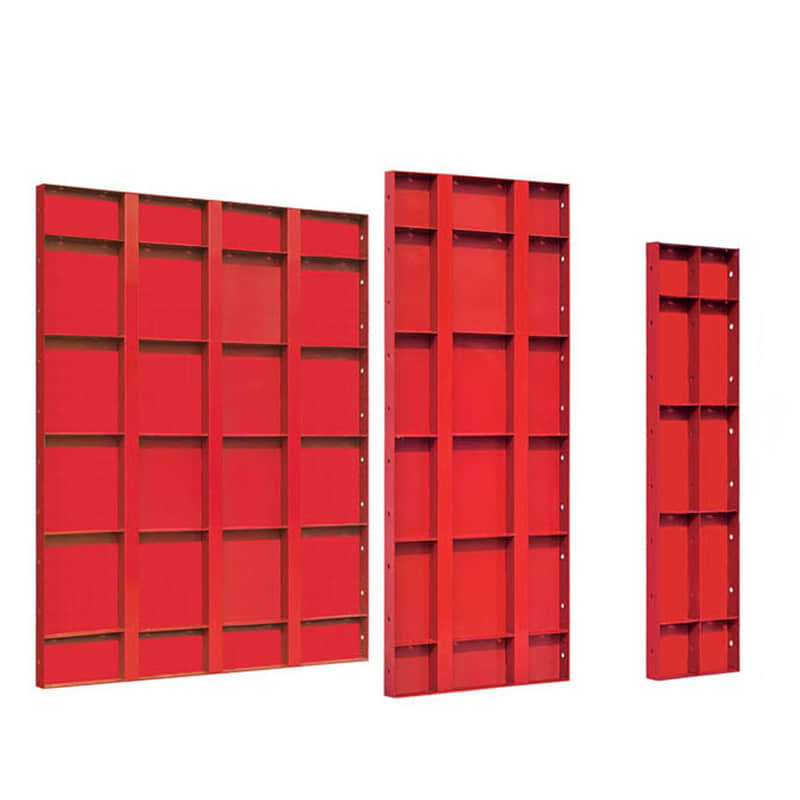

      Steel panel formwork is a high-strength building formwork widely used in concrete structure construction of foundations, vertical walls and columns . It is mainly made of high-quality Q235 steel, with the characteristics of high bearing capacity, good wear resistance and high reuse rate. steel deck formwork can be made in various sizes and specifications according to project requirements, adapting to different types of building structures, and is an ideal choice for improving construction efficiency and quality.

As a strong supplier of steel formwork, AJ Building provides you with customized-sized products, product quality inspection services, and fast delivery.

Specifications

• Thickness : 3-5 mm
• Height : 55mm
• Width : 200mm, 300mm, 450mm, 500mm, 600mm
• Length : 900mm, 1200mm, 1500mm, 1800mm

Metal Deck Formwork Advantages

High Strength And Durability

• Steel panel formwork is made of high-quality steel with excellent compression and bending resistance. It can withstand the high loads during concrete pouring and is suitable for large buildings and heavy construction.

Wear-Resistant, Long Life

• Steel formwork material has high wear resistance and corrosion resistance, suitable for use in various climates and construction environments. Even after repeated use, the steel panel formwork can still maintain good condition.

Cost Saving

• Steel formwork can be reused many times under normal use and maintenance, and has strong durability, which greatly reduces material and construction costs.

Easy To Assemble

• Metal deck formwork is generally of standardized size, equipped with reasonable connectors, and can be assembled and disassembled quickly, which can significantly shorten the construction cycle and improve construction efficiency.

Wide Applicability

• Metal panel formwork can be customized according to the needs of different construction projects, is suitable for various complex concrete structures, and has high flexibility and adaptability.

Surface Treatment & Finish

• Powder Coating: A durable, anti-corrosive powder coat finish is applied to prevent rust and corrosion, extending the formwork's lifespan and making it easier to clean.
• Primer & Enamel Paint: A cost-effective solution offering good protection against corrosion and a presentable finish.

Application Scenarios

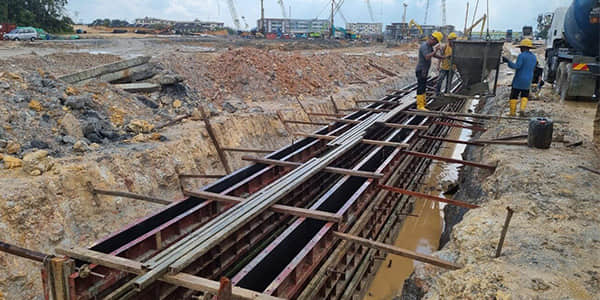

Foundations: Strong and stable formwork for building robust foundations.

Walls: Perfect for creating smooth, plumb concrete walls of varying thicknesses and heights.

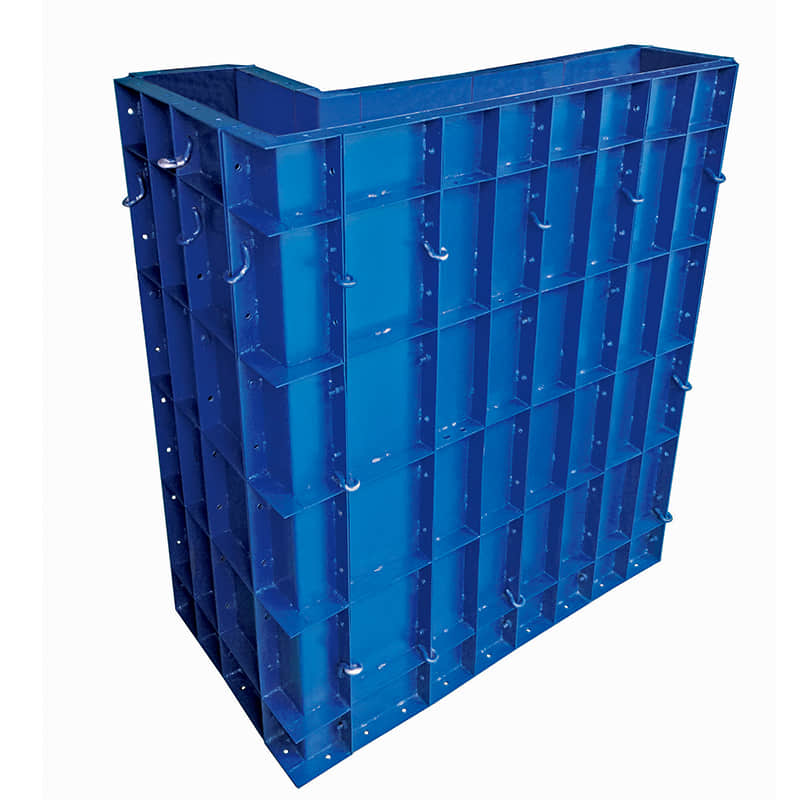

Columns & Piers: Adaptable systems for circular, square, or rectangular columns.

Beams & Slabs: Facilitates the creation of strong horizontal concrete elements.
