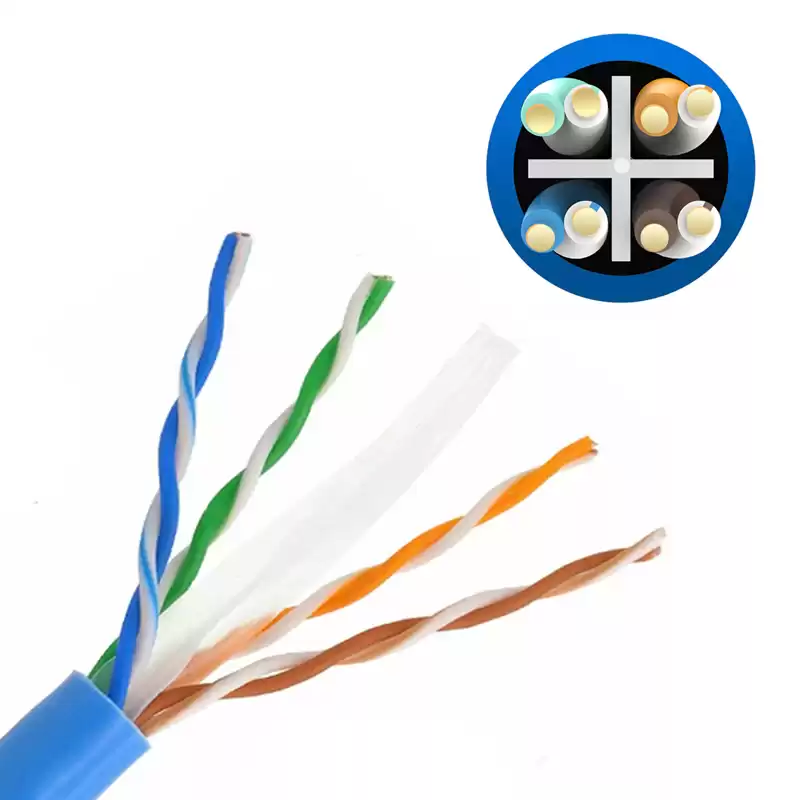

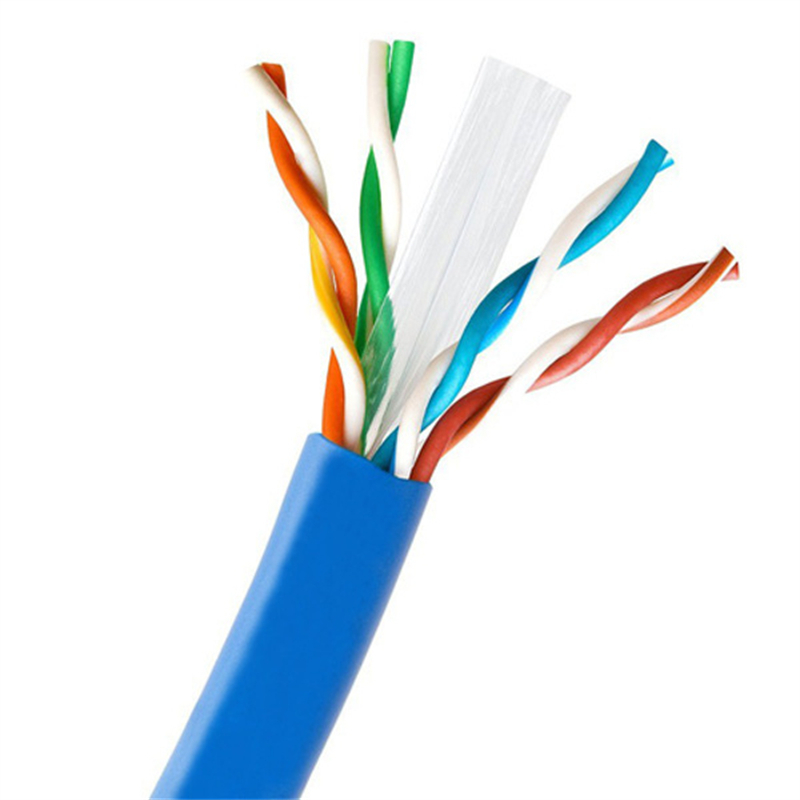

Manufacturer Copper Twisted 4 Pair 23AWG Cat6 UTP Network LAN Cable

China Factory Bare Copper Cat 5e UTP Networking Cables. A 4-pair performance cable that consists of twisted pair conductors, used mainly for data transmission. Category 6 is recommended for all new installations, supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet).



China Factory Bare Copper Cat 6 UTP Networking Cables



PRODUCTS NAME

Manufacturer Copper Twisted 4 Pair 23AWG Cat6 UTP Network LAN Cable

PRODUCTS KEYWORDS

Cat 6, Cat 6 UTP cable, networking cable, network cable, LAN cable, gigabit network cable, bare copper cat 6 networking cable, 4 pairs networking cable.

Seebest


PRODUCTS APPLICATION

China Factory Bare Copper Cat 6 UTP Networking Cables4 pair high performance cable that consists of twisted pair conductors, used mainly for data transmission. A multi-pair performance cable that consists of twisted pair conductors, used mainly for data transmission. Category 6 is recommended for all new installations, supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet).

    LAN cable application

PRODUCTS DIMENSIONS

 Description of Cable   Products Main Technical Sheet
 Products Name

 China Factory Bare Copper Cat 6 UTP Networking Cables.

 Conductor Material  Plain annealed copper wires, bare copper, Class 1.
 Conductor Structure  8C x 1/0.57 mm, 23 AWG.

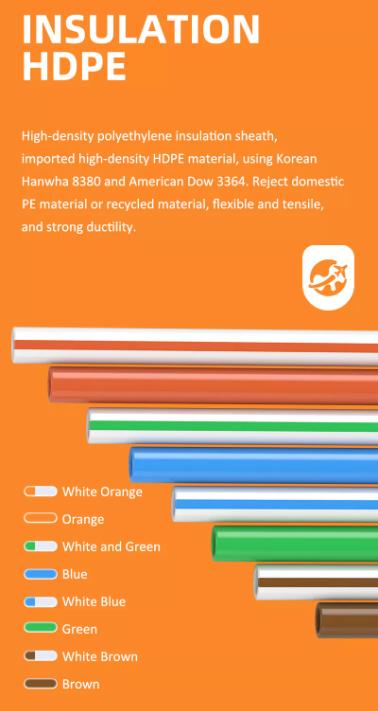

 Insulation Material  HDPE (High Density Polyethylene).
 Insulation Thickness  0.22 mm.
 Insulation Colour

 Brown, brown/white; blue; blue/white;

 orange, orange/white; green, green/white.

 Sheath Material  40P PVC (Polyvinyl Chloride).
 Sheath Thickness   0.50 mm.
 Sheath Colour  White, brown, orange, grey, blue, or black.
 Core Number  8 cores, 8C, 4x2 Cores.
 Out Diameter  6.5 mm.
 About Net Weight  14 kg/box.
 Production Standard  ANSI/EIA/TIA-568B, ISO/IEC 11801.
 Packing Type

 305 meters per box, 2 boxes has been loaded into .

Seebest Cable



PRODUCTS CHARACTERISTICS

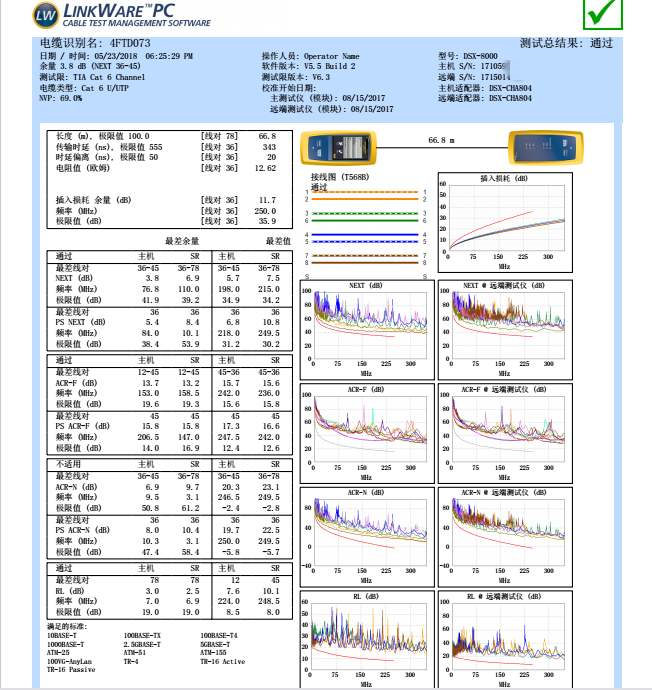

cat 6 utp cable testing



COMPANY PROFILE

Xiamen Seebest Wire & Cable Co., Ltd, was established in 2009, is located in Xiamen City, Fujian Province, China. The total area of company more than 100,000 square meters. The company is a modern manufacturing enterprise specializing in the research, development, production, sales and service of wire and cables for customers at home and abroad.

COMPANY ADVANTAGE

---Reasonable Price, Overvalue Products, Quickly Delivery, Foremost Services.
---ISO9001, CCC, CE, CB, RoHS, SAA, VDE, DEKRA, UL, and other certificates.
---20 years of professional experience in wire and cable manufacturing, sales, and service.
---One hour arrives at Xiamen airport, seaport, High-speed Railways station, and bus station.
---2 professional engineers, 8 rigorous QC staff, and a total of 168 experienced staff.

---Familiar with GB, JB, IEC, AS/NZS, BS, VDE, TüV, UL, and other standards, can be customized for wire and cables according to the customer's requirements.

Seebest Cable

COMPANY PRODUCTS

---Electrical Wires: PVC or LSZH Insulated Electrical Wires.
---Power Cables: 0.6/1kV, PVC, XLPE, or LSZH Insulated Power Cables.
---Electronic Wires: UL 62, UL 1007, UL1015, UL 2464, UL 2468, VDE 0281, VDE 0282,

    VDE 0250, and other Electronic Wires.

---Customized Products: Fire Retardant Cables, Fire Resistant Cables, Mineral Insulated Power

    Cables, LSZH, LSOH, LSFH and other RoHs Cables, and Environmental Protection Cables.

---Communication Cables: Networking Cables, Telephone Cables, Coaxial Cables, Speaker Cables.

---Power Plugs: CCC, UL, VDE, and other standards Power Plugs.

Seebest Cable

COMPANY SLOGAN

---Seebest Cable: Become the most trusted cable company in China.
---Seebest Cable: Focus on Quality, Foremost Service.
---Seebest Cable: It is your Production Base, Overseas Warehouse, Purchase Consultant,

Technology Supporter, and Sales Assistant in Wire and Cables Industry.

COMPANY FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer, we can control your order from the first step to the final shipment (from start to end), welcome you to visit us, we will receive you warmly in Xiamen City, China.

2. Can you provide the free samples?
Of course, we can provide free samples to you, but you should pay the express freight and taxes.

3. What’s your Minimum Order Quantity?
For the Electrical Wires less than 16mm2, the MOQ is 5,000 meters;

For the Power Cables more than 25mm2, the MOQ is 1,000 meters;

For the networking cables, the MOQ is 100 boxes/cartons;

For the Electronics Wire with International Approvals, the MOQ is 10,000 meters.

For other customized wire and cables, please negotiate the MOQ with us immediately.

Seebest Cable

4. Can you give me the price discount?

We can give you the price discount, but the discount percent depends on the quantity, quality, packaging and payment terms in your order.

In addition, price is an important factor, but it should not the decisive factor; the price can be lower, but we must keep the safe bottom-line. The high-quality products can help you saving more money, and there is not potential safety hazard, you don't worry about them every day.

5. Can you provide the OEM, OBM and ODM services?

Yes, we can provide OEM, OBM and ODM services for you, but you should provide the Power of Attorney for Trademark and other detailed information to us.

Seebest Cable
