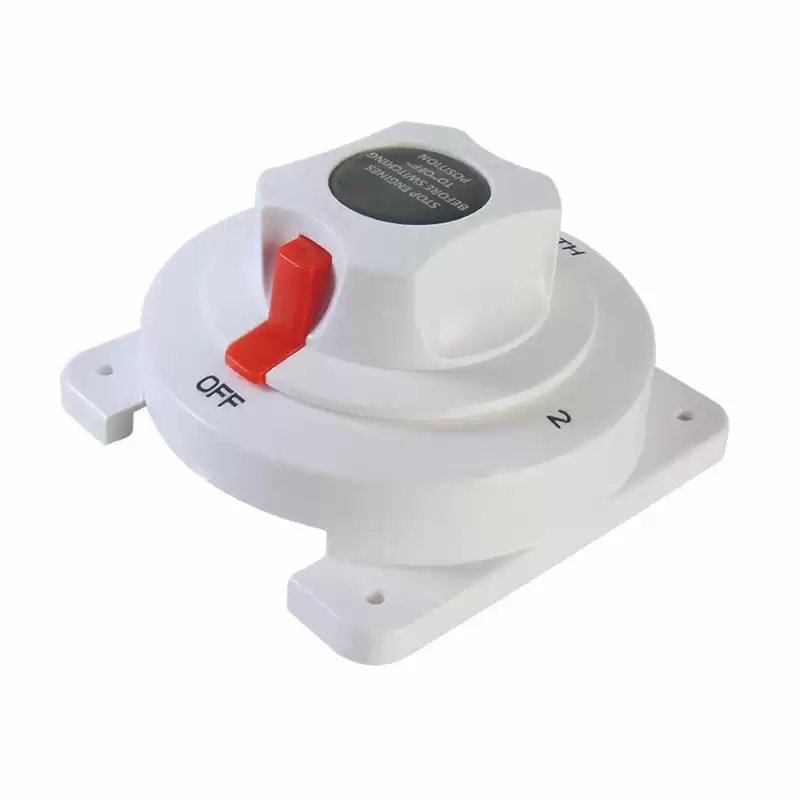

About this item
The selector switch will allow the use of one battery for engine starting and one battery for auxiliary electrical equipment
Batteries may be placed in parallel by switching to (BOTH) for emergency usage
Small in size, Fine appearance, Sturdy and durable
3/8"-16 tin-plated copper studs for maximum conductivity and corrosion
resistance Can be installed in any position
175A continuous duty at DC-12V
300A intermittent duty at DC-12V
Suitable for 6V, 12V, 24V and 32V ship's supply system
Specification
|
Model
|
Max. Volt
|
Amp Draw
|
Max Amp Draw
|
Switch Position
|
Packing Size
|
N.W. / G.W.
|
|
NMCBS-175-402
|
6-12-24-32 V
|
175A
|
300 A
|
3
|
140x140x85 mm
|
0.566/0.8 kg
|

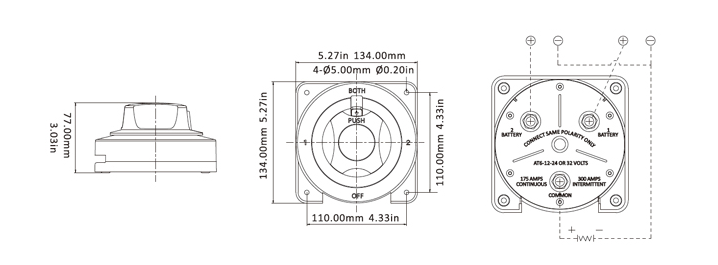

Dimensions
