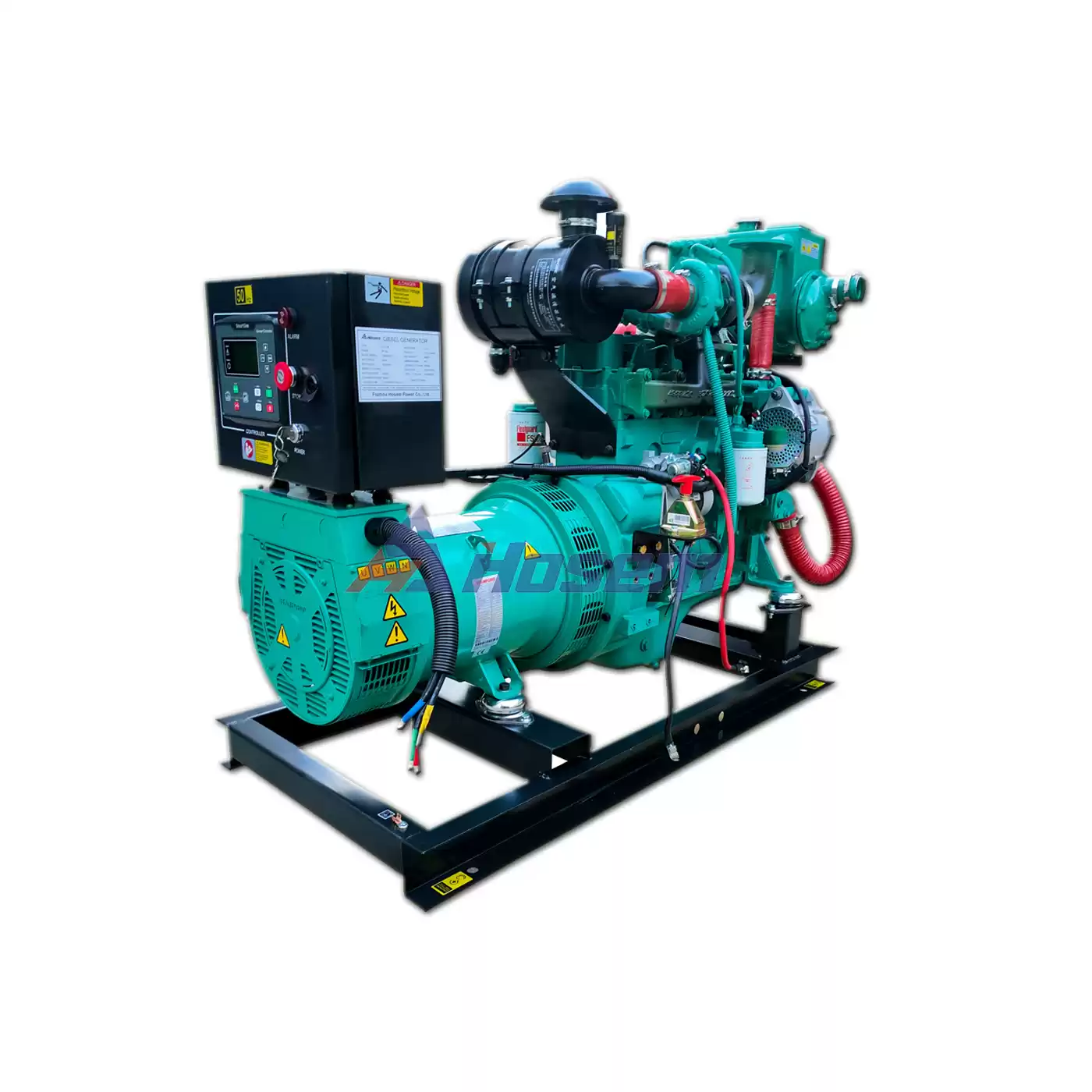

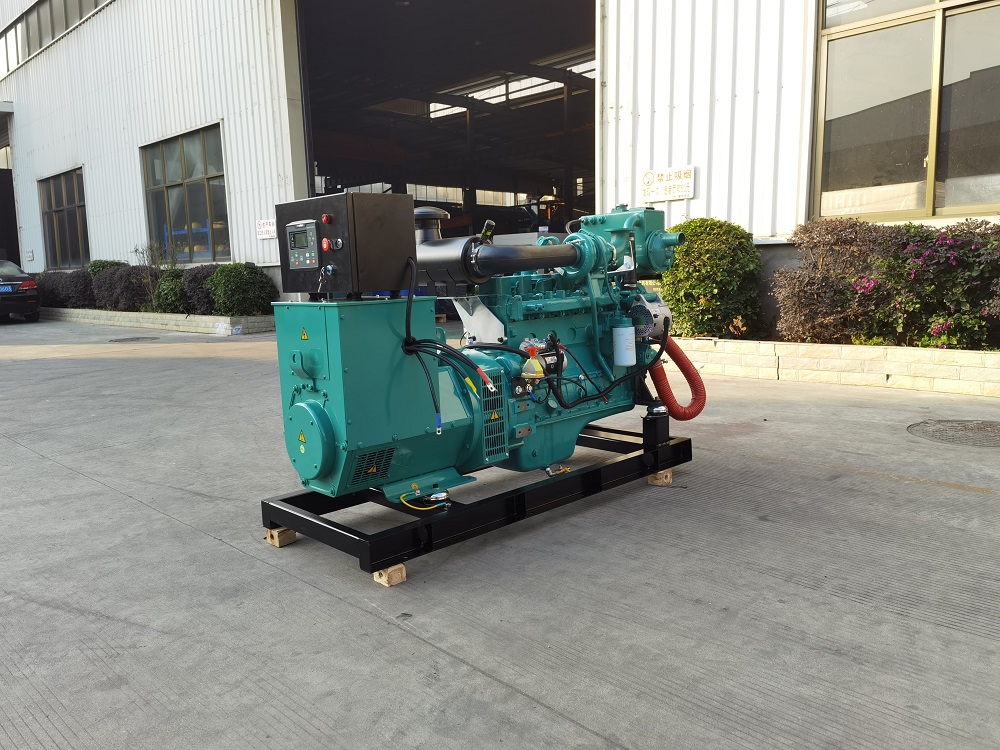

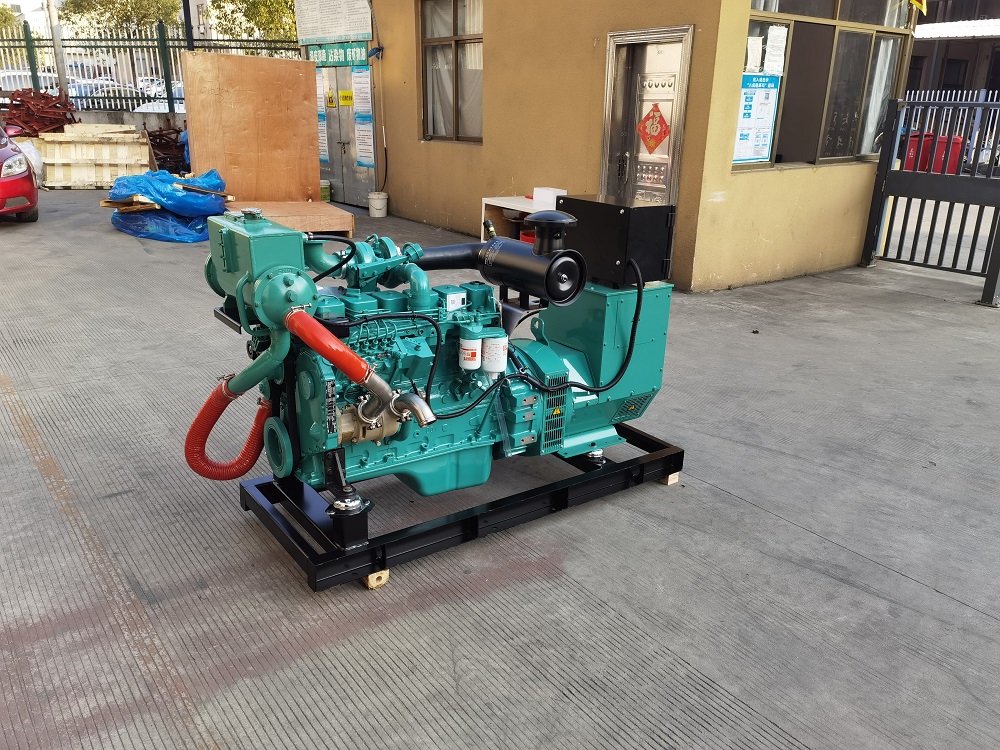

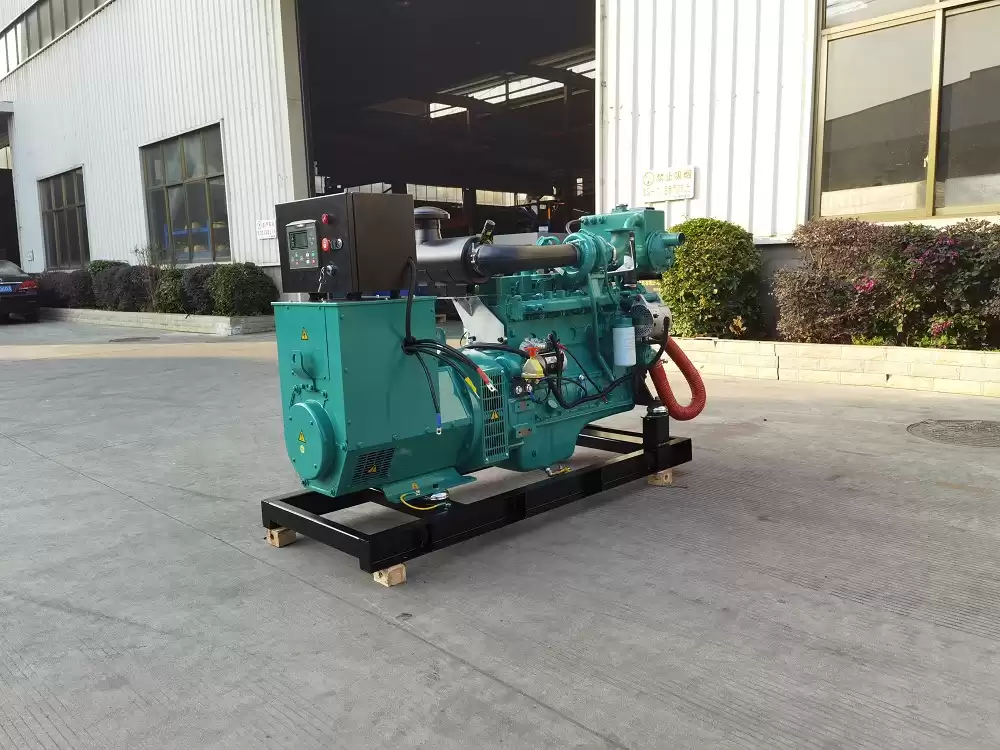

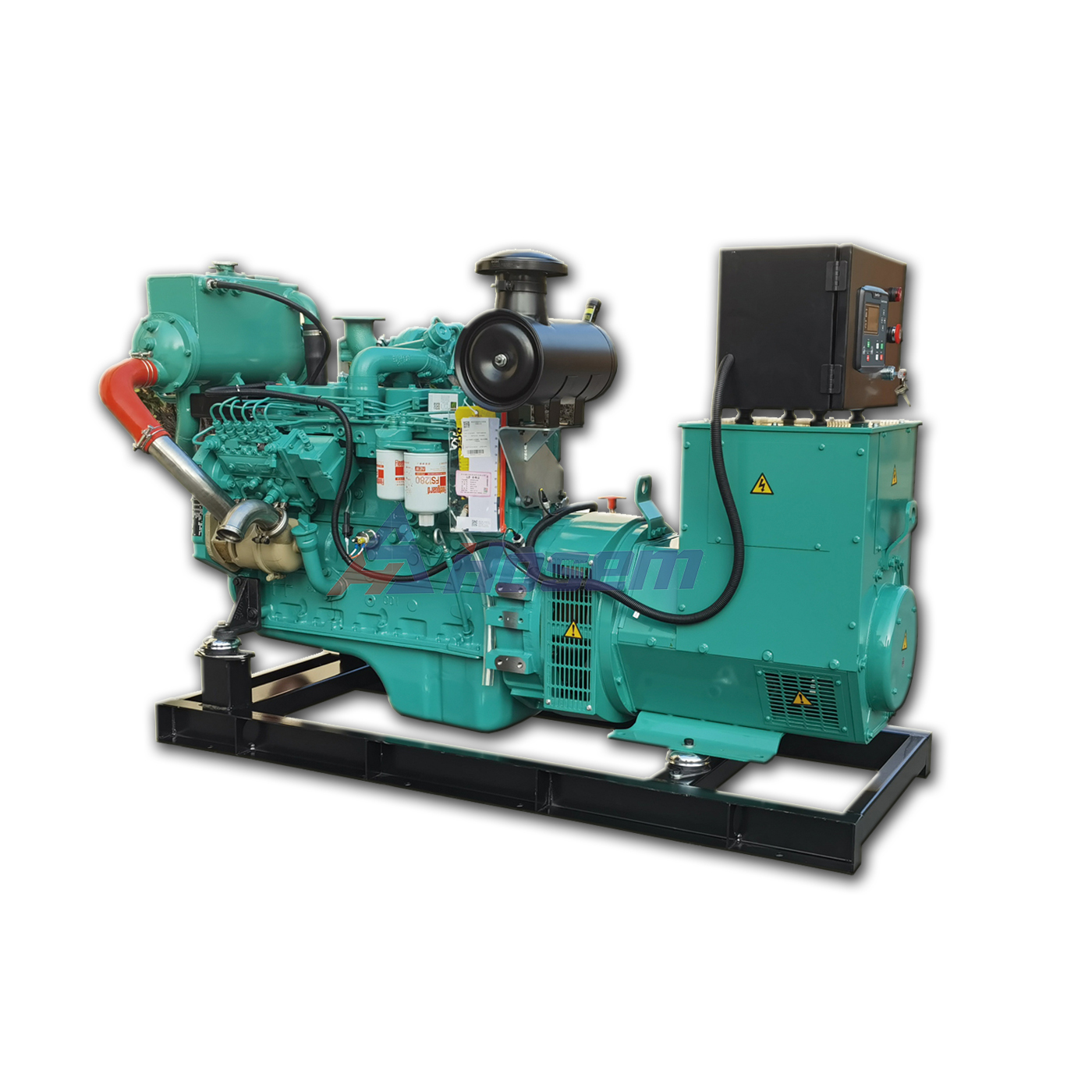

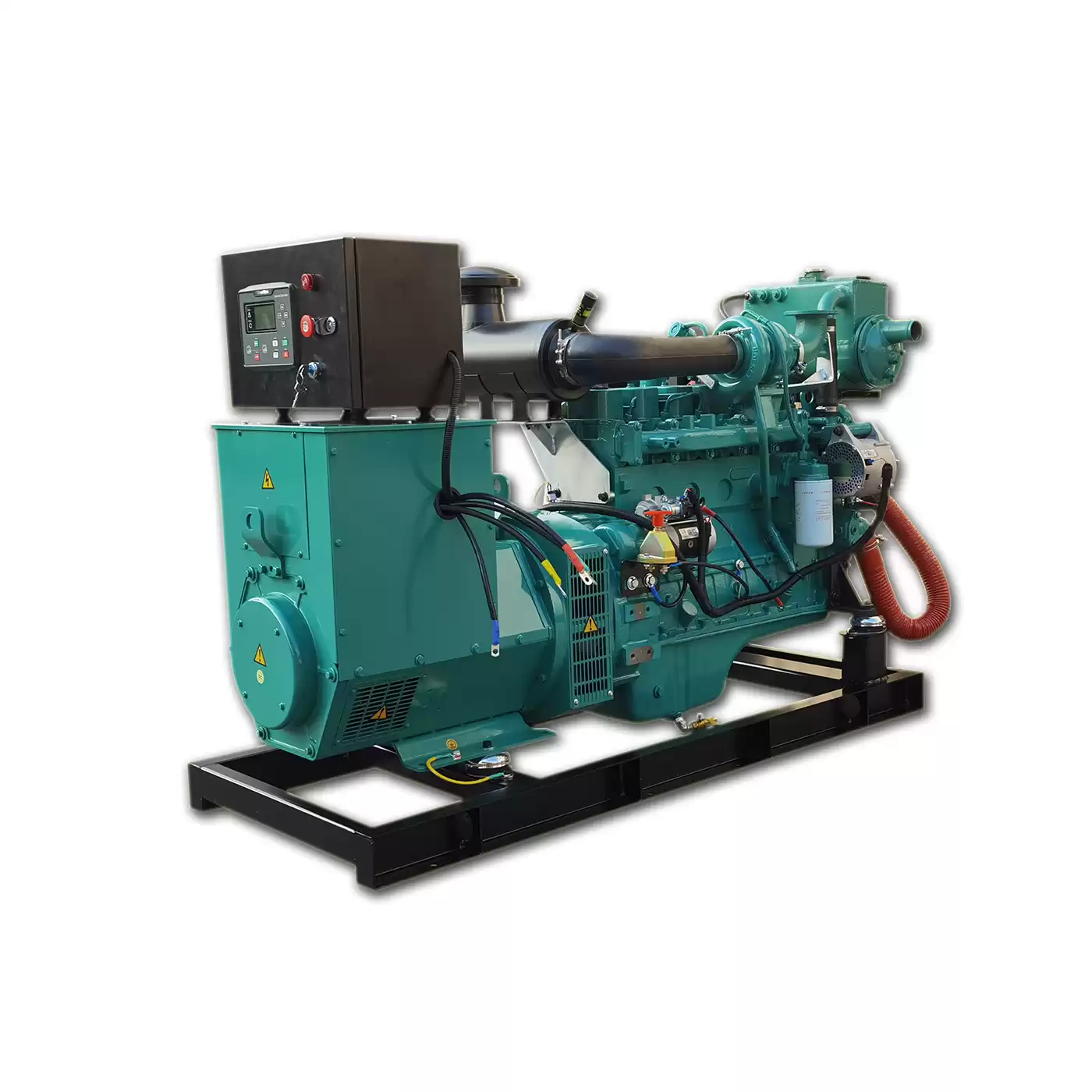

Marine Diesel Generator Set Powered by Cummins

Standard Equipment



  1. 12 volt DC start/charging
  2. Automatic engine shut down for low oil & high coolant temperature.
  3. Fuel filter
  4. Fuel transfer pump
  5. Air intake silencer/cleaner
  6. Four-point isolation motor mounts.
  7. Heavy-duty steel mounting frame.
  8. Single bearing generator
  9. Brushless exciter



Optional Equipment



  1. Remote start / stop panel / 20ft extension harness
  2. Electric fuel pump
  3. Wet exhaust manifold
  4. Wet turbocharger
  5. Circuit breaker

Facebook Twitter Pinterest LinkedIn 分享
Model Standby Power  Prime Power Engine Model Dimension (Open Type) Weight Datasheet
kVA kW kVA kW LXWXH(MM) KG
A-C25M - - 25 20 4B3.9-G2 1410x700x1150 550 Download
A-C38M - - 38 30 4BT3.9-G2 1410x700x1150 650 Download
A-C50M - - 50 40 4BTA3.9-GM47 1670x850x1270 800 Download
A-C63M - - 62.5 50 6BT5.9-GM83 1900x900x1300 1000 Download
A-C80M - - 80 64 6BT5.9-GM83 1900x900x1300 1100 Download
A-C594M - - 94 75 6BTA5.9-GM100 1900x900x1300 1250 Download
A-C113M - - 113 90 6BTA5.9-GM100 2020x900x1300 1300 Download
A-C125M - - 125 100 6CT8.3-GM115 2080x900x1360 1650 Download
A-C150M - - 150 120 6CT8.3-GM115 2120x900x1360 1700 Download
A-C188M - - 188 150 6CTA8.3-GM155 2220x1000x1790 1720 Download
A-C200M - - 200 160 6LTAA8.9-GM200 2250x1000x1790 1750 Download
A-C250M - - 250 200 N855-DM 2760x1000x1790 2700 Download
A-C313M - - 313 250 N855-DM 2760x1000x1790 2800 Download
A-C350M - - 350 280 N855-DM 2998x1000x1790 2950 Download
A-C375M - - 375 300 K19-DM 2998x1000x1790 3360 Download
A-C438M - - 438 350 K19-DM 3170x1000x1920 3480 Download
A-C500M - - 500 400 K19-DM 3170x1000x1920 3650 Download
A-C850M - - 850 680 K38-DM 4050x1500x2480 7200 Download
A-C1000M - - 1000 800 K38-DM 4100x1500x2480 7350 Download
A-C1250M     1250 1000 K50-DM 4500x1500x2480 9500 Download
