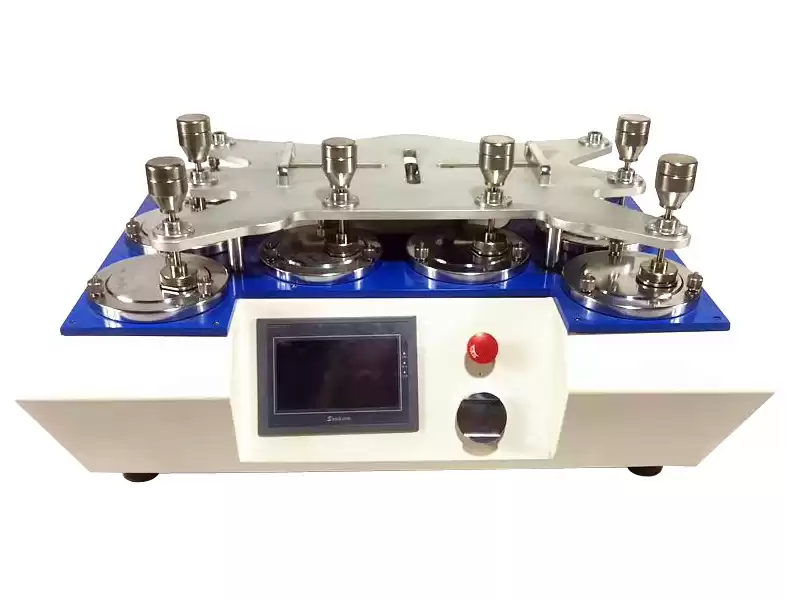

Martindale Abrasion Machine

Martindale Abrasion Machine is used to determine the abrasion resistance of leather, textilec carpets, etc. and pilling resistance of various textile fabrics.

Test Standards

ASTM D4966、ASTM D4970、BS EN 388、BS EN 13770、BS EN ISO 17076、ISO 12945、ISO 12947、GB/T 4802、GB/T 13775、GB/T 19817、GB/T 21196、JIS L1096、M&S P17、M&S P18C、M&S P19、P19A、P19C、SATRA TM31、PV 3928

Parameters

Abrasion test
Rotational frequency
 outer drive (47.5±2.5)r/min
Inner drive (44.5±2.4)r/min
Ratio of rotation of outer drive to inner drive 16:15
Maximum stroke of specimen holder
 Longitudinal transverse both （60.5±0.5）mm
Abrading table
 Bottom Φ: (133±0.5)mm
Upper Φ: (121±0.5)mm
Angle: (60±0.5)°
Clamping ring
 Bottom Φ: (136±0.5)mm
Upper Φ: (127±0.5)mm
Pressing weight of mass (2.5±0.5)kg, Φ (120±10)mm
Specimen holder Specimen holder spindle : Φ 7.95mm

Specimen holder insert
 Φ38.1mm,
bottom Φ (28.65±0.05)mm
R 0.1mm
Specimen holder nut
 Outer nut Φ: 38.1mm, bottom 31.75mm
Assembly specimen holder
 insert 1.05mm

Combined mass  198g (spindle, body, insert, nut)
Loading mass (595±7)g  9kpa
(795±7)g  12Kpa
Auxiliary materials Abradant(woven wool fabric)
felt(woven wool felt)
Foam
