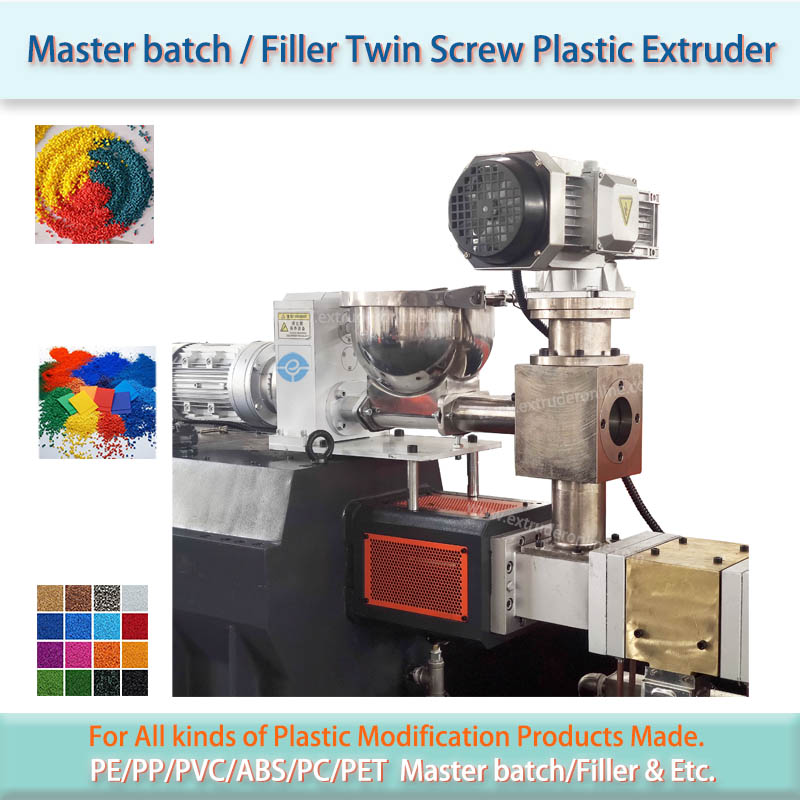

Master batch or Filler Plastic Extruder

Master batch or Filler Plastic Extruder

HS CODE: 8477.2010

This machine line maks different color of master batch or virous percentage of concentrateion of Filler master batch.

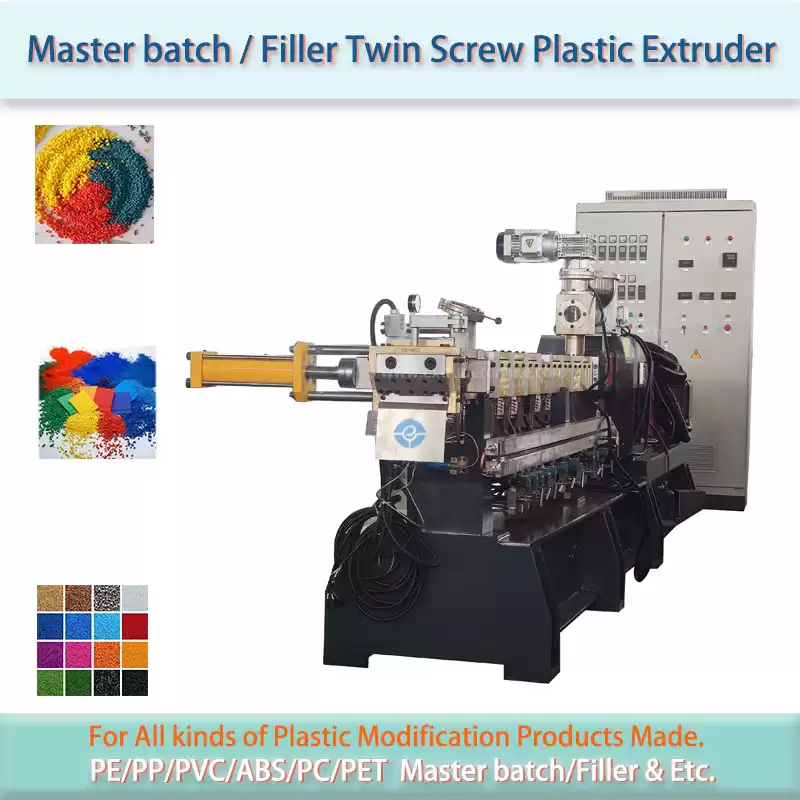

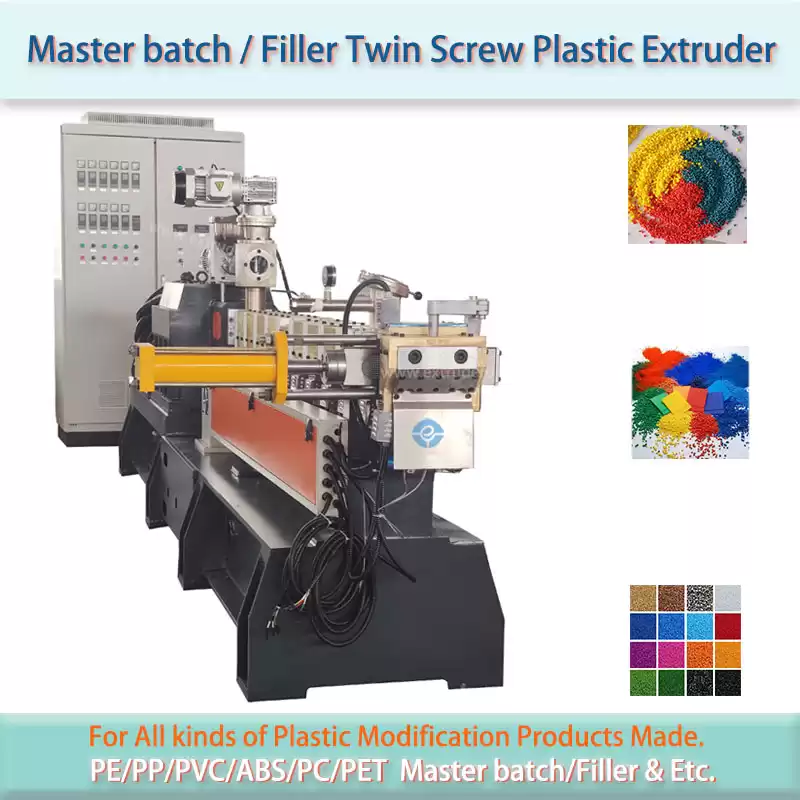

Master batch  or Filler Plastic Extruder

Model: From SHJ-35A to SHJ95G

HS CODE: 8477.2010



Such kind of machine is special for color master batch or filler master batch making according to the clients' detailed request.

granules

We have various of models for different kind of output capacity, the smallest one is that for labortoury to double check the formula is workable or the technical processing is right. The largest one is that the SHJ-95,  for 95 twin screw plastic extruder, we also have differnt model: SHJ-95A, SHJ-95B, SHJ-95C,SHJ-95D and SHJ-95G.

MASTERBATCH EXTRUDER

For color master batch making, if you need large output capacity, you have two kinds of choice, one is set lart output capacity twin screw plastic extruder, another one is that to install a two stage of plastic extrusion group .

color master batch extruder

water ring masterbatch extruder

extrusion group

Anyway, for such plastic extrusion machine line set, you have to set a pretreatment machine for them: plastic mixer.

The plastic mixer have different kind of , like to say color pigment mixer, high speed mixer, corn starch powder two stage mixing group and so on.



two stage mixing group

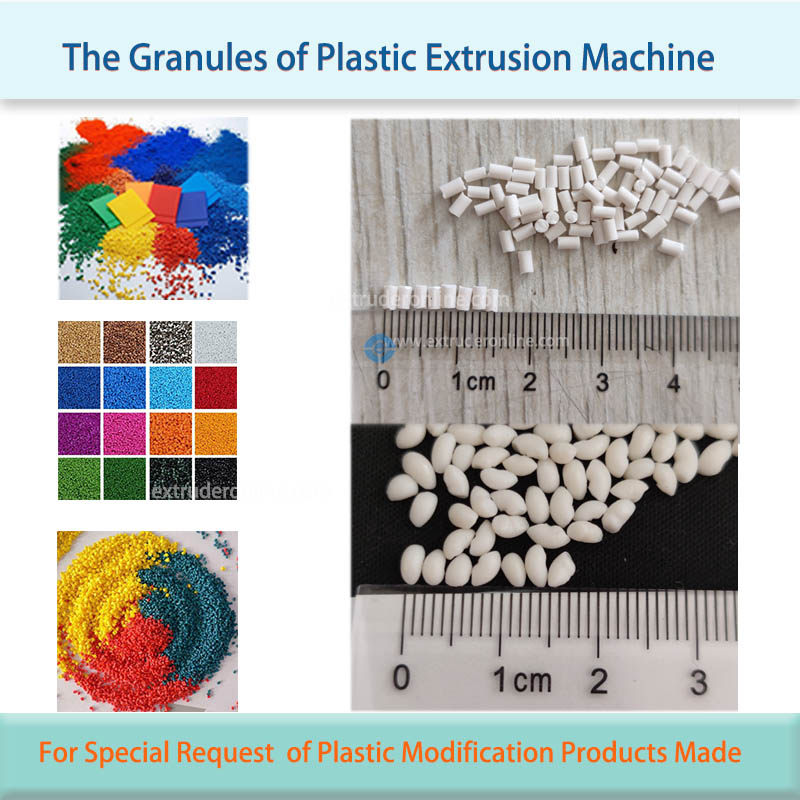

In the meantime, if you select the different kind of the die head and pelletizing system, you will get the plastic granules or particles by your special demads.

granules particule

particles



Installation and debugging charges: will be collected, please ask for our clerks in overseas markets department.

Documents presentation: B/L, INVOICE, PACKINGLIST, C/O and Insurance policy (If CIF terms);

We also present the following SHJ series plastic extrusion machine, the detailed technical parameter is as follows:

Model

Screw Dia.
(mm)

 Screw Rotary
Speed (rpm)

 Motor Power
(kw)

 L/D

Output Capacity
(kg/h)

 SHJ-20

 21.7

 600

 4

 32-60

0.5-15

 SHJ-35

 35.6

 500

 11-15

 32-60

15-40

 SHJ-50

 50.5

500

 45/55/75

 32-60

135-225

 SHJ-65

 62.4

500/600

 55-75-90

 32-60

 25-375

 SHJ-75

 71.0

500-600

 90/110/132

 32-60

330-550

 SHJ-95

 93.0

400-500

 250/315

 32-60

750-1250



Both screws and barrels are designed according to the principle of building block type. Let the machine line has excellent dispersion, mixing and compounding performance, controllable material duration of staying time in the barrels.  In the meantime, this design also has good exhaust release performance, excellent interchangeability, self-cleaning, flexible module combination and other characteristics, to achieve a wide range of muti-function, multi-purpose and specific requirements of the specific unity。

New Mixing & Extrusion Elements (segments)

The SHJ series extruders have newly developed screw elements (segments) for good distributive and dispersive mixing and extrusion process. The special screw elements will be greatly conductive to the even shearing stress, even axial elongation rate, and low temperature distribution. All these factors will determinately lead to the final material or products’ quality.

The SHJ series extruders have unique features with a balanced shaft drive mechanism, a solution offering decisive advantages over the conventional gearing chain with a simple split of the driving torque. In the new solution the torque for the second screw is split again in half to drive two auxiliary shafts at levels above and below the second screw shank. Consequently the balanced gearing shafts have to bear the 25% torque of the overall. The extreme load ability connected with this type of gearing chain enable to work with the kind of torques required to achieve high output rates at lower screw speeds that will be decisive to the final performance of the mixing polymer.


Product Tags twin screw extruder          master batch extruder          filler extruder          plastic extruder twin screw          plastic extruder
