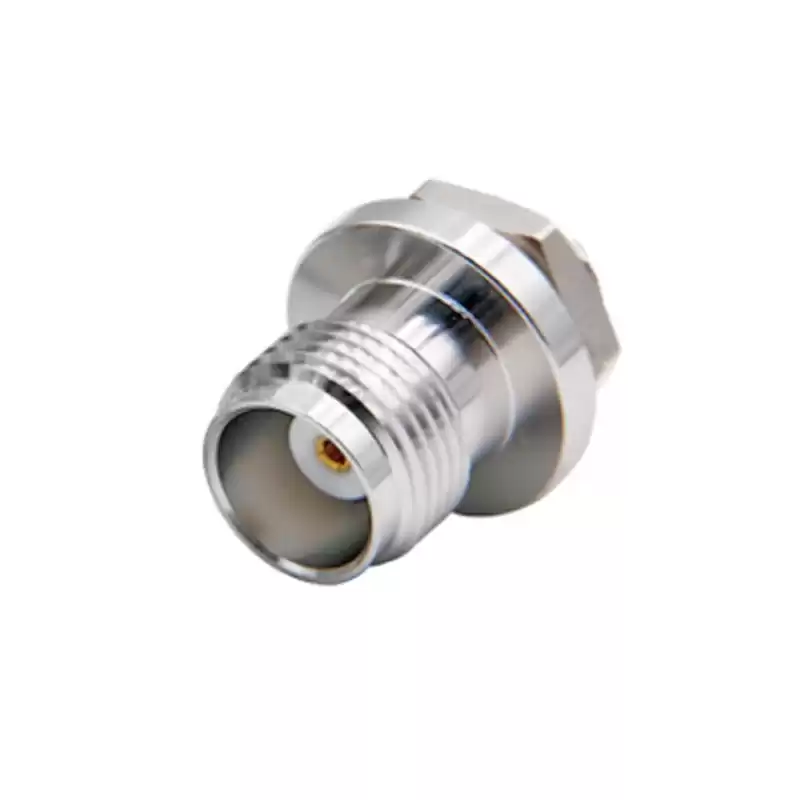

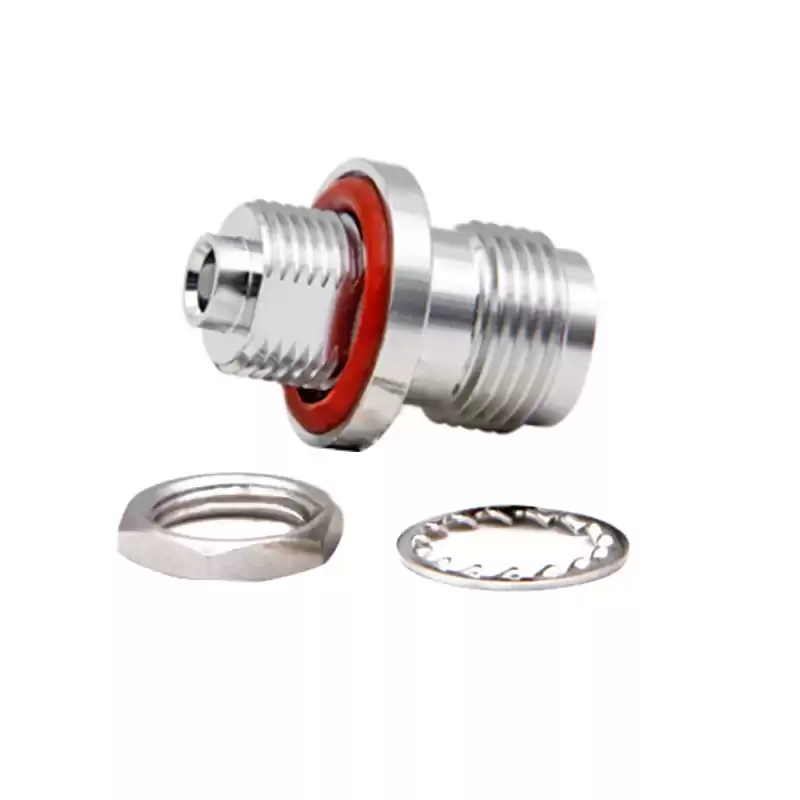

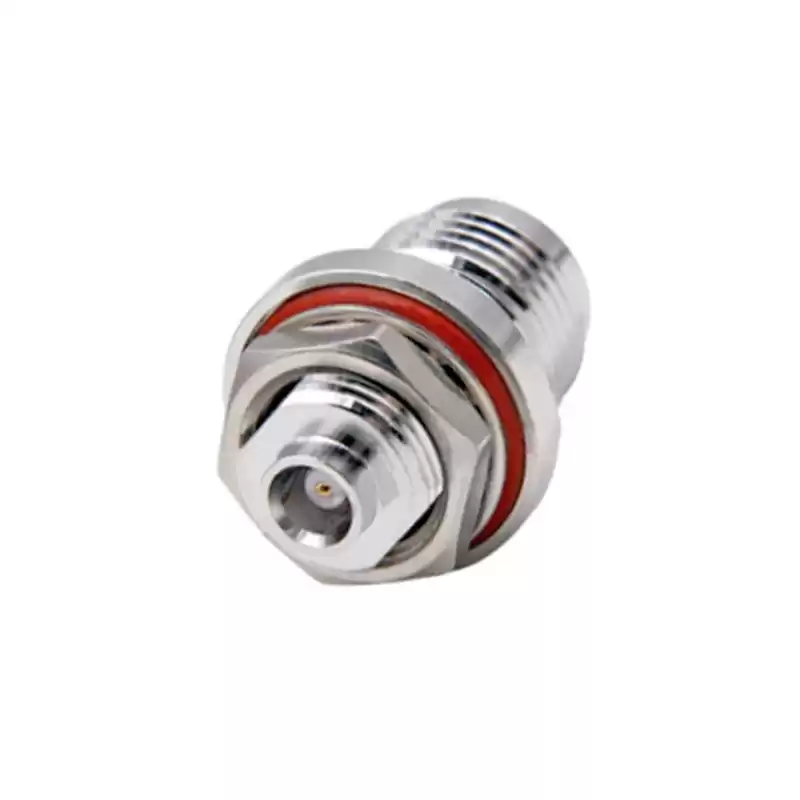

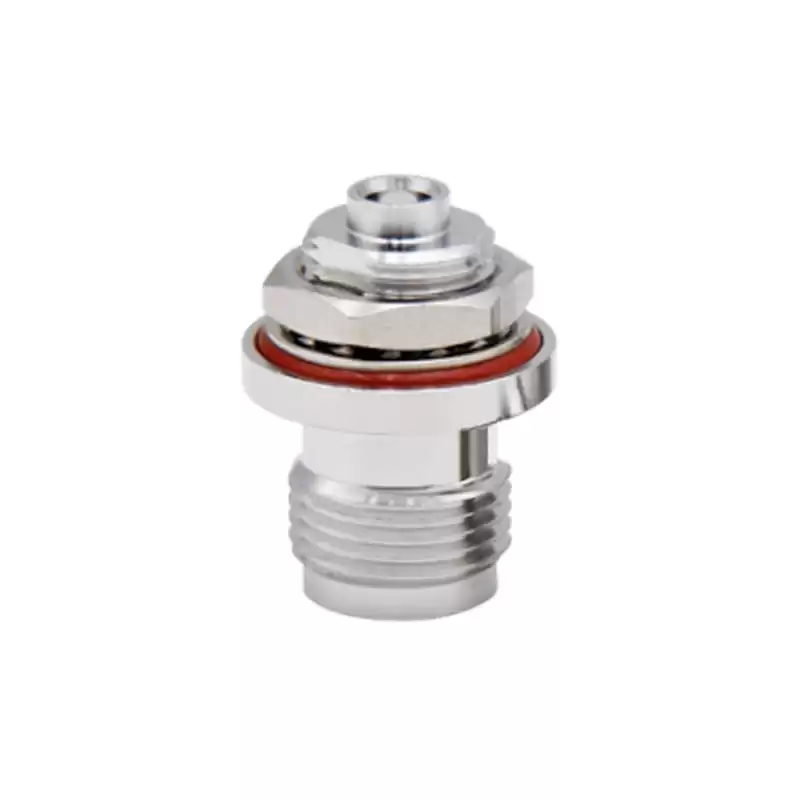

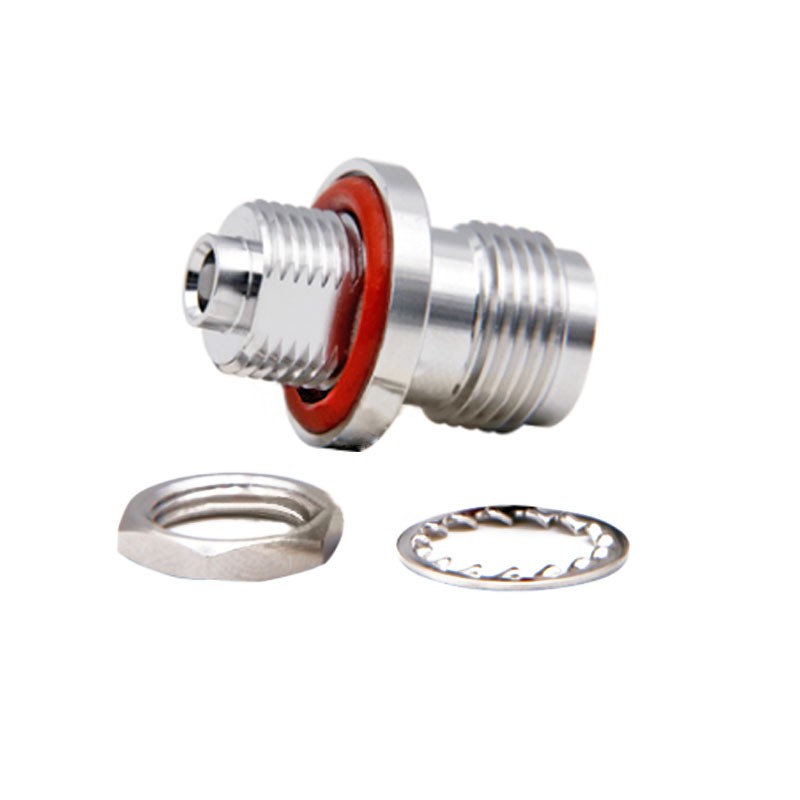

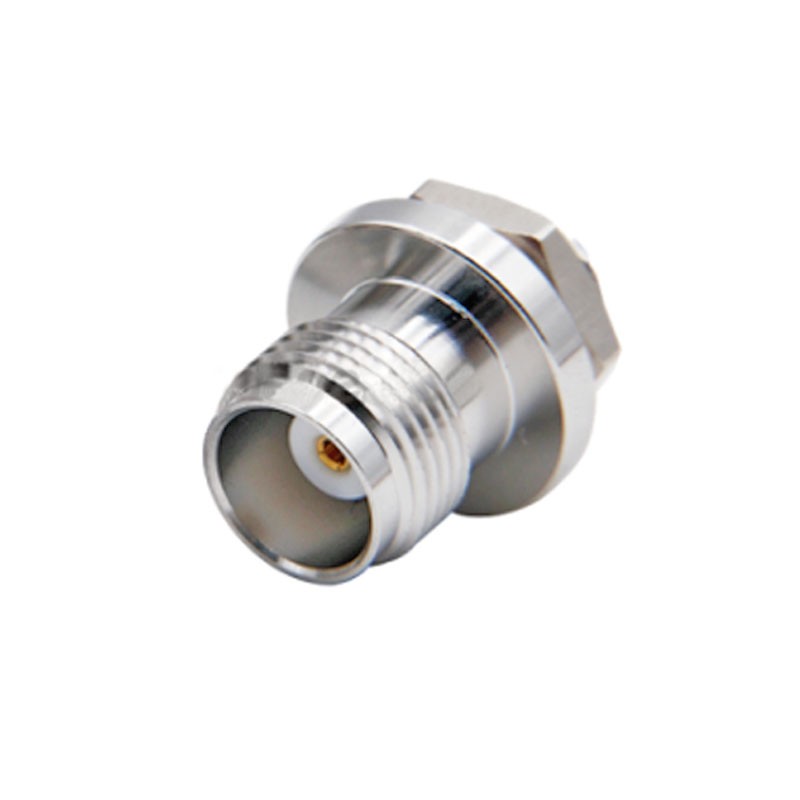

MCX Jack Female to TNC Female Bulkhead Mount RF Coaxial Connector Adapter

MCX adapters Features:

  • Allow to interface MCX connectors with BNC, MCX, MMCX, N, SMA or TNC connectors;
  • Has female to female, female to jack to female, jack to jack, jack to male, jack to plug, plug to female, plug to jack, plug to male or plug to plug gender varieties;
  • Has standard polarity or reverse polarity options;
  • Has bulkhead or mountless configurations;
  • available 50 or 75 ohm options;
  • broadband capability ranging from DC to 6 GHz.
  • Secure, fast and easy snap-on/ snap-off coupling.



MCX Jack Female to TNC Female Bulkhead Mount RF Coaxial Connector Adapter



The MCX Adapter has different MCX to TNC adapter gender, that is a connectivity of two series adapters, The  MCX to TNC adapters has jack to female, jack to male, plug to female, or plug to male gender varieties, and has bulkhead or mountless configurations. ROHO's  MCX to TNC adapters offers standard polarity or reverse polarity options. This MCX jack to TNC female adapter has a maximum frequency of 6GHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series MCX
Adapter Side 1 Style Jack
Adapter Side 2 Series TNC
Adapter Side 2 Style Female
Frequency (Max GHz) 6
Impedance (Ohms) 50
Low PIM No
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • FPV Drone, Extension Cable
  • Signal Booster, Repeaters
  • Audio, Video, Car Aerial
  • Networks, Wifi router
  • Wifi antenna, GPS
  • Radio scanners, Wlan
  • Radio, Telecom
