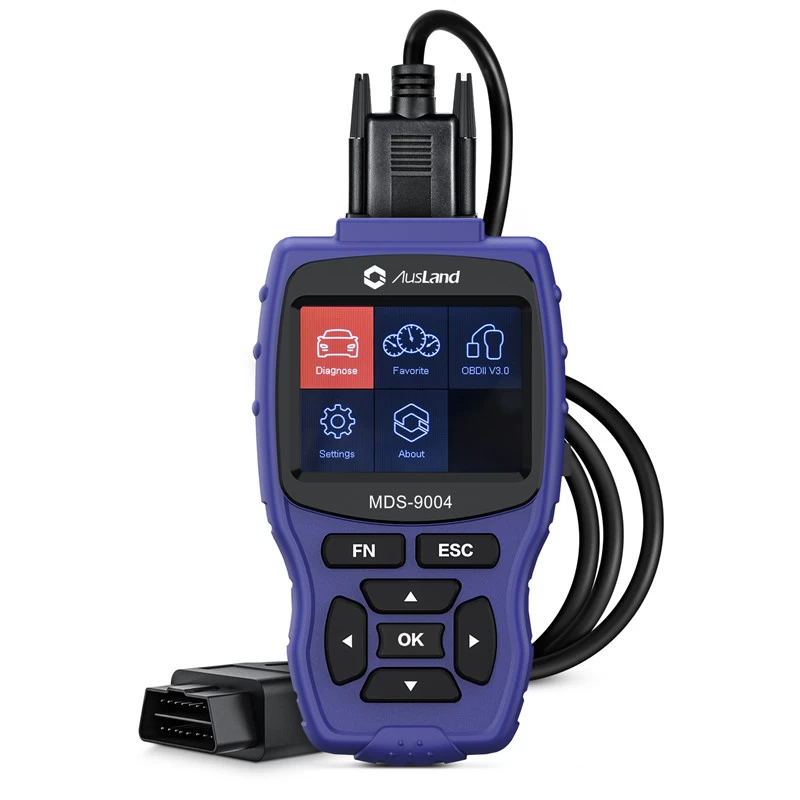

MDS-9004 Car Diagnostic Scanner Support Four Vehicles

MDS-9004 Multi-diag specialist is professional handheld scan tool, not only for small garages, independent repairs, enthusiasts, but also for technicians by delivering OE-level diagnosis on all the electronic systems.


  • Size176*102*33mm
  • weight270g

Ausland MDS-9004 for GM FORD CHRYSLER TOYOTA Prefessional Diagnostic Scan Tool

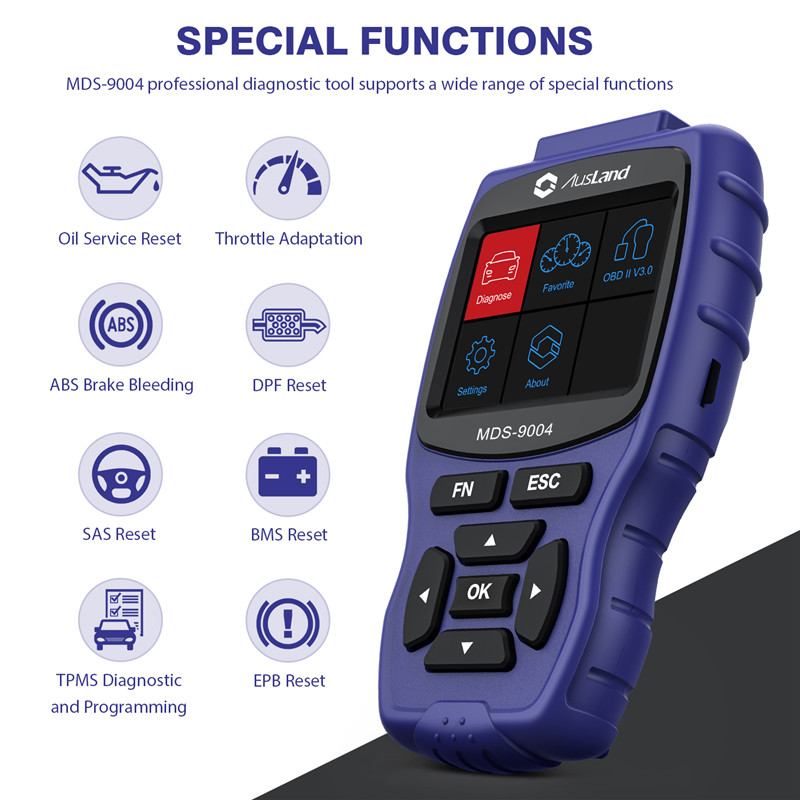

MDS-9004 Multi-diag specialist is professional handheld scan tool, not only for small garages, independent repairs, enthusiasts, but also for technicians by delivering OE-level diagnosis on all the electronic systems. It has basic functions such as codes and live data, and capable of advanced functions too, such as actuation, adaptation and programming. In addition, it can lets you to access oil service light reset, throttle body adjustment, DPF regeneration and much more commonly required service features.

car diagnostic scanner

MODELS COVERED

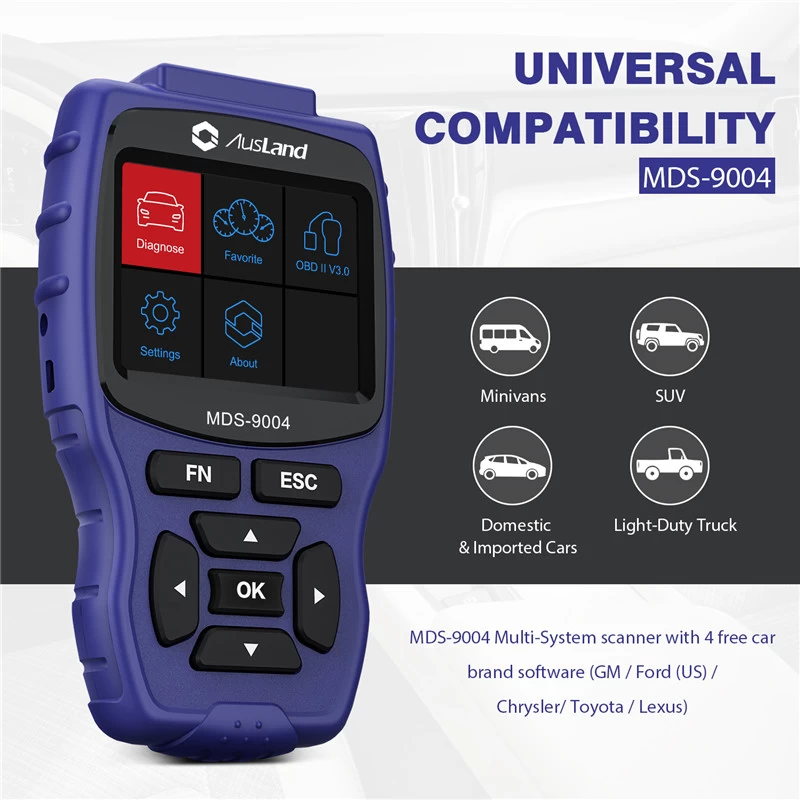

 Support for GM, for FORD, for CHRYSLER and for TOYOTA cars.

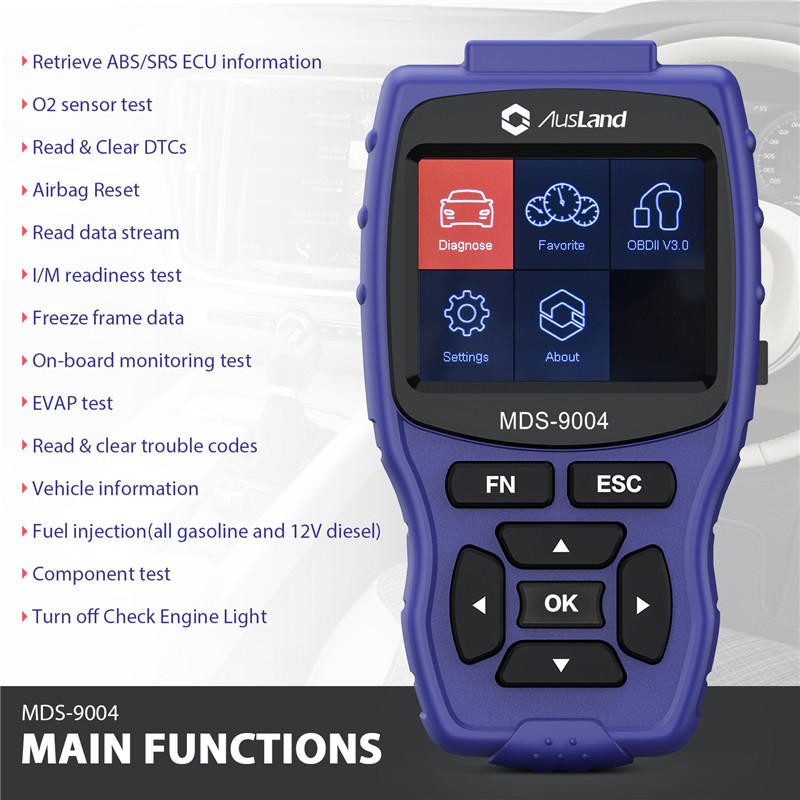

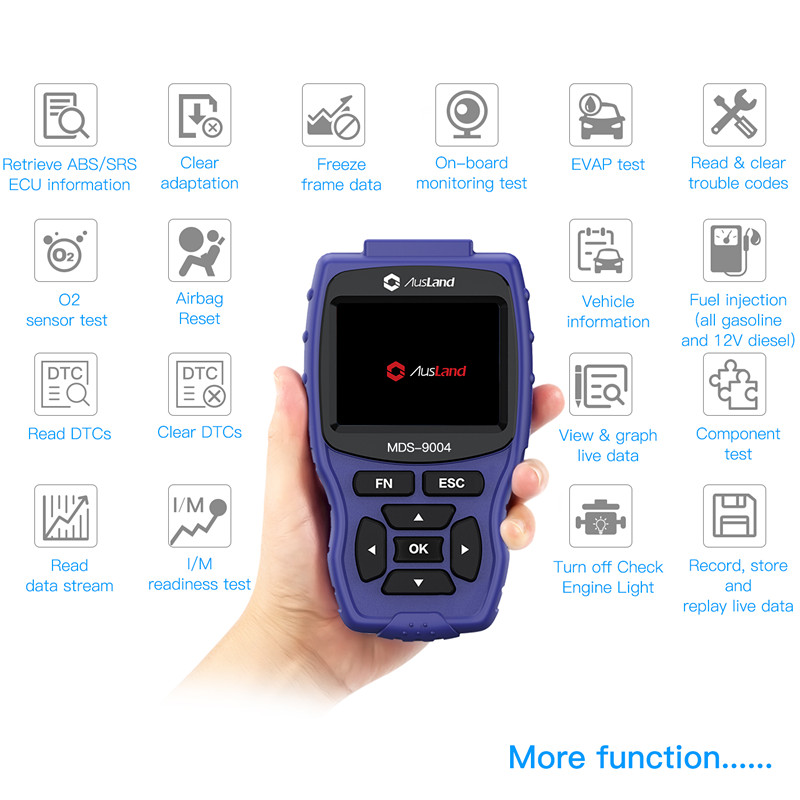

MDS-9004 Multi-diag specialist OBDII Features

l  Reads & Clear trouble code (generic & manufacturer specific DTC’s) on all the systems such as engine, transmission, abs and airbag

l  On-board readiness monitoring- to read the results of on-board diagnostic

 monitoring tests for specific components systems

l  Requests and records live sensor data

l  Provides live data graphing, Merges graphs for easy and intuitive diagnosis

l  Displays freeze frame data, providing freeze frame data as snapshot of the operating conditions at the time of an emission-related fault

l  Performs most adaptations, Does active tests on systems and components

l  Performs special functions, coding, security access

l  Retrieve ECU information

l  EVAP test – initiating a leak test for the vehicle’s EVAP system with necessary

l  procedures available

l  Fuel injection (all gasoline & 12 V diesel)

l  Resets oil service light, Oil light/service reset – supporting service lamp reset, brake pad reset service mileage, check engine light, and service interval

l  Turn off the ECU warning light, diagnoses EPB/SBC functionality

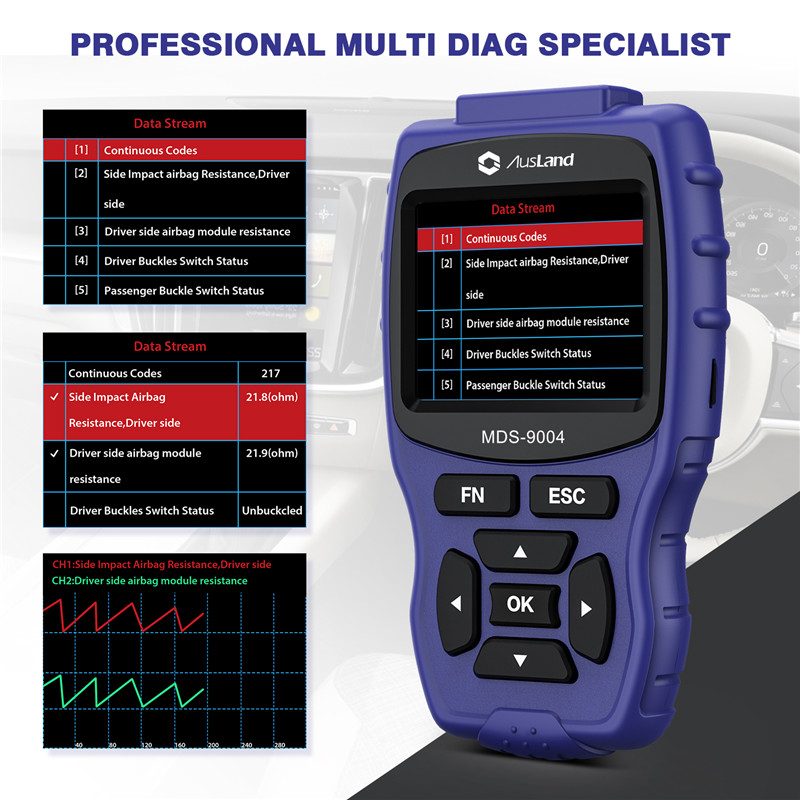

l  View & graph live data for real time graphing/live data reading

l  Component for bi-directional tests such as cycling abs solenoids

l  Re-calibration of brake control module after changing the brake pads

Replacement

l  Sets inspection 1, 2 service interval

l  Sets (non) long life oil service

l  Sets inspection mileage

l  Deactivates and re-activates brake control system

l  Retracts calipers for brake pad replacement

l  Returns calipers to the original position

l  Initializes the wear indicator if new pads installed

l  Diagnoses EPB caliper functionality

l  Code troubleshooters for faster and easier diagnosis

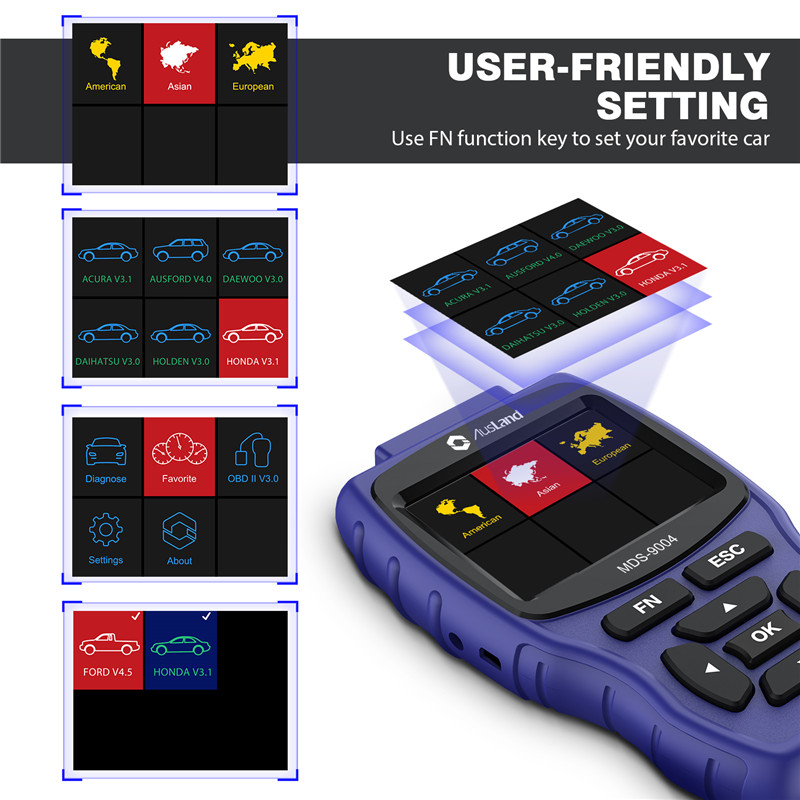

l  Multilingual menu options and code definitions

l  Memory card for data backup and software update by internet

l  Large TFT color screen and menu-driven operation

l  Multi System Platform capable

l  Read fault codes

l  Clear fault codes

l  Retrieve data stream

l  EVAP test

l  Vehicle information

l  I/M Readiness

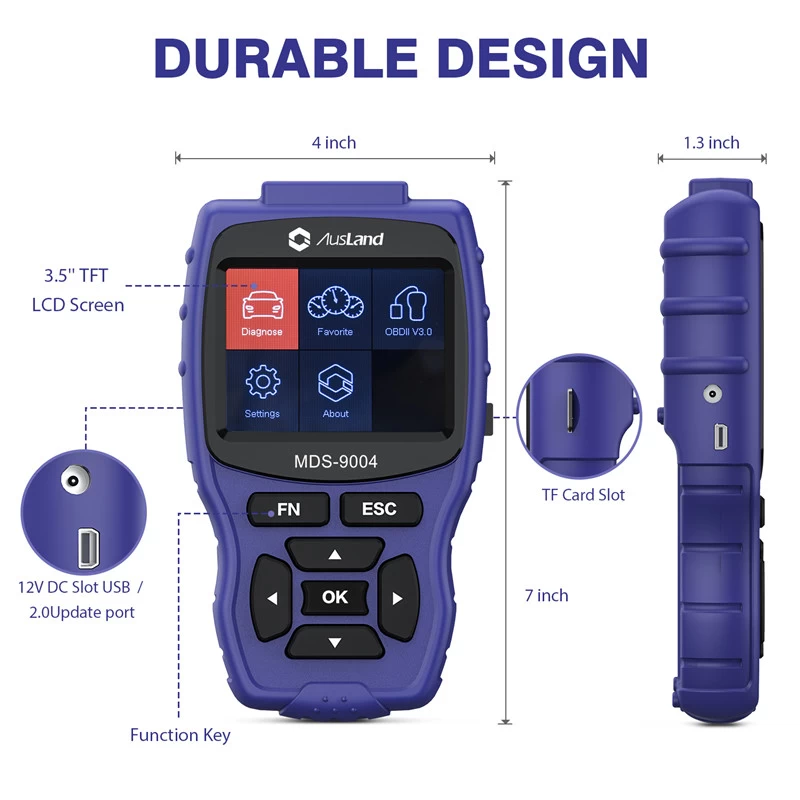

MDS-9004 Multi-diag specialist Specification:

Display: 3.5’’ TFT LCD

Operating temperature: 0 ~ +50

Storage temperature:  -20 ~ +70

Operating current: 150mA 12V(Typical)

Power consumption:1.8W(Typical)

Packing dimension: 176*102*33mm(L×W×H)

Weight: 270g

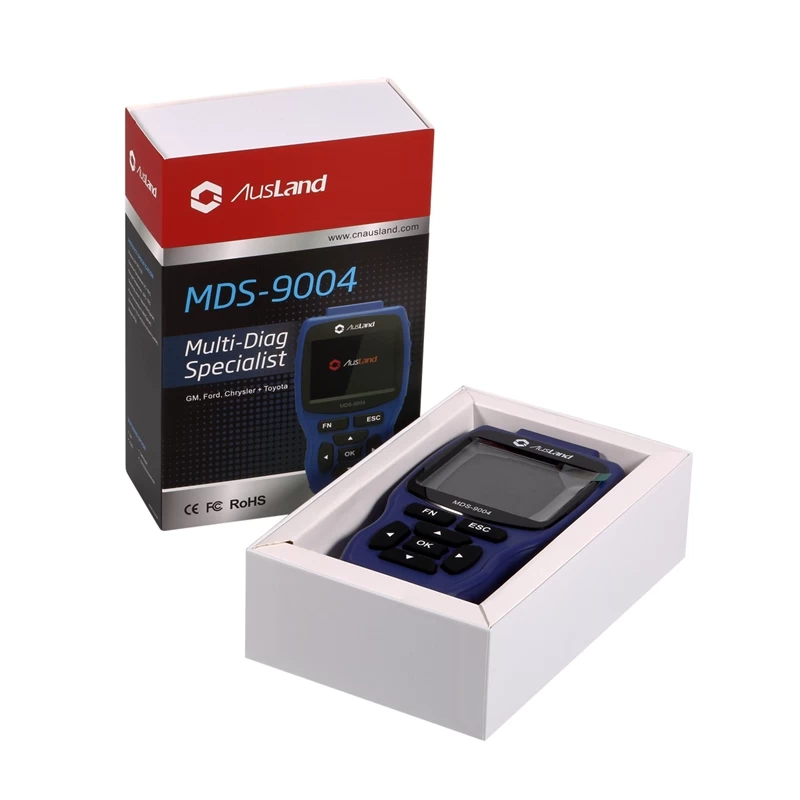

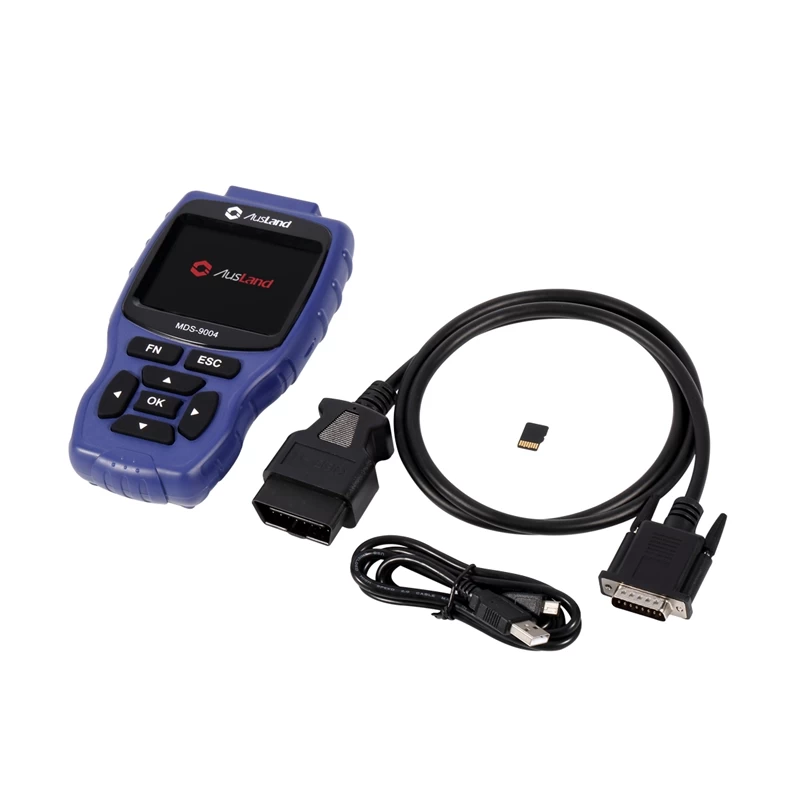

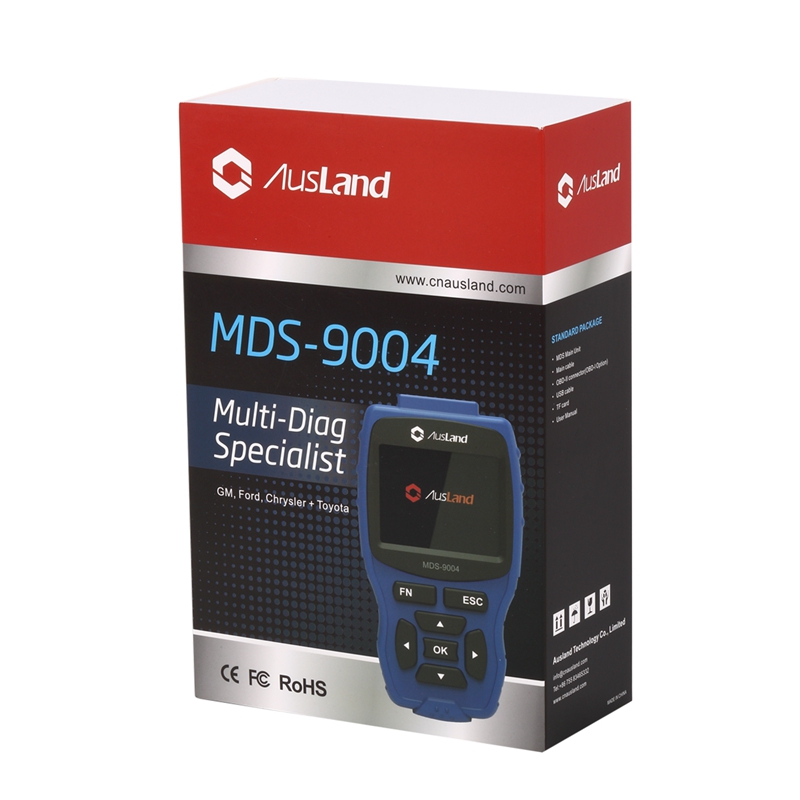

MDS-9004 Multi-diag specialist Packing list:

Main unit                      1pc

Main Cable +                1pc

OBDII-16 Connector   1pc

USB Cable                    1pc

User Manual                1pc
