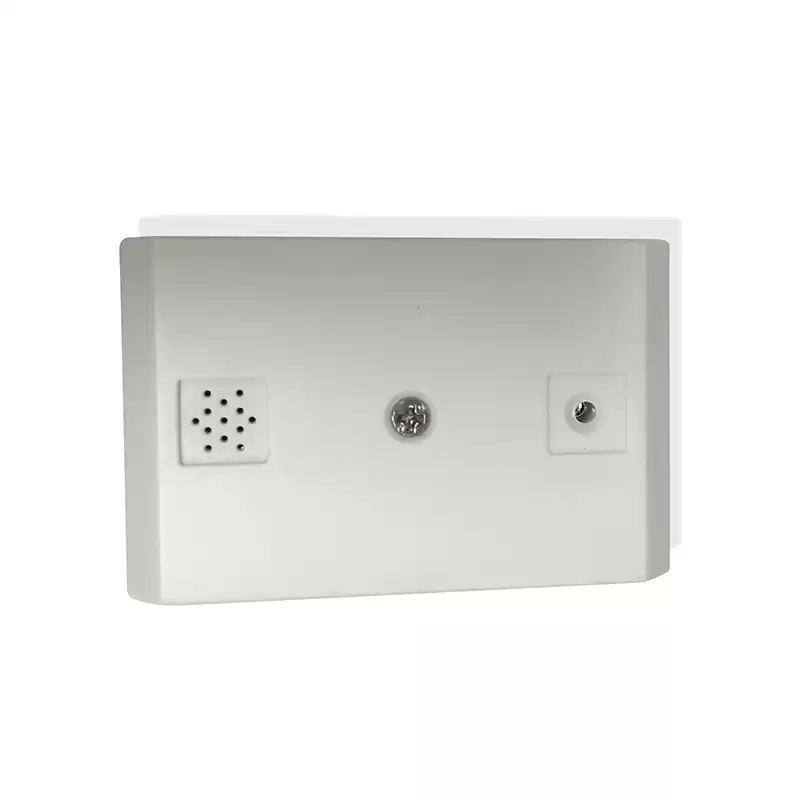

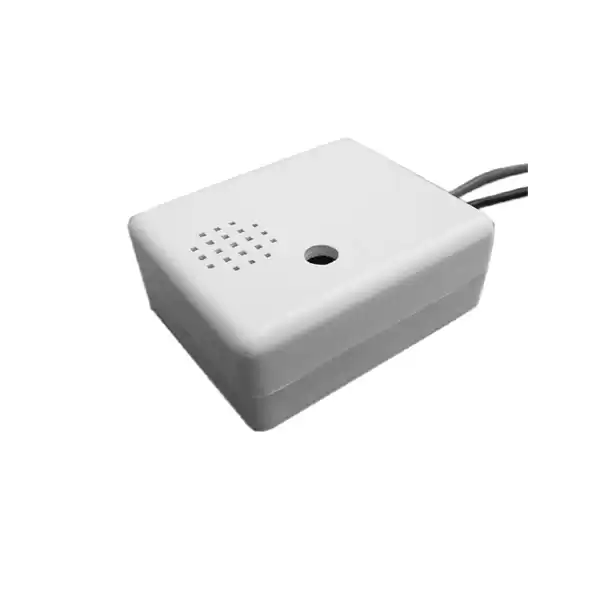

MDVR Camera External Sound Pickup

Teswell MDVR Camera External Sound Pickup, with mini size and easy to install, working with waterproof IP67 camera for MDVR video voice recording. to maker vehicle travelling safter and more convenient.



MDVR Video Sound Pickup Specification

●  Mini Size, high sensitive, low noise

●  Wide working voltage, Built-in positive protecting circuit, avoiding burned machine

●  Great front drive ability, long signal transmission

●  The reductive voice clearer more, realistic and sweet-sound

●  Compact size, suitable to surface mounted

●  Working Voltage:9V~14V

●  Working Current:5mA~60mA

●  Sensitivity:200 mA/ubar

●  Frequency:50HZ~10000HZ

●  Max Output Voltage:5V-upp

●  Dimension:40m(L)X31mm(W)X15mm(H)

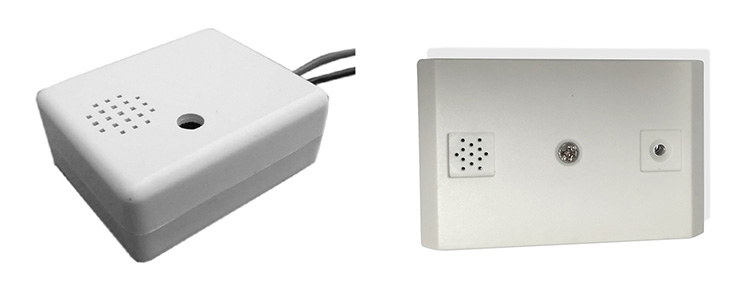

MDVR Camera External Sound Pickup

Wiring diagram for MDVR Video Sound Pickup

●  Red: DC12V

●  Black: GND

●  Green: Audio output
