Overview of ME0D0L2XXE7H
Brand Name: Huawei
Product Number: 03030PYQ
Model Number: ME0D0L2XXE7H

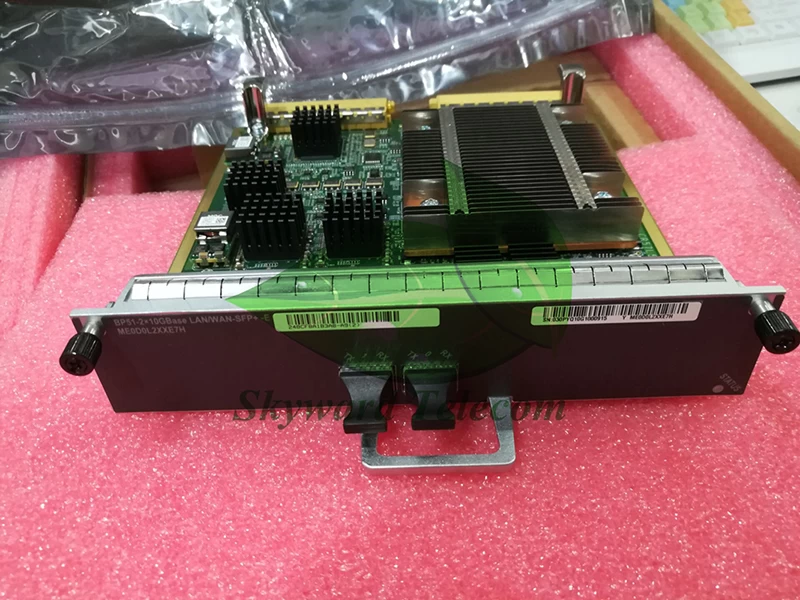

Discription: Huawei ME60 Series Multi-Service Control Gateways ME0D0L2XXE7H interface Card 2-Port 10GBase LAN/WAN-SFP+ Flexible Card E(BP51-E).
Product Series: ME60-X8
ME60-X8
High-capacity Broadband Remote Access Server (BRAS) with tightly integrated Hierarchical QoS and unified user access and management features.
Highly scalable with slots to provide various port types from 64 Kbit/s to 100 Gbit/s, up to 240 Gbit/s subscriber access line card. Supports up to 64K subscribers per Line Processing Unit (LPU), up to 256,000 subscribers per chassis.
Rich IPv6 support and industry’s largest capacity Carrier Grade NAT (GCG) service board enable smooth migration from IPv4 to IPv6 networking.
Physical parameters of the ME60-X8
|
Item
|
Specification
|
|
Dimensions (H x W x D)
|
620 mm x 442 mm x 650 mm (24.41 in. x 17.40 in. x 25.59 in.) (chassis main body dimensions)
620 mm x 442 mm x 770 mm (24.41 in. x 17.40 in. x 30.31 in.) (chassis dimensions including the chassis's front and rear assembly and cable racks)
|
|
Installation position
|
N68E cabinet or a standard 19-inch cabinet or a 23-inch rack that complies with the North American standard
|
|
Weight
|
Empty chassis
|
25.8 kg (56.89 lb)
|
|
Full configuration (maximal)
|
136 kg (299.88 lb)
|
|
Integrated chassis
|
43.2kg (95.26 1b)
|
|
Typical power consumption
|
3220W
|
|
Heat dissipation
|
10447.0 BTU/hour
|
|
DC input voltage
|
Rated voltage
|
-48 V DC
|
|
Maximum voltage range
|
-38.4 V DC to -72 V DC
|
|
AC input voltage
|
Rated voltage
|
200 V AC to 240 V AC(220V)
|
|
System reliability
|
MTBF (year)
|
21.91
|
|
MTTR (hour)
|
0.5
|
|
Ambient temperature
|
Long-term
|
0°C to 45°C (32°F to 113°F)
|
|
Short-term
|
-5°C to 55°C (23°F to 131°F)
|
|
Remarks
|
Limit of the temperature change rate: 30°C (86°F)/hour
|
|
Storage temperature
|
-40°C to 70°C (-40°F to 158°F)
|
|
Relative humidity
|
Long-term
|
5% RH to 85% RH, no coagulation
|
|
Short-term
|
5% RH to 95% RH, no coagulation
|
|
Storage humidity
|
5% RH to 95RH, no coagulation
|
|
Long-term altitude
|
≤ 4000 m (13123.2 ft). If the altitude is between 1800 meters (5905.44 ft) and 4000 meters, the operating temperature of the device must decrease by 1°Cyou for every 220 meters (721.776 ft) increase in altitude.
|
|
Storage altitude
|
Lower than 5000 m (16404 ft)
|
