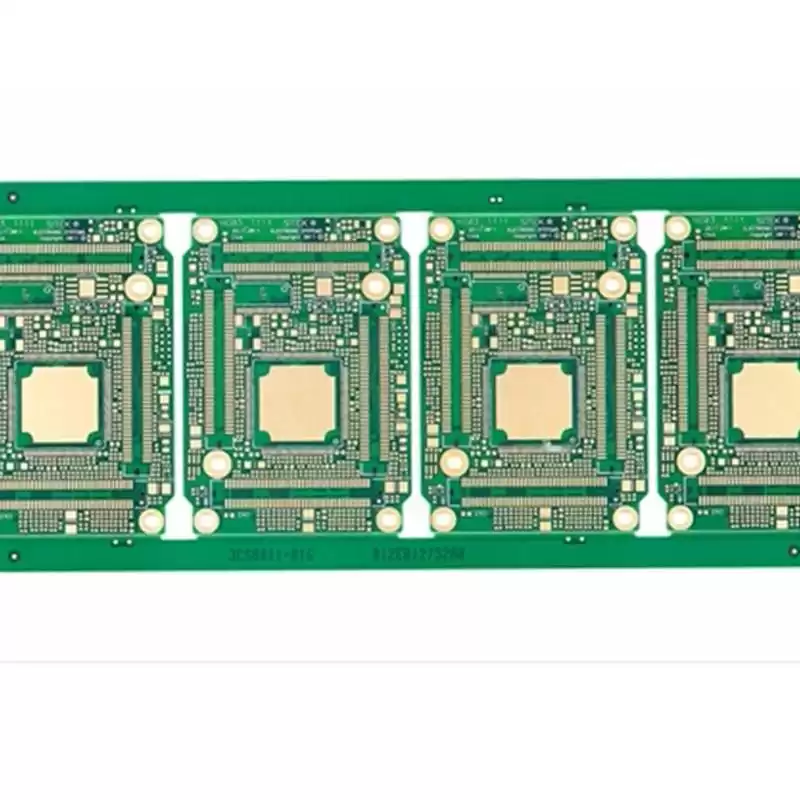

Medical Device Class First Order HDI Circuit Board

AUREOLA BAY074 Medical Device Class First Order HDI Circuit Board,High End Printed Circuit Board.

Product Name:Medical Device Class First Order HDI Circuit Board

Description

Model		BAY074
Number of layers		12L
Thickness		1.6mm
Minimum aperture		0.45mm
Minimum line width/line spacing		0.09mm/0.1mm
Inner copper thickness		18μm
Outer copper thickness		25μm
Surface treatment		Gold ENIG
Hole to line minimum distance		0.18mm

Application

Ansden Technology Co., Ltd,For High Quality PCB Fabrication Services.

PCB First Order HDI Medical
