1. Short arc xenon lamp light sources are the preferred artificial sources to simulate sunlight. The high color
temperature(6000K) of the Xenon lamps is a close match to the solar temperature. This results in very
similar solar spectra in the UV and VIS although the source has some Xe emissions lines in the near IR.
2. Application for fluorescence, Luminescence and Phosphorescence, Absorbance and Reflectance,
Photochemistry, Photolithography, Detection of optical Schlieren, Solar simulation.

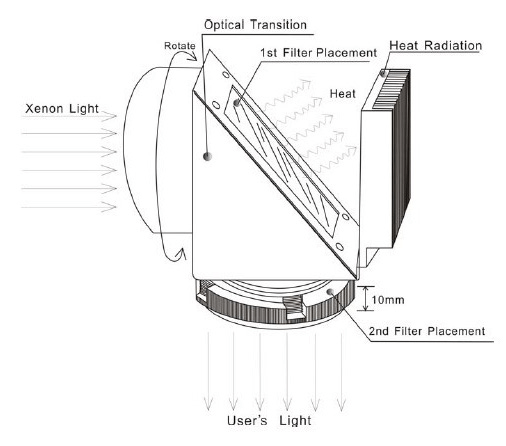

3. A spherical reflector collects the output from the rear of the lamp and focuses it on or near the arc, for
collection by the condenser.The output is increased by as much as 60 %.
|
Model
|
Description
|
Details
|
|

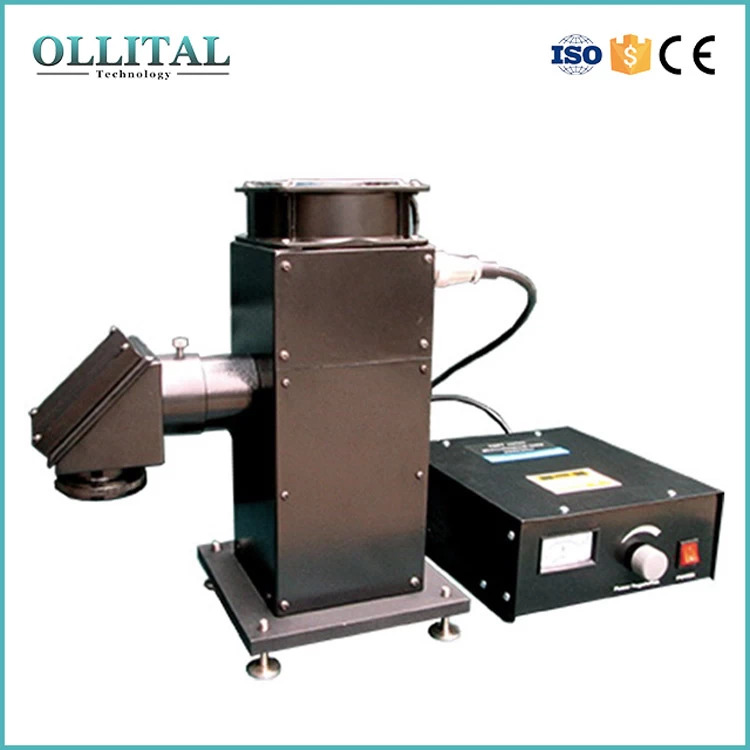

TOP-X75
|
75W Xenon Light Source
|
75W Xenon Light Source includes housing (TSH-X75),power supply（TSP-X75）and Lamp（TSL-X75), the filter are optional, pls refer the following sheet.
|
|
TOP-X100
|
100W Xenon Light Source
|
100W Xenon Light Source includes housing (TSH-X100),power supply (TSP-X100) and Lamp (TSL-X100), the filter are optional.
|
|
TOP-X150
|
150W Xenon Light Source
|
150W Xenon Light Source includes housing (TSH-X150),power supply（TSP-X150）and Lamp（TSL-X150), the filter are optional.
|
|
TOP-X180
|
180W Xenon Light Source
|
180W Xenon Light Source includes housing (TSH-X180),power supply（TSP-X180）and Lamp（TSL-X180), the filter are optional.
|
|
TOP-X250
|
250W Xenon Light Source
|
250W Xenon Light Source includes housing (TSH-X250),power supply（TSP-X250）and Lamp（TSL-X250), the filter are optional.
|
|
TOP-X300
|
300W Xenon Light Source
|
300W Xenon Light Source includes housing (TSH-X300),power supply（TSP-X300）and Lamp（TSL-X300), the filter are optional.
|
|
TOP-X450
|
450W Xenon Light Source
|
450W Xenon Light Source includes housing (TSH-X450),power supply（TSP-X450）and Lamp（TSL-X450), the filter are optional.
|
|
TOP-X500
|
500W Xenon Light Source
|
500W Xenon Light Source includes housing (TSH-X500),power supply（TSP-X500）and Lamp（TSL-X500), the filter are optional.
|
|
TOP-X550
|
550W Xenon Light Source
|
550W Xenon Light Source includes housing (TSH-X550),power supply（TSP-X550）and Lamp（TSL-X550), the filter are optional.
|
|
TOP-X700
|
700W Xenon Light Source
|
700W Xenon Light Source includes housing (TSH-X700),power supply（TSP-X700）and Lamp（TSL-X700), the filter are optional.
|
|
TOP-X900
|
900W Xenon Light Source
|
900W Xenon Light Source includes housing (TSH-X900),power supply（TSP-X900）and Lamp（TSL-X900), the filter are optional.
|
|
TOP-X1000
|
1000W Xenon Light Source
|
1000W Xenon Light Source includes housing (TSH-X1000),power supply（TSP-X1000）and Lamp（TSL-X1000), the filter are optional.
|
|
TOP-X1600
|
1600W Xenon Light Source
|
1600W Xenon Light Source includes housing (TSH-X1600),power supply（TSP-X1600）and Lamp（TSL-X1600), the filter are optional.
|
|
TOP-X2000
|
2000W Xenon Light Source
|
2000W Xenon Light Source includes housing (TSH-X2000),power supply（TSP-X2000）and Lamp（TSL-X2000), the filter are optional.
|
Lamp adjustment：
1. The housing has precise external lamp adjusters.They let you place the arc where you want it.
2. This is important for simplifying fiber and slit illumination. In many applications, this eliminates the need
for adjust any optics located beam path outside the housing.
Main features of short arc xenon light source:
1.Spectral range from UV to VIS(200-2500nm).
2.Optical axis height is 157-193mm.
3.Output beam diameter is 46mm.
4.Supports wide range of accessories.
5. Fan cooled housing.
