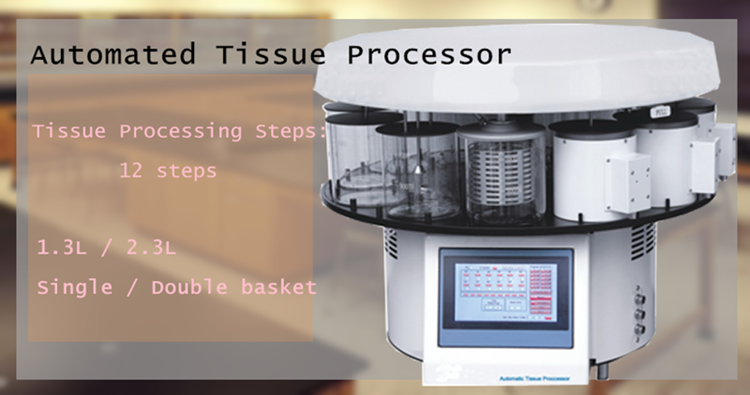

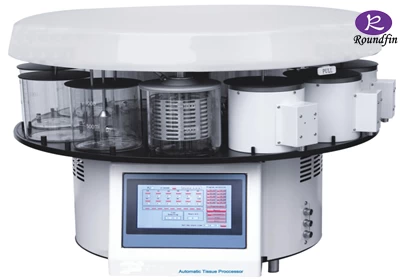

Model No.RD-500 Automatic Tissue Processor

Feature

---RD-500 Automated Tissue Processor is an advanced microprocessor-controlled tissue-processing device.

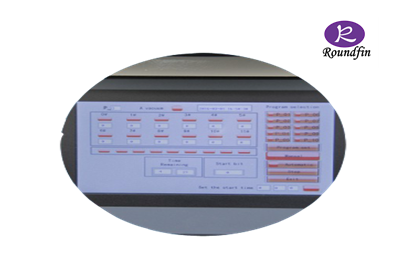

---A touch screen, easy to operate, reliable and stable.

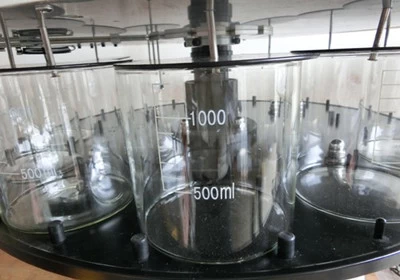

---1.3L ( or a larger volume of 2.3L) medical glass beakers are used as processing cups, allowing clear observation of tissue changes during the operation .

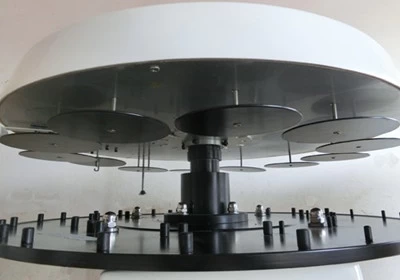

---Tissue specimen basket can be placed in a cup at any station by a mechanical arm, flexible and easy to operate.

Specification

---Tissue Processing Steps：12 Steps

---Number of Reagent Cups：9  (with a volume of 1.3L / 2.3L for a larger volume)

---Number of Paraffin Cups：3 (with a volume of 1.0L / 1.8L for a larger volume)

---Minimum time interval setting：1 min

---Frequency of basket stirring：≥10 times/hour, 30 sec for each time

---Dimensions：670mm* 540mm  (680 mm at the highest point)

---Net Weight：60KG

---Size of Basket：95*80mm

---Working Voltage：AC 220V±10% 50Hz

More Choice

Capacity：1.3L

Single basket /Double basket：Main box：72.5*72.5*67cm      60KG

                                          Accessories box：50.5*50.5*47.5 cm    31KG

Capacity：2.3L

Single basket /Double basket：Main box：86.5*86.5*71cm        64KG

                                          Accessories box：68*46.7*47.5cm   35KG
