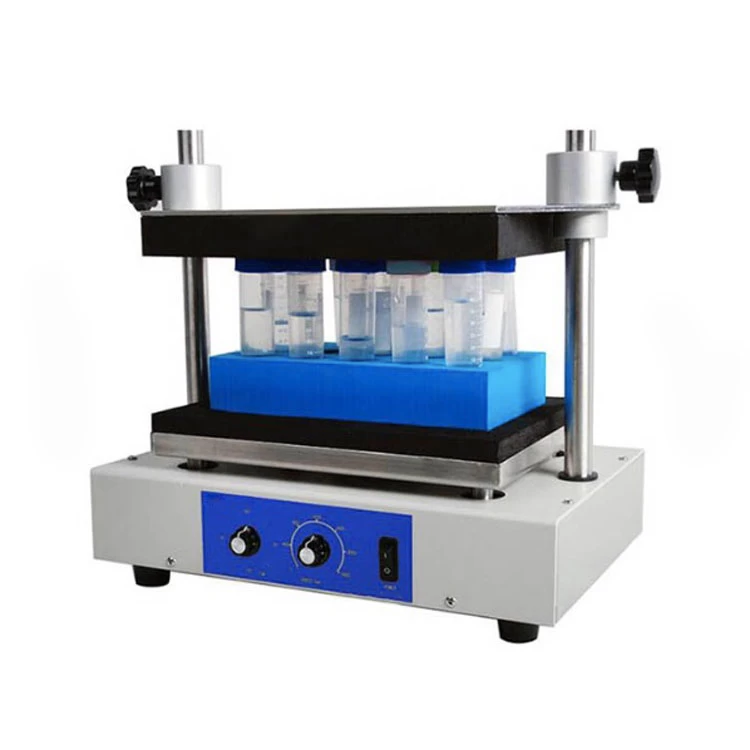

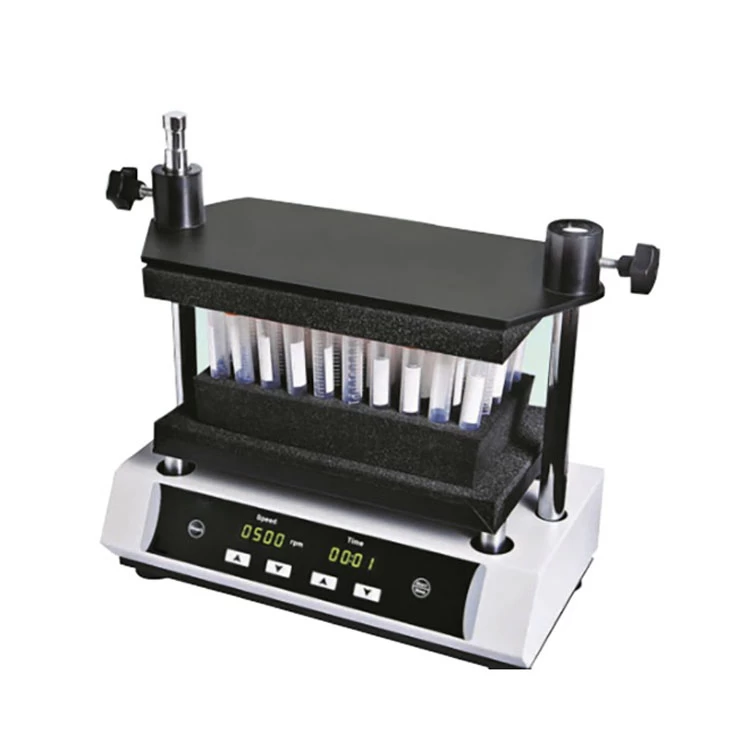

Multi-Tube Vortex Mixer, mix one can handle up to 50 samples. Speed is adjustable from 500 to 2500 rpm with electronic speed control. Built-in timer is adjustable from one minute to 99h59min operation. Various tube sizes can be mixed by simply changing the foam tube racks.

Programmable pulsing mode allows user to adjust the pulse-on and pulse-off times between 1~59 seconds in 1 second intervals. This feature enhances the vortex action by creating a more vigorous mix.

1. Can handle 50 samples

2. Two modes: continuous type of work or Programmable  pulsing mode

3. Microprocessor control

4. LCD display, and easy to use the panel

5. The variable speed microprocessor control provides consistent uniform mixing action

6. Independent LCD displays for speed and time allow operator to view both settings at once

• Speed range: 500-2500rpm
• Speed accuracy: ± 10rpm (at 2500rpm detection)
• Timing range: 1min-100h
• Working diameter: 3.6mm
• Maximum load: 4.5kg
• Dimensions: 250x426x480 mm
• Weight: 21.5kg
• Power: 230V or 120V, 50/60Hz, 60W

Optional accessories

Type Detai Dimension (mm)

 OLT-VM-1  50 x Φ10mm tube frame   245×132×45 mm
 OLT-VM-2  50 x Φ12mm tube frame   245×132×45 mm
 OLT-VM-3  50 x Φ13mm tube frame   245×132×45 mm
 OLT-VM-4  50 x Φ16mm tube frame(15ml tube)  245×132×45 mm
 OLT-VM-5  15 x Φ25mm tube frame   245×132×45 mm
 OLT-VM-6  15 x Φ29mm tube frame(50ml tube)  245×132×45 mm
 OLT-VM    Tray Pad Set (Upper & Lower)  305×178.5×25 mm

Packing and Shipping

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
