800w 48v Medical switching power supplies
Description:
This K18C series 800w switching power supplies are 800W AC/DC open frame type power supplies with PFC function that fulfill the requirement of EN61000-3-2 for harmonic current with high operating efficiency.
Features:
1, 800W high efficiency 48v single output power supplies;
2, International universal full voltage input;
3, 800W single output 48v built-in active PFC function;
4, Built-in filter, low noise, high reliability;
5, Overload, short circuit, under voltage, over voltage, over temperature protections and etc.
|
Specification
|
|
Item NO.
|
K18C-UP800S12
|
K18C-UP800S24
|
K18C-UP800S30
|
K18C-UP800S36
|
K18C-UP800S48
|
|
Output
|
Output voltage
|
+12VDC
|
+24VDC
|
+30VDC
|
+36VDC
|
+48VDC
|
|
Rated
Current
|
20cfm fan
|
58.4A
|
33.4A
|
26.7A
|
22.3A
|
16.7A
|
|
Natural air-cooled
|
33.4A
|
20.8A
|
18.4A
|
16.7A
|
12.5A
|
|
Rated
power
|
20cfm fan
|
700.8W
|
801.6W
|
801W
|
802.8W
|
801.6W
|
|
Natural air-cooled
|
400W
|
500W
|
550W
|
600W
|
600W
|
|
Ripple and noise
|
150mVp-p
|
300mVp-p
|
350mVp-p
|
400mVp-p
|
400mVp-p
|
|
Adjustable output range
|
11.4-12.6V
|
22.8-25.2V
|
28.5-31.5V
|
34.2-37.8V
|
45.6-50.4V
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±1 %
|
|
Set up,Rise,Keep up time
|
300ms,20ms,12ms
|
|
Input
|
Input Voltage range
|
100V~240V AC
|
|
Input current
|
3.8A/230Vac 7.6A@115Vac
|
|
Input frequency
|
50~60Hz`
|
|
Efficiency@230Vac
|
91.5%
|
92%
|
93%
|
93%
|
94%
|
|
Power Factor
|
PF＞0.98/115V / PF＞0.95/230V
|
|
Inrush current
|
Cold start 60A / 230Vac
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Over load protection
|
Hiccup protection of 105 ~ 150%, automatic recovery.
|
|
Short circuit protection
|
Deadlock protection, need to restartfor recovery.
|
|
Over Voltage protection
|
> 120% off, deadlock protection, need to restartfor recovery.
|
|
Over temp. protection
|
WhenTS1 protectionis more than 105°C , it will automatically recovery.
|
|
Funtion
|
Fan auxiliary
|
12V@0.3A power supply for fan, error ± 15%
|
|
Environment
|
Working Temp.,Humidity
|
-20~70℃，10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety standards
|
GB4943 EN60950, EN60601
|
|
Withstand voltage
|
I/P-O/P:3KV; I/P-FG：1.8KV；O/P-FG:0.6KV AC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
EN55015
|
|
Othes
|
MTBF
|
＞50K hrs
|
|
Dimension(L*W*H)
|
168*82*40 mm
|
|
Weight
|
0.8 KG
|
|
Note
|
1. All parameters are measured at 230VAC input, rated load, ambient temperature 25 ℃, humidity 70%;
2. Accuracy: including setting error, line adjustment rate, load adjustment rate, etc.;
3. Ripple test: connect the power supply and load with a 30cm long twisted wire, with 0.1u and 47u capacitors on the load side and 20MHz oscilloscope on the load side；
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output from 0% to 100% load change load measured；
6. When the loadis more than 400w,itneed to increase at least 10CFMforfan cooling.
|

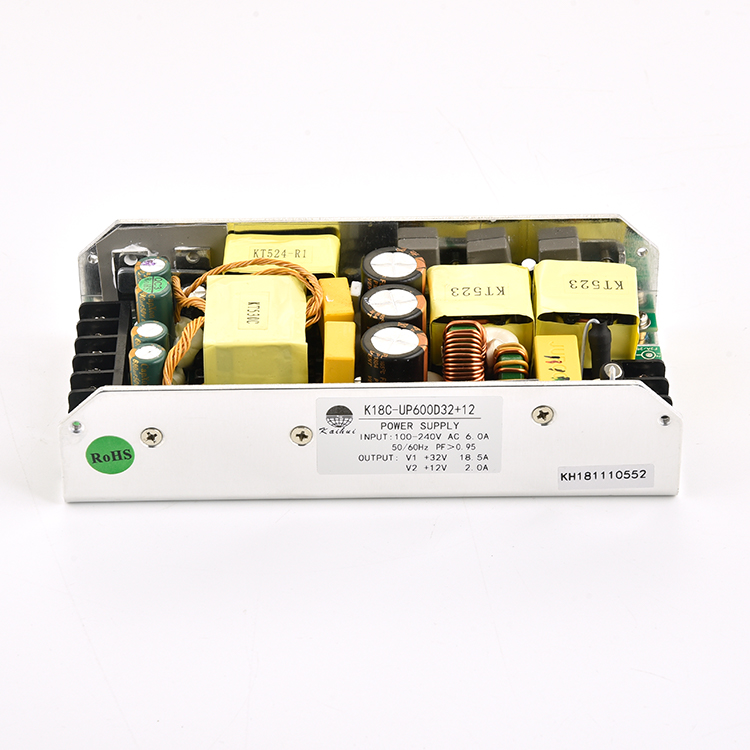

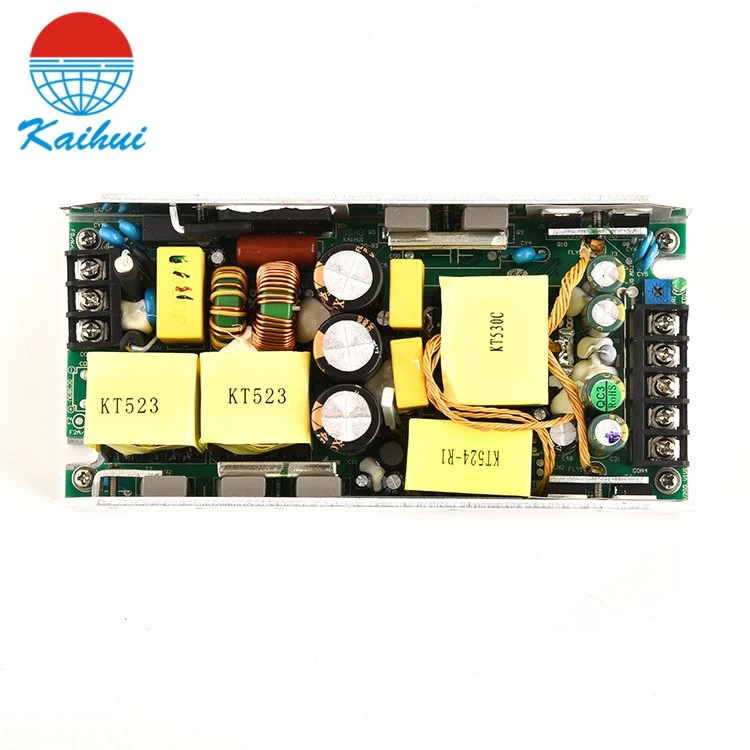

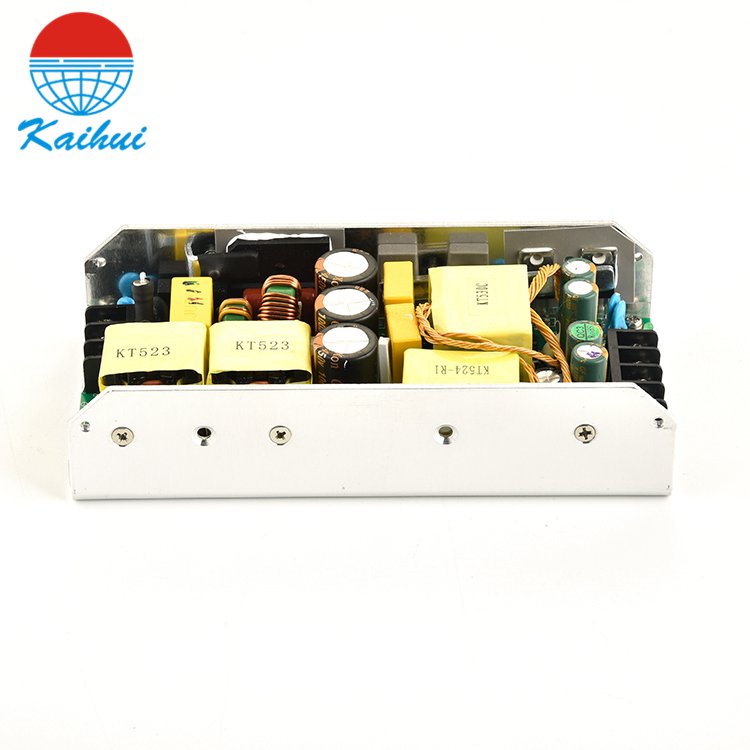

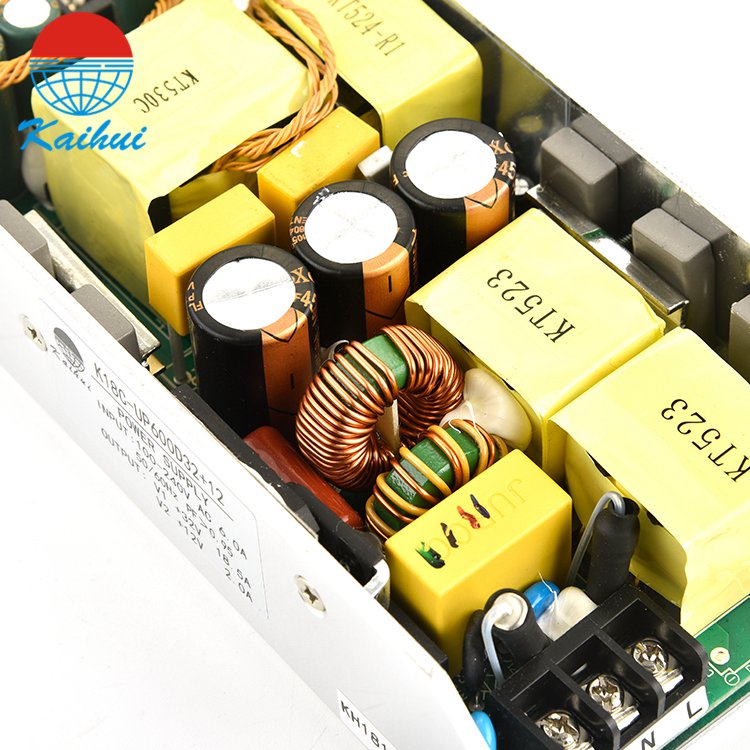

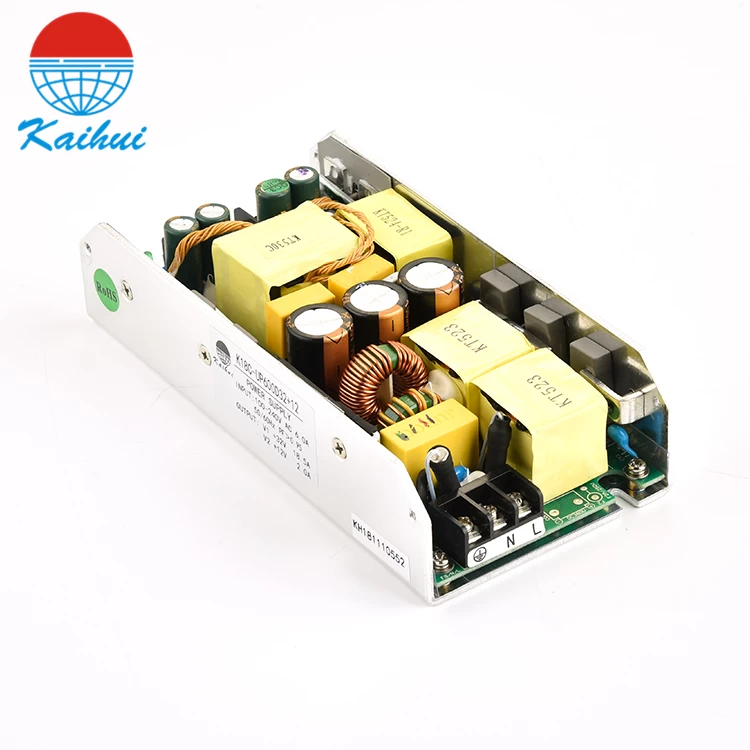

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
