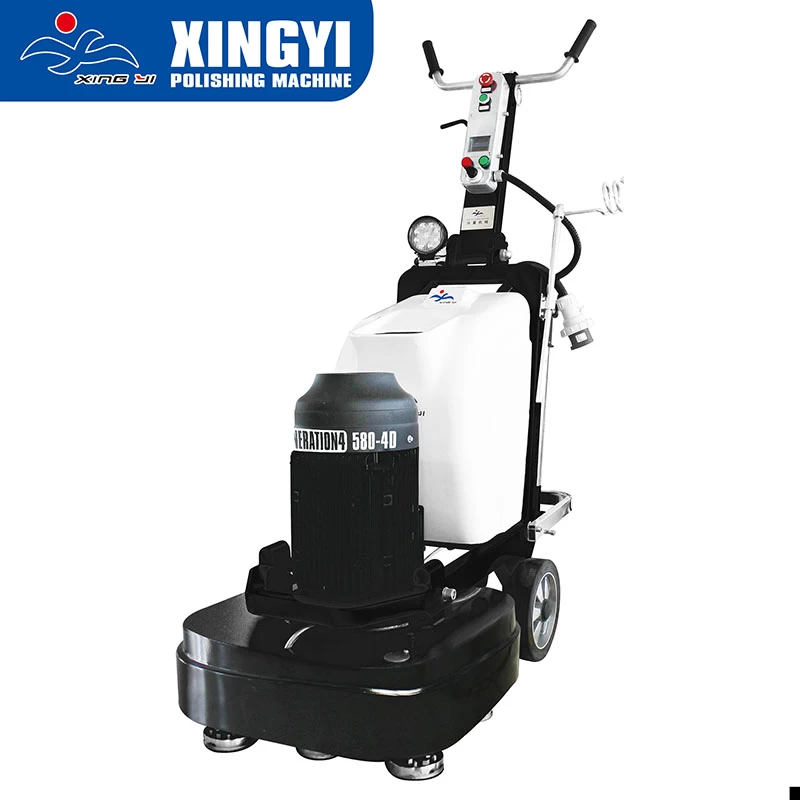

XY-Q8C surface grinder machine supports three kinds of voltage, catering for your requirement, high quality and good performance formedium sized cement grinding.
| Model |
580-4D |
| Operating width |
580mm |
| Grinding disc |
4*300mm |
| Rotating speed |
450-1680rpm |
| Horse power/HP |
Motor:10HP/Inverter:15HP |
| Amperage |
15.5A |
| Voltage |
380-440V three phase |
| Weight |
215kg |
| Additional weight |
30kg |
| Water tank capacity |
20L |
| Packing size |
122*80*120cm |
| Certificate |
CE/SGS/ISO9001 |
| Configuration |
Wonder IE2 motor+Delta inverter |
The griding plate and gearbox for the cement grinding machine are made of aluminum alloy.

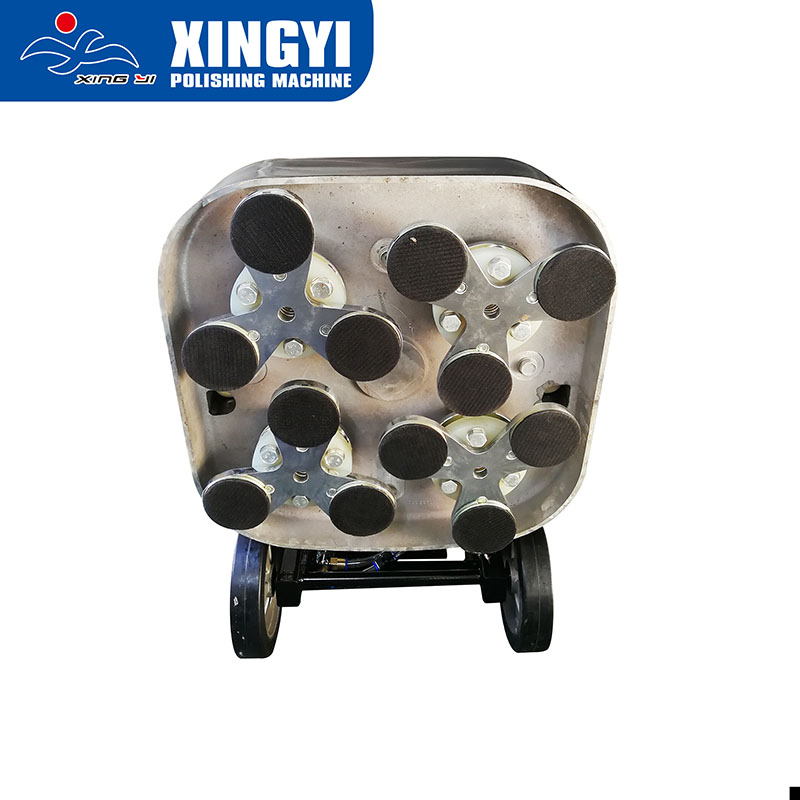

The surface grinder is available for 12 pcs pads installation and it's multifunctional plate which can install different kinds of pads, such as HT series pads, lock-in pads and velcro pads.

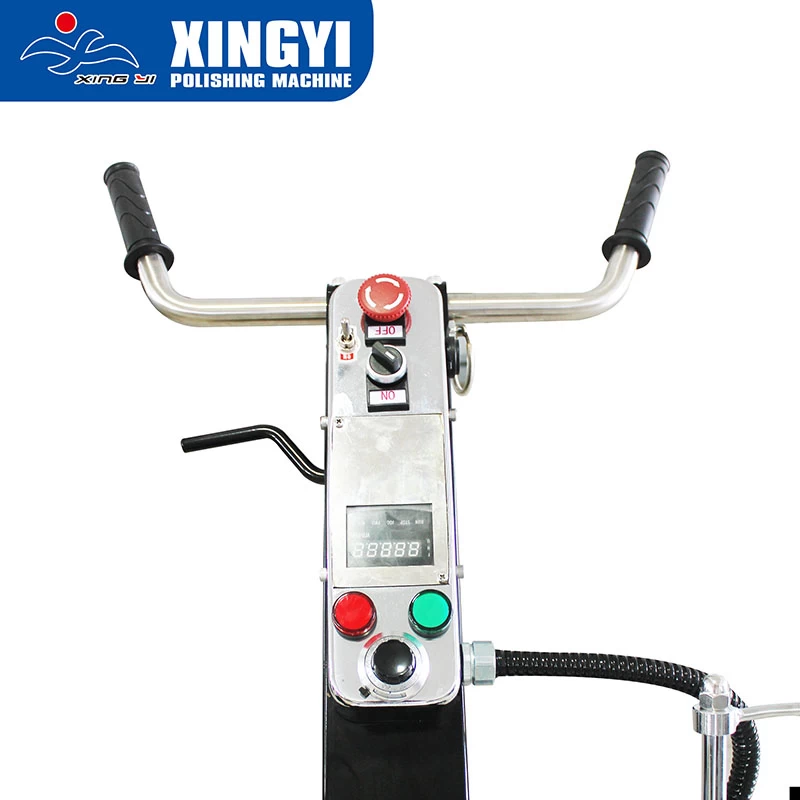

Collapsible handgrip, separable design, conenient to handle.
Equipped with heavy-duty aluminum alloy motor which ensures light weught but stronger power, it can greatly increase the work efficiency for the floor.
Automatic pressure adjusting control system can meet different needs of construction technology.
The medum sized machine can be equipped with vacuum equipment to achieve dry and wet working type.
