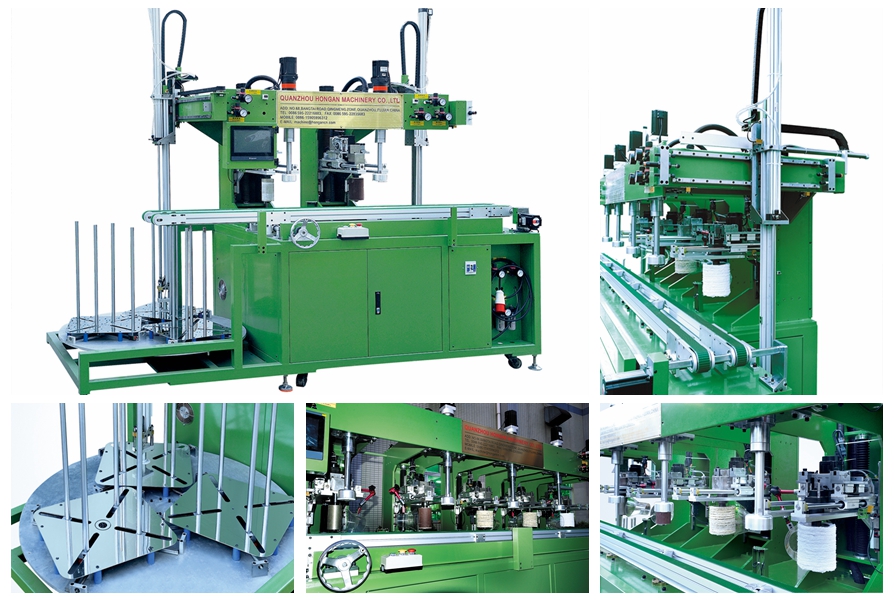

TWO-HEAD AUTOMATIC EDGE GRINDING MACHINE FOR MELAMINE TABLEWARE
Equipment Specification
This machine adopts three station rotary stacking and discharging, up to 800 pieces can be stacked; the robot automatically takes the material to the conveyor belt, and the robot automatically place the finished products; it can polish square, rectangular, round, oval, shaped and other products.
Grinding speed
Round Products: 600-840pcs per hour
Non-round Products: 400-600pcs per hour
Using for the products with dimension of 150-600mm
Technical Parameters
|
Model
|
HA2MB-100-600
|
|
Voltage
|
220V/380V/415V
|
|
Frequency
|
50Hz
|
|
Power
|
1.5KW
|
|
Work
Pressure
|
0.5-0.8MPA
|
|
Weight
|
1500KGS
|
|
Dimensions
|
2970×1500×2030mm
|
■ PS: Specifications subject to change without notice.
Working Principle
*The grinding control device of the fully automatic melamine tableware grinding machine performs the left and right displacement work on the machine base along the slide rail, and sequentially slides through the horizontal rotary table device for grinding work.
*The tableware grinding machine has a high degree of automation. Two sets of horizontal rotary table devices can automatically convert the grinding work through the brake assembly.
*In addition, the circular grinding paper on the grinding rack can be easily replaced, and the working efficiency is high. The burrs on the edge of the tableware can be smoothed evenly.
