Model
|

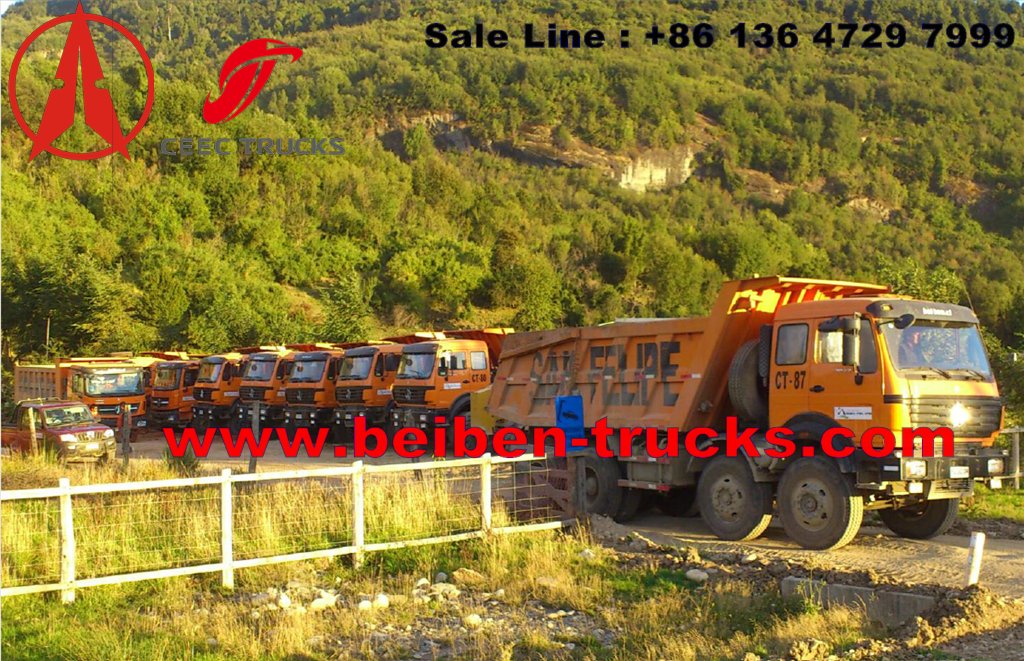

8x4 dump truck Based on Mercedes Benz technology
|
Cabin
|
Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; With inner A/C
|
Engine
|
Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
|
Model:
|
WP10. 380E32
|
WEICHAI Diesel engine
|
|
MAX Horse power:
|
380HP/279KW
|
|
Displacement(L):
|
9.726liters
|
|
Max torque:
|
1500NM@1200-1600rpm
|
|
Bore/stoke:
|
126mm/130mm
|
Gear box
|
|
Max torque:2000NM
|
|
Model:
|
12JS200T
|
|
Speed:
|
12speed,2reverse
|
Axle(front/rear)
|
Front axle
|
Double-shoe pneumatic brake, non-driving steering axle
|
Tandem
|
Double-shoe pneumatic brake, casting, double reduction driving axle
|
Clutch
|
Single dry frictional disc,Hydraulic boosting
|
Brake
|
Service brake: Double circulation air brake system
|
|
Parking brake: Potential springs pressing on middle and rear wheels
|
|
Engine brake: Engine exhaust brake(EVB)
|
Steering
|
TAS85, driver sit at the left hand side
|
Electric Equipment
|
|
Operating voltage:
|
24Vnegative grounded
|
|
Starter:
|
24V,5.4KW
|
|
Alternator
|
28V,758W
|
|
Battery voltage
|
12V/135Ah,cigar lighter
|
Frame
|
Fish belly, shape, variable width, variable sections, side beam structure.
|
Tyre
|
10+1 spare tyre with rim
|
|
12.00-R20
|
Suspension system: strengthen heavy duty Leaf spring type
|
|
Front/Rear
|
12/12/13
|
Dump body: type of body :
|
Inside size of Body(mm): 8500x2300x1500 ,6x8mm, made of high intensity steel
|
Lifting type: Front lifter “T” type hydraulic system.
|
Overall dimension(mm): 11380x2500x3484(Length x width x height)
|
Wheelbase
|
1950+4600+1450mm
|
Track:
|
|
|
Front/Rear
|
2045/1872
|
|
Approach/Departure angle
|
26/27
|
|
Front /Rear overhang
|
1410/2020
|
|
Max speed
|
90km/h
|
Curb weight:
|
15150kg
|
Oil tank capacity
|
300L fuel tank
|
