Product Name: The SMT stencil Mesh cleaning paper/wipe
Providing you the Private label service/Customized brand print service
Model: DWM-5010B

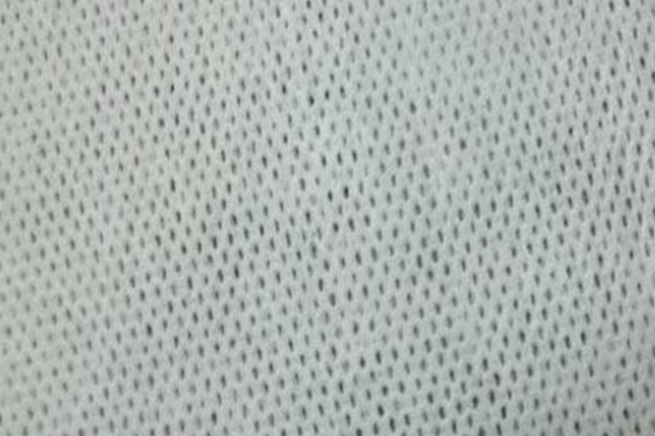

Material: Non-woven
Color: white
Composition: 55% Wood pulp + 45% polyester fiber
Certification: ISO, SGS, RoHs

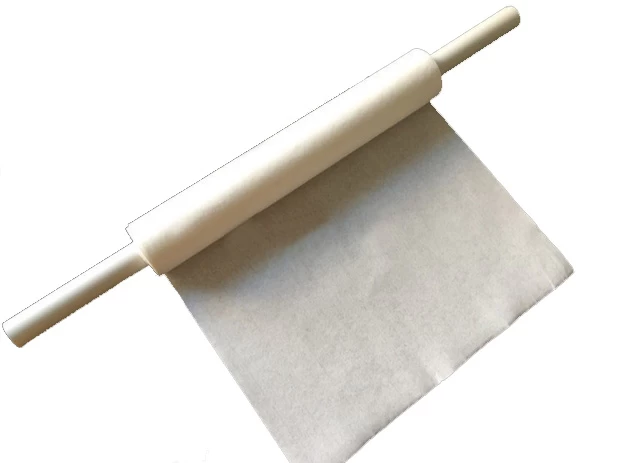

Shape: Roll
Gram Weight: 50-68gsm
The SMT stencil wiping paper/wipe is made by the 55% wood pulp & 45% polyester , or 100% polypropylene, or viscose & polyester. 3 kinds of wipe material for option.
The gram weight of wipe could be: 50gsm, 56gsm, 68gsm, etc different material for choosing.
SMT Stencil Cleaning Roll Core: Card Paper Core/ Plastic core
Paper Roll Cloth Width and Length: different size could be customized.
Different machine SMT Stencil Cleaning Wiper Paper Roll is available, such as DEK, Panasonic, MPM, MINAMI, EKRA, etc.
Product Features of the SMT stencil cleaning wipes
1. The SMT stencil cleaning wipes is very tough and durable, high water and oil absorption, soft, Lint free and anti-static properties.
2. The material is very soft make sure no any scratches and damage the surface of the object.
3. Compatible with the cleaning solution.
4. Super absorbent ability four times faster than ordinary cotton rag.
5. Efficient removal of stains, degreasing ability, The SMT cleaning wipes did not contain any chemical adhesives.
Application
It is a high standard SMT stencil cleaning wipe, It is a professional SMT cleaning wiper for the the electronics industry dedicated printed circuit board SMT . The wiper can effectively remove the buildup in the press stencil, circuit boards excess solder paste, red plastic, holding an electronic circuit board spotless, thereby greatly reducing the scrap rate.
It greatly improve production efficiency and product quality.
It can be used for cleaning the brand of MPM, DEK, KME, YAMAHA, MINAMI, JUKI, EKRA, PANASERT, FUJI, SANYO and all other automatic printing models.
|
Machine/Brand
|
Specification(Pipe ID* Pipe length*Paper width/Paper Length)
|
Tube Feature
|
Opening of the pipe
|
|
MPM
|
Φ19.5*455*250*10
|
12 Groove Plastic Tube
|
None
|
|
MPM
|
Φ19.5*455*300*10
|
12 Groove Plastic Tube
|
None
|
|
MPM
|
Φ19.5*455*330*10
|
12 Groove Plastic Tube
|
None
|
|
MPM
|
Φ19.5*455*350*10
|
12 Groove Plastic Tube
|
None
|
|
MPM
|
Φ19.5*455*400*10
|
12 Groove Plastic Tube
|
None
|
|
DEK
|
Φ20.0*530*250*10
|
Plastic Tube
|
"I" opening on one side or both
|
|
DEK
|
Φ20.0*530*300*10
|
Plastic Tube
|
"I" opening on one side or both side
|
|
DEK
|
Φ20.0*530*400*10
|
Plastic Tube
|
"I" opening on one side or both side
|
|
DEK
|
Φ20.0*530*490*10
|
Plastic Tube
|
"I" opening on one side or both side
|
|
DEK
|
Φ20.0*530*500*10
|
Plastic Tube
|
"I" opening on one side or both side
|
|
GKG
|
Φ20.0*410*400*10
|
Plastic Tube
|
"+" opening on both side
|
|
GKG
|
Φ20.0*410*300*11
|
Plastic Tube
|
"+" opening on both side
|
|
EKRA
|
Φ13.5*400*300*10
|
Plastic Tube
|
"I" opening on both side
|
|
EKRA
|
Φ13.5*400*400*10
|
Plastic Tube
|
"I" opening on both side
|
|
SONY
|
Φ20.0*280*260*20
|
Plastic Tube
|
"I" opening on both side
|
|
PANASONIC
|
Φ30.0*360*300*10
|
Paper Tube
|
None
|
|
PANASONIC
|
Φ38.0*350*350*10
|
Paper Tube
|
None
|
|
YAMAHA
|
Φ25.5*360*350*10
|
Paper Tube
|
None
|
|
YAMAHA
|
Φ25.5*420*400*10
|
Paper Tube
|
None
|
|
KME
|
Φ38.0*480*480*20
|
Paper Tube
|
None
|
|
MINAMI
|
Φ8.0*290*270*10
|
Plastic Tube
|
"I" opening on both side
|
|
MINAMI
|
Φ8.0*410*350*10
|
Plastic Tube
|
"I" opening on both side
|
|
DESEN
|
Φ20.0*410*300*10
|
Plastic Tube
|
"I" opening on both side
|
|
JUKI
|
Φ38.0*270*260*15
|
Plastic Tube
|
None
|
|
JUKI
|
Φ38.0*353*345*15
|
Plastic Tube
|
None
|
|
JUKI
|
Φ38.0*408*400*8
|
Plastic Tube
|
None
|
|
JUKI
|
Φ38.0*535*520*12
|
Plastic Tube
|
None
|
|
FUJI
|
Φ26.0*500*500*15
|
Paper Tube
|
None
|
|
Others
|
Accept customized size
|
Customized
|
None
|
specification
OEM SIZE AND SERVICE IS AVAILABLE
The width, length and lined pipe diameter, length can be customized by the customer requirement and SMT model.
Welcome to send us a inquiry.
