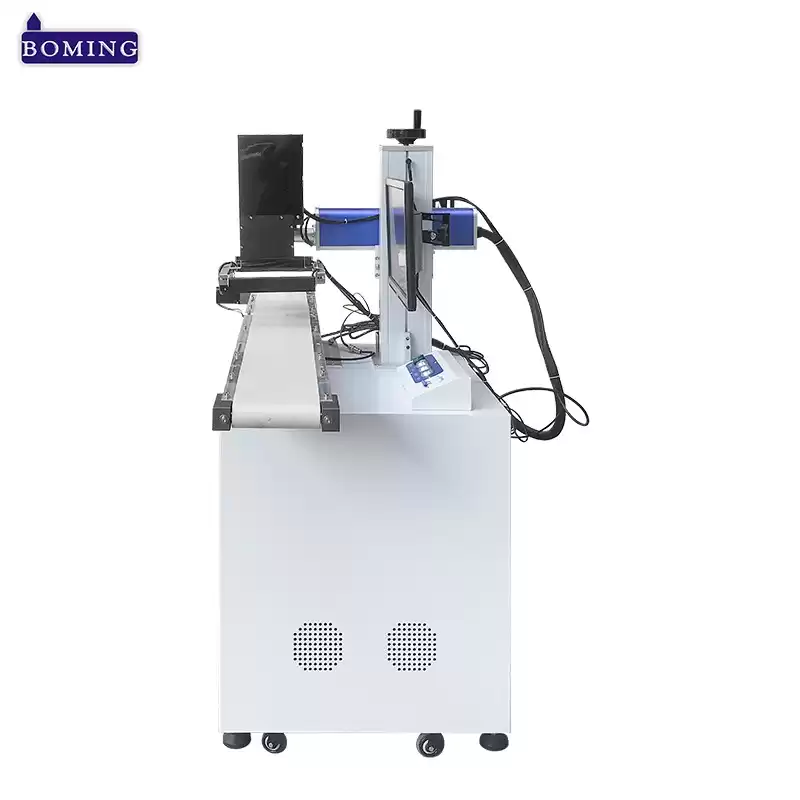

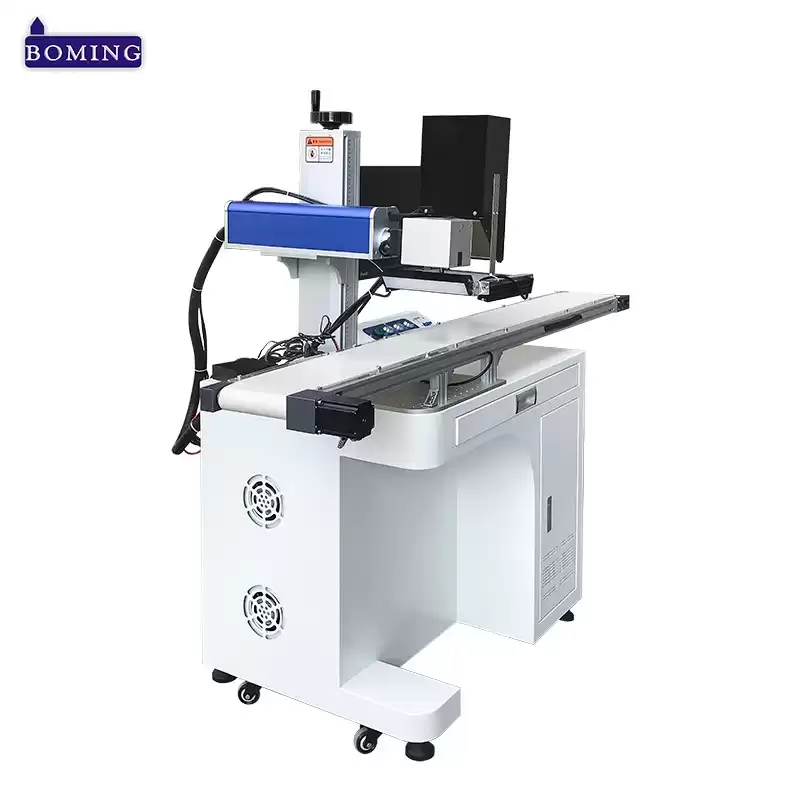

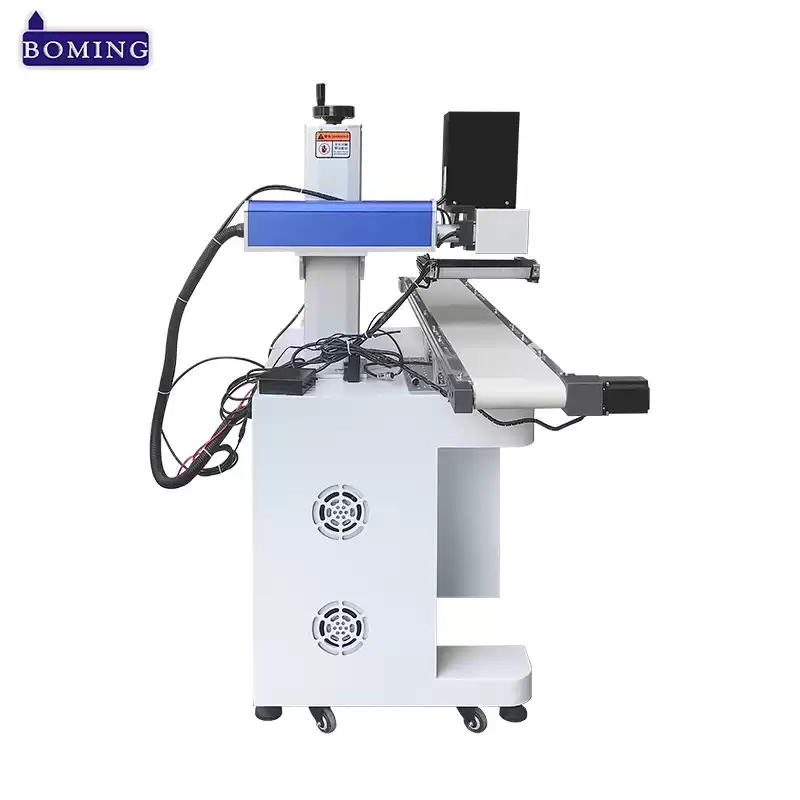

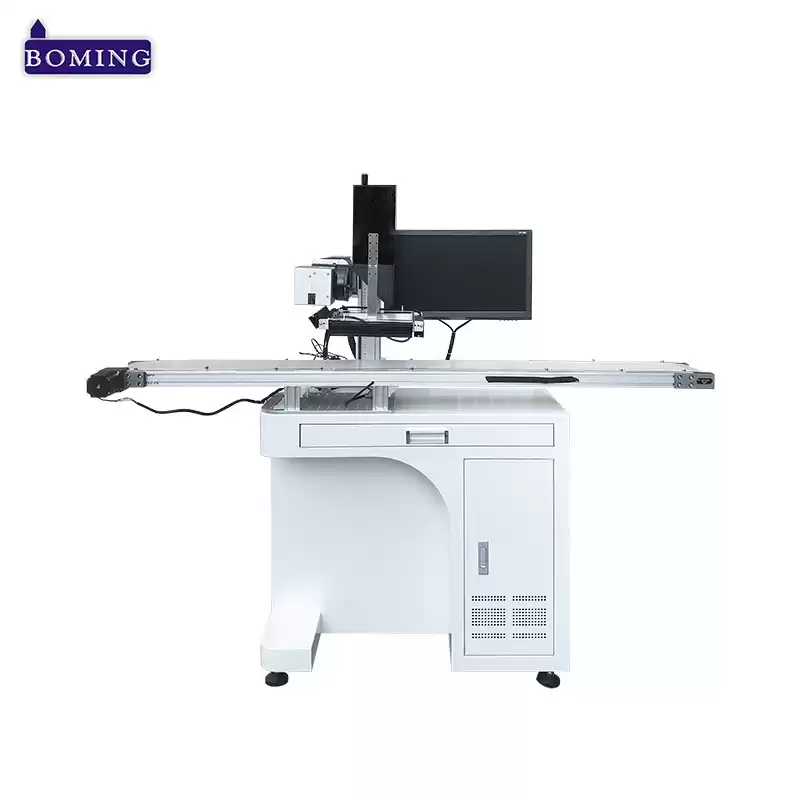

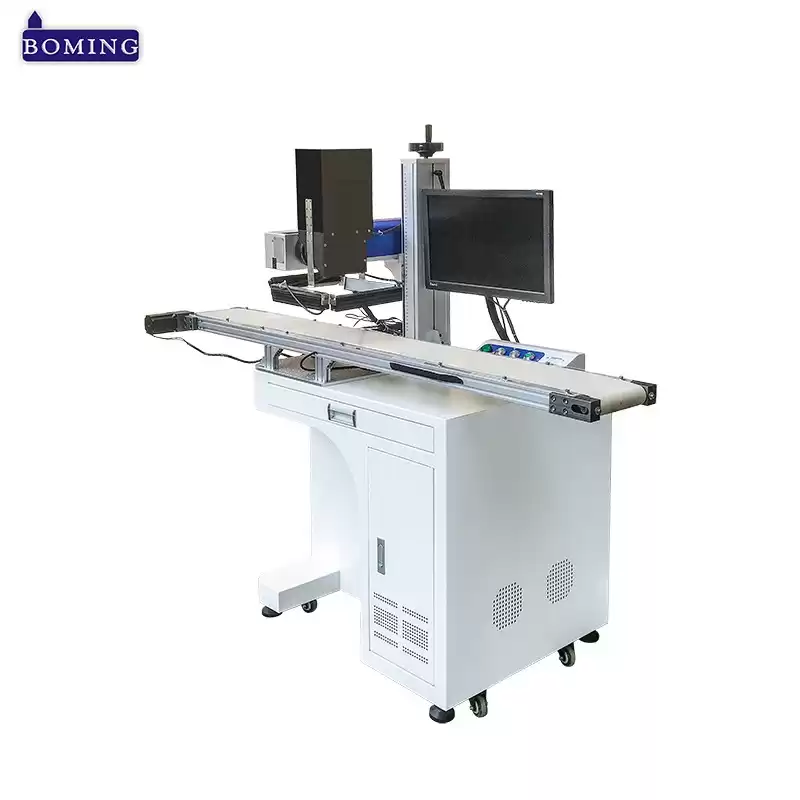

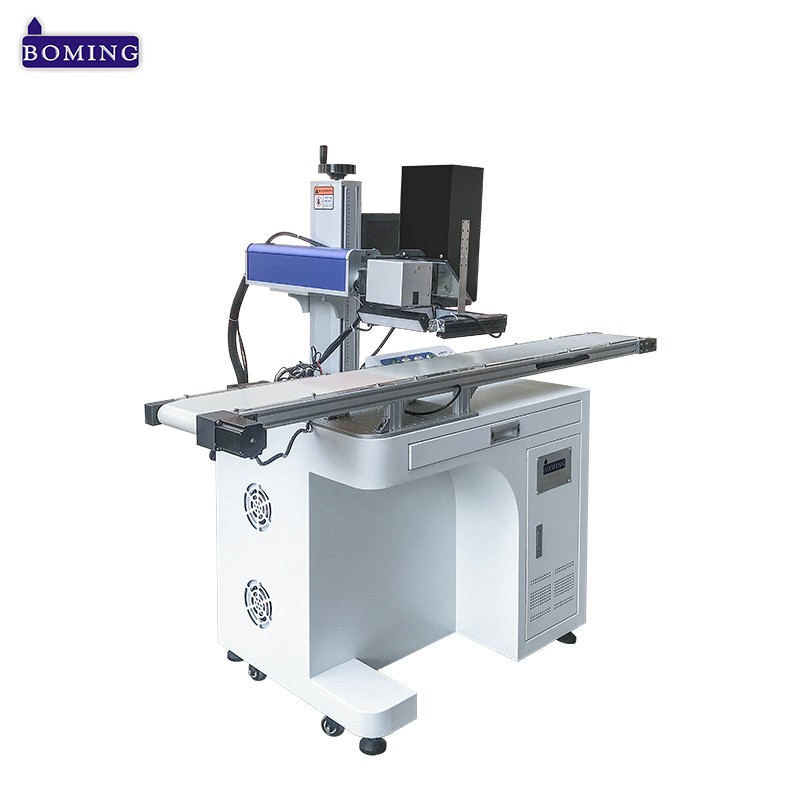

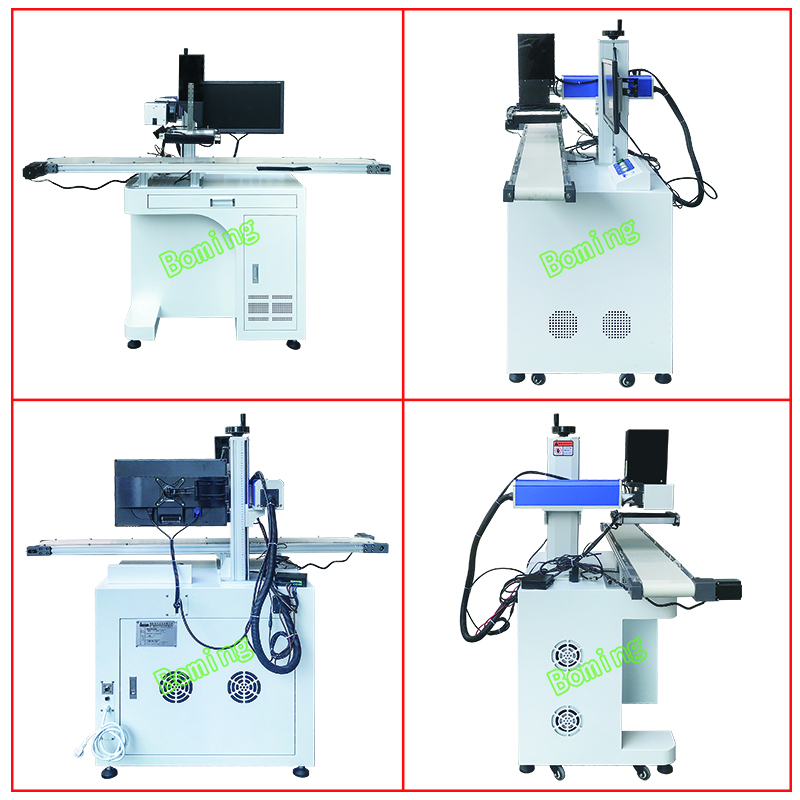

metal camera fiber laser marking machine with conveyor

It is with Raycus Max laser, with ccd camera for positioning the printed pattern. Suitable for marking and engraving metal materials such as stainless steel、gold、aluminum、silver、carbon metal 、brass、bearing,etc. Also can mark part of non metal materials, such as shoe last、porcelain、ABS、Switch、button,etc.



metal camera fiber laser marking machine with conveyor with Raycus Max laser, with ccd camera for positioning the printed pattern. Suitable for marking and engraving metal materials such as stainless steel、gold、aluminum、silver、carbon metal 、brass、bearing,etc. Also can mark part of non metal materials, such as shoe last、porcelain、ABS、Switch、button,etc.

fiber laser marking machine with conveyor

zipper fiber laser marking machine with conveyor

conveyor laser marking machine

Features:of Steel camera fiber laser marking machine with conveyor

1、Fast speed, equipped with high speed galvanometer

2、Small volume, light weight

3、No consumables, low power consumption, less than 500w.

4、Air cooling completely, without chiller, reducing energy consumption.

5、Not affected by bad environment and temperature change. It can work by using accumulator or car cigarette lighter.

6、Reducing the product depreciation cost greatly meets the customers' requirement of large quantity and stable production.

7、 Rotating head, mobile platform, full automation system (optional).

8、It can be equipped with customized conveyor.



Advantage: of fiber laser marking machine with conveyor

1、The laser marking is non-toxic, non-deformation, non-polluting, wear-resistant;

2、Stable performance, moderate price, the marking depth can be controlled at will, and it can work for a long time.

3、It adopts an integrated design structure and a new light path sealing method, which is generally stable and reliable, and has a beautiful and high-grade appearance.

4、Inherit the maturity and practicability of previous generations of solid-state laser marking machines, and further improve the stability of the whole machine by upgrading the software and control system.

5、 It can mark any information such as graphic logos and texts, and has the characteristics of fine and beautiful marking patterns and wear-resistant.





Applicable Industries:of laser marking machine in metal

Gold and silver jewelry, sanitary ware, food packaging, tobacco and drinks, medicine packaging, medical apparatus and instruments, watches& glassware, auto spare parts, electronic hardware,etc.



Applicable Materials: of Ccd Camera fiber Laser marking Machine

metal materials such as stainless steel、gold、aluminum、silver、carbon metal 、brass、bearing,etc. Also can mark part of non metal materials, such as shoe last、porcelain、ABS、Switch、button,etc.




Technical Parameters:of 50w fiber laser marking machine

Technical Parameters


Laser

From China

Laser Capacity

20w 30W 50W 100W

Laser wave length

1064nm

Optical quality

M2<1.5

Laser repetition frequency

≤100KHZ

Standard marking area(mm)

110*110

Optional marking area(mm)

110*110/150*150/300*300

Marking depth

≤1.2mm

Engraving speed

≤12000mm/s

Marking Speed

600-1000 character/min

Min line width

0.01mm

Min character

0.05mm

Repeated accuracy

±0.001

Operating environment

Clean, without dust or less dust

Total power

≤500W

Power supply

AC220±10%,50HZ,10A

Cooling way

Air cooling

Working temperature

0~45

Working humidity

5~95%


Sample show:

tool fiber marking machine




Our Payment: of ccd camera laser cutting machine

1) Usually we accept T/T, Irrevocable L/C at sight.

2) 30% deposit, the 70% balance should be paid clear before delivery.

3) The delivery day is 7-10 working days.

4) The MOQ is 1set.




Our Service:

1) Guarantee for whole machine for 1 year.

2) Lifetime maintenance is free of charge.

3) We will provide the consumable parts at an agency price when you need replacement.

4) We offer English manual and CD for installing, operation and maintaining.

5) Our technician can be sent to your company to install the machine and train your workers if necessary.




Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

camera fiber laser marker
