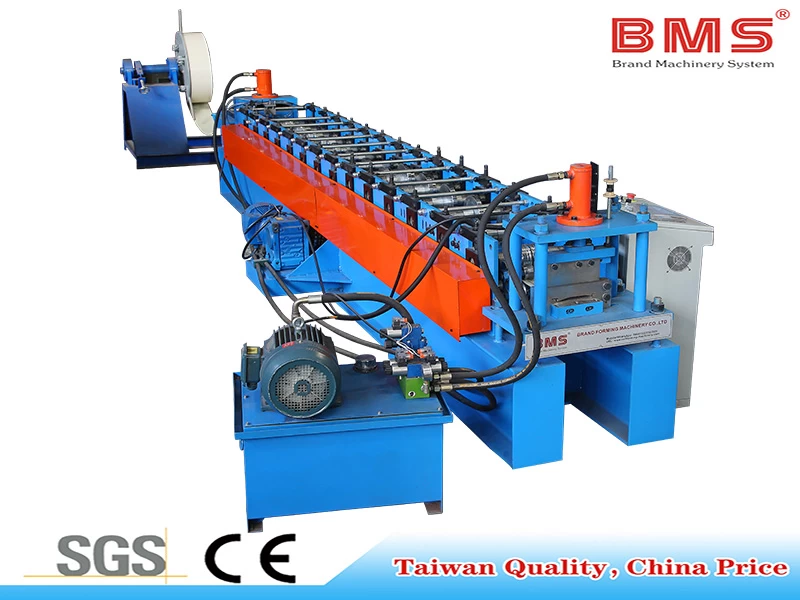

Metal Ceiling Plate Roll Forming Machine

One Machine Three Profiles





Metal Ceiling Plate Roll Forming Machine



Metal Ceiling Plate Roll Forming Machine

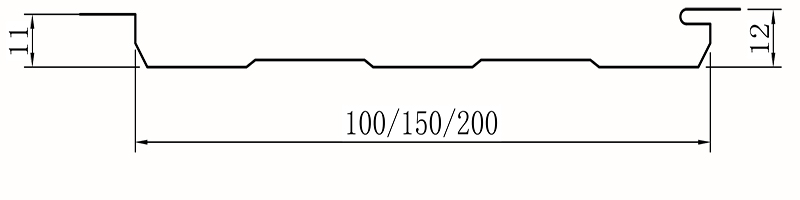

Profile



Metal Ceiling Plate Roll Forming Machine

Change Size By Spacer


Material

Material Thickness:0.3-0.6mm
Applicable Material:Colour Steel
With Yield Strength:Q235-345Mpa


Work Follow

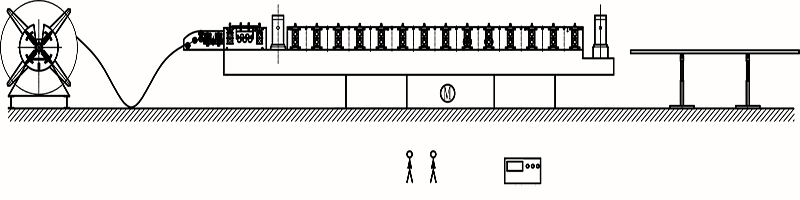

Decoiler→Feeding Guide Device→Hydraulic Pre-Punching Device→Rolling Forming System→Hydraulic Post Cutting→Exit Rack




Machine Components


1) Manual Decoiler: one set

Manual control steel coil inner bore shrinkage and stop
Max. feeding width:300mm
Coil ID Range:508±30mm
Max capacity:3 ton


Manual Decoiler

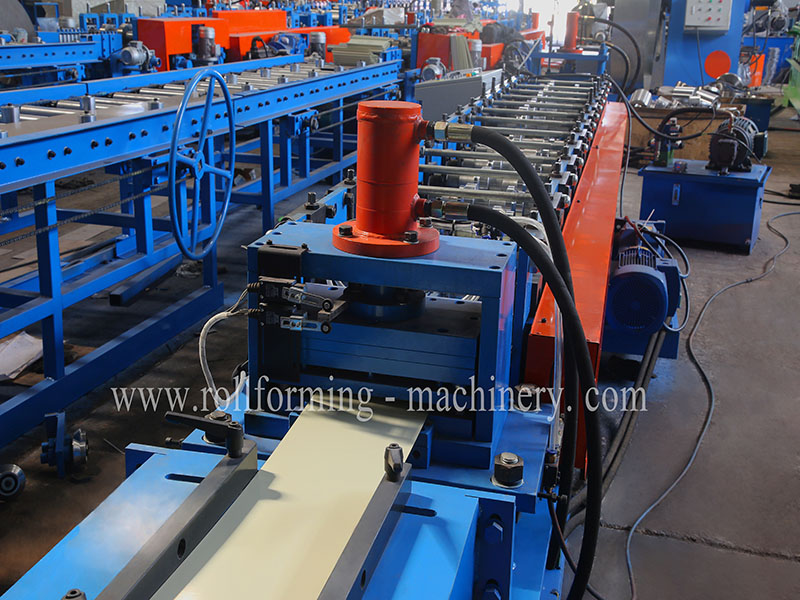

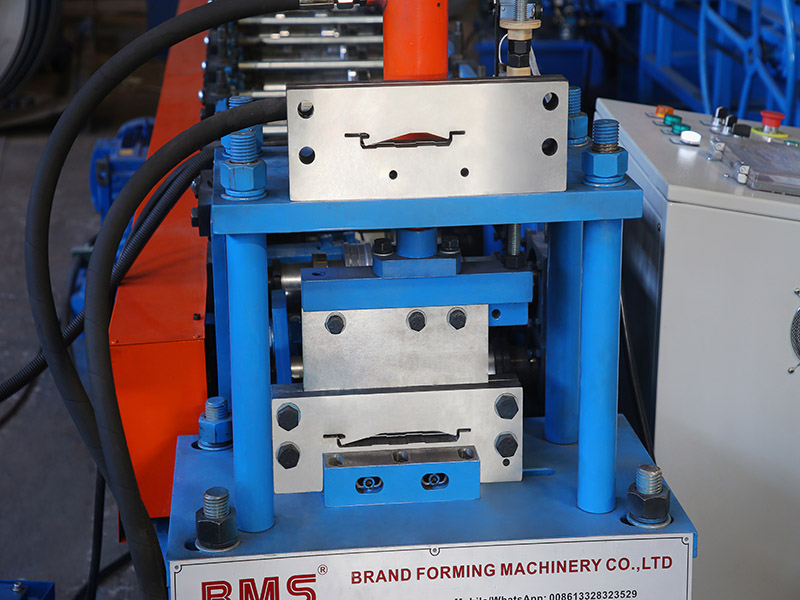

2) Feeding & Hydraulic Pre-Punching Device


With feeding material guide, body frame made from H400 type steel by welding
Pre-punching and post-cutting, use the same hydraulic system
Hydraulic motor:4KW, Hydraulic pressure range:16Mpa
Punching and Cutting tool material:mold steel Cr12MoV(=D2 steel, with one million times punching/cutting life), Heat treatment to HRC58-62 degree
1-cylinder hole punching system for punching on web

Metal Ceiling Plate Roll Forming Machine

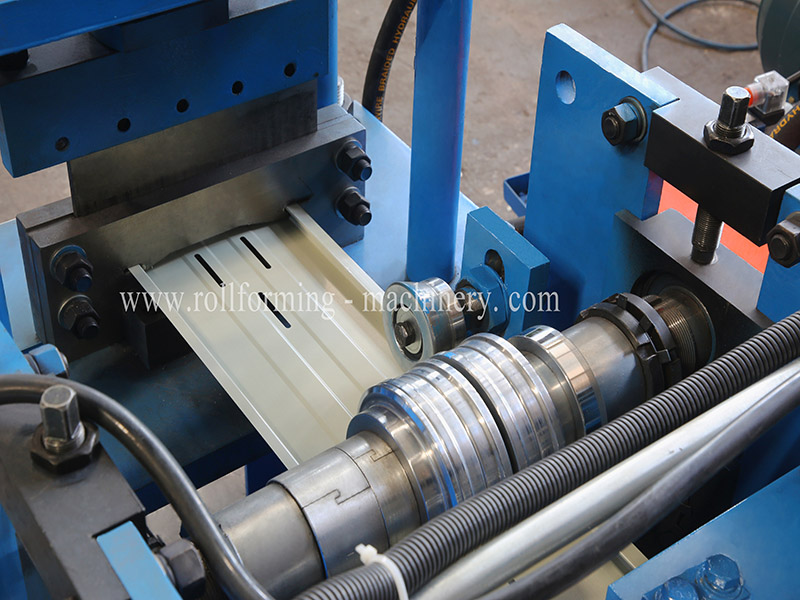

3) Main Machine

Body frame made from H400 type steel by welding
Side wall thickness: Q235 t18mm

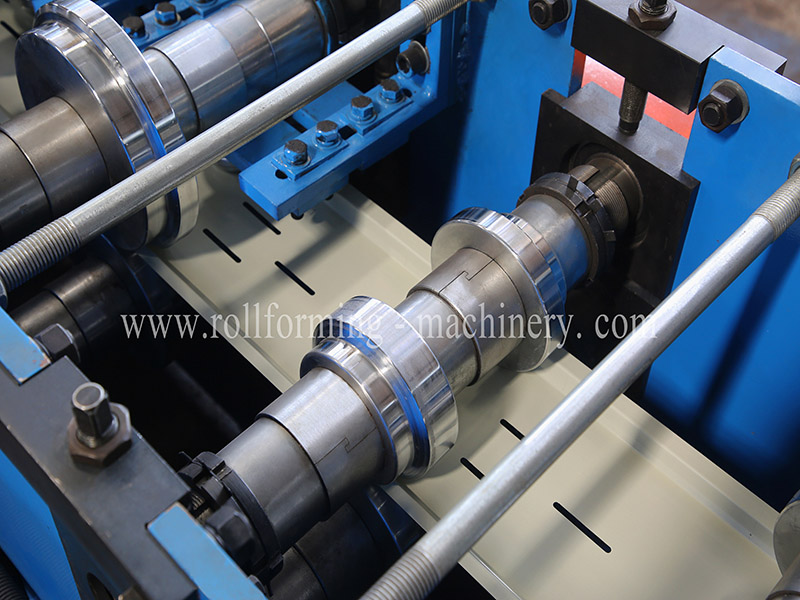

Rollers manufactured from 45# steel,CNC lathes,Heat Treatment,hard Chrome Coated with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Shafts Diameter=ф65,precision machined
Gear/Sprocket driving,about 14-step to form

Main Motor(Polaroid brand)=5.5KW, Frequency speed control

Metal Ceiling Plate Roll Forming Machine




Metal Ceiling Plate Roll Forming Machine




4) Post Hydraulic Cutting Device

Post to cut, stop to cutting,Three pieces type of cutting blade design, no blanking
Hydraulic motor:4KW,Cutting pressure: 0-16Mpa
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree


Metal Ceiling Plate Roll Forming Machine

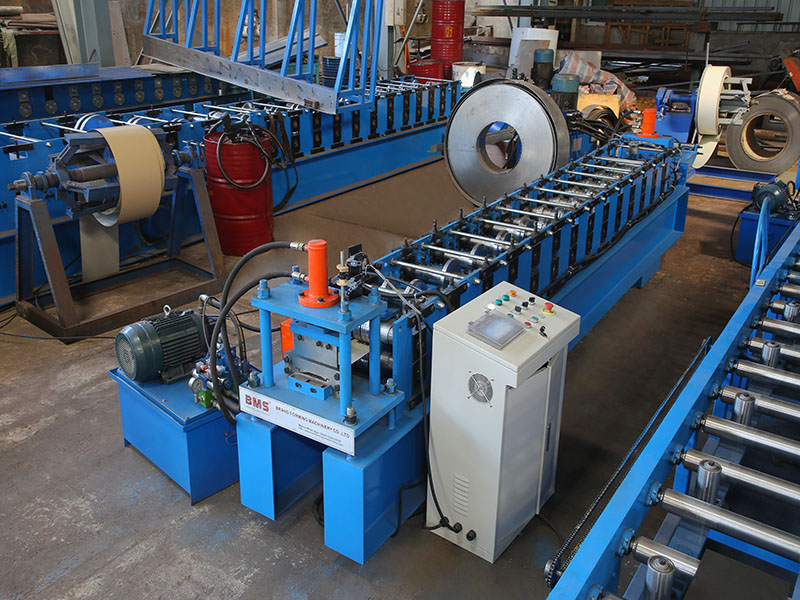

5)PLC Control System

Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc


Metal Ceiling Plate Roll Forming Machine

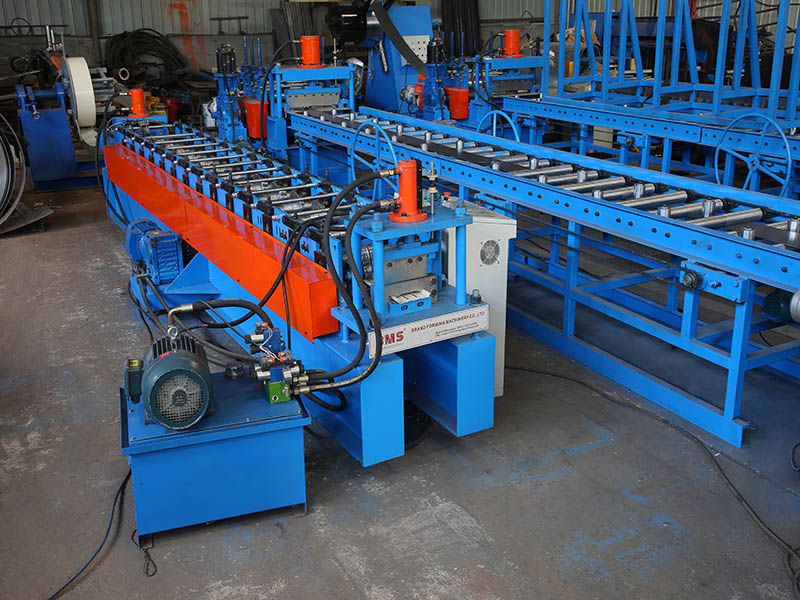

6)Exit Rack

Un-powered, Two units,with rollers on it for easy movement.

Exit Rack

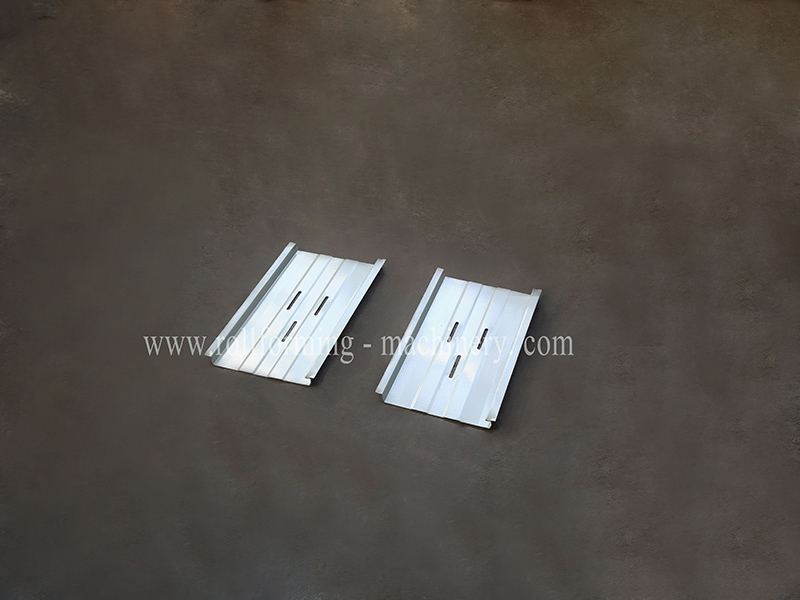

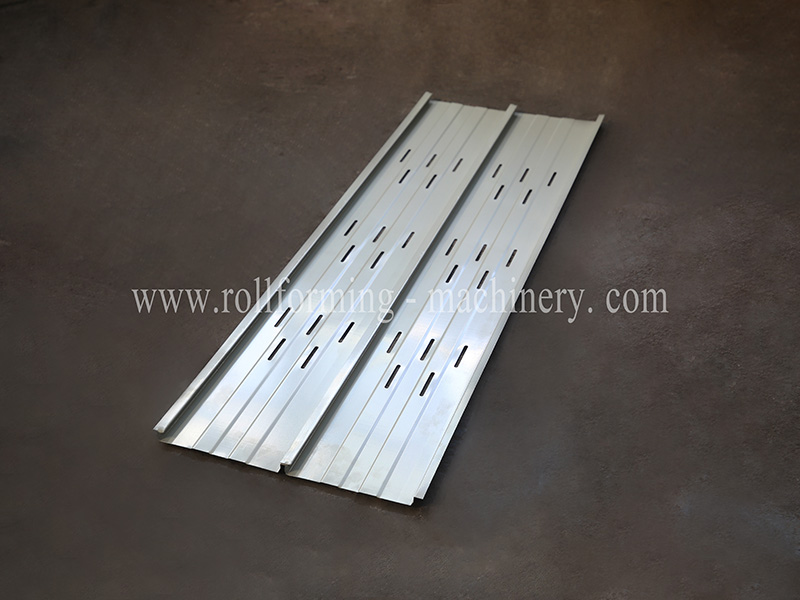

7)Product Show

Metal Ceiling Plate Roll Forming Machine




Metal Ceiling Plate Roll Forming Machine



Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.


Packing Style



After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set.
2.Delivery time: about 45 workdays.
3.Port of loading: port of Xiamen.
4.Type of payment: by T/T or by L/C.
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc.
