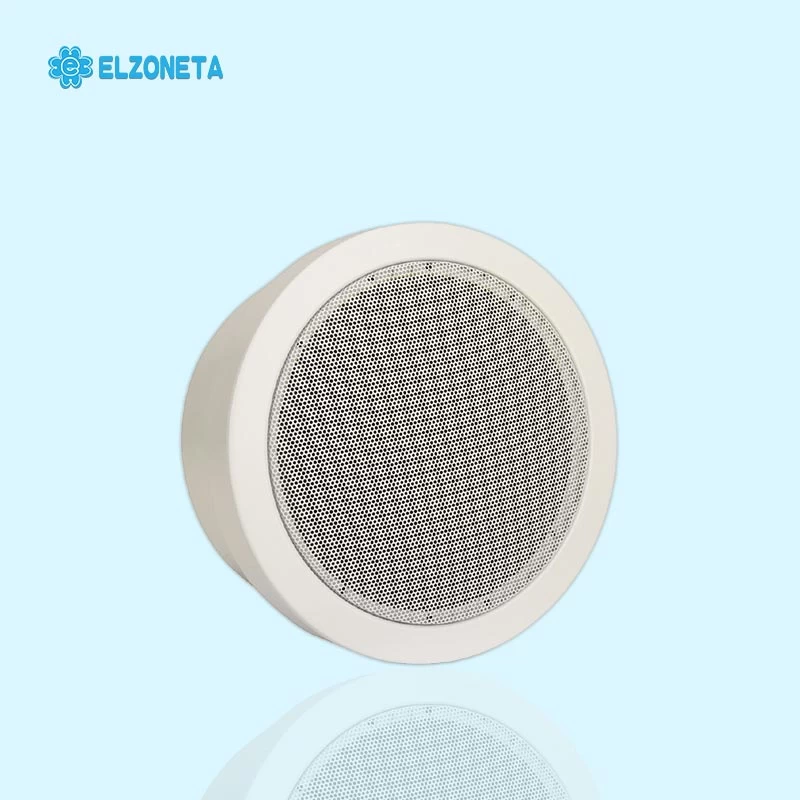

EC-PVS-CL01 Circular Metal Cabinet Loudspeaker
Features
1. Suitable for speech and music reproduction
2. Robust metal enclosure

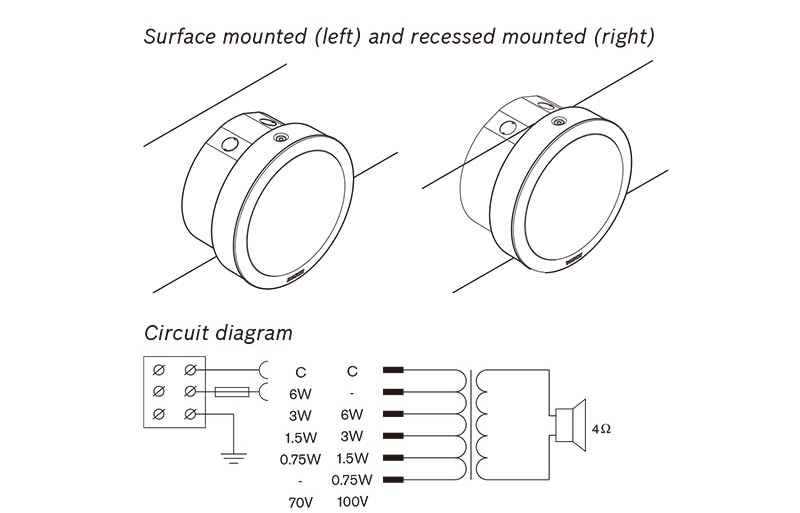

3. Surface and/or recessed mounting
4. Provision for internal mounting of the optional line/loudspeaker supervision boards
5. Recommended for voice evacuation systems
6. Compliant with international installation and safety regulations
7. EN 54 24 certified
8. BS 5839 8 and EN 60849 compliant
Specifications
Maximum power : 9 W
Rated power (PHC) : 6 W
Power tapping : 6 / 3 / 1.5 / 0.75 W
Sound pressure level 6 W / 1 W (1 kHz, 1 m) : 94 / 86 dB (SPL)
Sound pressure level 6 W / 1 W (4 kHz, 4 m) : 82 / 74 dB (SPL)

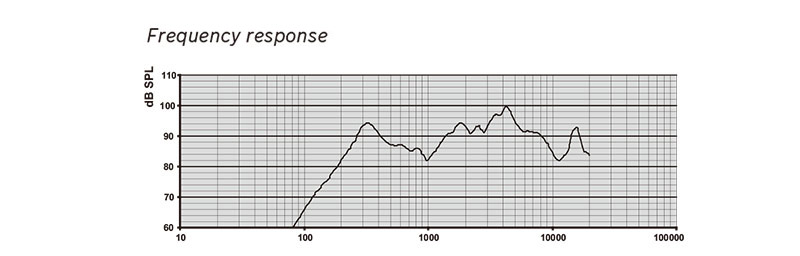

Effective frequency range (-10 dB) : 160 Hz to 20 kHz

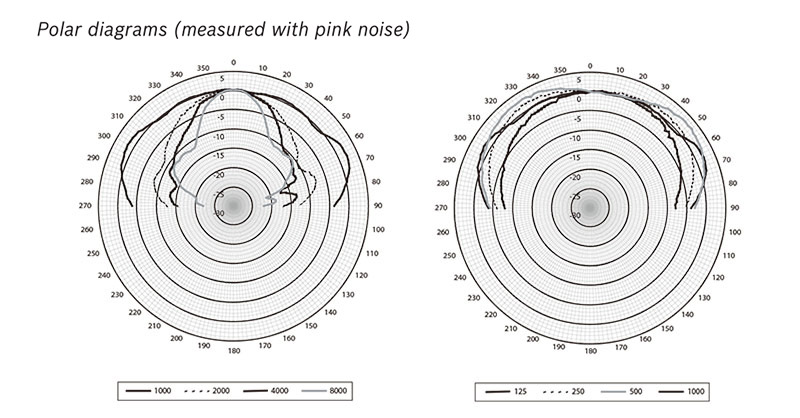

Opening angle 1 kHz / 4 kHz (-6 dB) : 180° / 56°
Rated input voltage Rated impedance : 70 V , 100 V
6 W : 835 Ohm , 1667 Ohm
3 W : 1667 Ohm , 3333 Ohm
1.5 W : 3333 Ohm , 6667 Ohm
0.75 W : 6667 Ohm , 13333 Ohm
Connector : 3 pole screw terminal block
Dimensions (W x D) : 199 x 105 mm (7.8 x 4.1 in)
Weight : 1.23 kg (2.71 lb)
Color : White (RAL 9010)
Material (back box and grille) : Steel
Speaker size : 152.4 mm (6 in)
Magnet weight : 53 g (1.9 oz)
Operating temperature : -25 ºC to +55 ºC (-13 ºF to +131 ºF)
Storage and transport temperature : -40 ºC to +70 ºC (-40 ºF to +158 ºF)
Relative humidity : <95%
