Metal Exhaust Axial Fan for Wine Cabinet Ventilation

Long service life axial fan used in household appliances, welding machines, instrumentation, cabinets, ovens, humidifiers, refrigerator systems, dryers and other equipment.




Square Housing AC Exhaust Ventilator Fan for Freezer. As the standard cooling systems, it can offer you 54.16 CFM big airfllow.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

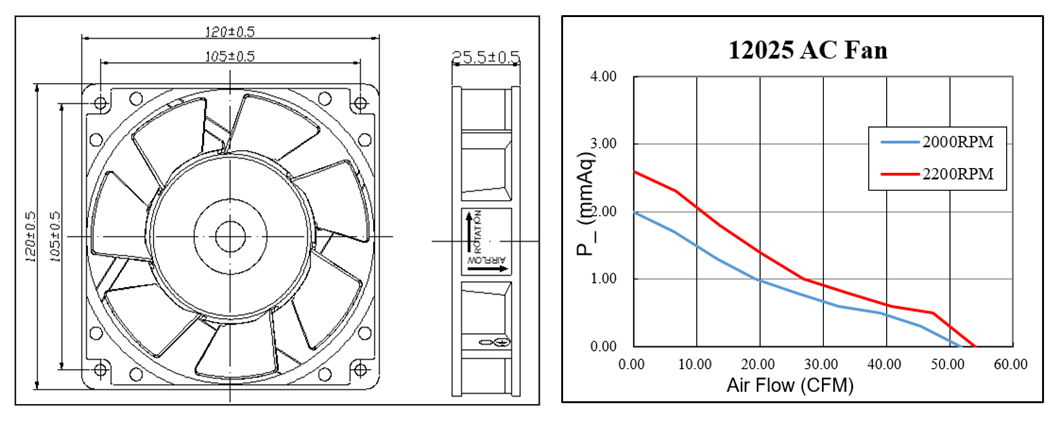

  • Dimension of outer the frame is 120 mm(L) x 120 mm(W) x 25 mm(H) / The size of fan in inch is 4.72 in(L) x 4.72 in(W) x 0.98 in(H); The center to center distance beween the mountiong holes is 105.0 ± 0.5 mm / 4.13 in.

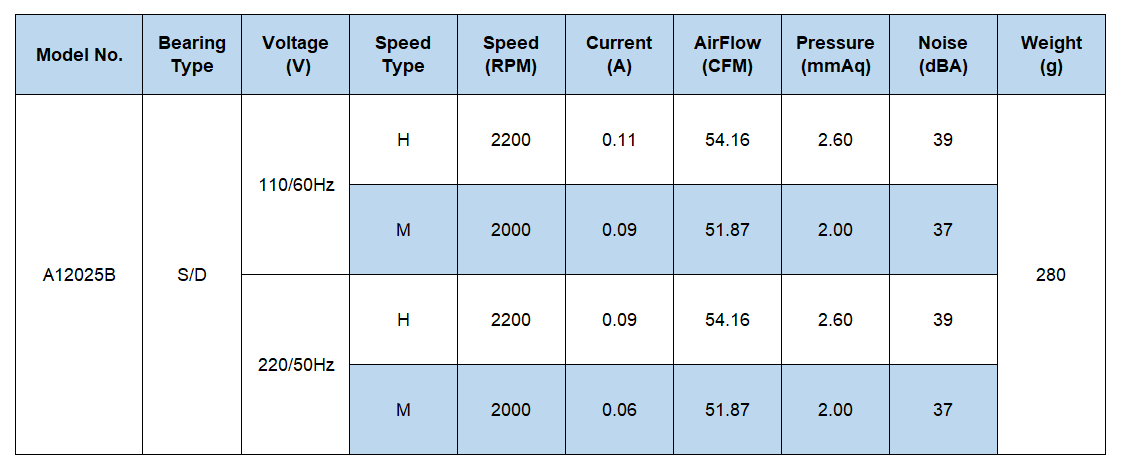

  • Operating Voltage Range: AC 110/60Hz; 220/50Hz | Current: 0.06 ~ 0.11 Amp | Speed: 2000 ~ 2200 RPM | Airflow: 51.87 ~ 54.16 CFM | Noise: 37 ~ 39 dBA | Pressure: 2.00 ~ 2.60 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50,000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

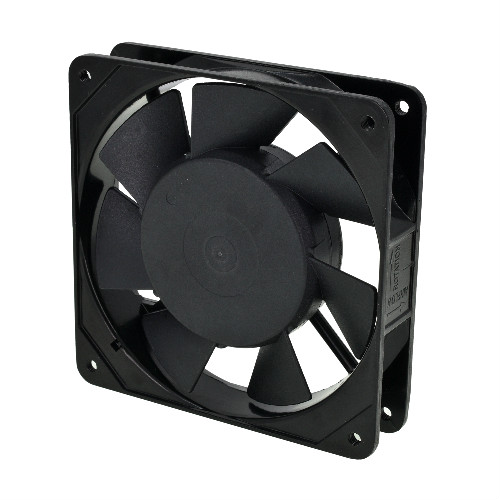

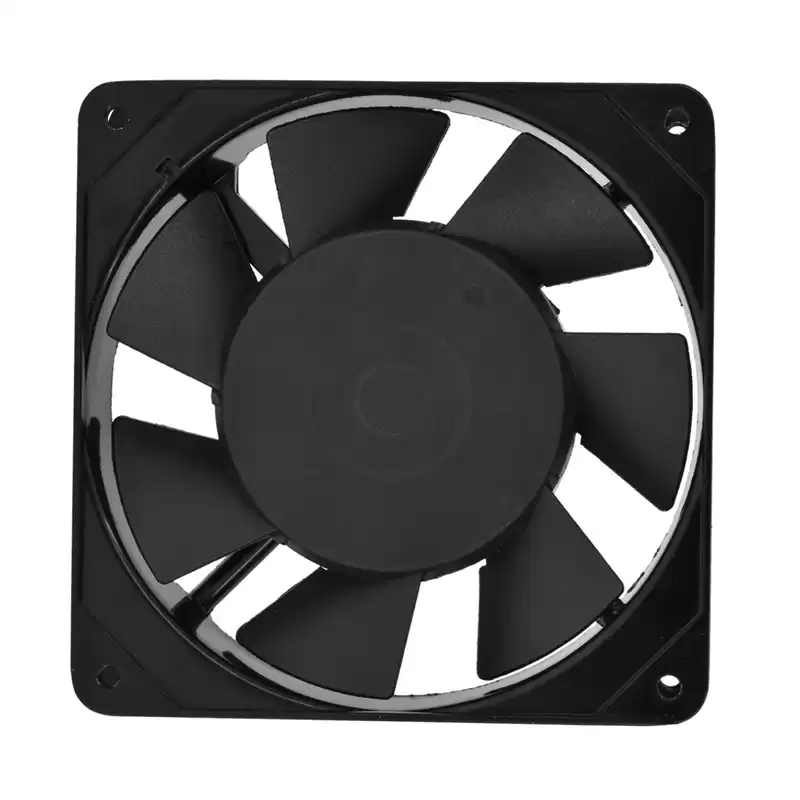

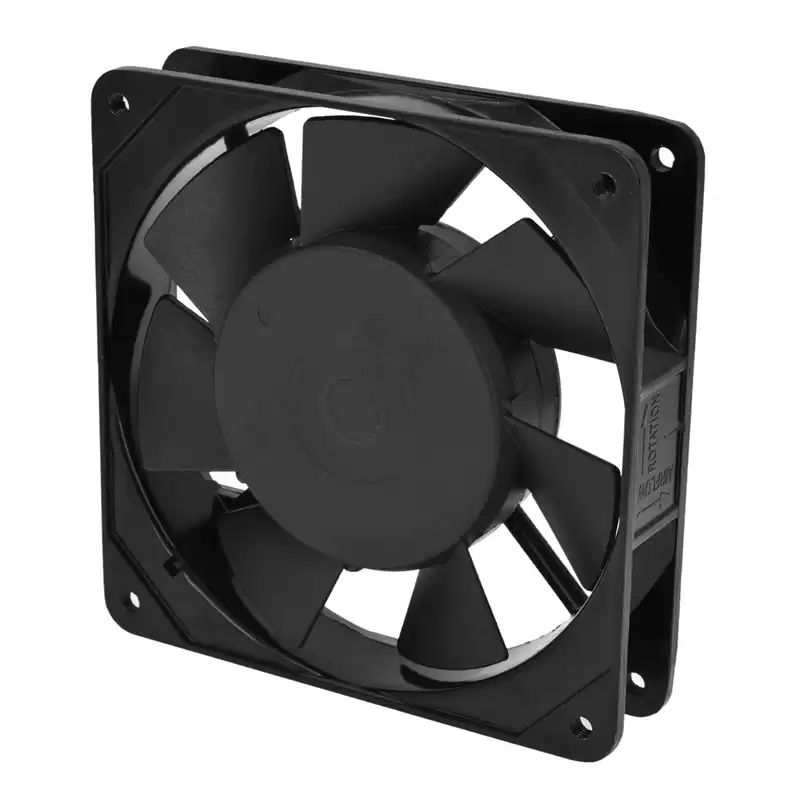

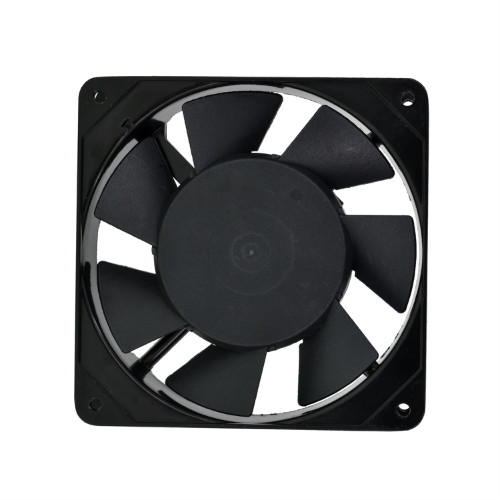

AC AXIAL FAN 120x120x25mm(4.72"x4.72"x0.98")



Large Air Folw 120mm Cooling FanDualball Bearing Cooling Fan 12025


General Specification:
Frame: Aluminum Alloy
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing


120x120x25mm exhaust axial fans

    Industrial AC Axial Cooler Fan

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Big size 120mm x 120mm x 25mm, long service life;
  • It can be used as a replacement fan for various products;
  • Controllable versatility, high speed of 2200RPM in operation;
  • Square fan frame and 7 blades provide highly efficient ventilation for the fan;
  • Insulation case provides better insulation between coil and silicon steel.



More Models

These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.

Type Model Size Type Model Size
AC Axial Fan A08025 80x80x25mm(3.15"x3.15"x0.98") AC Axial Fan A13538 135x135x38mm(5.31"x5.31"x1.49")
A09225 92x92x25mm(3.62"x3.62"x0.98") A15050 150x150x50mm(5.90"x5.90"x1.97")
A11025 110x110x25mm(4.33"x4.33"x0.98") A17051A 170x150x51mm(6.69"x5.90"x2.0")
A12025A 120x120x25mm(4.72"x4.72"x0.98") A17051B
A12025B A18060 180x180x60mm(7.08"x7.08"x2.36")
A12038A 120x120x38mm(4.72"x4.72"x1.49") A20060 200x200x60mm(7.87"x7.87"x2.36")
A12038B A22060 220x220x60mm(8.65"x8.65"x2.36")



Application

DC/AC axial fan products are widely used for ventilation and heat dissipation of electronic equipment, such as frequency converters, power supply equipments, cabinets, chassis, mechanical equipments, welding machines, electrical appliances, LED lamps, communication equipment, instruments and meters, etc.

110v 220v ac cooling fan


AC Axial Small Heat Resistant Fan

  • Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven, Outdoor telecom cabinet cooling systems, and more.
  • Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.



Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
