Product Name: Metal Guard Fence Roll Forming Machine 828mm Covered Width
Machine Details

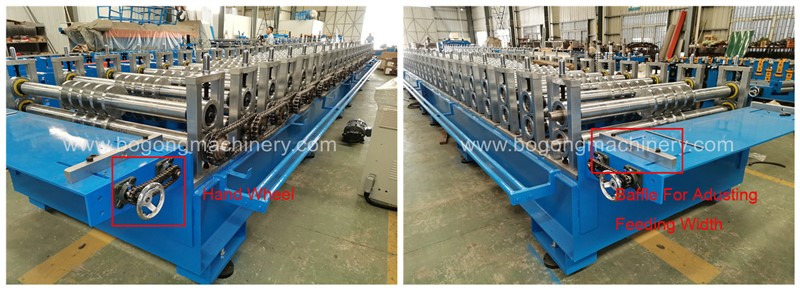

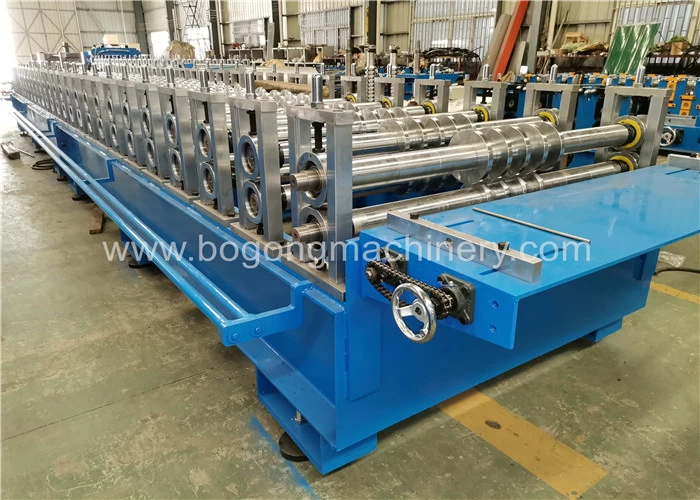

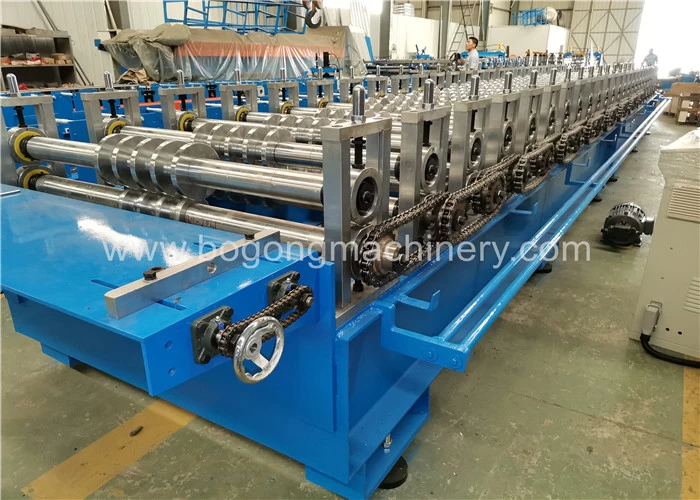

At the beginning of metal guard fence roll forming machine, we have installed hand wheel at feeding table aside for suiting all three feeding width, operating worker only need to roll this hand wheel at clock direction or reverse clock direction after loosing the fixed screws at baffle. There are two pieces of baffles on feeding table, we can adjust this baffle to right side or left side a little for different kinds of material width.

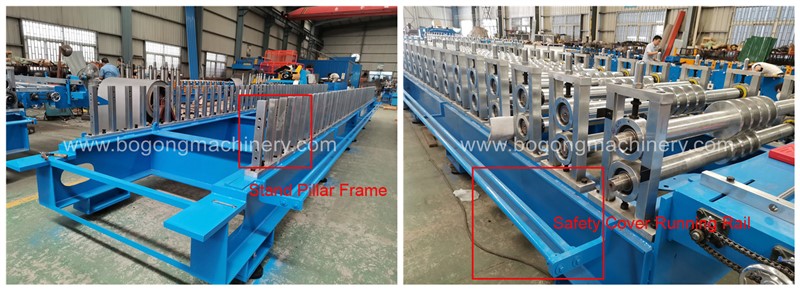

This metal guard fence roll forming machine adopts stand pillar machine frame type, compare to traditional machine frame, it is good for user to maintenance whole roll forming machines, we can add lubricated oil any time, no need remove the gear cover again. Whole metal fence sheet roll forming machine with stand pillar machine frame looks more beautiful.

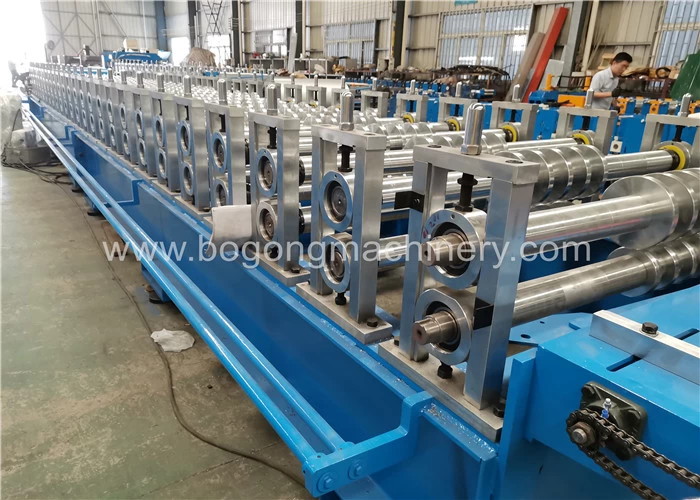

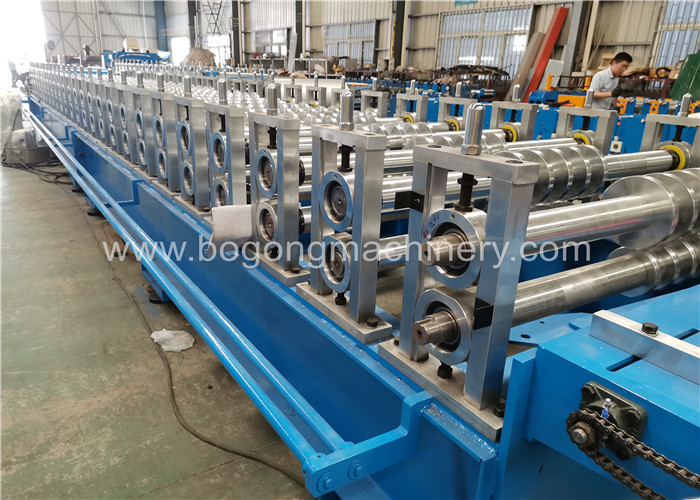

This metal guard fence roll forming machine is with safety protection covers, see the running rail at two machine sides, all our safety cover are mesh type and can be moved on the rail.
Technical Parameters
|
Parameters
|
Specification
|
|
Voltage
|
380V/50HZ/3PH/or customized
|
|
Driving Motor
|
7.5KW
|
|
Forming Steps
|
20 steps
|
|
Working Speed
|
15-20m/min
|
|
Thickness for Steel
|
0.4-0.7mm (Material:PPGI,GI Steel G550)
|
|
Shaft Diameter
|
75mm
|
|
Shaft Material
|
High grade 45# forged steel
|
|
Roller Material
|
G45# steel, CNC lathe,polished and chrome plated
|
|
PLC Cabinet
|
Schneider, Delta
|
|
Encoder
|
Omron
|
|
Sprocket Wheel
|
45 steel high-frequencies quench
|
|
Cut-off System
|
Post cutting, no waste cutting
|
|
Cutting Blade Material
|
Cr12 steel
|
|
Machine Frame Material
|
Fine welded structural steel;
|
|
Roofing Material
|
PPGI, GI steel G330-550
|
|
Painted Color
|
Blue+Orange Or Customization
|
|
Overall Size
|
9400*1450*1650mm
|
|
Weight
|
6000KGS
|

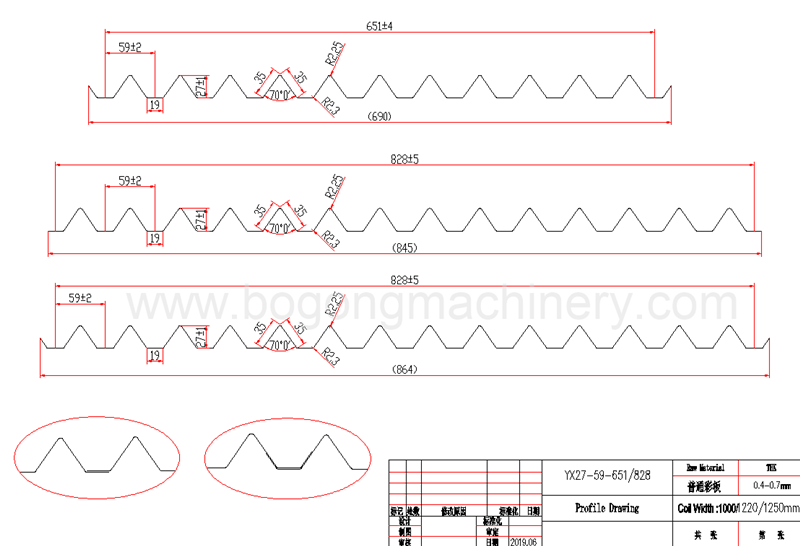

Profile Design Drawing
The raw material width for this roofing sheet is 1000/1220/1250mm, and the working thickness is from 0.4mm- 0.7mm, and the covered width are 651/828/828mm.
