Metal interior decorative panels roll forming machine





         Metal Interior Decorative Panels Roll Forming Machine





 Metal interior decorative panels roll forming machine


1.Main features of metal interior decorative panels roll forming machine

   The advantages of roof panel machines are as follows:

   1.Low cost, light weight but high strength, short building period, and re-cycle use

   2.Save material ,no waste.

   3.Easy operation, low maintenance cost

   4.Beautiful appearance

   5.Accuracy profile



2.Detailed Images of metal interior decorative panels roll forming machine



    Machine Parts

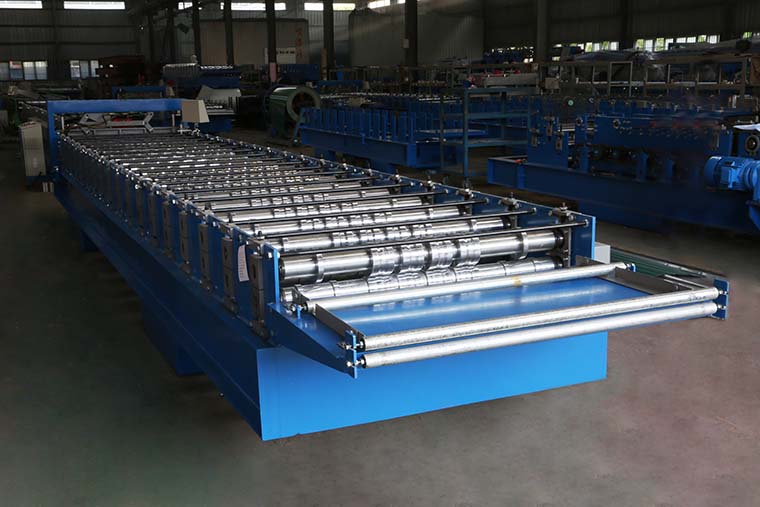

1) Metal interior decorative panels roll forming machine feeding gudie

        Brand: BMS    Original: China

        make the material feeding smooth



 roof panel machines

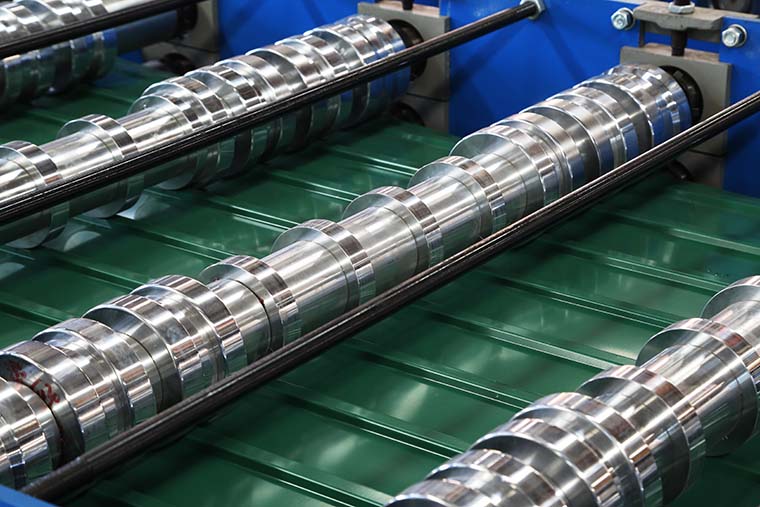

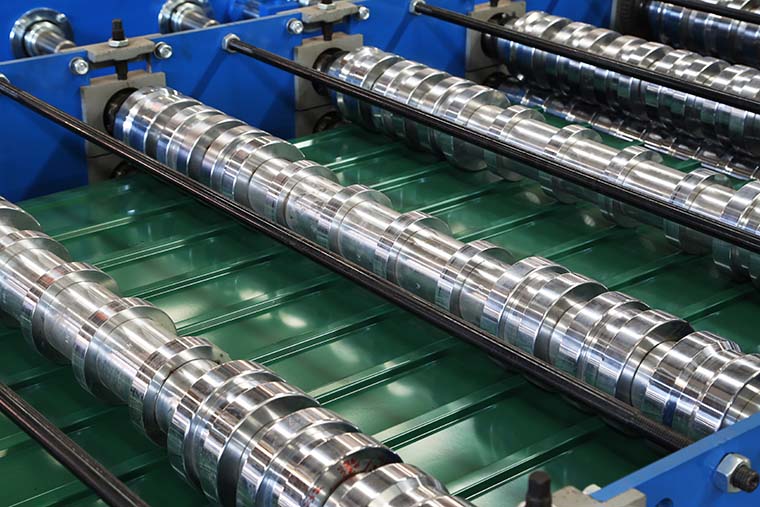

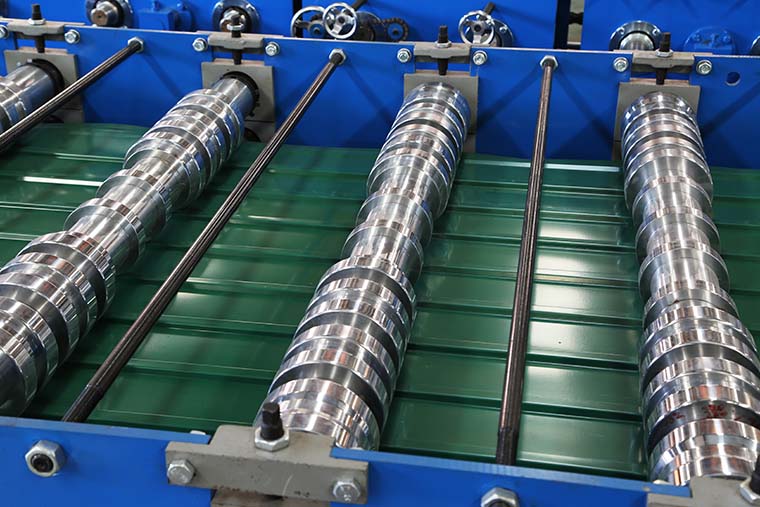

2) Metal interior decorative panels roll forming machine rollers

        Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        Body frame made from 350# H type steel by welding



roof panel machine

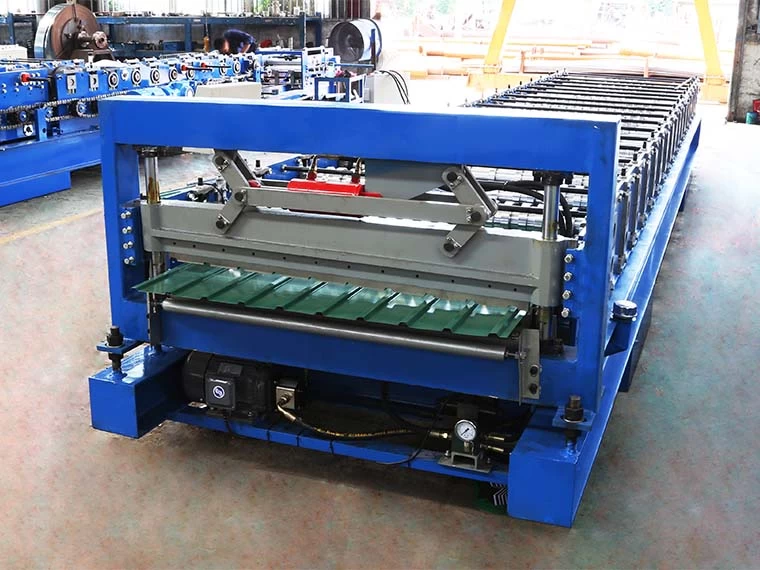

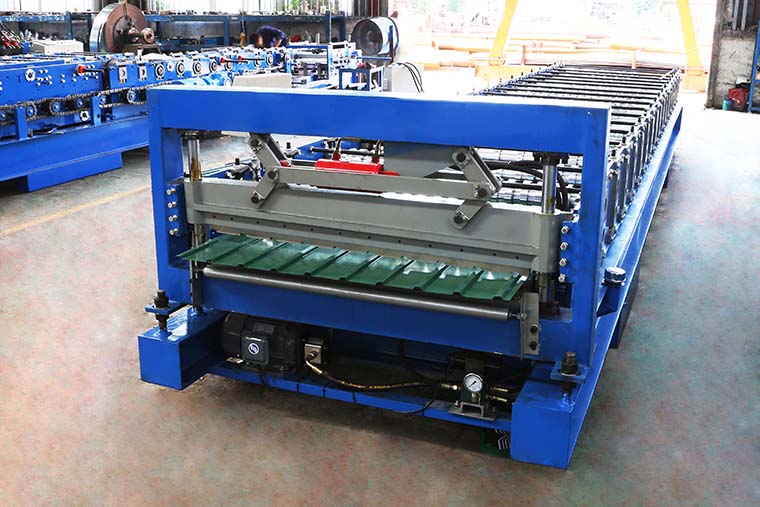

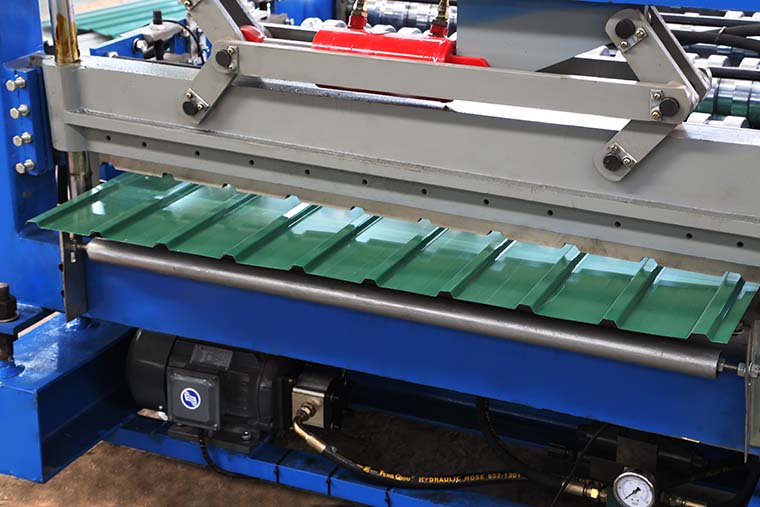

3) Metal interior decorative panels roll forming machine post cutter

         Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding
        hydraulic motor:3.7KW, Hydraulic pressure range: 0-16Mpa

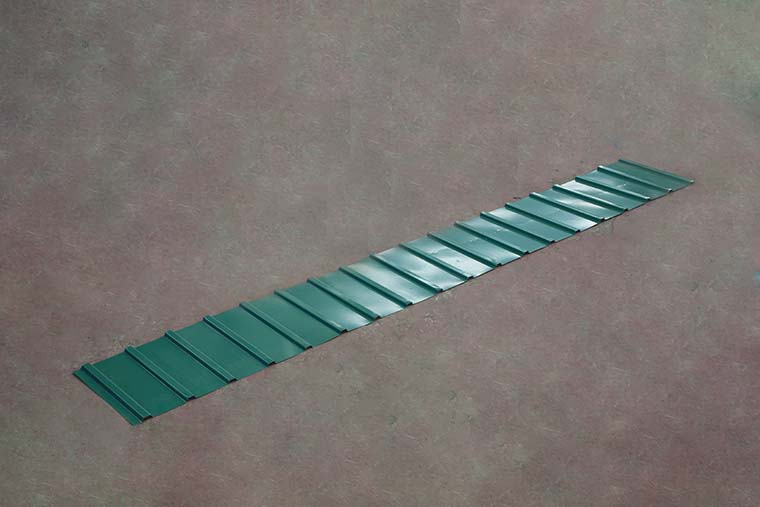

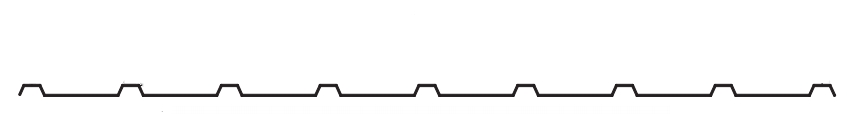

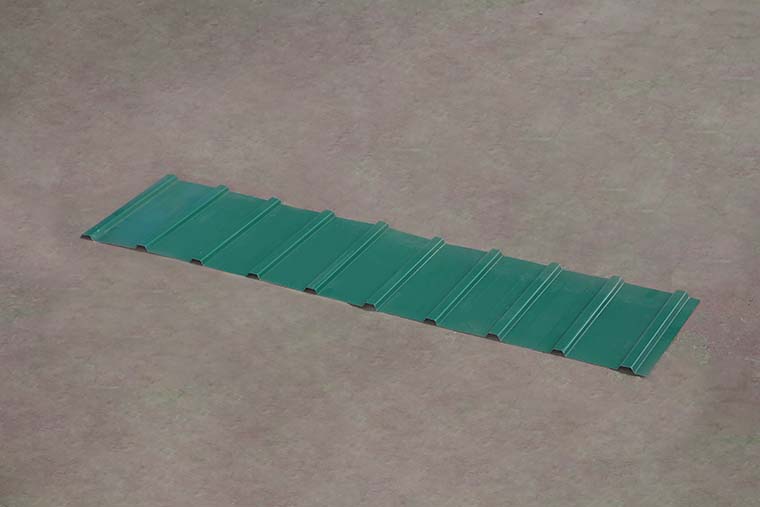

4) Metal interior decorative panels roll forming machine product show





                                                                               Overlap Effect

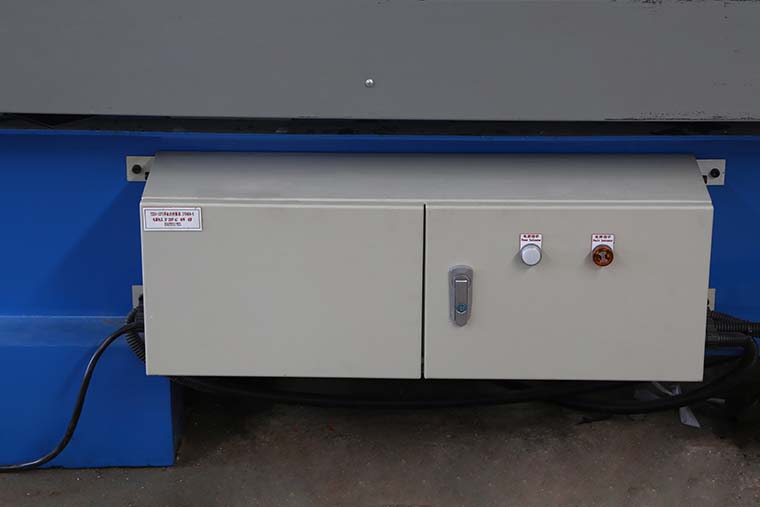

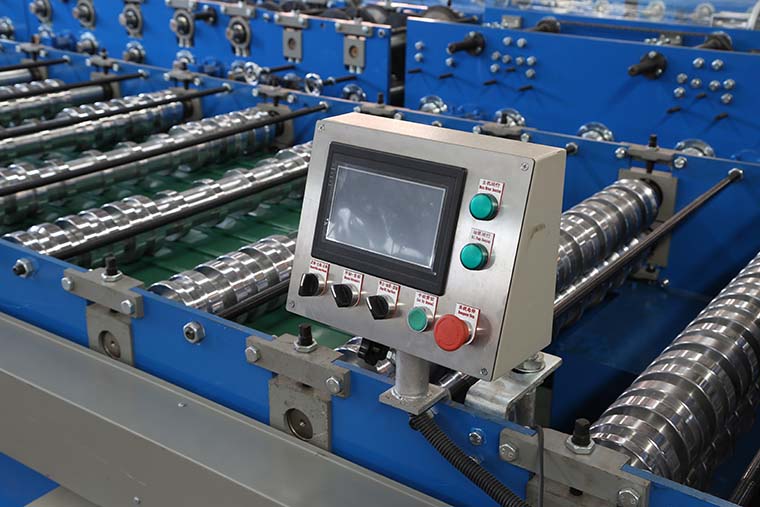

4) Metal interior decorative panels roll forming machine PLC control system

        PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

        Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

        Combined with: PLC, Inverter, TouchScreen, Encoder, etc





5) Metal interior decorative panels roll forming machine decoiler

        ManualDecoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1200mm, coil ID range 508mm±30mm

        Capacity: 5-9 Ton







        With 6 tons hydraulic decoiler for option







6) Metal interior decorative panels roll forming machine exit rack

        Un-powered,one unit








Other detailes of Metal interior decorative panels roll forming machine



Suitable for material with thickness 0.3-0.8mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission, 16 steps to form.

Main motor=5.5KW , Frequency speed control. Forming speed approx.12-15m/min



Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of Metal interior decorative panels roll forming machine



1. The warranty of purlin Metal interior decorative panels roll forming machine is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
