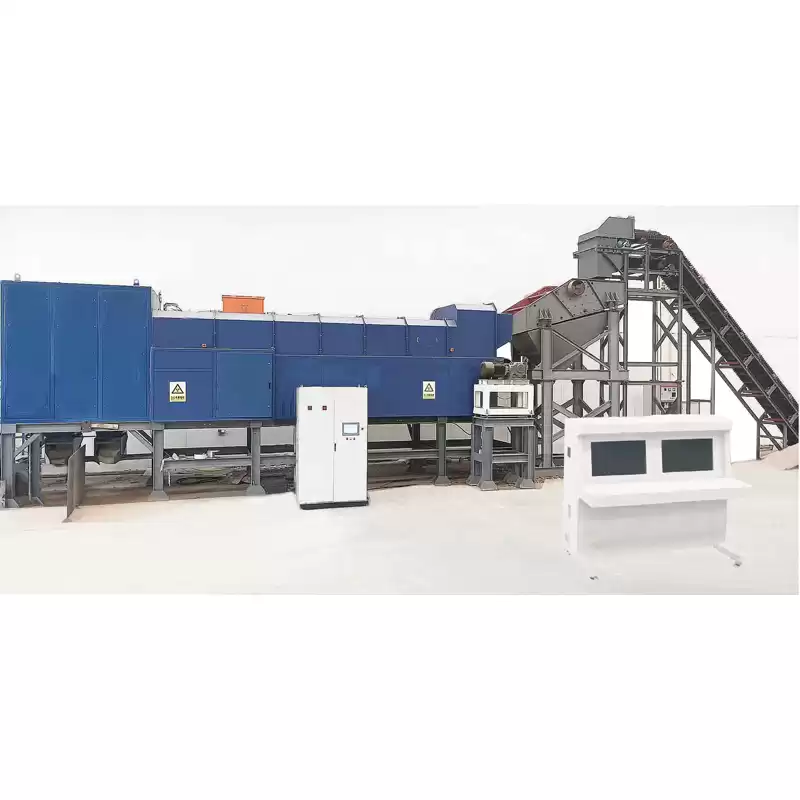

Vanadium  ores sorting  machine

X-ray Separating Machine is an environment-friendly mineral separator. Due to  the surface characteristics of minerals are almost the same or not obvious, It  can use X-ray to penetrate the inside of minerals and obtain the data of the inside of minerals. Its intelligent internal movement can sort ore to a very fine degree, and can sort particles of+10mm ~-300mm, which is practical. According to the difference of internal density of ore, it can effectively separate minerals with different specifications.

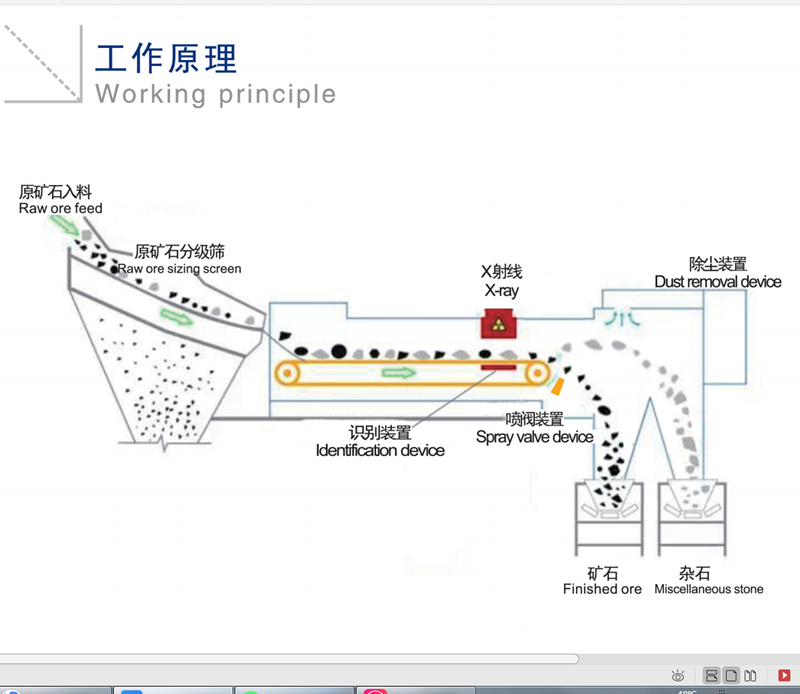

Work Principle:

Techinical Advantages:

1. The high-precision and dual-energy acquisition we developed independently can

not only identify minerals with large density difference and high content, but also identify

minerals with small density difference and low content, which is suitable for many minerals

sorting.

2. Adopt deep learning and other artificial intelligence methods to establish a unique

mathematical model for each mining to ensure the accuracy of recognition, and then achieve

the efficiency and accuracy of sorting.

3. The application of Internet of Things technology can monitor equipment running status in

real time, the fault prompt and alarm system can be self-taught and update, which constantly

improve the sorting effect.

4. Professional software and world-class components make the machine stable and high-

yield operation.

5. With many years of experience in research and development, we can customized models

and equipment according to different mineral types and working condition.

The Following ores we can sort:

1. Non-ferrous metal ores:lead and zinc, copper, molybdenum, nickel, gold, silver, tin, alu

minum, etc.

2. Ferrous metal ores: manganese, iron, chromium, vanadium, titanium, tungsten, etc.

3. Non-metallic ores: fluorite, brucite, magnesite, coal and coal gangue, etc.

4.Others: phosphate rock, perlite, solid waste, smelting waste, etc
