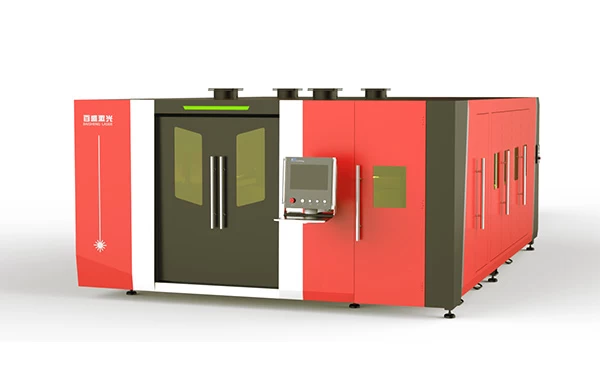

Metal tube and sheet Laser Cutting in a Single Machine

Metal tube and sheet laser cutting in a single machine with 4000*2000 mm shuttle tables.Fully enclosed CE standard.

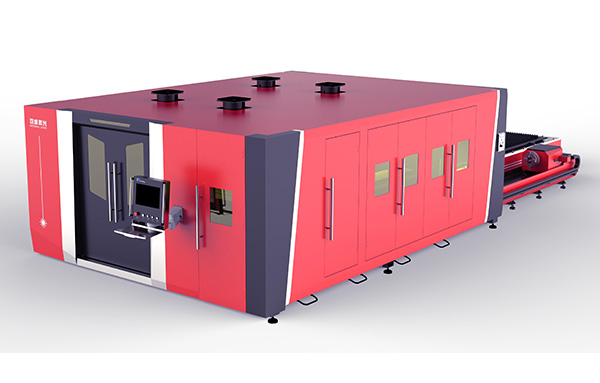

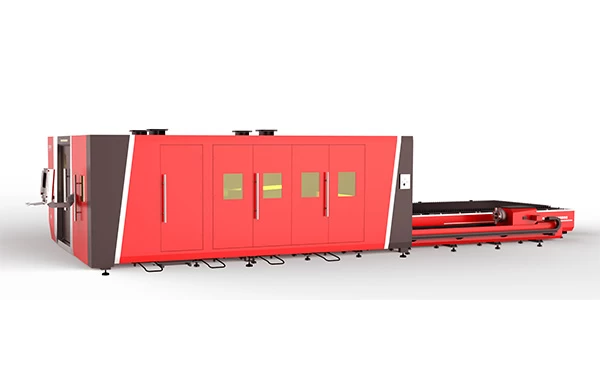

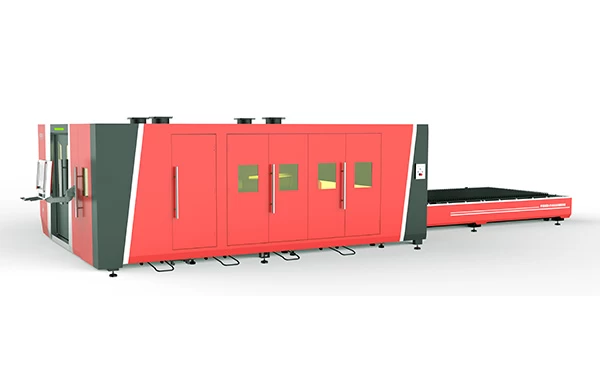

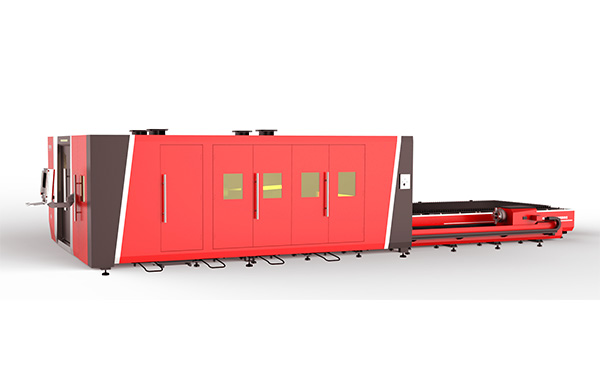

Sheet and Pipe Laser Cutting Machine with fast automatic loading Pallet Changer and  safety Cover

F4020HBDE  meets most fabricators need for its multi-purpose function .

the whole machine can be packed and loaded in a 40 flat rack container and a 20 flat rack.

Applicable :sheet metal  and pipe/tubes cutting .

Warranty :2/3 years for laser resonator

Packaging & Delivery : wrapped with stretched film ,packed inside the wooden cases .

Port :Shenzhen

Lead Time :Shipped in 45 days after payment

Cutting size : 4000*2000 mm or 3000*1500mm option .

Model :F4020HBDE


control system:PA system or cypcut/cyptube/Protube

servo motors:Japan or France brand

cutting head :WSX or Precitec , Highyag , Raytools

nesting software: built-in basic or cypnest or Tubest (option)

exhausting system: Section extracting .Smart control.Powerful .

loading :40 flat rack .

weight:15T

 sheet and Pipe Laser Cutting Machine Exclusive Features:

1.Unique  climbing pallets ,synchronous exchanging tables ,when in position ,both tables are  at same height. faster and better for cutting accuracy.

2.Fully enclosed cutting table with powerful blowser and Smart control exhaust system  that create cleaner jobshop.

3.Thick sheet metal welded industrial grade machine tool bed ,true heat-treatment :annealing machine bed,time aging,vibration  residual stress relief ,unique"W"beams strengthened.

4.Aviation grade extruding aluminium beam ,no any pinhole allowed.lighter in weight but more tough.

5.for high-power laser machine ,exclusively using graphite sheet as dunnage  material to protect machine bed in case of heat damage.

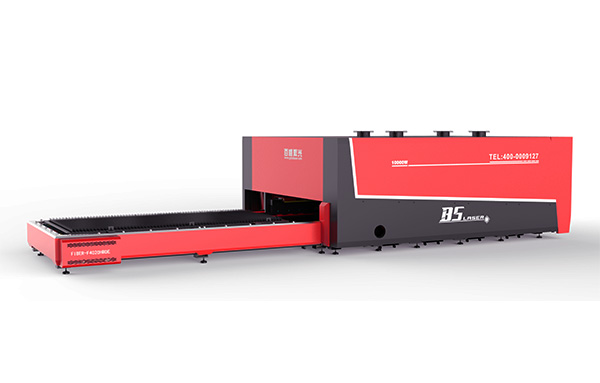

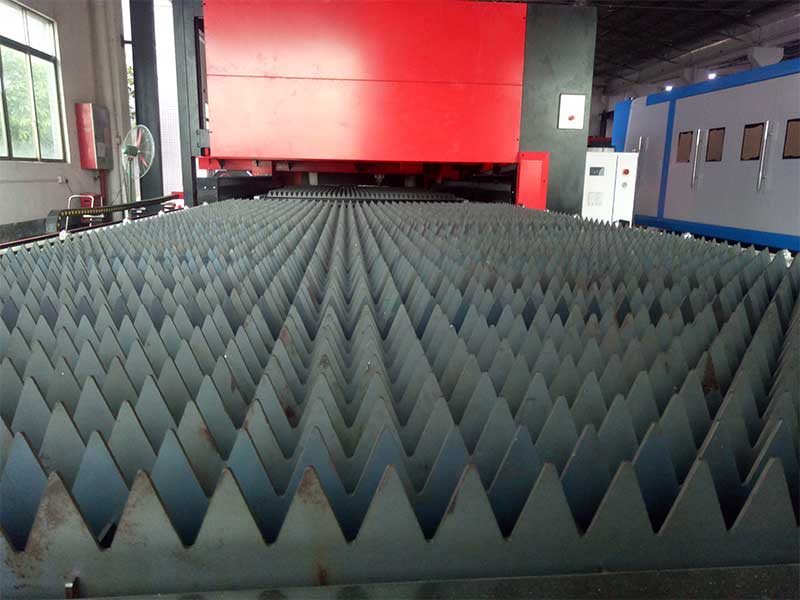

Note:Automatic shuttle table for faster loading materials and offload finished parts, dramatically save overall cycle time without a laser sitting  idle for prolonged periods,no need to wait for operators to load sheets and unload parts.

customized color .

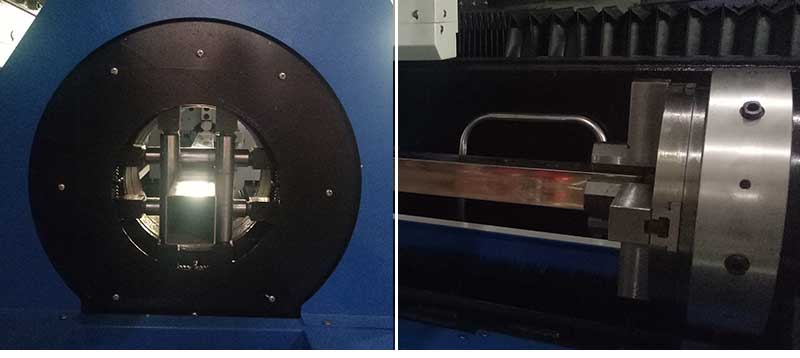

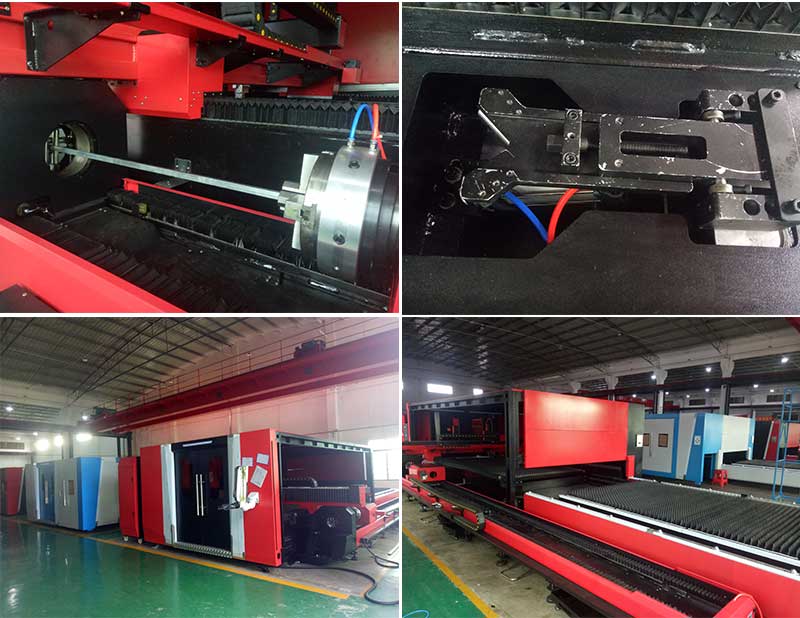

Pneumatic clamps are better in adjusting clamping strength ,especially for thin wall tubes. 3 air cylinder type pneumatic support effectively support long tube in case of sagging to ensure cutting accuracy.

double rollers allows more stable clamping.(fig. above)

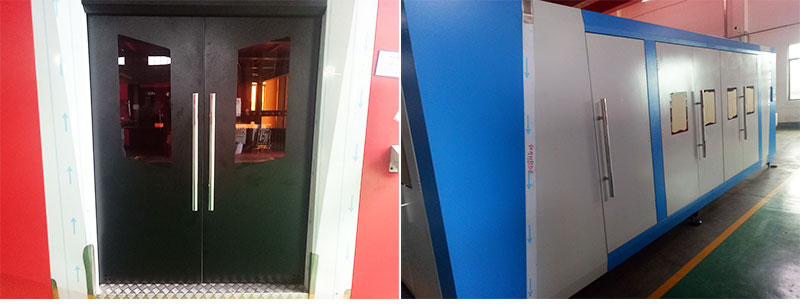

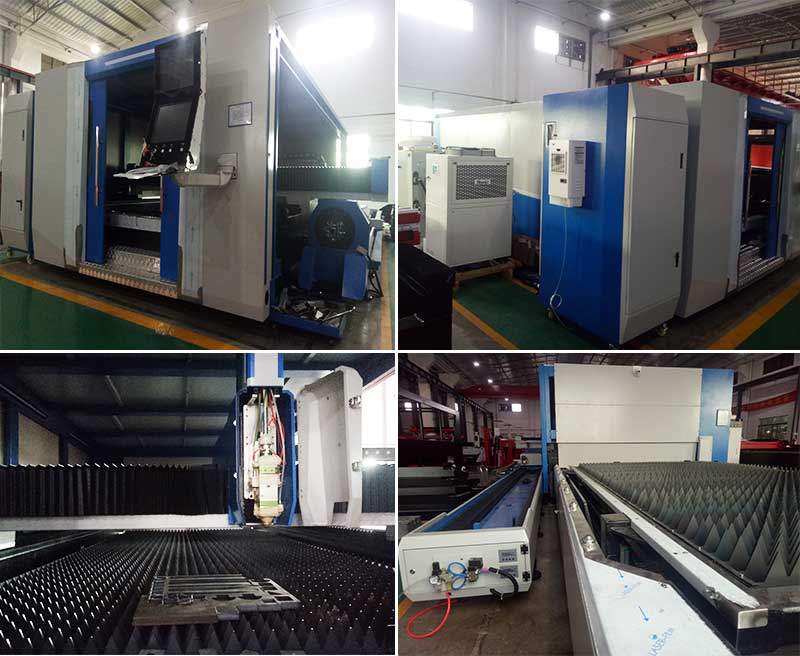

fully enclosed doors and window,which helps extracting cutting dusts .

Laser cutting heads optional: WSX ,RAYTOOLS,PRECITEC..


Fiber laser advantages:

Fiber laser is a time saver and energy saver for metal fabrication and the main stream for now and the future .fiber lasers have become the true workhorse of metal fabrication,

and they have never been more productive. They cut nests at unprecedented speeds and produce finished parts with fine edge while power draw not so high .

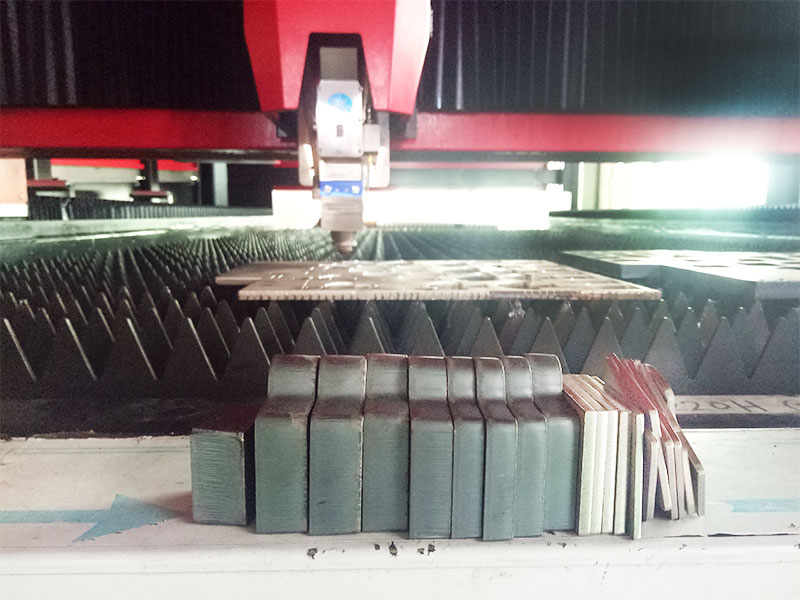

fiber laser cutting machines offers an unbeatable high production level and excellent cutting quality for thin and medium thickness sheets. The maximum sheet thickness depends on the chosen output power.

The high energy efficiency of the fiber laser ensures a significant reduction in energy consumption. The machines are available with output power ranging from 1000 watts to 12000 watts.
