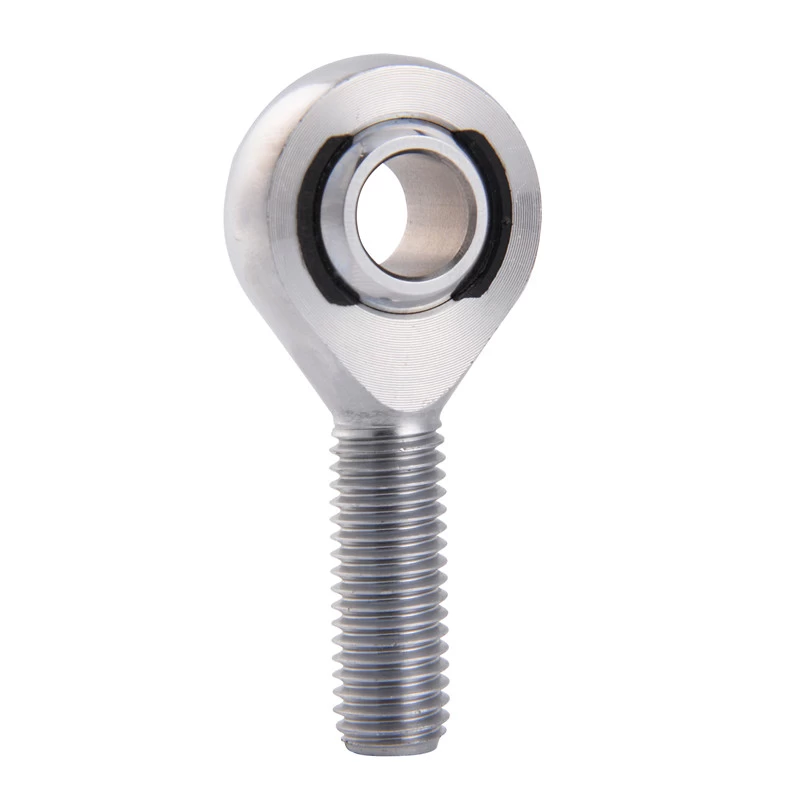

Metric Rod Ends NCOS

Ball: AISI 52100 bearing Steel, heat treated, HRC56 min; Precision ground, polished hard chromium plated

Body: Chromoly steel, Zinc plated, chromate treated

Race: Nylon polymer with PTFE additive

Sliding contact surfaces: Steel/Nylon

Facebook Twitter Pinterest LinkedIn 分享

Description

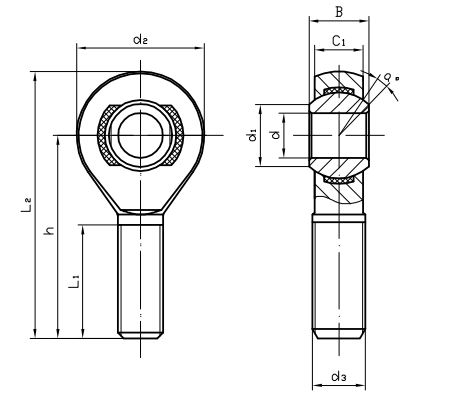

Bearing No.	Dimensions(mm)									Ball dia	a° mis. angle	Load ratings (KN)	weight ≈kg
Bearing No.	d H7	B	C1	d1	d2	d3-6g	h	L1	L2	Ball dia	a° mis. angle	Load ratings (KN)	weight ≈kg
NCOS6	6	9	6.75	8.9	20	M6	36	21	46	12.7	13	18	0.02
NCOS8	8	12	9	10.3	24	M8	42	25	54	15.87	14	33	0.038
NCOS10	10	14	10.5	12.9	28	M10	48	28	62	19.05	13	52	0.055
NCOS12	12	16	12	15.4	32	M12	54	32	70	22.22	13	71	0.085
NCOS14	14	19	13.5	16.8	36	M14	60	36	78	25.4	16	84	0.14
NCOS16	16	21	15	19.3	42	M16	66	37	87	28.58	15	96	0.21
NCOS18	18	23	16.5	21.8	46	M18x1.5	72	41	95	31.75	15	128	0.28
NCOS20	20	25	18	24.3	50	M20x1.5	78	45	103	34.925	14	143	0.38
NCOS22	22	28	20	25.8	54	M22x1.5	84	48	111	38.1	15	171	0.48
NCOS25	25	31	22	29.5	60	M24x2	94	55	124	42.86	15	204	0.64
NCOS30	30	37	25	0	70	M30x2	110	66	145	50.8	17	264	1.1

Can supply rod ends with different pitch or accuracy of thread.

For left-hand thread, suffix "L" is added to bearing numbers. e.g.:NCOS10L
