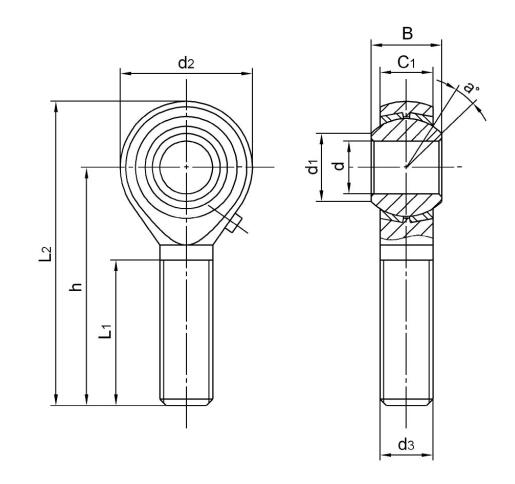

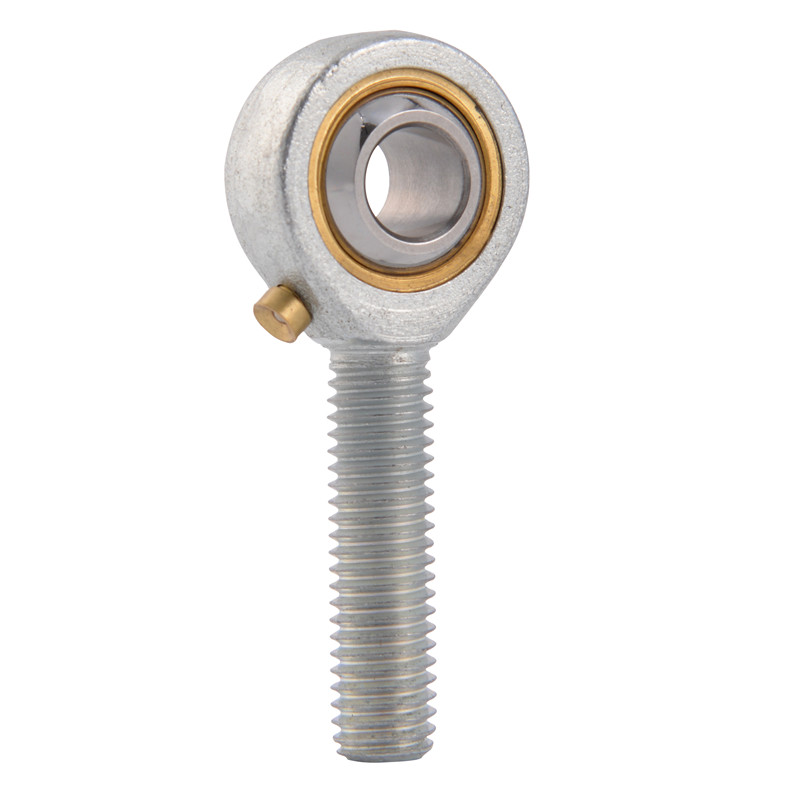

Bearing No.
|
Dimensions(mm)
|
Ball
dia
|
a0
mis.
angle
|
Load ratings
(KN)
|
weight
≈Kg
|
|
d
H7
|
B
|
C1
|
d1
|
d2
|
d3-6g
|
h
|
L1
|
L2
|
Dynamic
|
Static
|
|
POS3
|
3
|
6
|
4.5
|
5.1
|
12
|
M3
|
26
|
15
|
32
|
7.93
|
14
|
1.5
|
1.8
|
0.006
|
|
POS4
|
4
|
7
|
5.25
|
6.5
|
14
|
M4
|
30
|
19
|
37
|
9.52
|
13
|
2.0
|
2.9
|
0.011
|
|
POS5
|
5
|
8
|
6
|
7.7
|
16
|
M5
|
33
|
20
|
41
|
11.11
|
13
|
2.5
|
3.5
|
0.012
|
|
POS6
|
6
|
9
|
6.75
|
8.9
|
18
|
M6
|
36
|
22
|
45
|
12.7
|
13
|
3.2
|
4.8
|
0.019
|
|

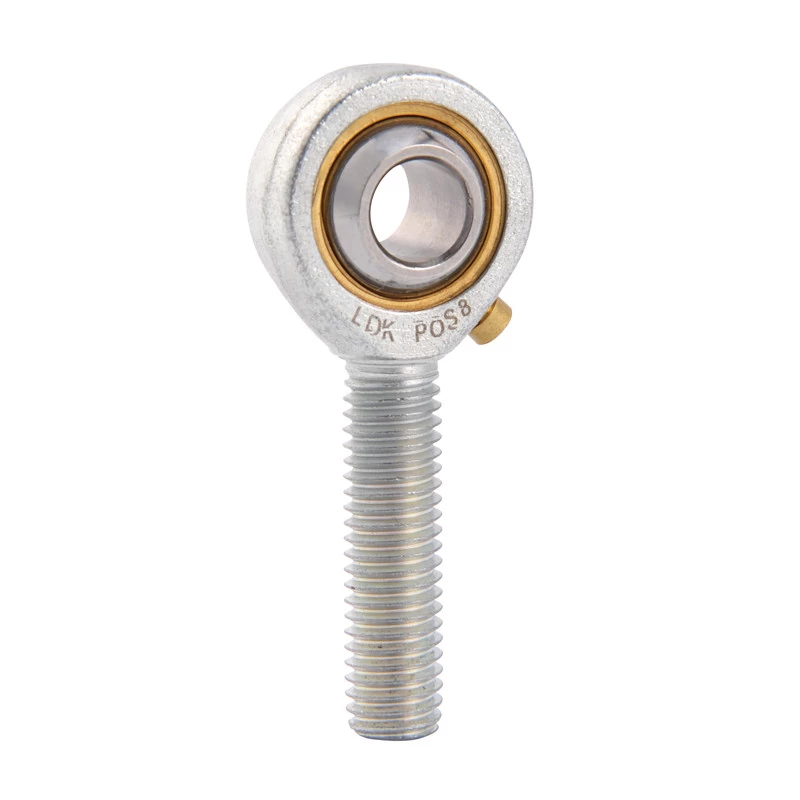

POS8
|
8
|
12
|
9
|
10.3
|
22
|
M8
|
42
|
25
|
53
|
15.87
|
14
|
5.4
|
8.9
|
0.032
|
|
POS10
|
10
|
14
|
10.5
|
12.9
|
26
|
M10
|
48
|
29
|
61
|
19.05
|
13
|
7.5
|
12.5
|
0.054
|
|
POS10FI
|
10
|
14
|
10.5
|
12.9
|
26
|
M10x1.25
|
48
|
29
|
61
|
19.05
|
13
|
7.5
|
12.5
|
0.054
|
|

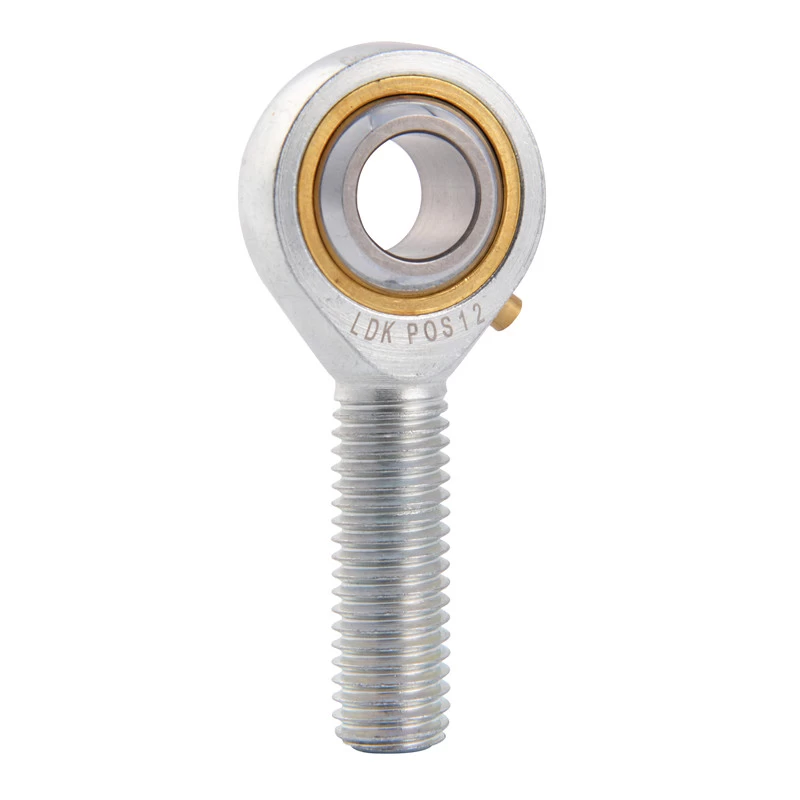

POS12
|
12
|
16
|
12
|
15.4
|
30
|
M12
|
54
|
33
|
69
|
22.22
|
13
|
10
|
15.8
|
0.085
|
|
POS12/F2
|
12
|
16
|
12
|
15.4
|
30
|
M12x1.25
|
54
|
33
|
69
|
22.22
|
13
|
10
|
15.8
|
0.085
|
|
POS14
|
14
|
19
|
13.5
|
16.8
|
34
|
M14
|
60
|
36
|
77
|
25.4
|
16
|
13
|
22.1
|
0.126
|
|
POS14F1
|
14
|
19
|
13.5
|
16.8
|
34
|
M14X1.5
|
60
|
36
|
77
|
25.4
|
16
|
13
|
22.1
|
0.126
|
|
POS15
|
15
|
20
|
14
|
18.1
|
36
|
M14
|
63
|
38
|
81
|
26.98
|
16
|
14.5
|
23.6
|
0.186
|
|
POS16
|
16
|
21
|
15
|
19.3
|
38
|
M16
|
66
|
40
|
85
|
28.58
|
15
|
16
|
25.9
|
0.185
|
|
POS16F1
|
16
|
21
|
15
|
19.3
|
38
|
M16X1.5
|
66
|
40
|
85
|
28.58
|
15
|
16
|
25.9
|
0.185
|
|
POS17
|
17
|
22
|
16
|
20.6
|
40
|
M16X1.5
|
69
|
42
|
89
|
30.16
|
14
|
18
|
28.4
|
0.259
|
|
POS18
|
18
|
23
|
16.5
|
21.8
|
42
|
M18x1.5
|
72
|
44
|
93
|
31.75
|
15
|
19.5
|
30.8
|
0.260
|
|
POS20
|
20
|
25
|
18
|
24.3
|
46
|
M20X1.5
|
78
|
47
|
101
|
34.92
|
14
|
23
|
36.2
|
0.340
|
|
POS22
|
22
|
28
|
20
|
25.8
|
50
|
M22x1.5
|
84
|
51
|
109
|
38.1
|
15
|
29
|
42.6
|
0.435
|
|
POS25
|
25
|
31
|
22
|
29.5
|
60
|
M24x2
|
94
|
57
|
124
|
42.86
|
15
|
40.5
|
74.1
|
0.650
|
|
POS28
|
28
|
35
|
24
|
32.29
|
66
|
M27x2
|
103
|
62
|
136
|
47.63
|
15
|
46.1
|
88.7
|
0.875
|
|
POS30
|
30
|
37
|
25
|
34.8
|
70
|
M30x2
|
110
|
66
|
145
|
50.8
|
17
|
54.3
|
94.0
|
1.070
|
Can supply rod ends with different pitch or accuracy of thread.
For left-hand thread, suffix "L" is added to bearing numbers. e.g.:POS20L M20×1.5L-6g:
