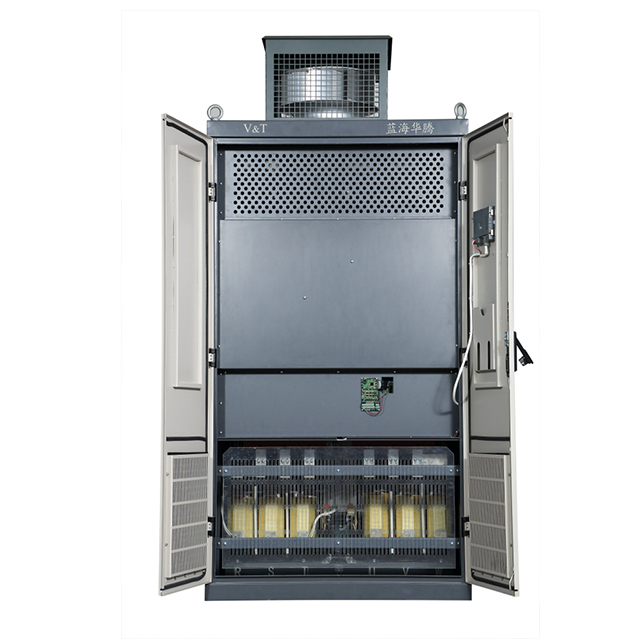

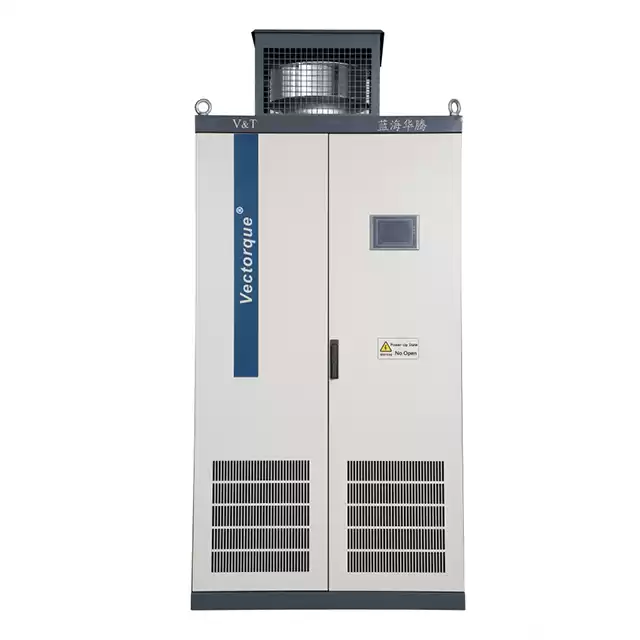

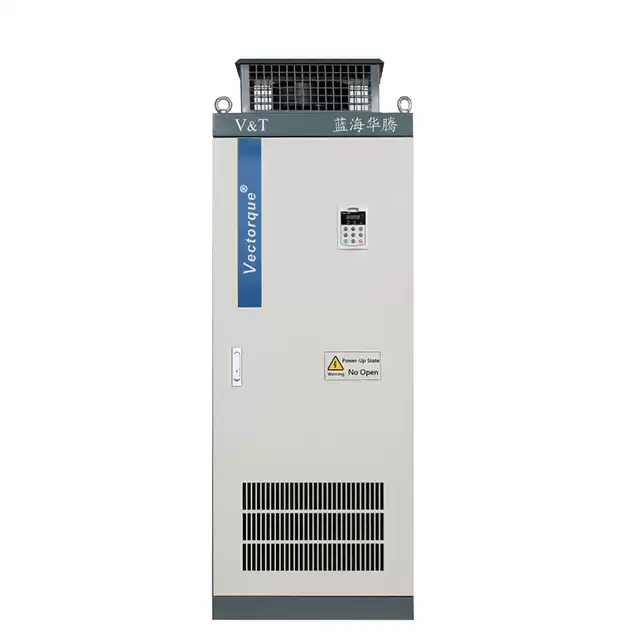

Middle Voltage 690V 1140V High-performance Universal Inverter

V5-H-6T and V5-H-BT medium voltage series are high-performance vector control inverter. The product adopts the open-loop vector control technology with the current international advanced technology, which has the same excellent control performance with the international high-end drive. It further strengthened the reliability and environmental adaptability of the product, as well as the customized and professional design. This greatly meet the needs of various transmission applications.



  • CertificationCE, EAC, ISO9001, OHSAS18001, TS16949, SGS
  • Shipping PortShenzhen
  • Place of OriginChina
  • AvailabilityOEM/ODM, Minmum Order Request
  • PackageStandard Export Package Carton/Wood
  • TransportationExpress · Sea freight · Land freight · Air freigh
  • Delivery Time5-7 working days for standard series; 7-14 working days for customized AC drives
  • Warranty18 Months
  • CustomizedYES
  • Term of paymentT/T, L/C, D/P
  • Sample freight payerBuyer
  • Sample provideYES

Product Overview


Item Description
Product Name Frequency Inverter/ AC Drive
Model Number V5-H-6TxxxG, V5−H−BTxxxG
Power Range 15kW-710kW
Rated Input Voltage 3 phase 380V/480V
Rated Output Voltage 3 phase 0 to rated input voltage
Input Frequency 50Hz/60Hz
Adaptable Motor Asynchronous Motor
Control Mode V/F Control, Vector Control, Sensorless Vector Control, Vector Torque Control
Communication Modbus 485 RTU
IP Class Standard IP20
Overload Capacity 150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)

Feature

Higher saving-energy effect and Less reactive current

Outdoor digital control cabinet, thermostatic control cabinet suit ;high and low temperature ;ambient for long-term reliable work

Excellent control performance for open-loop vector control, accurate speed identification and rotor flux orientation, and torque can respond quickly and operate stably at 0.25hz load change

 Excellent current and voltage control technology, repeatedly and alternately accelerated and decelerated with 0.1s instruction, and inverter operates stably ;

Wide voltage ;range, low voltage ;under fluctuated power, continuous working, strong adaptability

 Convenient and continuous to adjust speed, perfect torque compensation function, normal to start motor with powerful power.

 Mature power balance scheme can effectively solve power distribution in multi-point transmission.

 The overload capacity can be optimized under low frequency.

 Rich monitoring function, operation data can be recorded and saved by storage medium or wireless transmission.

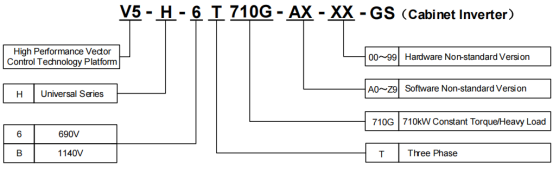

Model Explanation


Product Catalogue

V5−H−6T□□□G ; 3 Phase 690V Constant Torque/Heavy-duty Applications

Power(kW) 15 18.5 22 30 37 45 55 75 90 110 132 160 185 200 220
Motor(kW) 15 18.5 22 30 37 45 55 75 90 110 132 160 185 200 220
Output Voltage(V) 3 phase 0Rated Voltage
Rated Current(A) 20 25 28 35 45 52 65 86 98 120 150 176 204 220 245
Overload capacity 150% ;1min180% ;10 second 200% ;0.5 secondinterval: 10 minutes (inverse time lag ;feature)
Input Voltage/ frequency 3 ;phase 690V~790V;50Hz/60Hz
Allowable voltage range 587V~793V;Voltage imbalance:≤3% ;allowable frequency fluctuation:±5%
Rated Current(A) 25 30 35 40 47 52 65 85 96 116 145 168 196 210 230
*Braking unit Built-in as standard External braking unit needed
IP IP20
Cooling mode Forced air cooling
Power(kW) 250 280 315 355 400 450 500 560 630





Motor(kW) 250 280 315 355 400 450 500 560 630





Output Voltage(V) 3 phase 0Rated Voltage
Rated Current(A) 275 325 350 395 435 490 545 600 680





Overload capacity 150% ;1min180% ;10 second 200% ;0.5 secondinterval: 10 minutes (inverse time lag ;feature)
Input Voltage/ frequency 3 phase 690V790V50Hz/60Hz
Allowable voltage range 587V~793V;Voltage imbalance:≤3% ;allowable frequency fluctuation:±5%
Rated Current(A) 255 290 335 378 415 466 520 580 655





*Braking unit External braking unit needed
IP IP20
Cooling mode Forced air cooling


V5−H−BT□□□G ; 3 Phase 1140V Constant Torque/Heavy-duty Applications

PowerkW

37

45

55

75

90

110

132

160

185

200

220

250

280

315

355

MotorkW

37

45

55

75

90

110

132

160

185

200

220

250

280

315

355

Output

VoltageV

3 phase 0Rated Voltage

Rated CurrentA

25

31

38

52

58

73

86

104

115

132

144

162

180

208

225

Overload capacity

150% ;1 ;min180% ;10 ;second200% ;0.5 ;secondinterval: 10 minutes (inverse time lag ;feature)

Input

Voltage/ frequency

3 phase 1140V50Hz/60Hz

Allowable voltage range

960V1300VVoltage imbalance3% allowable frequency fluctuation±5%

Rated CurrentA)

27

32

38

51

57

72

85

102

113

126

141

158

180

200

215

IP

IP20

Cooling mode

Forced air cooling

PowerkW

400

450

500

560

630

710










MotorkW

400

450

500

560

630

710










Output

VoltageV

3 phase 0Rated Voltage

Rated CurrentA

260

300

325

365

400

450










Overload capacity

150% ;1 min180% ;10 second200% ;0.5 secondinterval: 10 minutes (inverse time lag ;feature)

Input

Voltage/ frequency

3 phase 1140V50Hz/60Hz

Allowable voltage range

970V1300VVoltage imbalance3% allowable frequency fluctuation±5%

Rated CurrentA

260

300

325

365

400

450










IP

IP20

Cooling mode

Forced air cooling


Technical Specification



Control characteristics

Control mode

Vector Control

Starting torque

0.50Hz ;180%

Speed regulation range

1:100

Steady speed precision

± ;0.5%







Product functions

Key function

Under-voltage regulation, switchover of run command source(operation panel, terminal and communication), speed tracing function, multi− step frequency reference(up to 23 step frequency),S curve acceleration and deceleration, slip compensation, PID regulation, droop control, current limit, manual torque boost and auto torque boost,Multiple function input/output terminal.

Frequency setting method

operation panel ;settingterminal UP/DNupper computer communicationanalog AI1, analog AI2,analog AI3pulse DI, etc.

Frequency range

0.00300.00Hz

Starting frequency

0.0060.00Hz

Acceleration time and deceleration time

0.136000s


Dynamic braking

Braking unit action voltage

AC690V8001200V AC1140V17002200V


DC braking

DC braking start frequency0.00300.00Hz

DC braking current0.0120.0%

DC braking time0.030.0sDC braking function does not required waiting time to start ;to realize quick braking

Magnetic flux braking

Enabled or disabled during deceleration are optional, the default setting is enabled





Unique functions

Multi-function M key

The unique multi-function key can be set to frequently used operations: such as JOG, emergency stop, switchover of run command source, switchover of parameters display mode, etc.

Multiple parameter display modes

Basic parameters display mode, fast parameters display mode, non−factory setting parameters display mode.

Parameters copy

The standard operation panel can realize the parameters upload, download and display the copy progress. Users can set to forbid overwriting the uploaded parameters

Function code ;hiding

Customers can customize the display and hide of any function code group

Dual 485 communication ports

Dual 485 communication ports support Modbus protocol (RTU). The maximum distance is 500 meters

Operation panel

Key type ;operation panel, Protection level: IP20 as standard, IP54 as option

Common DC bus

All series product support common DC bus

Independent duct

All series product adopts independent duct design and supports the installation of heat-sink outside the cabinet

Power-On-Self-Test

(POST)

Realizing the POST of internal and peripheral circuits, including motor grounded, abnormal +10V power supply output, analog input and disconnection, etc.

Protection function

Power supply under-voltage, over-current protection, over-voltage protection, interference protection, abnormal comparison level, motor data identification ;failure, module(IPM) protection, heat-sink over temperature protection, inverter overload protection, motor overload protection, peripheral protection, abnormal current detection, output short circuit to ground, interruption of power supply when in running status, abnormal input power, output phase loss, abnormal EEPROM protection, abnormal pre-charging contactor detection, temperature sampling disconnection, abnormal +10V power supply, abnormal analog input, motor over temperature protection(PTC), abnormal communication, abnormal software version compatibility, abnormal copying, terminal mutual exclusion detection, hardware overload protection






Environment


Operating site

The product should be mounted vertically in the electric control cabinet with good ventilation. Horizontal or other installation modes are not allowed. The cooling medium is the air. The product should be installed in the environment without dust, corrosive gas, combustible gas, oil mist, steam, drip and free from direct sunlight.Please install it in a place where it cannot be severe vibration and shock, and the maximum amplitude does not exceed 5.8m/S2 (0.6g)

Ambient temperature

−10 to +40ºC, the product must be de-rated rated output current for the ambient temperature between 40ºC to 50ºC, the rated output current must be de-rated for 1% per 1ºC temperature rise

Humidity

5 to 95%, no condensing

Altitude

0 to 2000m, the product must be de-rated rated output current for the altitude above 1000 meters, the rated output current must be de-rated for 1% per 100 meters rise

Vibration

3.5mm, 29Hz10 m/s29200Hz15 m/s2200500Hz

Storage temperature

−40+70


Installation Dimension

690V Voltage Class



V5−H−6T90G And below power class





V5−H−6T110G And above power classaccompany with pedestal )




V5−H−6T110G And above power classno pedestal


V5−H−6T Series Product Appearance,Installation Dimensions, Approximate Weight

Voltage

powerkW

pedestal

Appearance sizemm

Installation Dimensionsmm

Weightkg

W

H

D

W1

H1

D1

T1

Hole d

690V

1530

No

285

440

220

200

425

107.5

2.5

7

17

3755

No

315

575

227

220

553

123.5

2.5

10

25

7590

No

400

615

265

270

590

123.5

3.0

10

35

110132

yes

465

1042

325

382

339

238

14

No

465

745

325

343

715

156

3.0

12

55

160220

yes

540

1206

385

459

365

300

14

No

540

890

385

370

855

205.5

4.0

14

85

250355

yes

700

1380

385

614

412

294

15

No

700

1010

385

520

977

210

4.0

14

125

400630

yes

810

1698

425

728

418

339

15

No

810

1358

425

520

1300

210

4.0

14

215

Note: For 690V series inverters, air-cooled inverters are standard products, and explosion-proof inverters need to be customized according to customer needs. The installation dimensions of explosion-proof inverters can be flexibly changed according to customer requirements. If you have special needs, please contact our company R & D department. The company only provides explosion-proof inverter inner cores, and does not design and produce explosion-proof enclosures.


1140V Voltage Class






V5−H−BT37GV5−H−BT250G power class ;                                                                                                       V5−H−BT280GV5−H−BT710G power class


V5−H−BT Appearance, Installation Size and Approximate Weight

Voltage

PowerkW

Appearance, Installation Sizemm

Weight

kg

W

H

D

W1

H1

D1

d

1140V

37132

590

1280

365

506

1255

271

14

80

160250

800

1700

450

716

1669

351

14

130

280500

1000

2552

800

880

2200

700

20

220

560710

1200

2552

800

1080

2200

700

20

250

Notes:

♦ For the 1140V series inverter, the air-cooled inverter is a standard product, and the explosion-proof inverter needs to be manufactured at client’s requirements. Explosion-proof inverter’s installation size, can be customized at client’s requirements. If you have any special requirements, please contact research and development department in company.

Company only provide explosion-proof inverter and inner core, not produce explosion-proof enclosure.

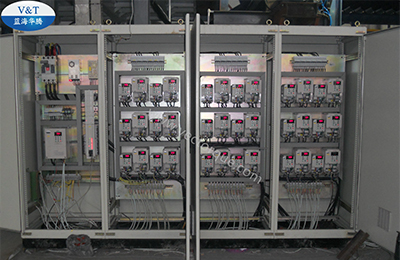

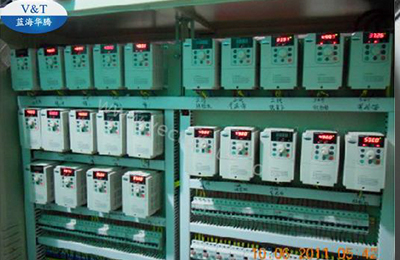

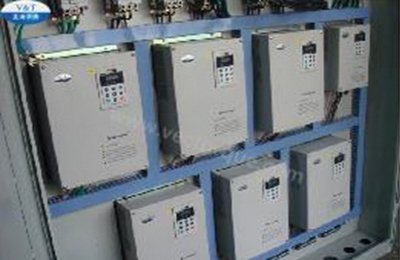

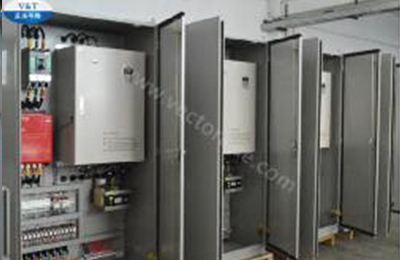

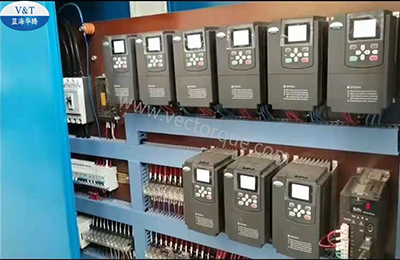

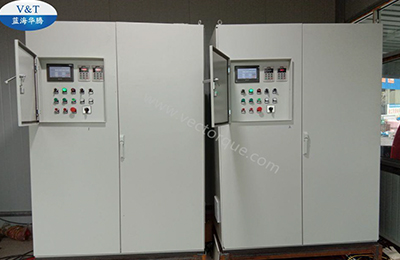

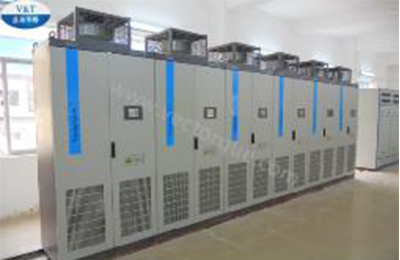

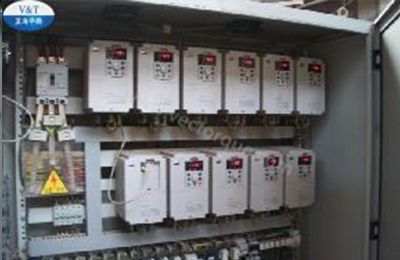

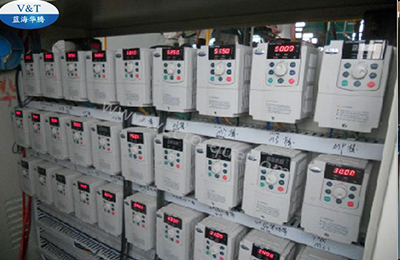

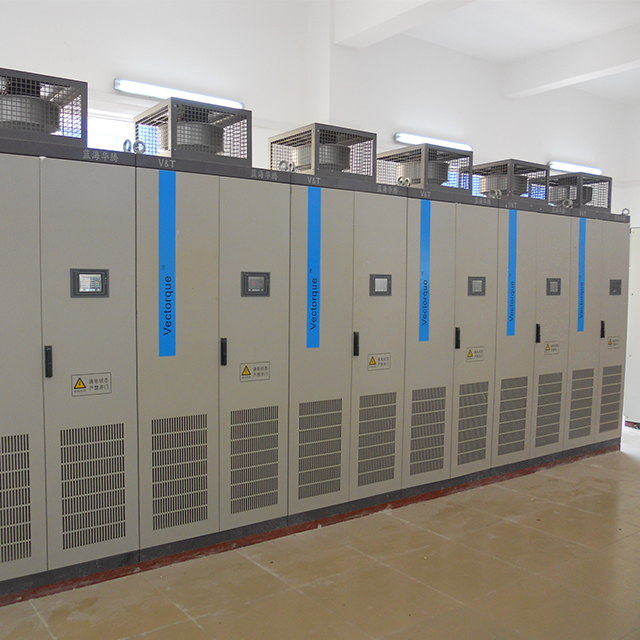

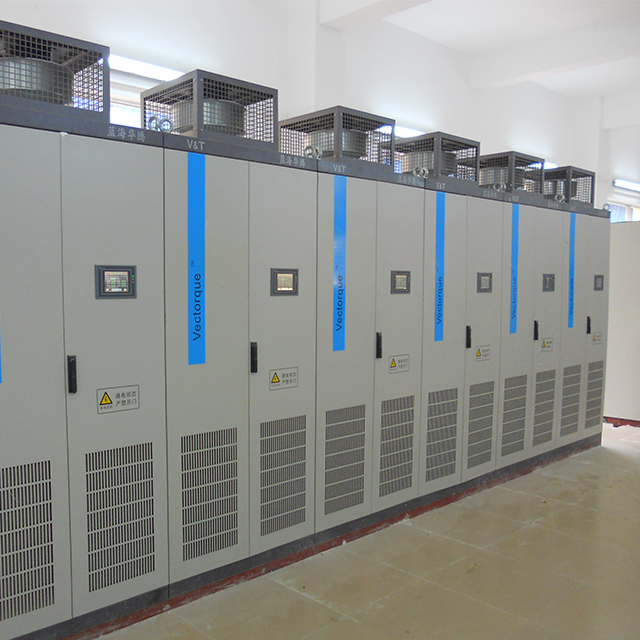

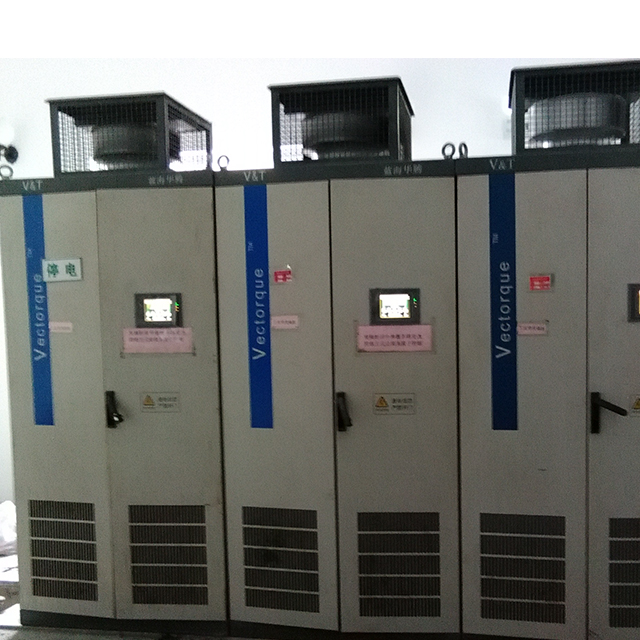

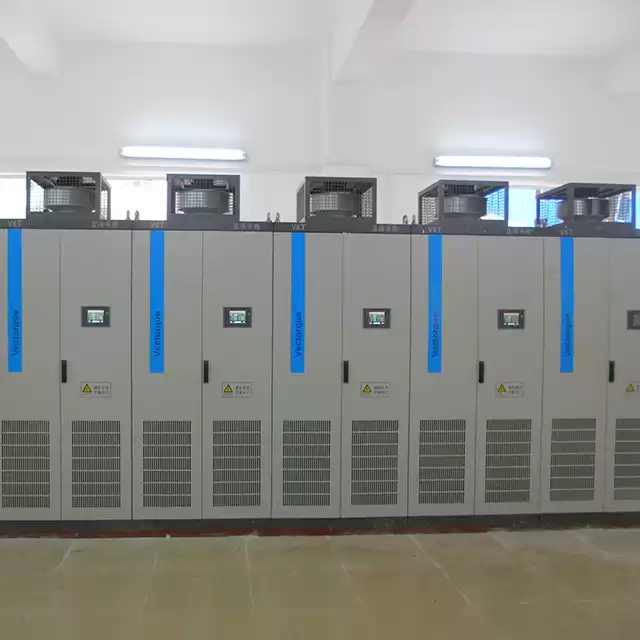

Applications











Representative Industry

The Middle Voltage High-performance Universal Inverter of Shenzhen V&T Technologies Co.,Ltd. are widely used in Oilfield,Inner Parts for Safety and Explosion-proof Machine ,Mining Winch,Coal Mine,Hoist,Municipal Engineering, Rubber and Plastics Machine.
