General Description
MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license.
MIFARE® Plus brings benchmark security to mainstream contactless smart card applications. It is the only mainstream IC compatible with MIFARE® Classic 1K (MF1 IC S50) and MIFARE® Classic 4K (MF1 IC S70) which offers an upgrade path for existing infrastructures and services.
After the security upgrade, MIFARE® Plus uses AES-128 (Advanced Encryption Standard) for authentication, data integrity and encryption. MIFARE® Plus is based on open global standards for both air interface and cryptographic methods at the highest security level.
MIFARE® Plus is available in two versions: MIFARE® Plus S and MIFARE® Plus X.

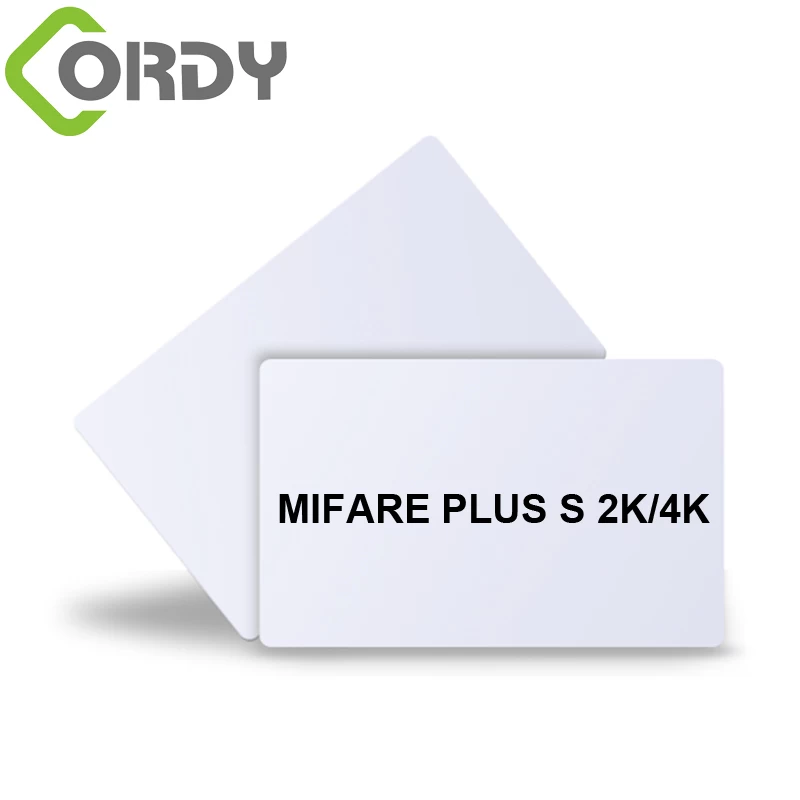

The MIFARE® Plus S (MF1 S PLUS x 0y1, described in this data sheet) is the standard version for straight forward migration of MIFARE® Classic systems. It is configured to offer high data integrity.
The MIFARE Plus X (MF1 PLUS x 0y1) offers more flexibility to optimize the command flow for speed and confidentiality. It offers a rich feature set including proximity checks against relay attacks.
Feature
* 2 kB or 4 kB EEPROM
* Simple fixed memory structure compatible with MIFARE® Classic 1K and MIFARE® Classic 4K
* Memory structure identical to MIFARE® Classic 4K (sectors, blocks)
* Access conditions freely configurable
* Supports ISO/IEC 14443-3 UIDs (4-byte UID, 4 Byte NUID, 7-byte UID), optional support of random IDs
* Multi-sector authentication, Multi-block read and write
* AES-128 used for authenticity, confidentiality and integrity
* Anti-tearing mechanism for writing AES keys
* Keys can be stored as MIFARE CRYPTO1 keys (2 × 48-bit per sector) and as AES keys (2 × 128-bit per sector)
* Full support of virtual card concept
* Proximity check
* Communication speed up to 848 kbit/s
* Number of single write operations: 200000 cycles (typical)
* Common Criteria Certification: EAL4+
Application
Public transportation
Access management/ Time Attendance such as employee, school
Electronic toll collection
Closed loop micro payment
Car parking
Internet cafés
Loyalty programs
