Landa H3025 round electromagnet have two kinds of surface treatment type for customers chose, one is black, one is silver. You can choose the right one with you application.
Product description
|
Specifications
|
|
Brand
|
Landa
|
Product Name
|
H3025 circular electromagnet
|
|
Model
|
H3025
|
Rated Voltage
|
DC 12v 24v
|
|
Power
|
3.5-7w
|
Force
|
100-120N
|
|
Waterproof Class
|
IP65
|
Duty Cycle
|
50-100%
|
|
Cable Length
|
200mm
|
Material
|
Metal, Electronic Parts
|
|
Action Form
|
Holding type
|
Weight(N.W.)
|
0.1kg
|
|
Install Style
|
Screw
|
Thread Size & Deepth(mm)
|
M6,12
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Insulation Class
|
B
|
|
Packaging Details
|
|
Body Size
|
D30*H25(mm)
|
Carton Box Size(Standard)
|
350*310*180(mm), accepted custom
|
Product Feature
circular holding electromagnet
1.Holding type, round shape, mini size, IP65 waterproof, DC solenoid electromagnet.
2.The electromagnet need to be energised to develop suction force, widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.
3.Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.
4.Also offer custom shape and energise to release circular electromagnet

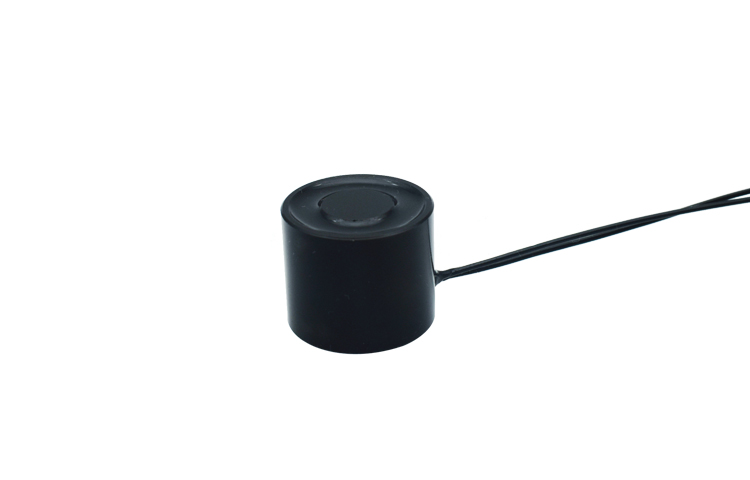

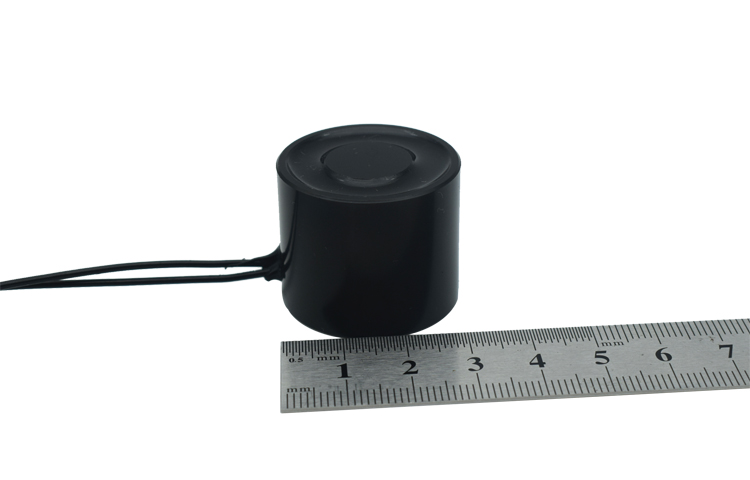

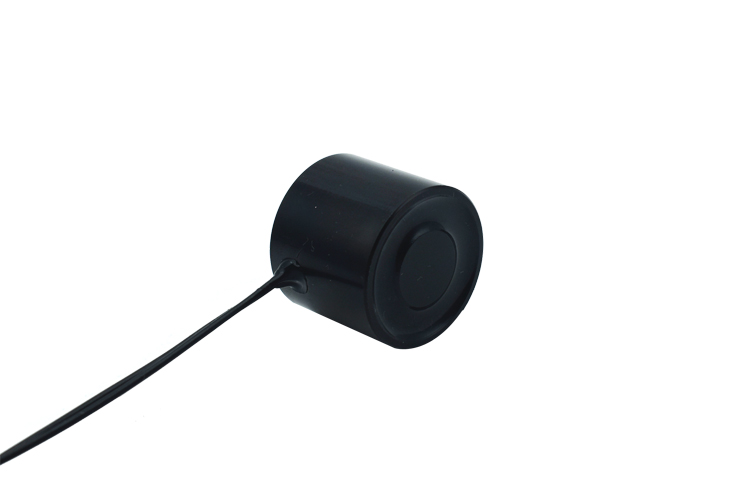

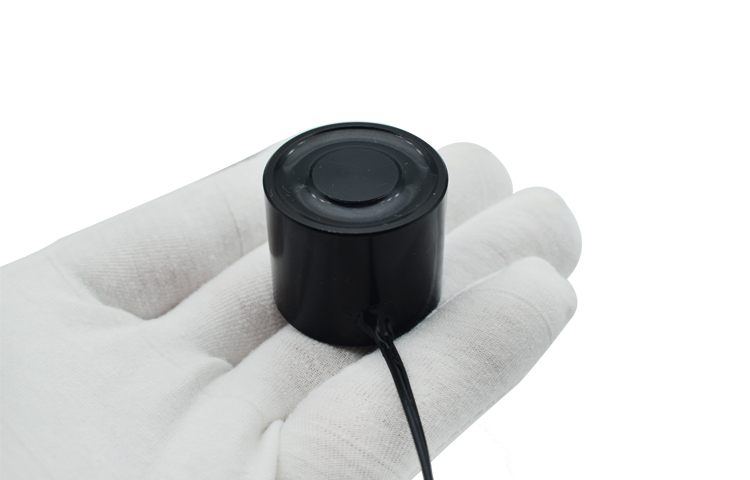

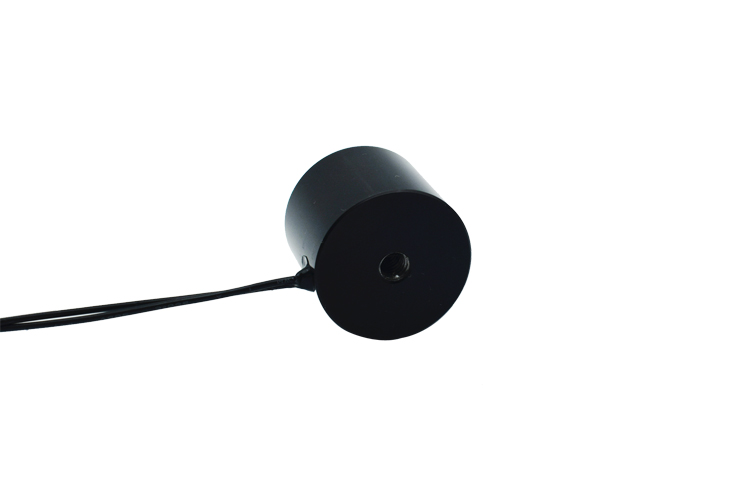

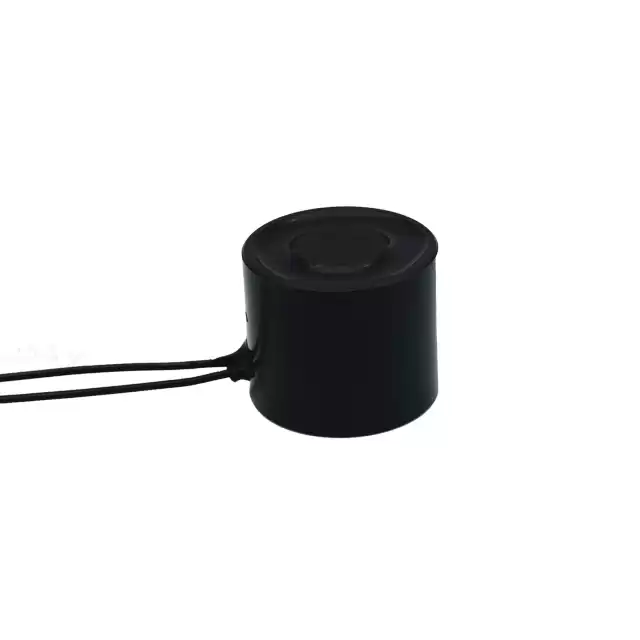

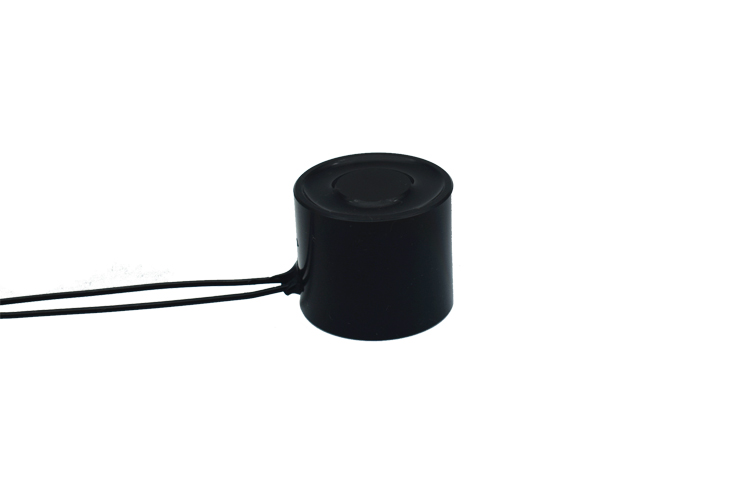

Detailed Images
