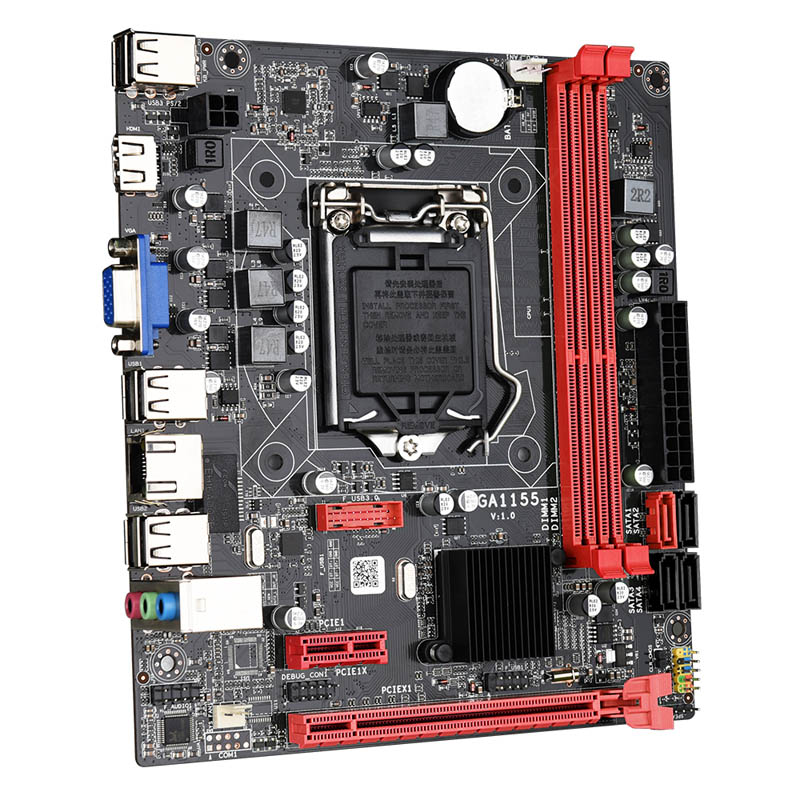

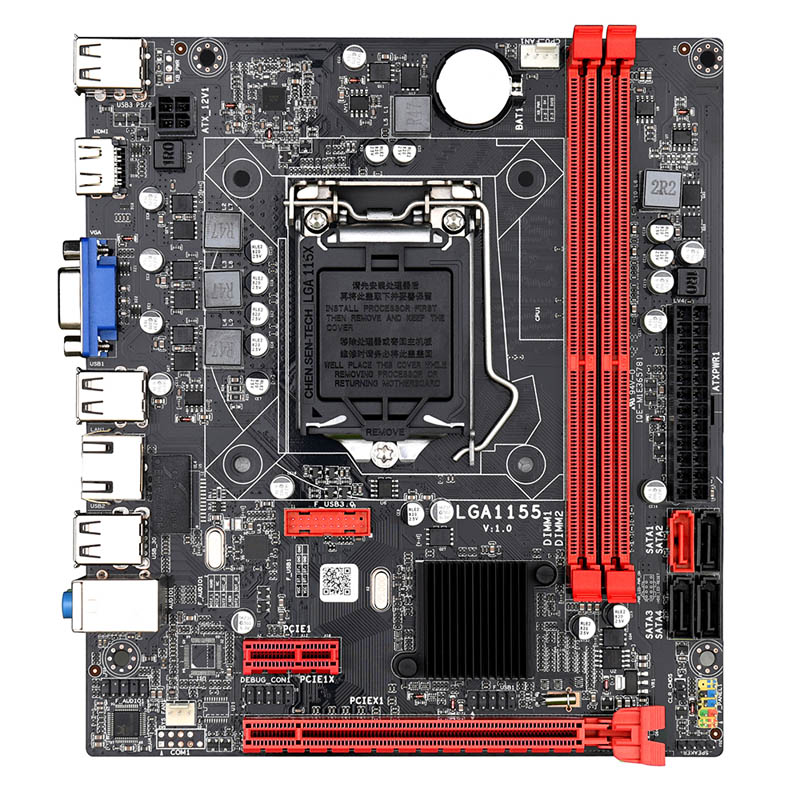

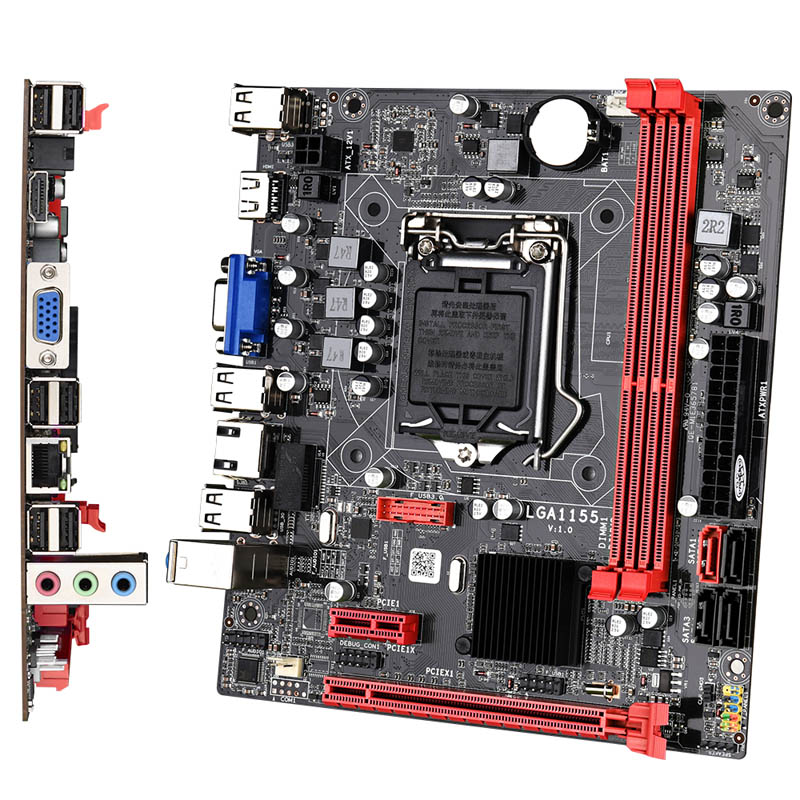

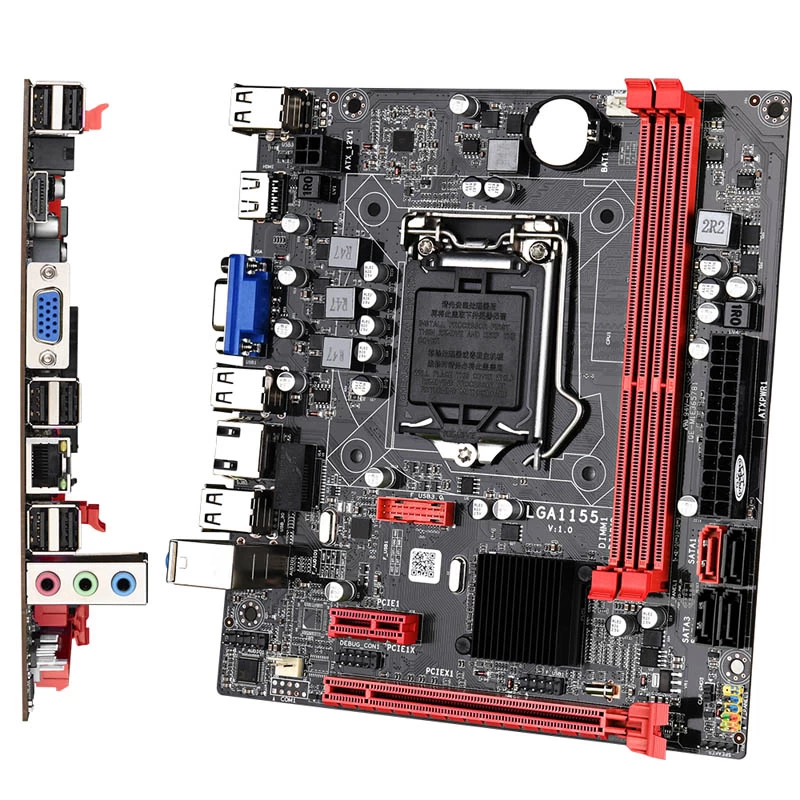

Mini ITX gaming performance intel B75M LGA 1155 motherboard

  • Intel LGA 1155 socket, support Intel Core/Celeron/Pentium series processors
  • Intel 7 series chipset
  • Mini ITX form factor, small size.
  • Integrated VGA HDMI ports.
  • 2 x DDR3 DIMM slot, up to 16GB


  • MemoryDual channel DDR3 up to 16GB
  • ChipsetIntel 7 series Chipset
  • CPU socketIntel LGA1155 socket

Mini ITX B75M motherboard highlights..

FOCUS ON DETAILS, FOCUS ON QUANLITY
Products of ingenuity, best quality, trustworthy

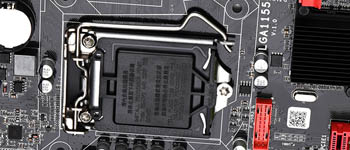

LGA 1155

Intel LGA 1155 socket, support Intel® Core™ i3 / i5 / i7
/ Celeron Dual-Core / Pentium Dual-Core Processor
mini itx b75 motherboard
mini itx 1155 motherboard

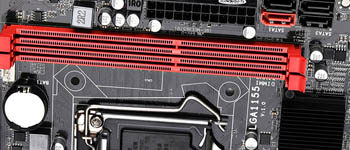

DDR3

Dual Channel DDR3 DIMM slot
Support 1066/1333/1600mhz
Stability performance

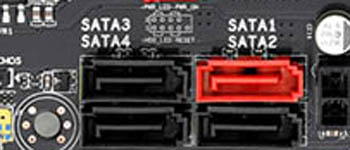

SATA3

Integrated SATA3 (6Gb/s) port,
high speed boot OS in an instant.
itx B75 mainboard
chinese motherboard factory

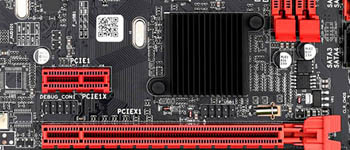

B75 Chipset/PCIE 3.0 8x

Intel B75 chipset
1 x PCIE 3.0 8x
1 x PCIE 1x

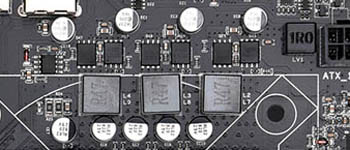

More Stability Power Supply

5 phases solid state capacitors,
More stability power supply.
mobo factory
motherboard manufacturer

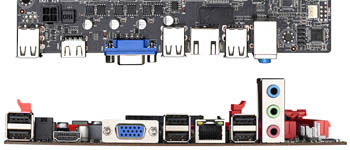

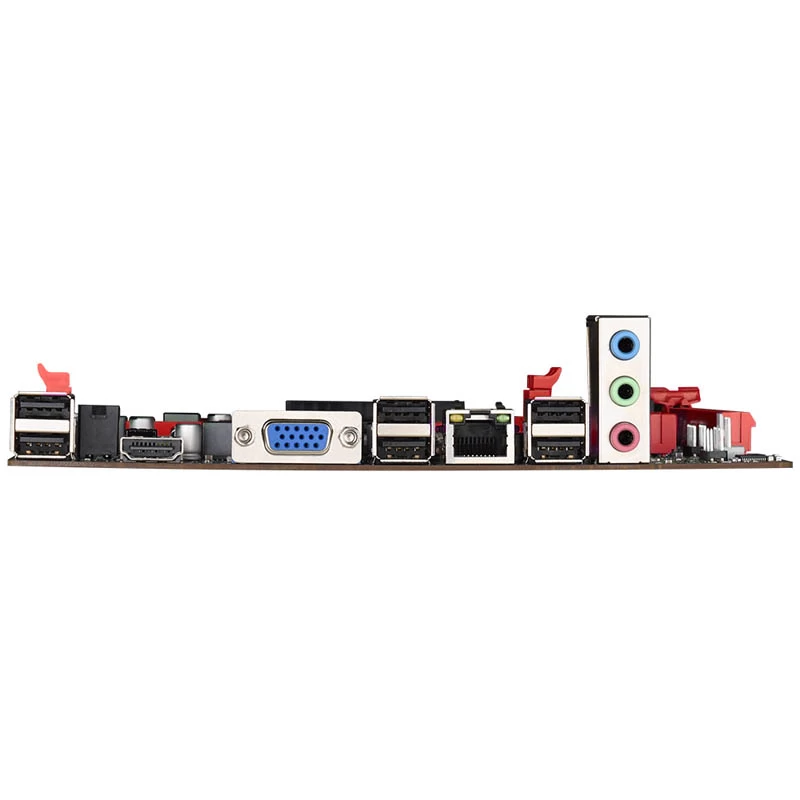

Rich compatibility ports

Rich compatibility ports suitable
for variety using scenarios.

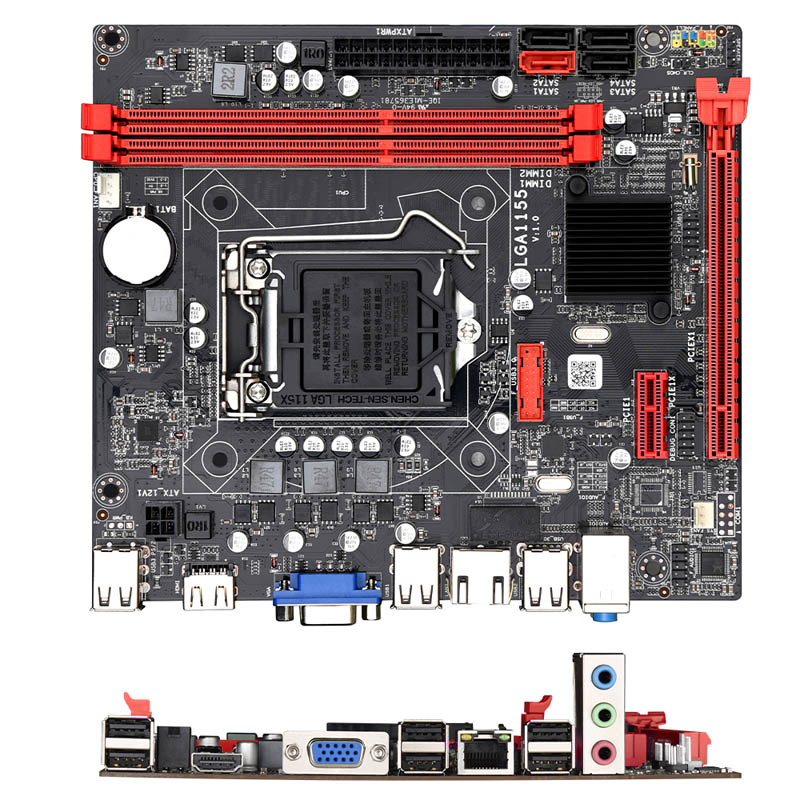

FLAGSHIP LEVEL LAYOUT
STRONG EXTENSIBILITY

Multiple Interfaces, High Efficient Industrial, Home & Office
Processor Cores CPU Clock rate Graphics Clock rate L3 TDP
Branding & Model (Threads) Normal Turbo Normal Turbo Cache
Core i7 2700K 3.5 GHz 3.9 GHz 850 MHz 1350 MHz 8 MB 95 W
2600K 3.4 GHz 3.8 GHz
2600
2600S 2.8 GHz 65 W
Core i5 2550K 4 (4) 3.4 GHz N/A 6 MB 95 W
2500K 3.3 GHz 3.7 GHz 850 MHz 1100 MHz
2500
2500S 2.7 GHz 65 W
2500T 2.3 GHz 3.3 GHz 650 MHz 1250 MHz 45 W
2450P 3.2 GHz 3.5 GHz N/A 95 W
2400 3.1 GHz 3.4 GHz 850 MHz 1100 MHz
2405S 2.5 GHz 3.3 GHz 65 W
2400S
2380P 3.1 GHz 3.4 GHz N/A 95 W
2320 3.0 GHz 3.3 GHz 850 MHz 1100 MHz
2310 2.9 GHz 3.2 GHz
2300 2.8 GHz 3.1 GHz
2390T 2 (4) 2.7 GHz 3.5 GHz 650 MHz 3 MB 35 W
Core i3 2120T 2.6 GHz N/A
2100T 2.5 GHz
2130 3.4 GHz 850 MHz 1100 MHz 65 W
2125 3.3 GHz
2120
2105 3.1 GHz
2102
2100
Pentium G870 2 (2)
G860 3.0 GHz
G860T 2.6 GHz 650 MHz 35 W
G850 2.9 GHz 850 MHz 65 W
G840 2.8 GHz
G645 2.9 GHz
G640 2.8 GHz
G632 2.7 GHz
G630
G622 2.6 GHz
G620
G645T 2.5 GHz 650 MHz 35 W
G640T 2.4 GHz
G630T 2.3 GHz
G620T 2.2 GHz
Celeron G555 2.7 GHz 850 MHz 1000 MHz 2 MB 65 W
G550 2.6 GHz
G540 2.5 GHz
G530 2.4 GHz
G550T 2.2 GHz 650 MHz 35 W
G540T 2.1 GHz
G530T 2.0 GHz
G470 1 (2) 1.5 MB
G465 1.9 GHz
G460 1.8 GHz
G440 1 (1) 1.6 GHz 1 MB
