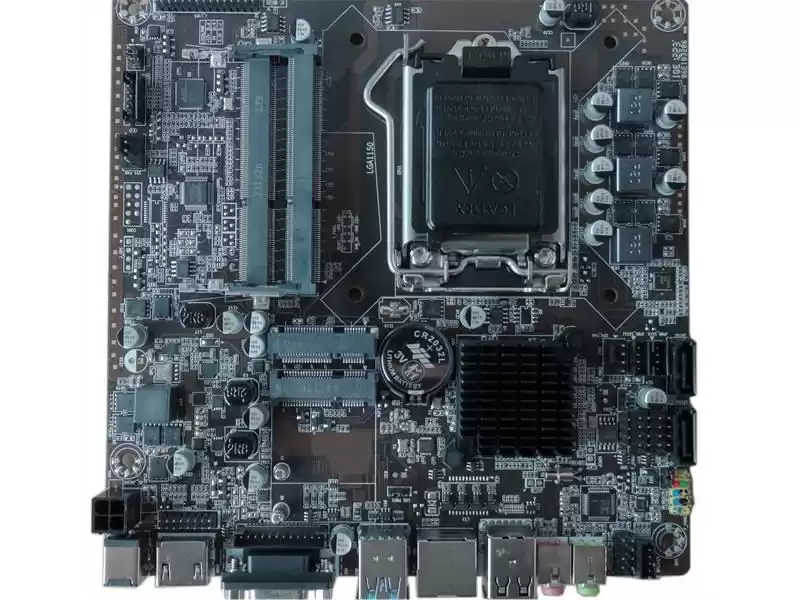

ITX-H81DL118
Mini ITX Motherboard, Intel® PCH H81 Chip，Support 4th generation CPU，1LAN 1COM 8USB
Product Introduction
Despite their smaller size, many Mini ITX motherboards still offer one or more PCIe slots to support graphics cards, expansion cards, wireless network cards, and more. This allows users to still do some expansion and customization.
Mini ITX computers can be ideal for DIY projects because they require more planning and assembly and can be a fun challenge for computer enthusiasts and engineers.
Feature
■ Support LGA 1150 architecture 4th generation Intel® Core™ CPU
■ VGA，HDMI，LVDS display I/O
■ 1LAN, 1COM, 6USB2.0, 2USB3.0
■ DC12~19V input
■ Ultra-thin
|
Specification
|
|
CPU/GPU
|
Support LGA1150 architecture Intel® Core™ i7 / i5 / i3，Pentium®/Celeron® CPU
|
|
Chip
|
Intel@ PCH H81
|
|
memory
|
2×DDR3 SO-DIMM notebook slot，up to16GB SDRAM
|
|
Storage
|
1×SATA ，1×M-SATA
|
|
Sound
|
Realtek ALC662，5.1 channel support
|
|
NIC
|
1×LAN Realtek8111 GbE
|
|
Display Card
|
CPU integrated graphic
|
|
Display Interface
|
VGA, 1×HDMI, LVDS
|
|
USB2.0
|
6
|
|
USB3.0
|
2
|
|
COM
|
1×COM RS232
|
|
Backplane I / O
|

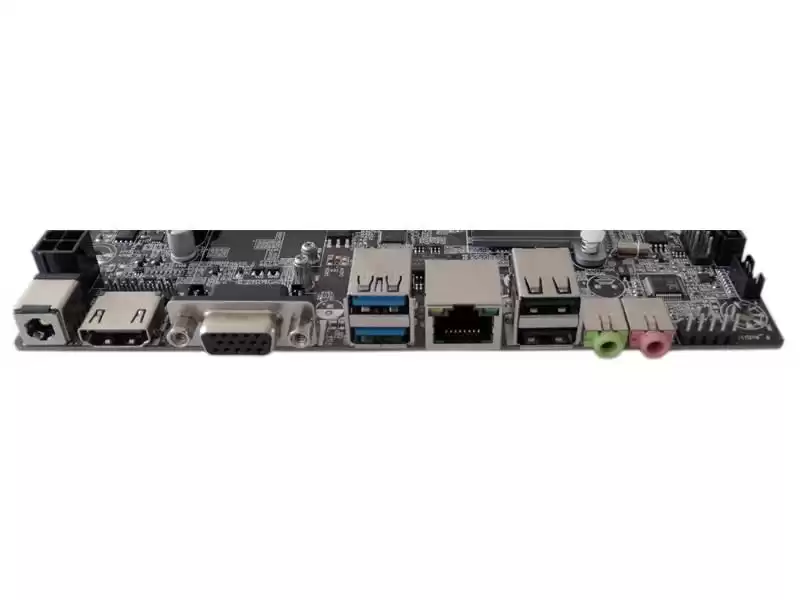

DC in, HDMI,VGA, 2USB3.0, RJ45 LAN, 2USB2.0, Line-out+Mic-in
|
|
Board I / O
|
4USB2.0 , 1 COM , front audio , CLR_CMOS , CPU fan power , System fan power , Front panel , Speaker, 4P DC In, HDMI,
|
|
Expansion
|
1 MINI PCIE（short）
|
|
System
|
Support Windows（WIN 7，WIN 10 ...），Linux
|
|
Mechanical & Environmental
|
|
Power Supply
|
DV12~19V
|
Heat Dissipation
|
Fan
|
Size(L×W)
|
170mm×170mm
|
|
Working Temperature
|
-15~55℃
|
Storage Temperature
|
-40~75℃
|
Environmental Humidity
|
0~90%air humidity,no condensation
|
|
Packing List
|
ITX-H81DL118 motherboard×1，SATA data cable×1，SATA power cable×1
|
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
