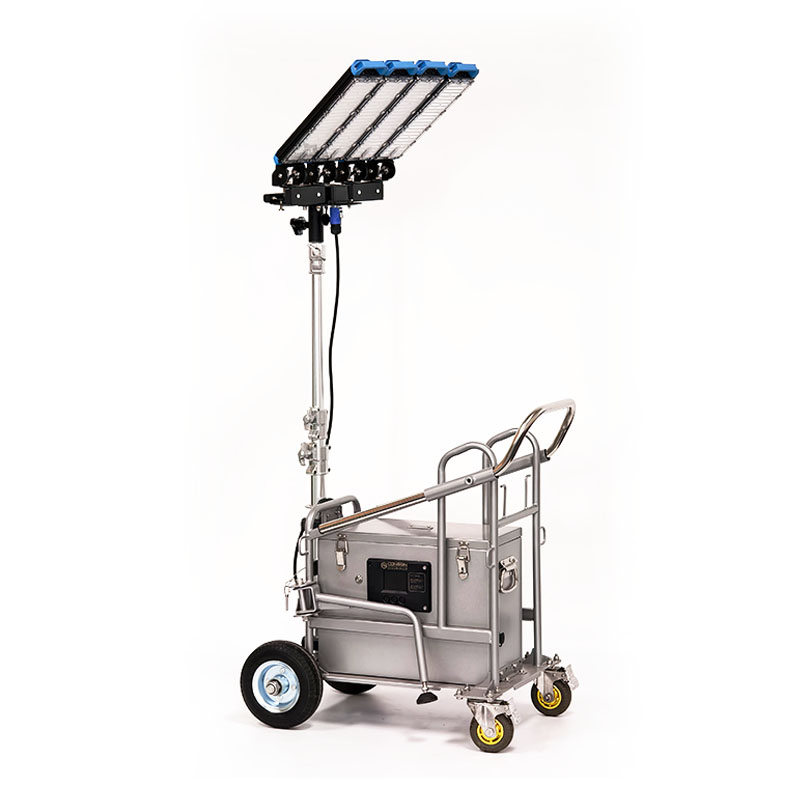

Mini Light Tower with Cartridge Battery KTBS1415 is Conssin's most portable lighting solution so far, by limiting LED's power consumption to 150W, we were able to scale down the trolley frame and battery, hence reduced overall weight.
Fitted with high performance LED chips, self-developed light configuration and balanced heat dispersing structure, it can achieve an overall satisfying lighting effect.
Floodlight is not easy to degenerate over time, it can uphold 95% of the performance after 3 years, 10 hours per day.
Product standards
Light projector and trolley
| Model |
KTBS1415 |
| Floodlight type |
4 pcs angle adjustable floodlight |
| Power |
Maximum 150 W, dimmable
|
| Full brightness |
26250 lm |
| Effective brightness |
21300 lm |
| Working time |
9.5 hours(max brightness) ~ 28 hours(min brightness) |
| Input voltage |
AC 100~277 V |
| Frequency |
50 / 60 Hz |
| Color temperature |
5000 k |
| Color rendering |
Ra70 |
| Protective performance |
IP66 / IK10 |
| Lens type |
Long-distance flood |

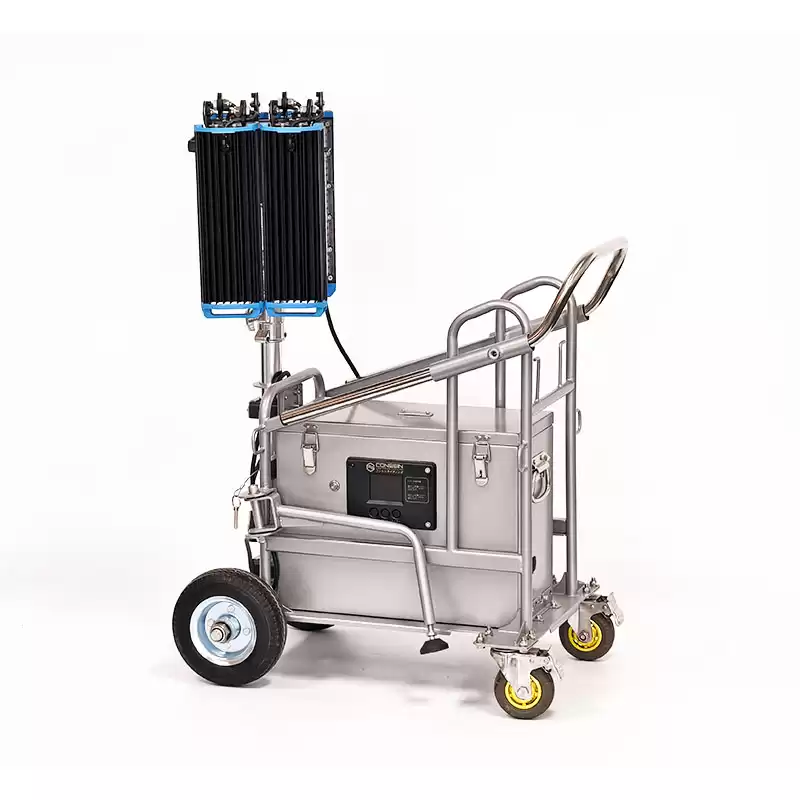

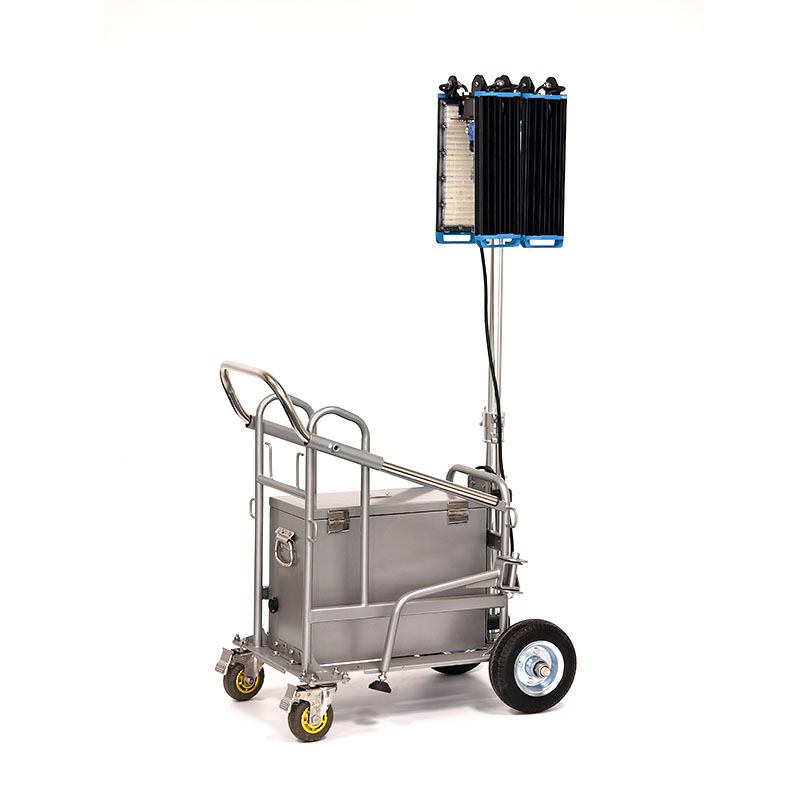

| Dimensions - When the light projector is folded |
828×517×875 mm |

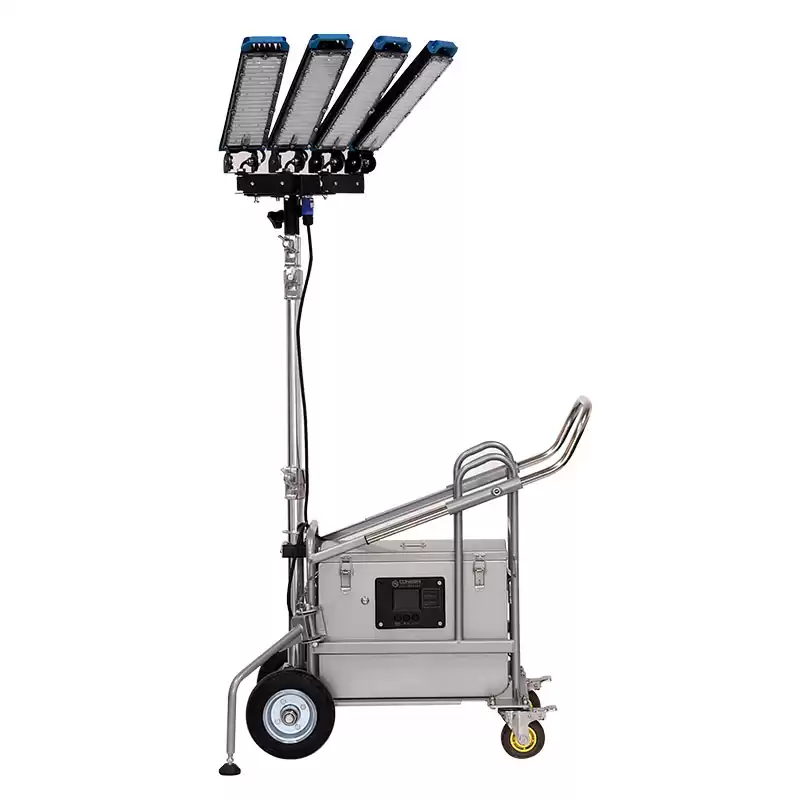

Dimensions - When the light projector is deployed
|
828×517× (1300~2375) mm |
Weight
|
projector 7.5kg + trolley 31.5kg
|
Cartridge-style battery
| Rated capacity |
1440Wh |
| Number of batteries used |
1 |
| Cell type |
Lithium iron phosphate battery |
| Protective performance |
IP65 |
| Charging time |
About 4.5~5 hours, charging time varies depending on ambient temperature. |
| Charging method |
With an external AC adapter. |
| Cooling method |
Passive heat dissipation |
| Weight |
12kg |

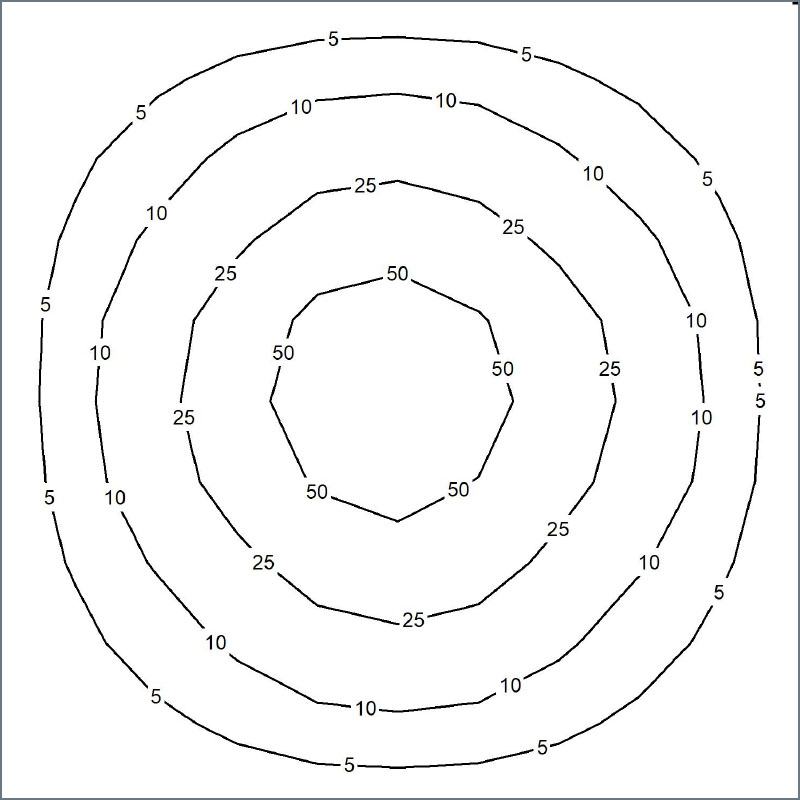

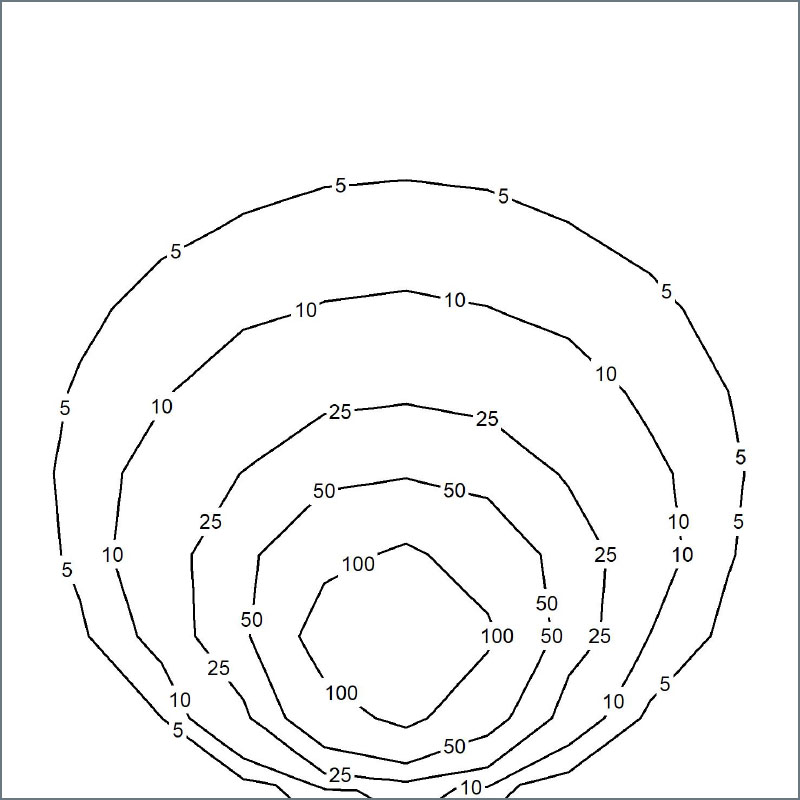

Illuminance distribution diagram

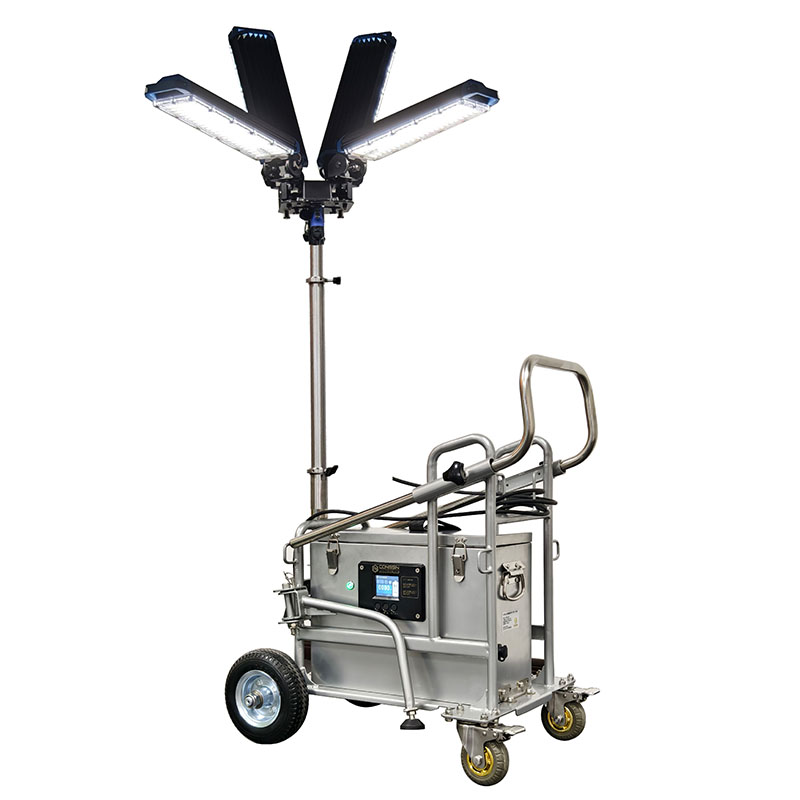

360-degree irradiation (balloon mode)
1 mobile floodlight, floodlight height 2.5M, irradiation angle 70°
Spotlight mode
1 mobile floodlight, floodlight height 2.5M, irradiation angle 70°
