Mini Rail Mounting System is simple,easy and cost-effective solution for trapezoidal roof, corrugated roof and other metal roof. It allow solar panel orientation with landscape or portrait, flexible on roof installation. It come with few solar mounting components like mid clamp, end clamp,and mini rail,very easy to install.

TECHNICAL INFORMATION

Install site ：Trapezoidal Metal Roof ,Corrugated Roof etc.

Tilt Angle ：Flushed with the roof （10~60 deg）

Building Height：Up to 20 m

Max Wind Speed：<60m/s

Snow Load：<1.4KN/m2

Standard ：AS/NZS 1170 and other international Standard

Material ：High Class Aluminum alloy Al6005-T5& Stainless steel 304

Color: Natural or Customized

Anticorrosive: Anodized aluminum & stainless steel

Warranty：12 years warranty and twenty- year service life

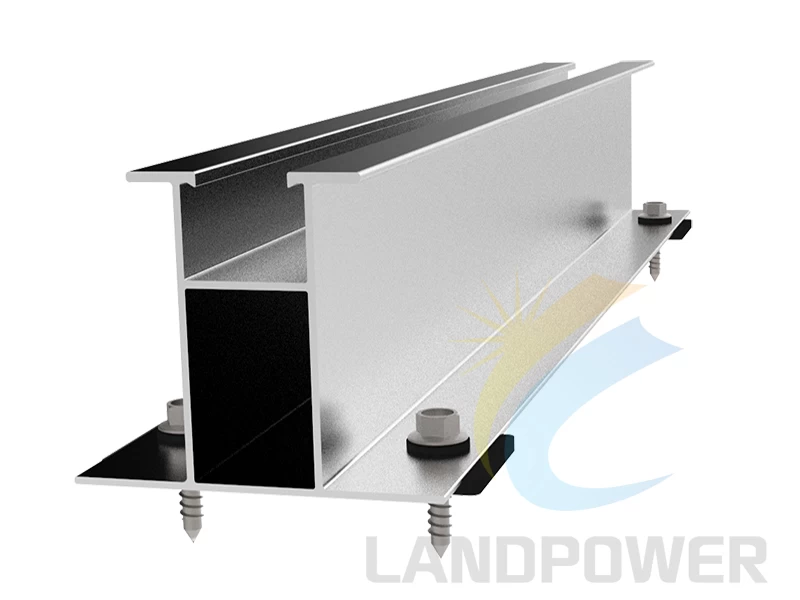

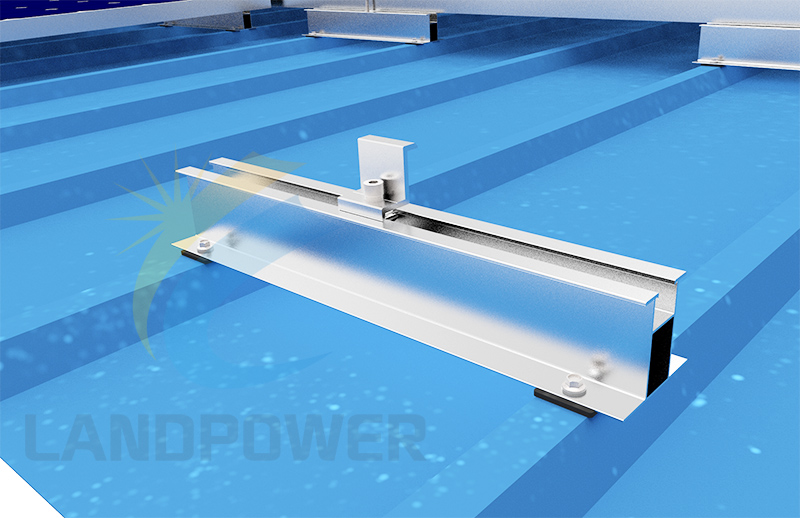

Mini Rail for solar panel with few solar mounting components as below: just mini rail+mid clamp+end clamp:

This Mini Rail Mounting System is quite flexible on installation, it can be installed for portrait solar array or landscape solar array:

• Mini Rail Mounting System-Portrait Installation:

• Mini Rail Mounting System-Landscape Installation:

The length of mini rail can be customized according to trapezoidal roof/ corrugated roof, the mini rail also come with rubber pad to make roof water proofing, please free to contact us for your customized mini rail mounting solutions
