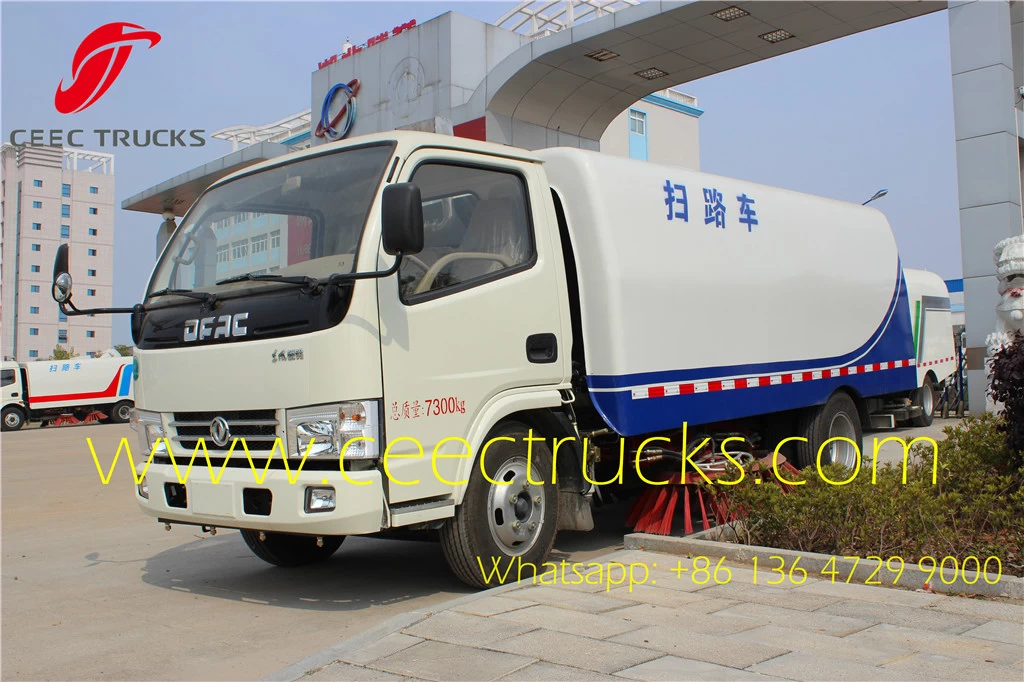

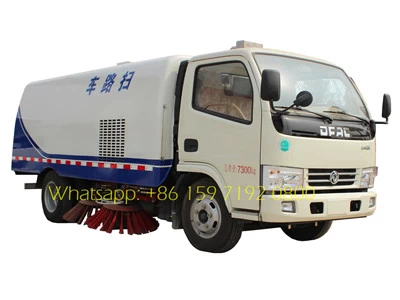

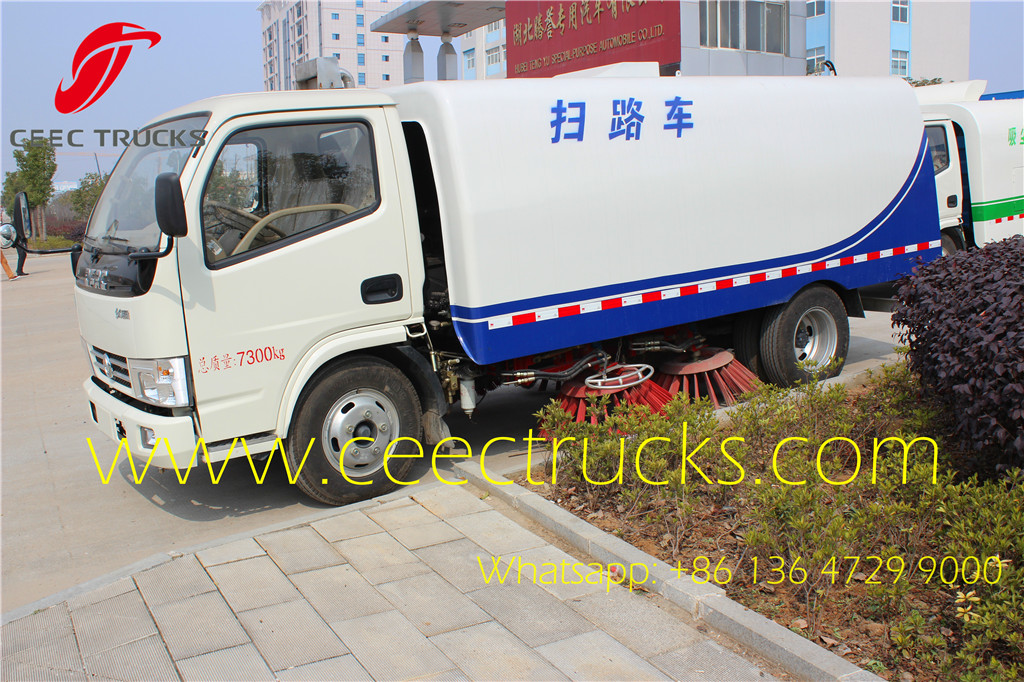

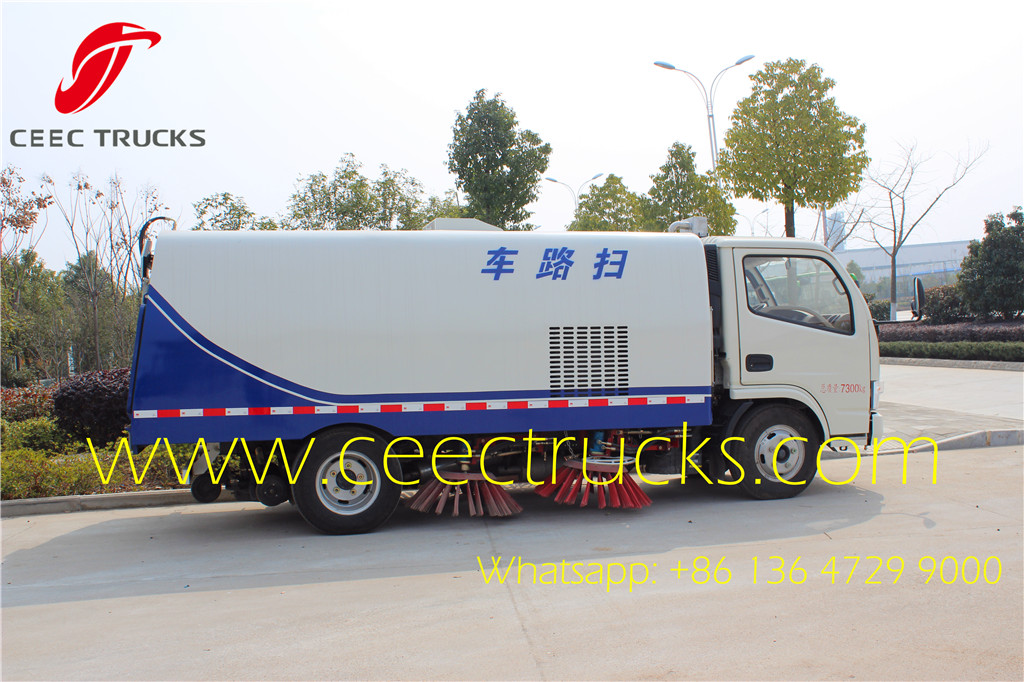

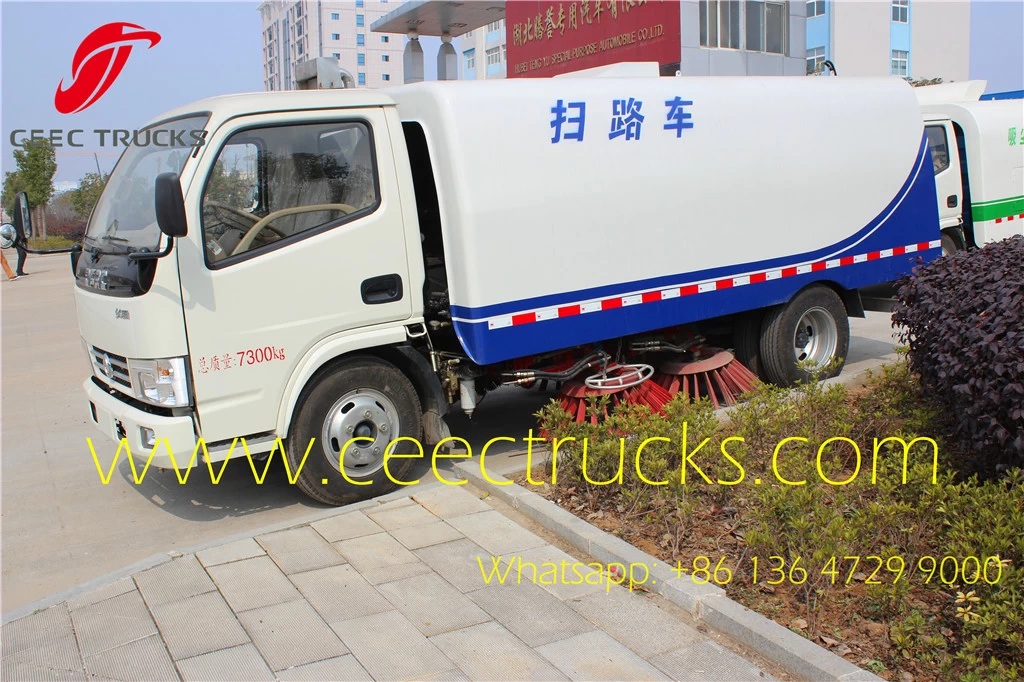

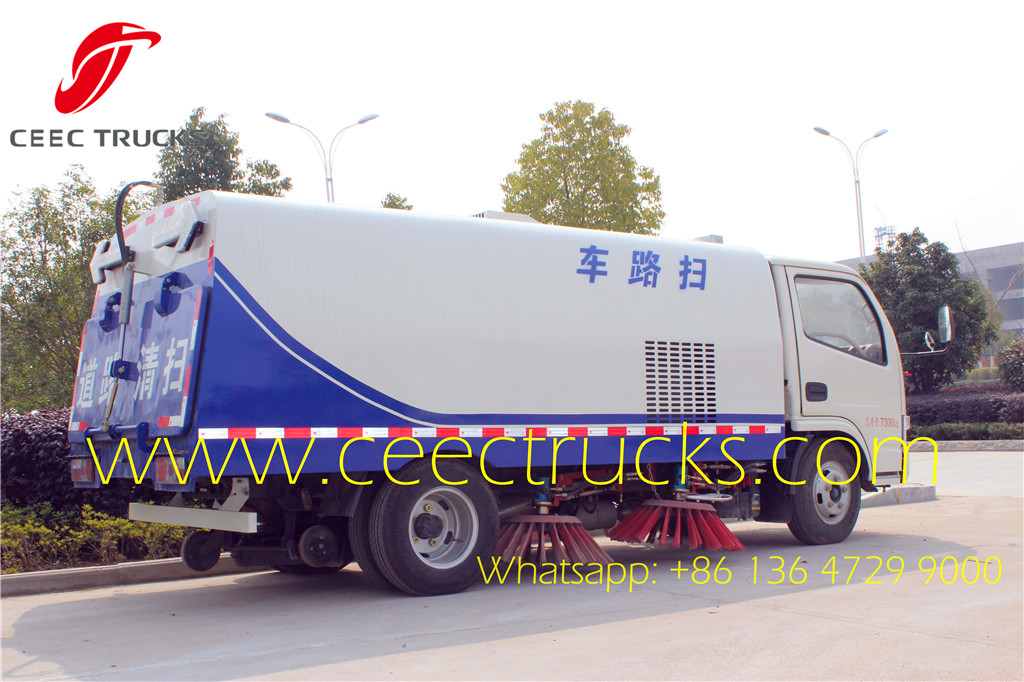

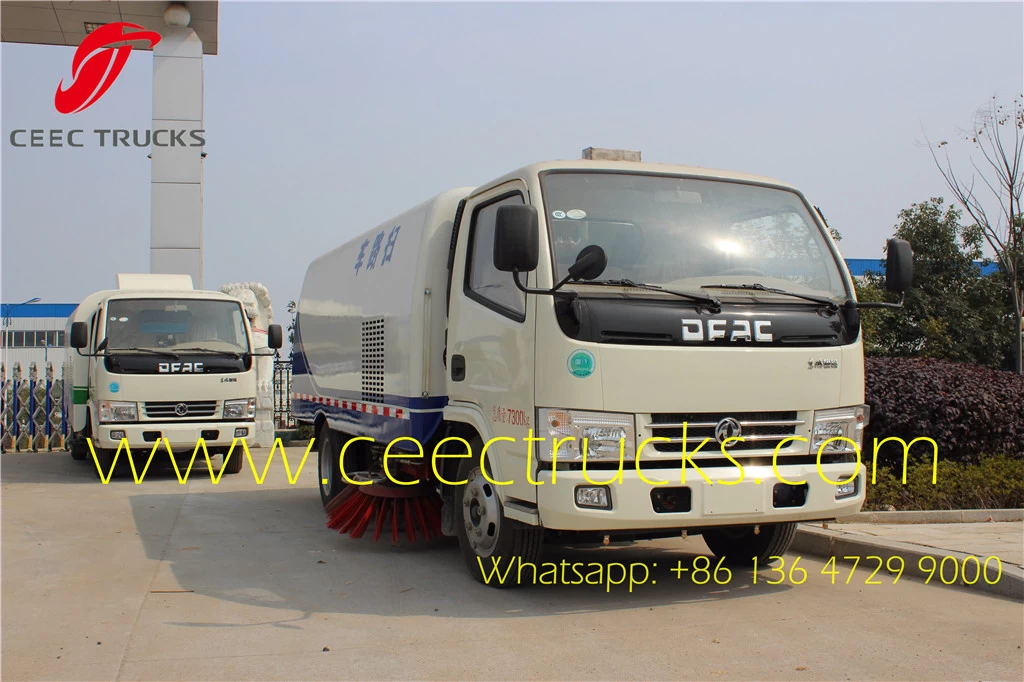

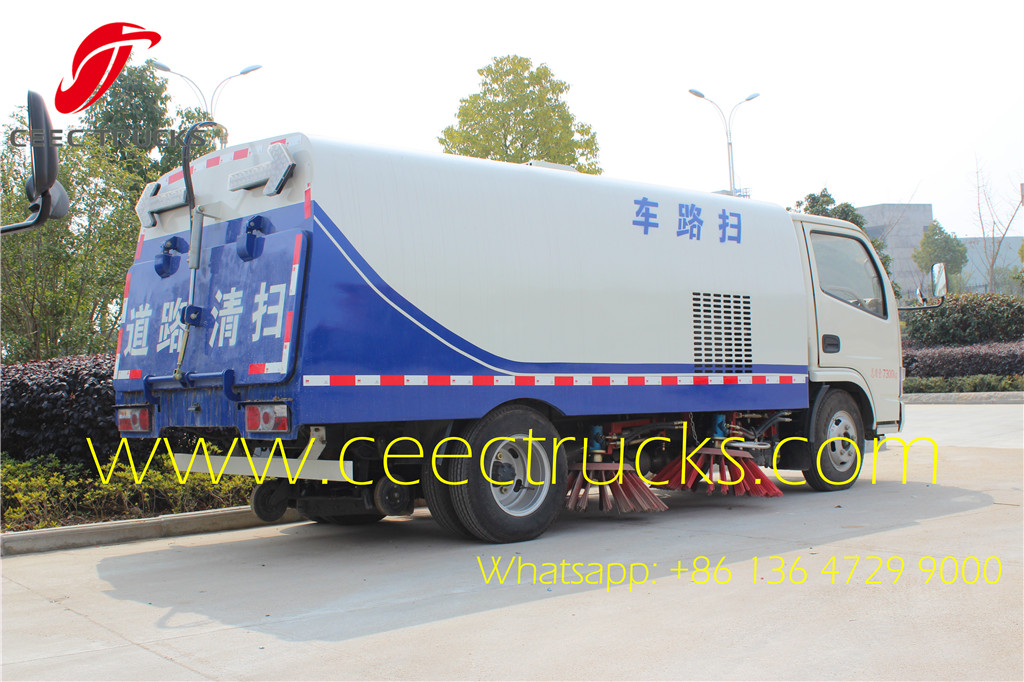

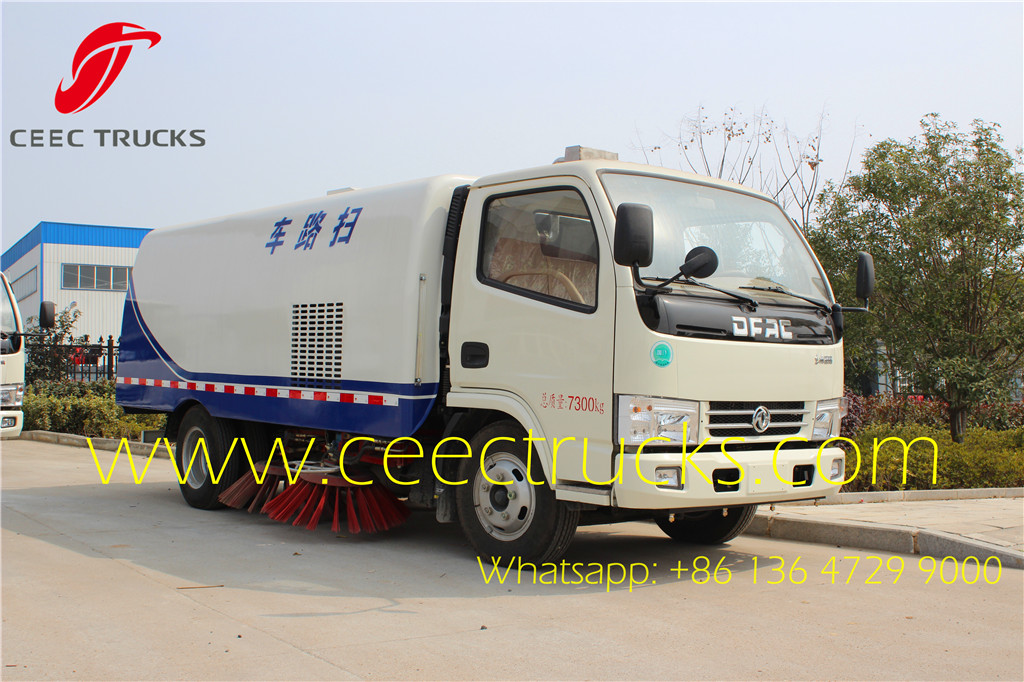

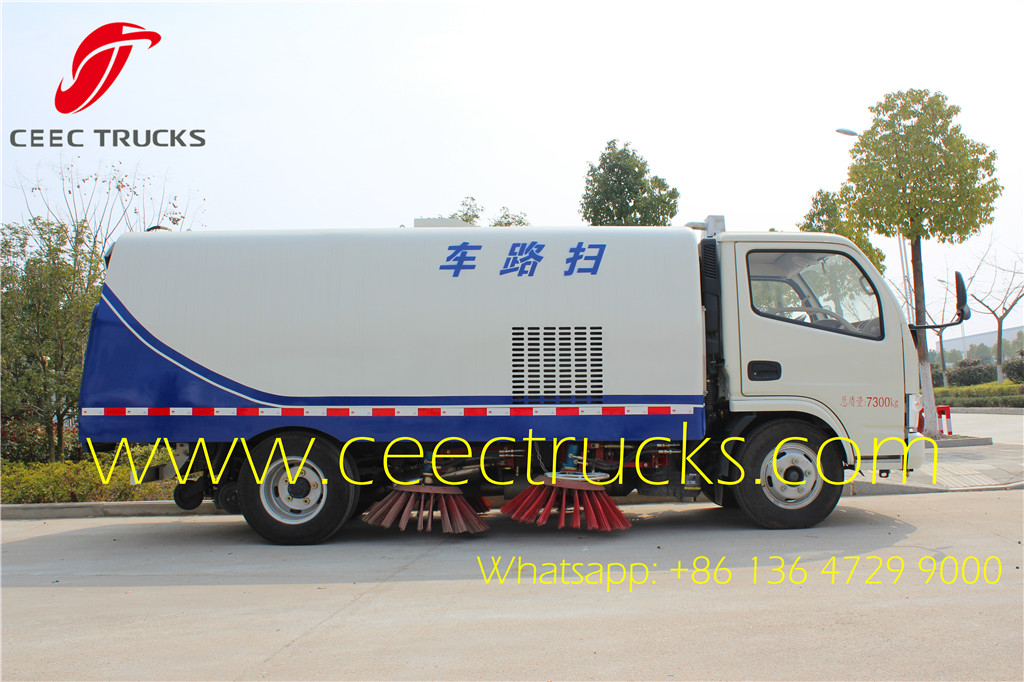

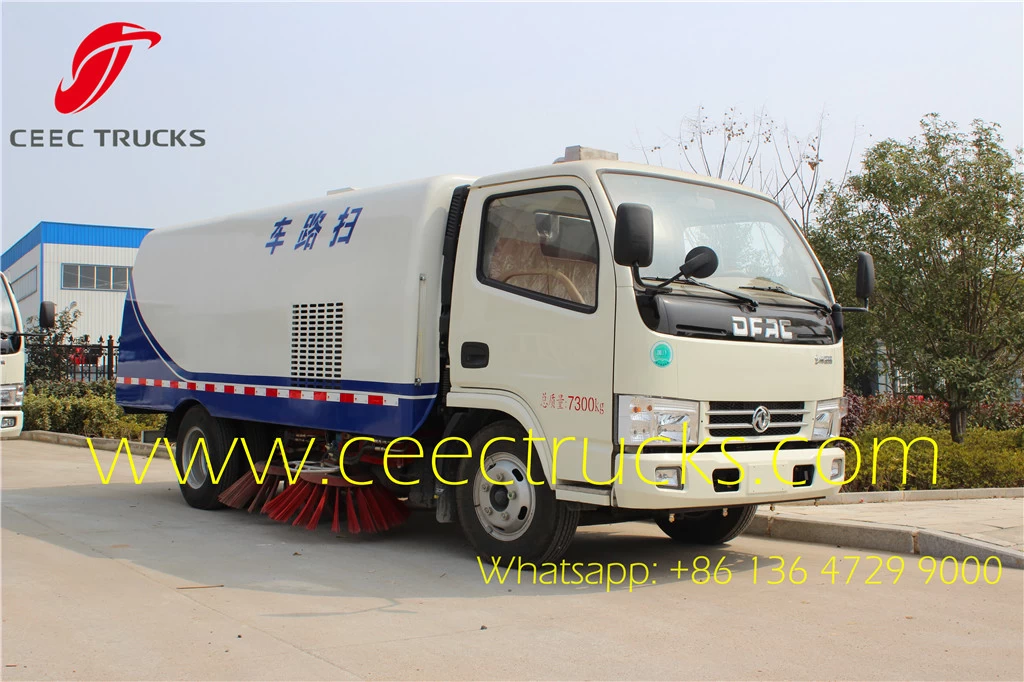

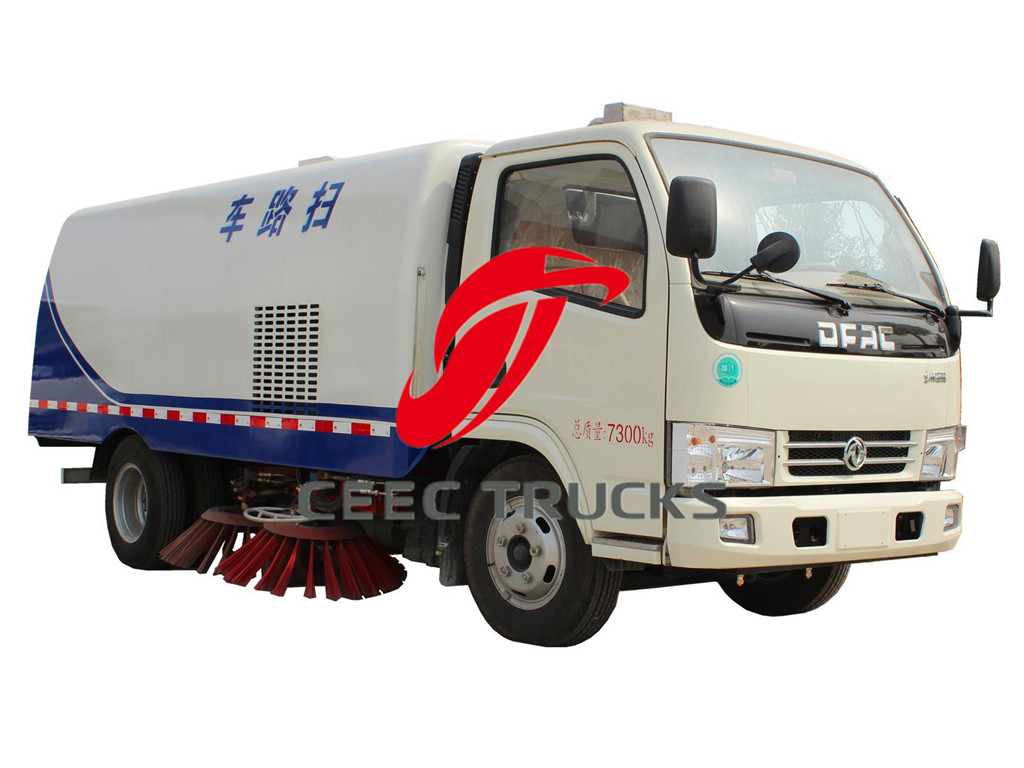

5CBM Road
sweeper (also called street sweeper, municipal vehicle, sweeping car,
street cleaner sweeper and cleaning truck, street cleaning vehicle) is
suitable for brushing, suction and transportation of dusts, leaves,
mud, soil, sand, stone chips, gravels and other small particles on the
ground of city roads and areas. This unit shall be suitable for dry type
cleaning job as well as dust suppression with water spray in the road
side and narrow lanes.
How to buy best Dongfeng 5CBM Road Sweeper?
Advantages & Features
1,Hghly wear-resistant automatic clutch drives the special fan to control the starting and stopping of the engine.

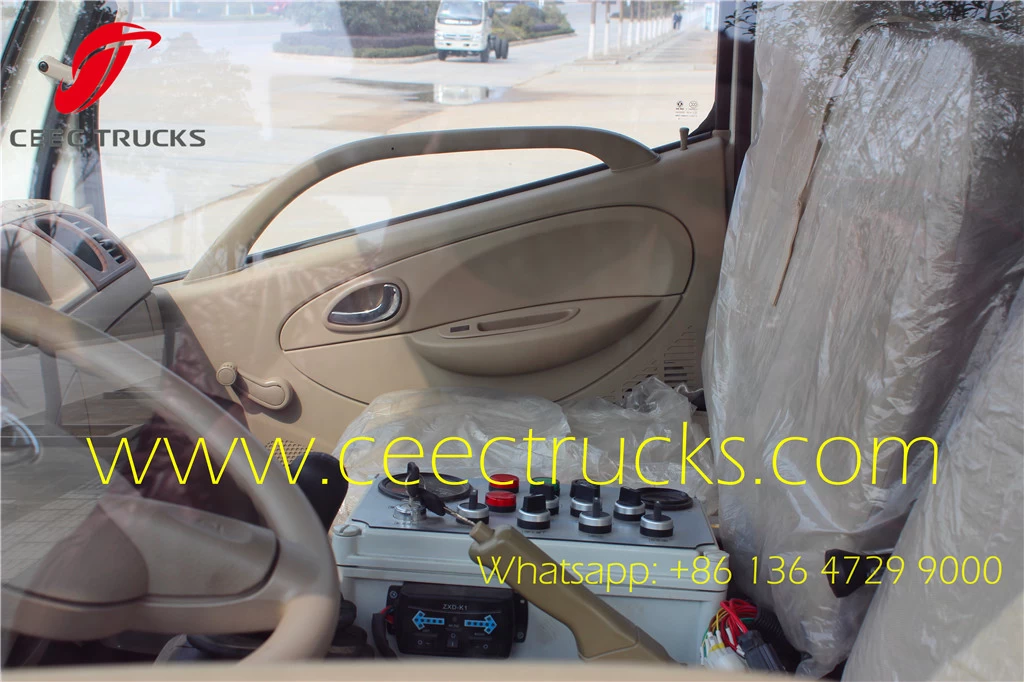

2,The imported hydraulic components were intergrated folded and conveniently controlled by the electrical and hydraulic system in the cab.
3,stainless steel water tank and material tank are combined and no remained water in the water tank when working .
4,The 5CBM road sweeper sweeping device are hydraulic controlled and can avoid inter collision. Automaticlly.

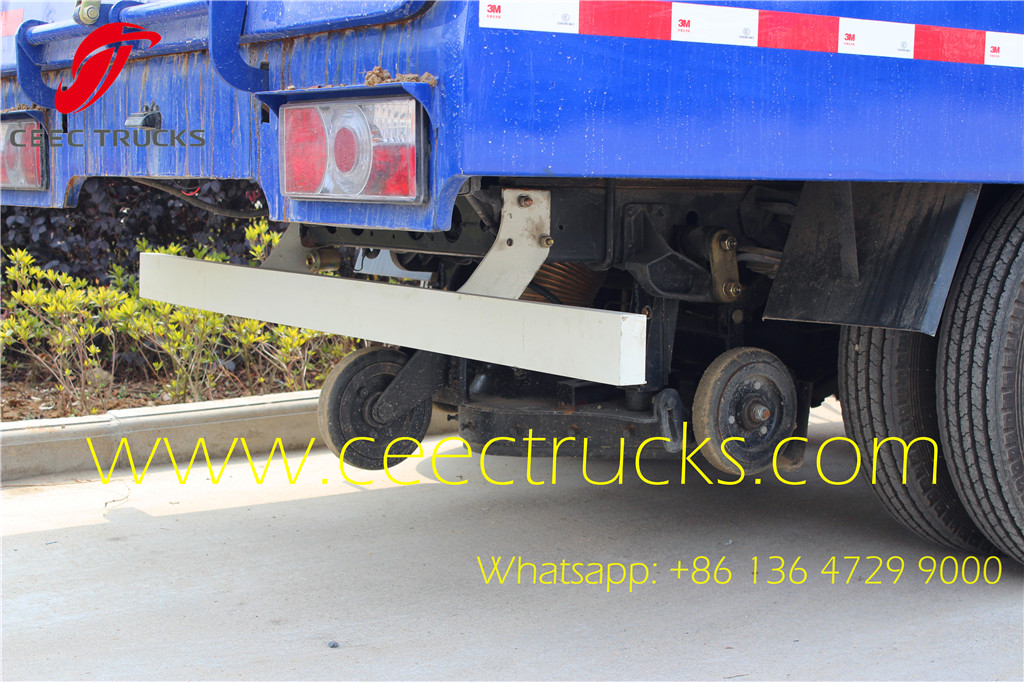

5,the postposition floating type suction nozzle have self-adjustment function to adapt to the bad road condition .And it is easy to debug and maintain..
6,the adjustable mist spray device can eliminate the second pollution as well as saving water.
7,streamline appearance ,low oil consumption,low noise.
The dongfeng 4-6CBM road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve,
debris bin, water bin, sweeping system, suction system, water sprinkling

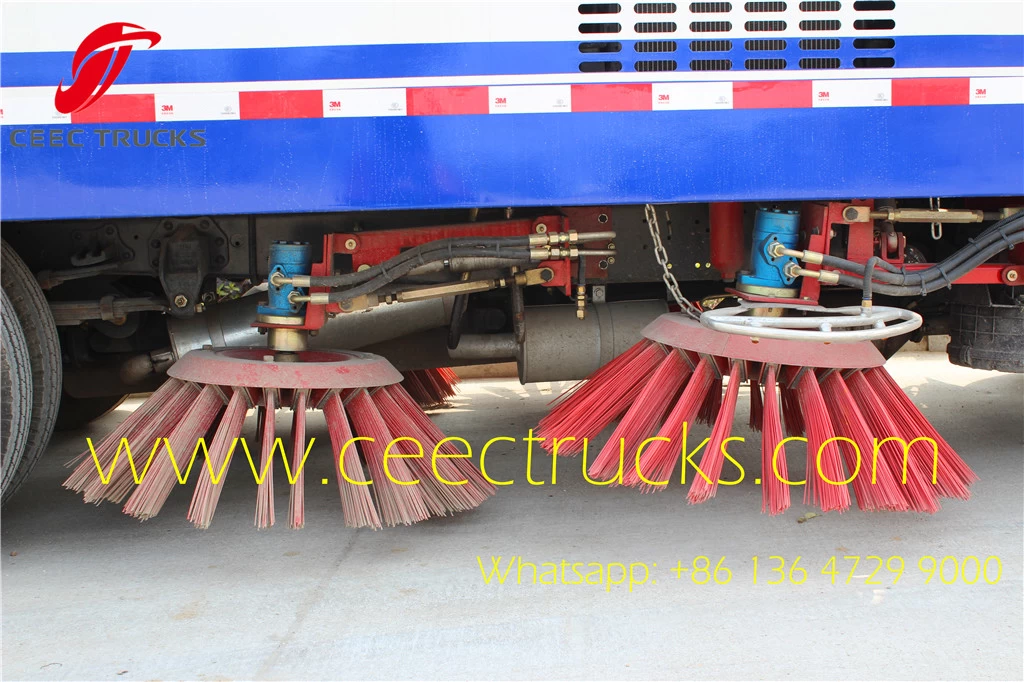

system, hydraulic system, electrical control system, etc. Four brooms Sweeping system and suction system combine working, high
efficient. Water sprinklers equipped on brooms, suction nozzle,
effective dust suppression. CEEC produced road sweeper trucks widely export Myanmar, Phillippine, Cameroon, Algeria, Togo, etc. Also RHD road sweepers export Keyna, South Africa, etc
Similar KeyWords: Dongfeng 5CBM road sweeper, DFAC 5CBM runway road cleaning truck, Mechanical road sweepermulti-function road sweeper, street cleaner, road sweeper, sweeper truck, Ecuador dongfeng mini 5000 liters street sweeping vehicle
| Road Sweeper Truck 4-5 CBM Dongfeng
|
| General
|
Vehicle Brand
|
CEEC TRUCKS
|
| Chassis Brand
|
Dongfeng
|
| Overall Dimension
|
5995 * 2000 * 2400 mm
|
| GVW / Kerb Weight
|
6,895kg / 4,565kg
|
| Cab
|
Cab Capacity
|
2 persons allowed
|
| Air Conditioner
|
Air conditioner is optional
|
| Engine
|
Fuel Type
|
Diesel
|
| Engine Brand
|
Dongfeng
|
| Power
|
95 Ps (70 KW)
|
| Displacement
|
3856 ml
|
| Emission Standard
|
Euro III
|
| Chassis
|
Drive Type
|
4X2, left hand drive
|
| Transmission
|
5-speed front, 1 reverse
|
| Wheelbase/No. of axle
|
3300 mm / 2
|
| Tyre Specification
|
7.00-16
|
| Tyre Number
|
6 tyres and 1 spare tyre
|
| Max Speed
|
95 km/h
|
| Paint
|
Metallic paint
|
| Superstructure
|
Water Tank
|
Stainless Steel
|
| Dustbin Capacity
|
4 CBM
|
| Dustbin Material
|
Stainless Steel
|
| Water Tank Capacity
|
2,000 Litres (About 500 gallons)
|
| Sweeping Capacity
|
42,000 m³/h
|
| Sweeping Speed
|
3-15 km/h
|
| Max Sweeping Width
|
2800mm
|

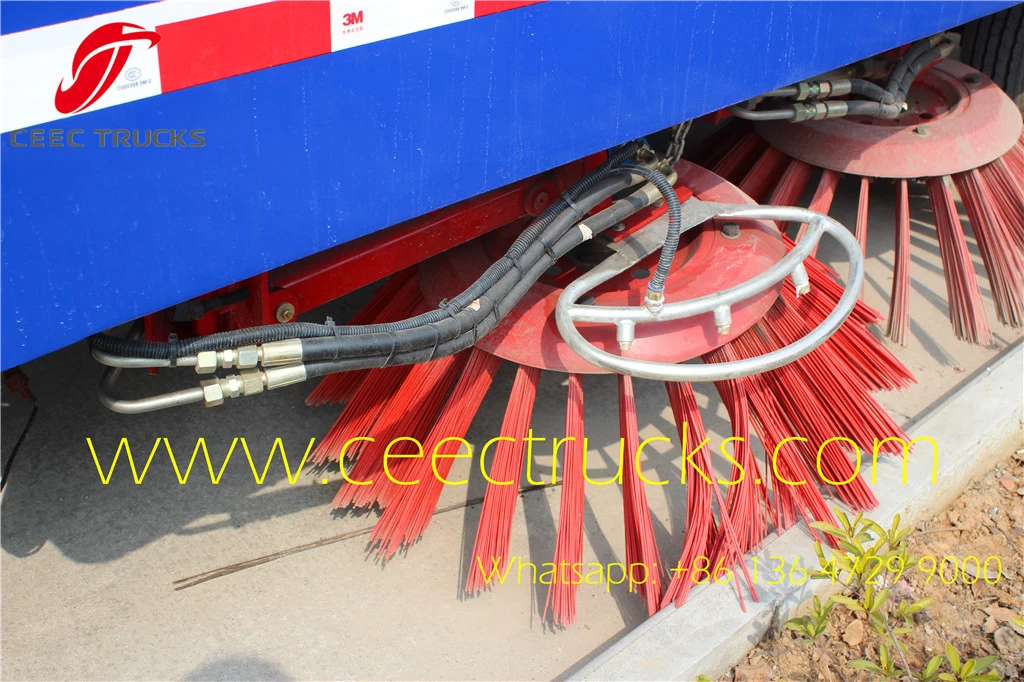

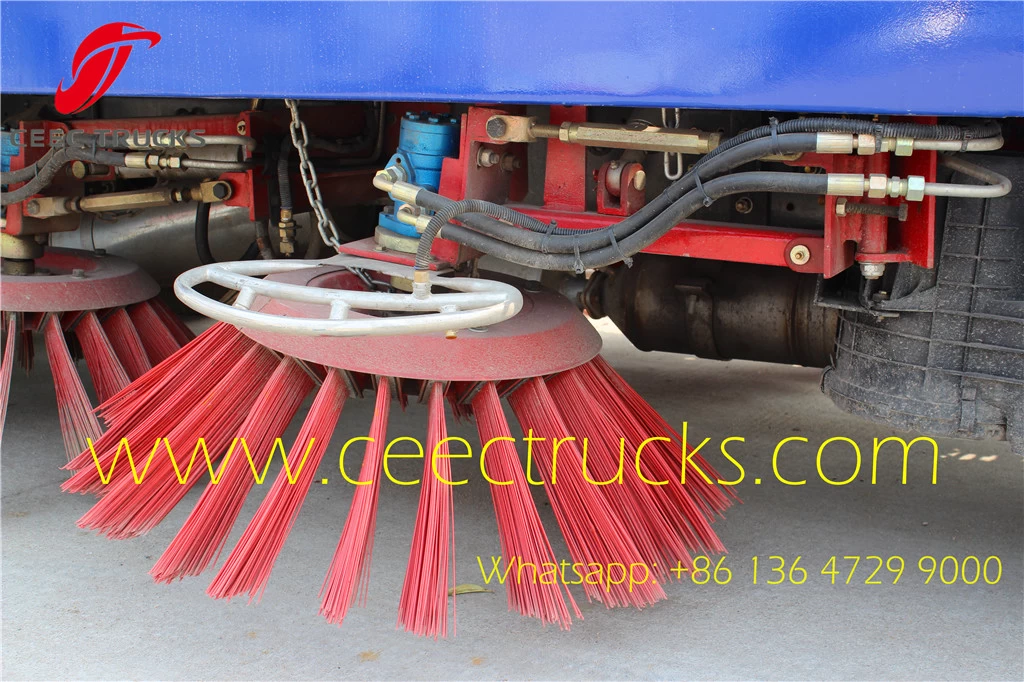

| Brooms
|
2 sets at each side, at diameter 900 mm
|
| Auxiliary Engine
|
JMC engine (ISUZU technology)
77 HP (57 KW), super powerful
|

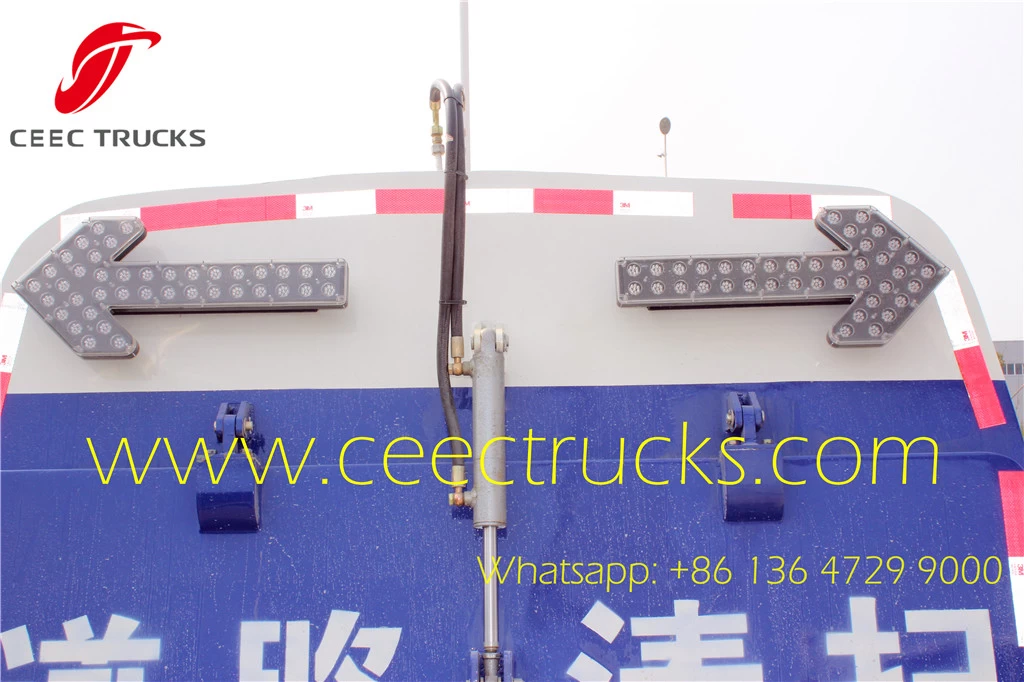

| All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
|
| Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.
|
