Tea leaf drying machine can process almost all tea: such as black tea, green tea, oolong tea, herbal tea, flower tea and so on, through drying, the tea leaves are stopped to ferment, the shape of tea is fixed and the volume is reduced. This machine use electric heating wire as heating source, total drying area is 12m², for tea, the recommended drying temperature is 75℃ - 100℃, we suggest that the water content after drying is about 5%, which is conducive to the preservation of tea.
DL-6CHZ-6 small mini tea leaf drying machine specification:
|
Model
|
DL-6CHZ-6
|
|

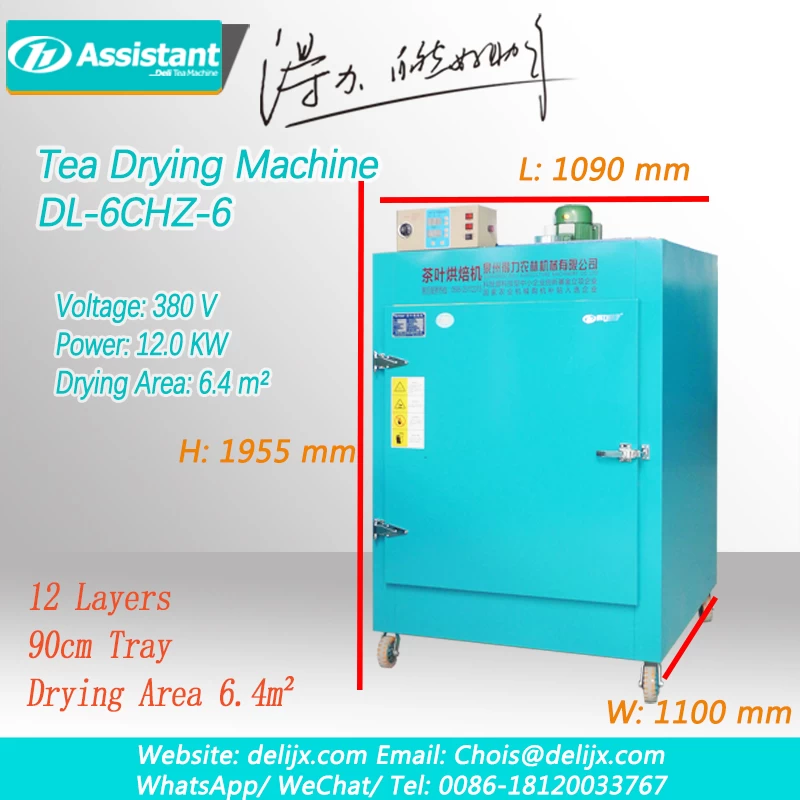

Dimension
|
1090×1100×1955 mm
|
|
Voltage
|
380/50 V/Hz
|
|
Heating element
|
Electric heating wire
|
|
Total heating power
|
12 kw
|
|
Heating element group
|
3 Group
|
|
Fan motor
|
Power
|
0.55 KW
|
|
Speed
|
1400 rpm
|
|
Rated voltage
|
380 V
|
|
Pallet rotary motor
|
Power
|
30 W
|
|
Speed
|
1250 rpm
|
|
Rated voltage
|
220 V
|
|
Pallet rotary speed
|
6 rpm
|
|
Pallet type
|
Round
|
|
Drying pallet diameter
|
90 cm
|
|
Effective drying area
|
6.4 m2
|
|
Number of drying pallet
|
12
|
|
Efficiency
|
70 kg/h
|
The above data is based on fresh tea leaf water content of 75-80%.

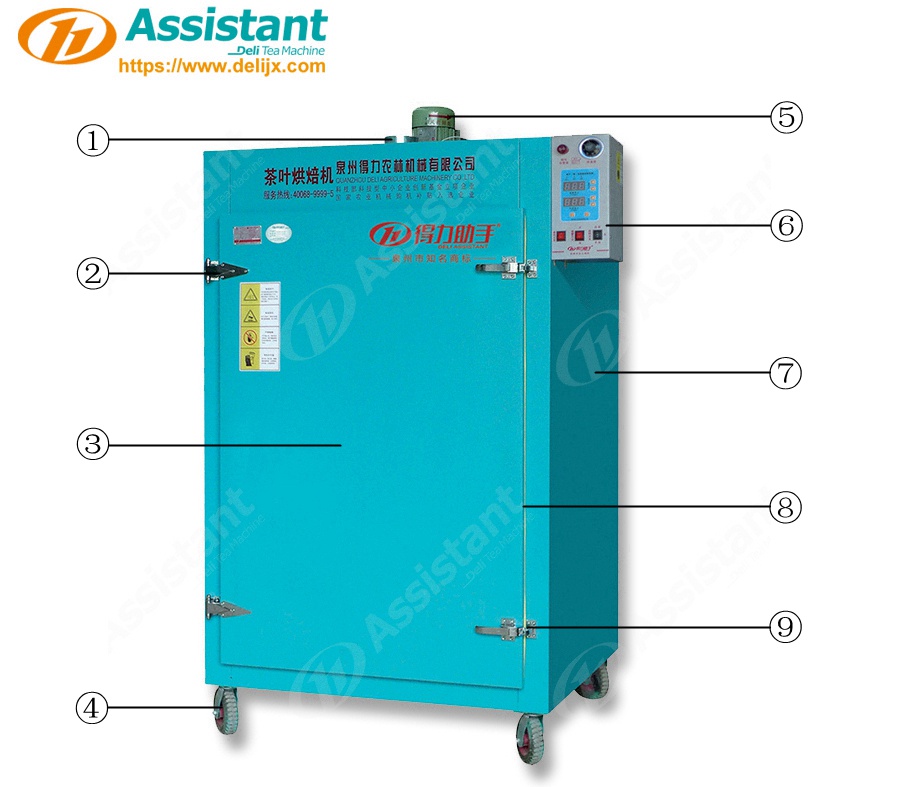

DL-6CHZ-6 tea leaves mini small dryer machine decomposition diagram:
|
①
|
Exhaust vent
|
②
|
Hinge
|
③
|
Door
|
④
|
Nylon wheel
|
⑤
|
Drive motor
|
⑥
|

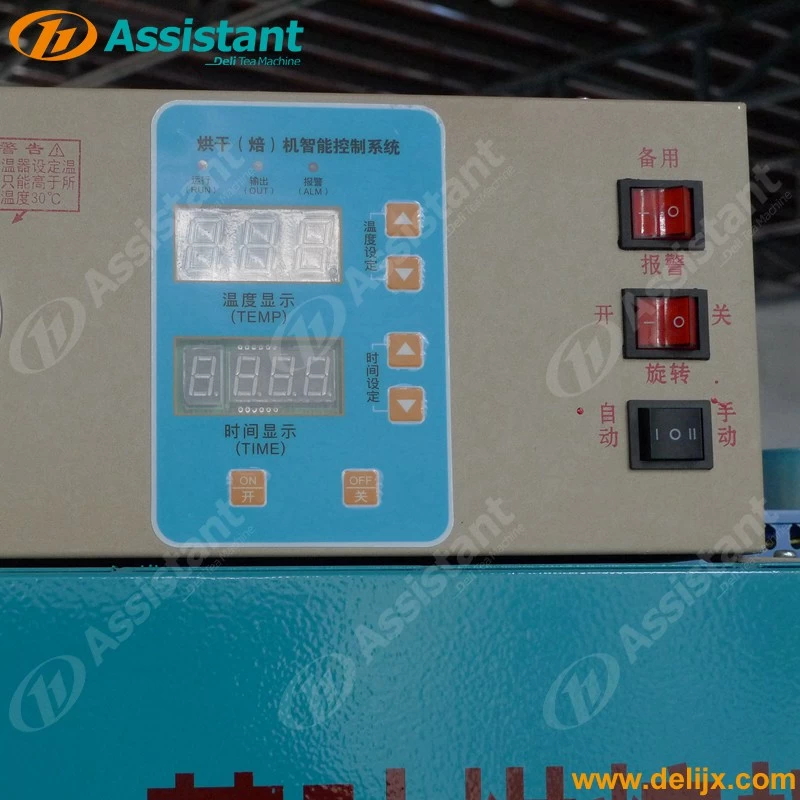

Electric control panel
|
⑦
|
Tank body
|
⑧
|
Sealing strip
|
⑨
|
Open Handle
|
|

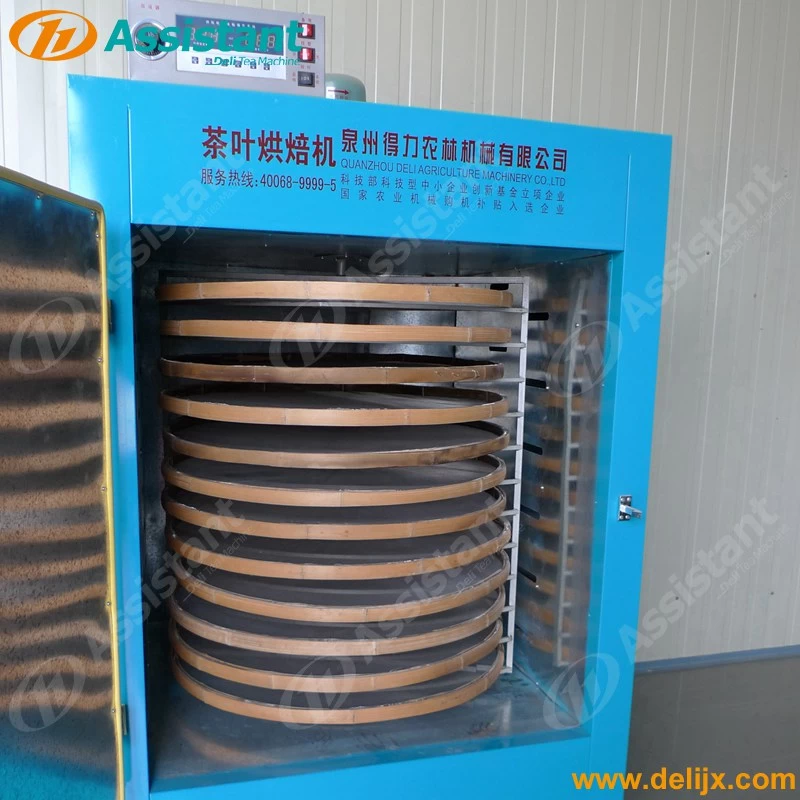

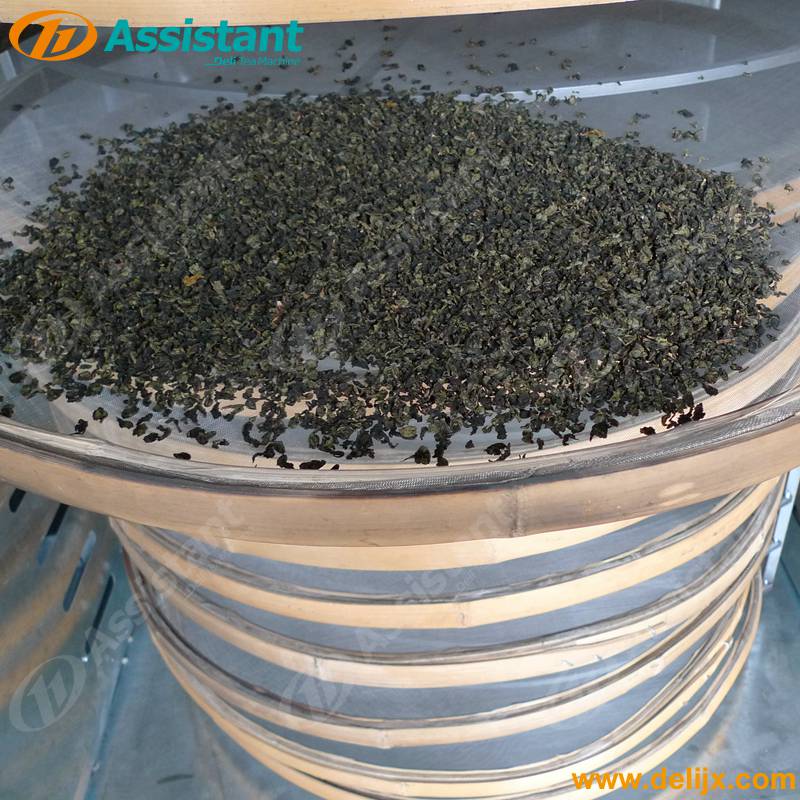

Rotary drying method for tea
Tea drying machine using rotary drying design, the tea is heated more evenly and has better quality.
|
|
Tea drying machine modular design
The whole tea drying equipment adopts modular design, and after-sales service is more convenient.
|
|

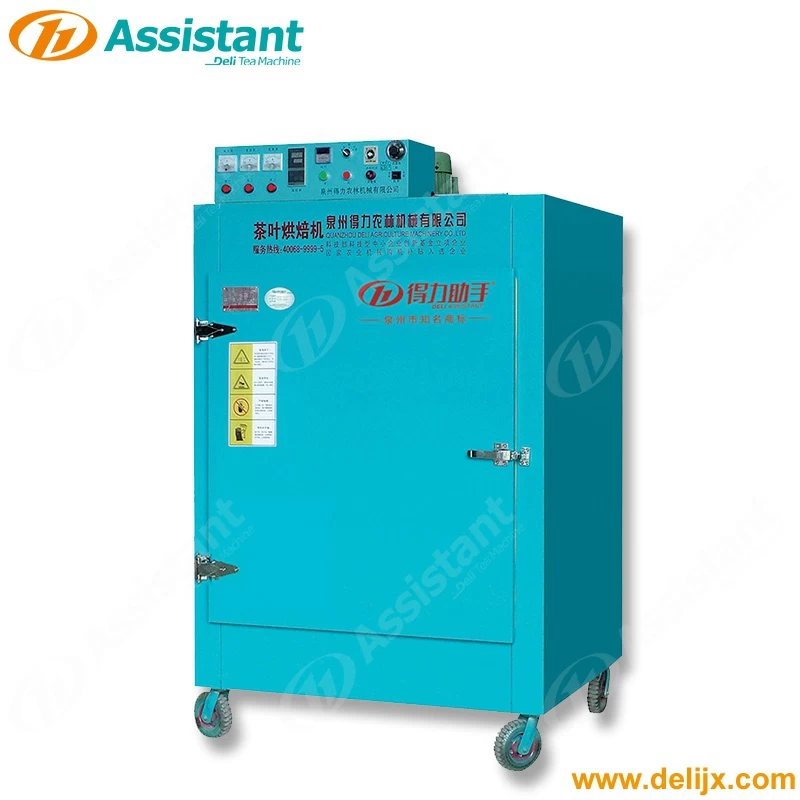

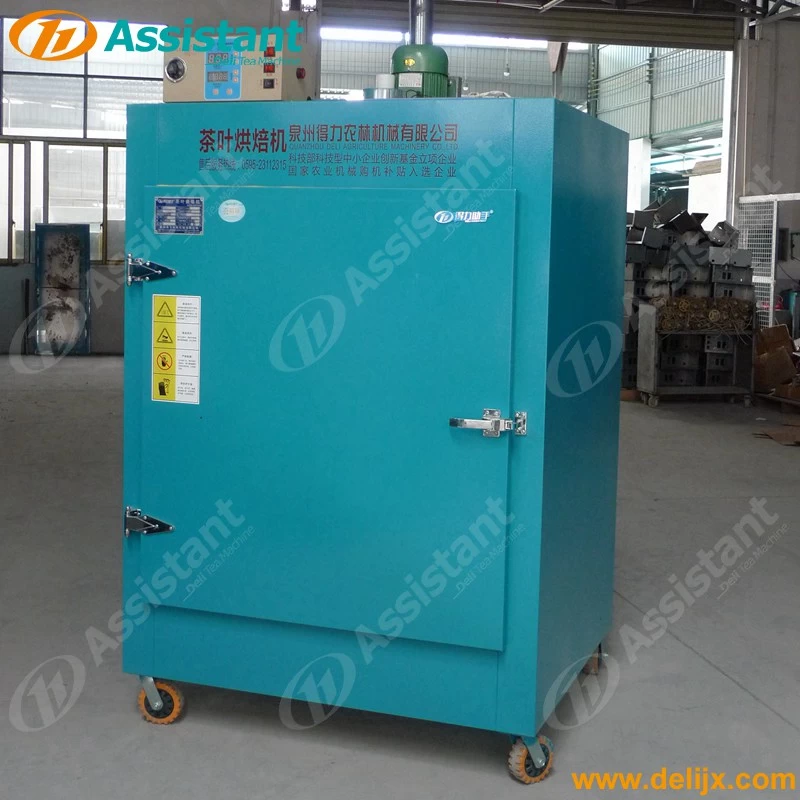

DL-6CHZ-6 small mini tea leaves dryer machine photos:
|
