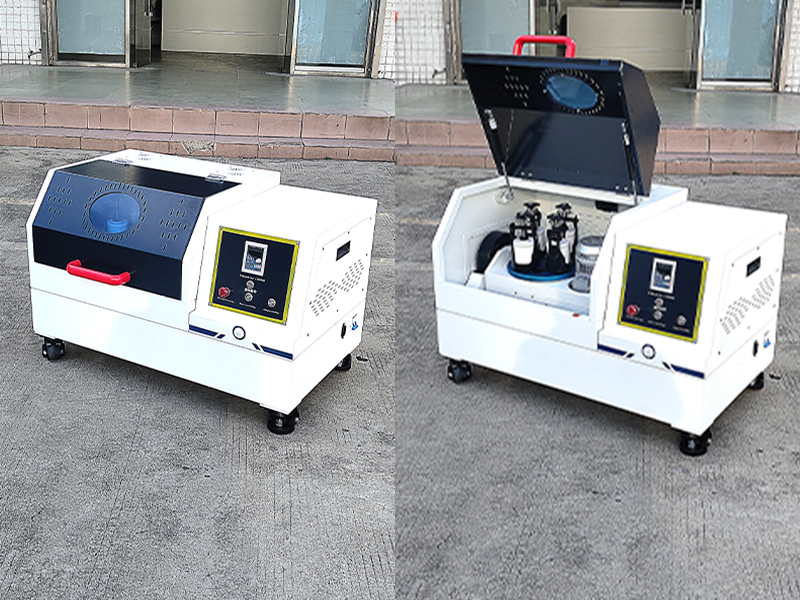

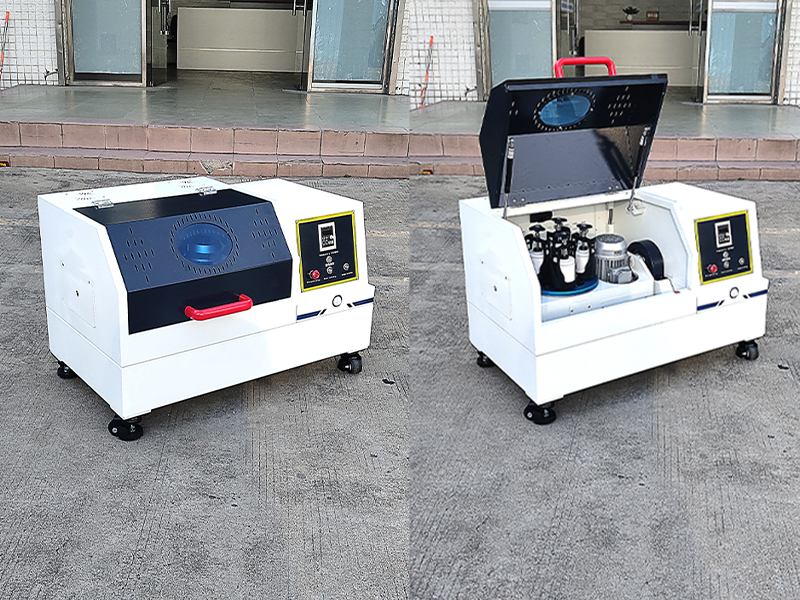

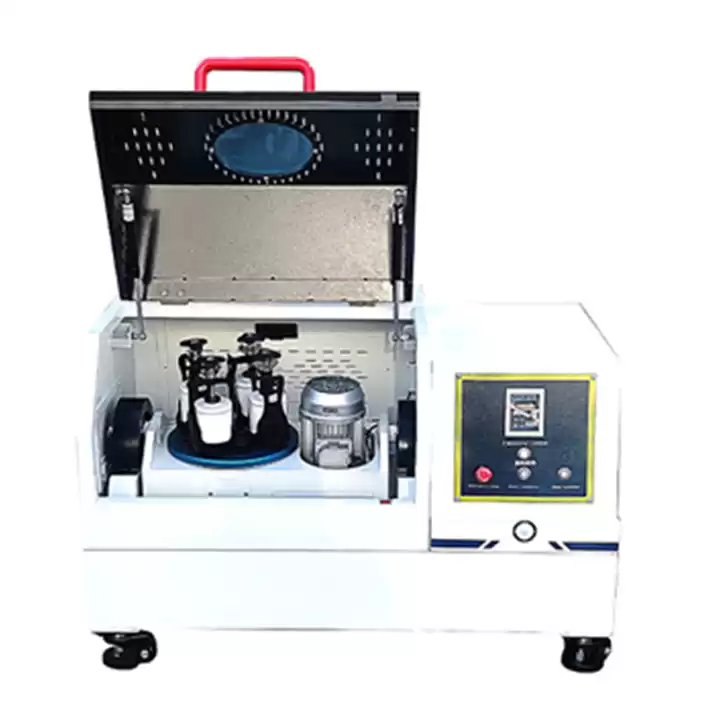

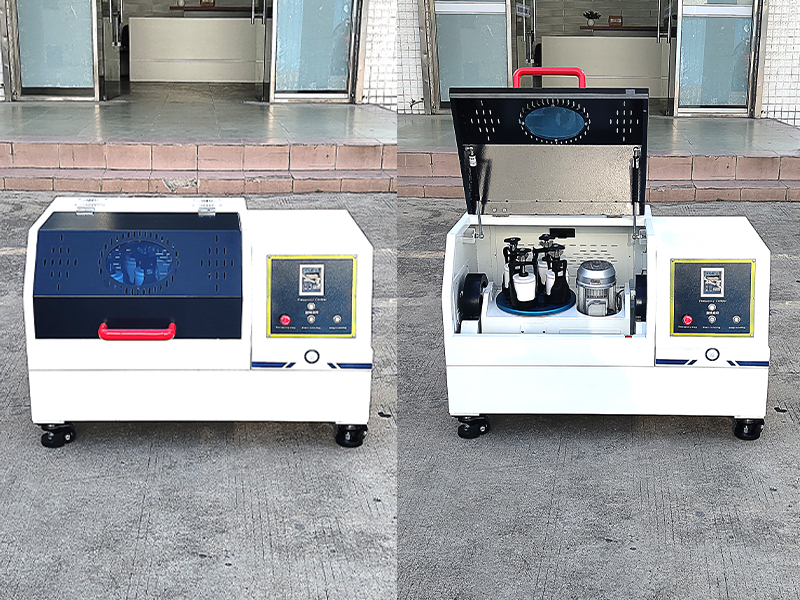

Miniature Omni-directional Planetary Ball Mill

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164


  • Certificate CE, IOS, ROHS, SGS, UL Certificate
  • Warranty Two years limited warranty with lifetime technical support

Miniature Omni-directional Planetary Ball Mill

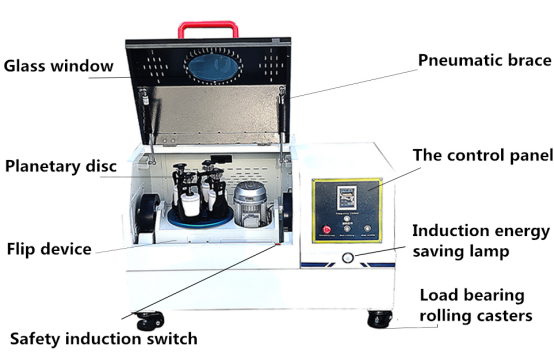

Planet flipping mechanism

Planetary transmission mechanism through the rotation of the motor to do 360 degrees around the axis, can realize any angle positioning for different process requirements ball grinding, safe and reliable.

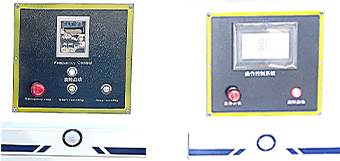

The control panel

Frequency conversion speed control, high speed accuracy, with undervoltage, over current, overload protection, optional 4.5-inch touch screen setting free and program mode, program storage is very convenient.






Self-lubricating device

Through the electronic control of lubrication host, flexible design of time cycle automatic and quantitative grease, to solve the problem of wear caused by not timely lubrication of transmission components, shorten the service life of equipment.

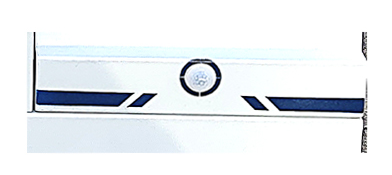

Induction lamp energy device

The energy-saving device is controlled by infrared human body sensor, the lamp will be bright when people come, and the lamp will go off after dozens of seconds, which is both energy-saving and convenient.







Introduction

The omnidirectional planetary ball mill is based on the vertical planetary ball mill and adds the function of planetary transmission mechanism. 360° flip, realize the multi-dimensional and multi-directional movement of the grinding ball and the material in the ball milling tank, and improve the degree of disordered movement of the grinding ball and the material. The material can be more uniform, and it can solve the problem of some materials sinking to the bottom and sticking to the tank.






Product character

Mode of transmission

Gear transmission

Mode of working

Two and four ball grinding jars work simultaneously

Maximum loading capacity of materials

Two thirds of the volume of the ball mill jar

Ball mill tank volume

0.05-10L per jar, total volume 0.2-40L

Feed granularity

Soil material≤10mm, and other materials≤3mm

Granularity of discharge

Up to 1 micron

Mode of speed regulation

Infinitely adjustable-speed


Model

Volume

Configurable ball mill specifications

Qty

Configurable vacuum ball mill volume

Locking device

OPBM-0.4

0.4

50-100ml

4

50ml

automatic

OPBM-1

1

50-250ml

4

50-100ml

automatic

OPBM-2

2

50-500ml

4

50-250ml

automatic

OPBM-4

4

250-1000ml

4

50-500ml

automatic

OPBM-6

6

1-1.5L

4

50-1000ml

automatic

OPBM-8

8

1-2L

4

50-1500ml

automatic

OPBM-10

10

1-2.5L

4

1-2L

automatic

OPBM-12

12

1-3L

4

1-2L

automatic

OPBM-16

16

2-4L

4

1-3L

automatic

OPBM-20

20

2-5L

4

2-4L

automatic

OPBM-40

40

5-10L

4

4-5L

automatic

OPBM-60

60

10-15L

4

5-10L

automatic

OPBM-80

80

15-20L

4

10-15L

automatic

OPBM-100

100

20-25L

4

15-20L

automatic


Model

Power supply

Power(kw)

Rotary motor power(KW)

Total time to run the set(min)

Alternating positive and negative running time(min)

Adjustable speed

Revolution(rpm) Rotation(rpm)

OPBM-0.4

220V-50HZ(single-phase)

0.75

0.09

1-9999

1-9999

47-465

94-930

OPBM-1

220V-50HZ(single-phase)

0.75

0.09

1-9999

1-9999

35-370

70-740

OPBM-2

220V-50HZ(single-phase)

0.75

0.09

1-9999

1-9999

35-370

70-740

OPBM-4

220V-50HZ(single-phase)

0.75

0.09

1-9999

1-9999

35-370

70-740

OPBM-6

220V-50HZ(single-phase)

0.75

0.12

1-9999

1-9999

35-370

70-740

OPBM-8

220V-50HZ(single-phase)

1.5

0.12

1-9999

1-9999

35-320

70-640

OPBM-10

220V-50HZ(single-phase)

1.5

0.12

1-9999

1-9999

35-320

70-640

OPBM-12

220V-50HZ(single-phase)

1.5

0.12

1-9999

1-9999

35-320

70-640

OPBM-16

380V-50HZ(three-phase)

3

0.12

1-9999

1-9999

30-255

60-510

OPBM-20

380V-50HZ(three-phase)

4

0.75

1-9999

1-9999

25-215

50-430

OPBM-40

380V-50HZ(three-phase)

5.5

0.75

1-9999

1-9999

20-195

40-390

OPBM-60

380V-50HZ(three-phase)

7.5

1.1

1-9999

1-9999

27-174

40-260

OPBM-80

380V-50HZ(three-phase)

11

1.5

1-9999

1-9999

27-160

40-240

OPBM-100

380V-50HZ(three-phase)

11

1.5

1-9999

1-9999

27-160

40-240


Model

Standard panel (optional touch screen)

Lubrication wayoptional automatic grease-adding device

Mode of speed regulation

Weight(kg)

Size(Length * width * height)

Noise≤db

OPBM-0.4

intelligent

grease

Frequency control

140

900*570*650

55±5

OPBM-1

intelligent

grease

Frequency control

280

1330*770*810

60±5

OPBM-2

intelligent

grease

Frequency control

280

1330*770*810

60±5

OPBM-4

intelligent

grease

Frequency control

285

1330*770*810

60±5

OPBM-6

intelligent

grease

Frequency control

290

1330*770*810

60±5

OPBM-8

intelligent

grease

Frequency control

345

1350*850*900

60±5

OPBM-10

intelligent

grease

Frequency control

345

1350*850*900

65±5

OPBM-12

intelligent

grease

Frequency control

350

1350*850*900

65±5

OPBM-16

intelligent

grease

Frequency control

400

1550*940*1050

65±5

OPBM-20

intelligent

grease

Frequency control

710

1700*1200*1250

68±5

OPBM-40

intelligent

grease

Frequency control

1000

1900*1450*1400

68±5

OPBM-60

intelligent

grease

Frequency control

2180

2150*1750*2090

68±5

OPBM-80

intelligent

grease

Frequency control

2400

2300*1900*2140

68±5

OPBM-100

intelligent

grease

Frequency control

2400

2300*1900*2140

68±5












 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
