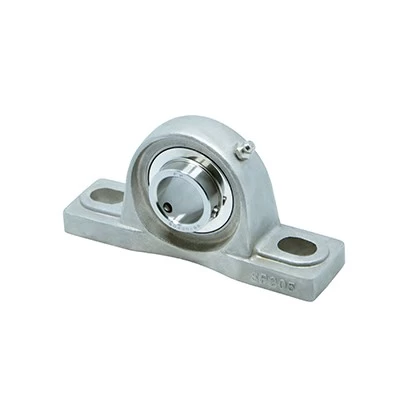

Miniature stainless steel pillow block bearing unit SS-UCP201

Stainless steel bearing unit is a kind of bearing unit that combines rolling bearing and bearing housing. Most stainless steel outer spherical bearings have a spherical outer diameter and are installed together with bearing housing with a spherical inner hole. The structure is diverse, versatile and interchangeable.

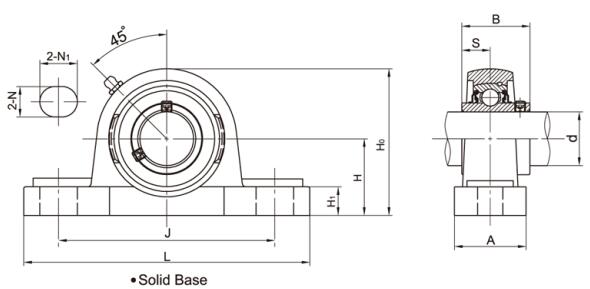

Unit NO.

Dimensions(mm/in.)

Bearing NO.

Bolt Size mm/in.

Housing NO.

Weight

(kg)

d

h

a

e

b

s2

s1

g

w

t

B

n

SS-UCP201

12

30.2

127

95

38

19

13

14

62

44.5

31

12.7

SS-UC201

M10

P201

0.65


SSUCP201 miniature stainless steel pillow block bearing unit is consist of Stainless steel insert bearing SSUC201 And Stainless steel bearing housing SSP201, The bearing unit bore is 12 mm which is the same dimension with the mounted bearing unit UCP201 With cast iron housing.


Stainless steel bearing unit is a kind of bearing unit that combines rolling bearing and bearing housing. Most stainless steel outer spherical bearings have a spherical outer diameter and are installed together with bearing housing with a spherical inner hole. The structure is diverse, versatile and interchangeable.


At the same time, this type of stainless steel bearing unit also has a certain degree of self-alignment in design, easy to install, and has a double structure sealing device, which can work in harsh environments. Stainless steel bearing housings are generally made of stainless steel. Commonly used Housing are vertical housing (P), Square block (F), 2 Bolt Flange Units (FL), Flange Cartridge Units (FC), 4 Bolt Flange Units(FS), Cartridge Units(C), Take Up Units (T ) etc.
