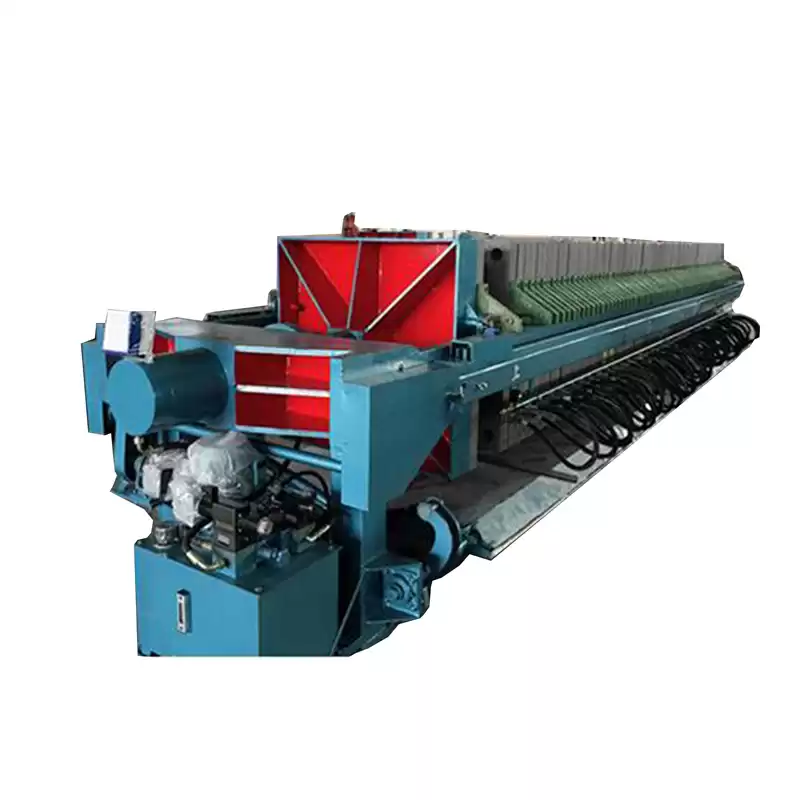

Mining Membrane Filter Press

The box-type filter press uses filter cloth as the medium for solid-liquid separation. It is a sorting machine suitable for large particle size range. The filter cloth is spread on the surface of the filter plate and is supported by the expansion groove of the filter plate. After the filter plate is clamped, the filter cloth becomes a sealing material. The cavity between each two filter plates forms an independent filter chamber. In the filtration process, the material enters the filter chamber through the center hole, the filtrate flows through the feed pressure, and flows out of the filter plate after confluence. Chamber filter press can be divided into open channel flow and culvert flow according to the way of filtrate.
The plate and frame filter press separates solids from liquids in the form of filtration. It is a sorting machine suitable for large particle size range. The material passes through the filter chamber by the filter plate and the filter frame, the material under the pressure of feeding, the filtrate flows through the filter frame-fiber gap between the filter plate and the filter cloth, reaches the model surface, and the filter plate flows out after polymerization. The remaining solids will form a filter cake. The plate and frame filter can be divided into open channel flow and culvert flow according to the way of filtrate.


  • Response Time8-24 h
  • Guarantee Period12 months
  • CodeCE0306005

Description:
The filter press uses a special filter medium to apply a certain pressure to the object to cause the liquid to percolate out. It is a common solid-liquid separation device.

Features:
1. Adopting advanced Australian technology, beautiful appearance.
2. The structure has high rigidity, stable operation and low noise.
3, equipped with advanced concentration pretreatment equipment, (good effect on sludge flocculation) low operating cost.
4. The gravity dewatering zone is equipped with advanced distributors to make the material evenly distributed and extend the life of the filter belt.
5. With super long gravity dehydration zone and wedge-shaped dehydration zone, the material is fully dehydrated to ensure that the material will not overflow in the pressing zone.
6. The rollers are arranged scientifically and orderly. Gravity dehydration, wedge dehydration, and press dehydration are discharged separately without interference. The ratio of the diameter of the press dehydration roller is large and the dehydration effect is good. Therefore, the production capacity is large, energy saving and high efficiency.
7. The continuous operation from feeding to discharging mud cakes has a high degree of automation, and PLC interface can be set according to needs, which is convenient for centralized control by microcomputer.
8. The power transmission mechanism adopts mechanical or variable frequency stepless speed regulation, with wide speed regulation range and wide adaptability.
9. The filter belt is equipped with a reliable backwashing device to ensure the dehydration effect of the filter belt.
10. Pneumatic tensioning and pneumatic automatic correction device are adopted to ensure the safe and normal operation of the filter belt.
11. The operation is safe and reliable, using infrared safety protection and a full range of emergency safety parking devices.
12. Filter belts with different structures can be configured according to different materials with high filtration accuracy



Applications:
Widely used in chemical, pharmaceutical, metallurgy, dye, food, brewing, ceramics and environmental protection industries

parameters:

Range of Volume of Filter chamber M3 from 0.287 to 23.61 m3

Filter area range is from 20 to 1180 M2
