MiniRail system for trapezoidal sheet metal

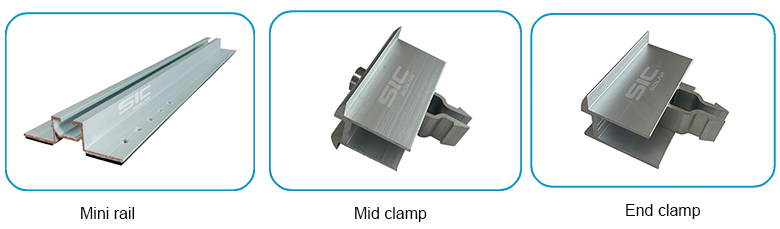

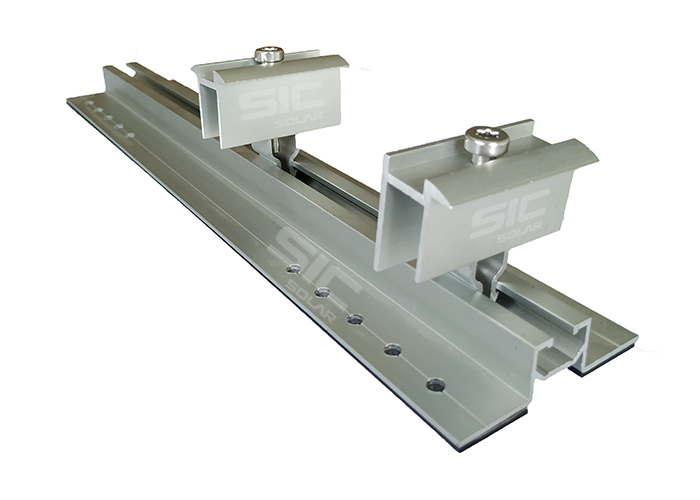

Solar mini rail is use for trapezoidal metal roof and corrugated metal roof, it can make the solar panel orientation both in landscape and portrait, which is a smart design for solar metal roof installation. It's cost-effective mounting solutions which just request only 3 compoments--Mid and end clamp and minirail.
It can come with different length according to traperzpidal sheet dimension. Cooperate with EPDM cam make it waterproof.
Category: metal roof solar mounting system
|
Name
|
Solar mini rail
|
|
Installation Site
|
Pitched roof
|
|
Wind Load
|
<60M/S
|
|
Snow Load
|
<1.4KN/M2
|
|
Material
|
SUS304 and AL 6005-T5
|
|
Color
|
Natural or Customized
|
|
Anticorrosive
|
Anodized aluminum & stainless steel
|
|
Warranty
|
10 years and 25 years service time
|
Advantages as follow:
☆ Easy Installation--Using quickly clamp, which is easy and quickly for installation.
☆ Waterproofing--The rubber can perfectly prevent water.
☆ Pre-assembled components – highly save the labor cost at your installation site.
Related certificate
Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.
