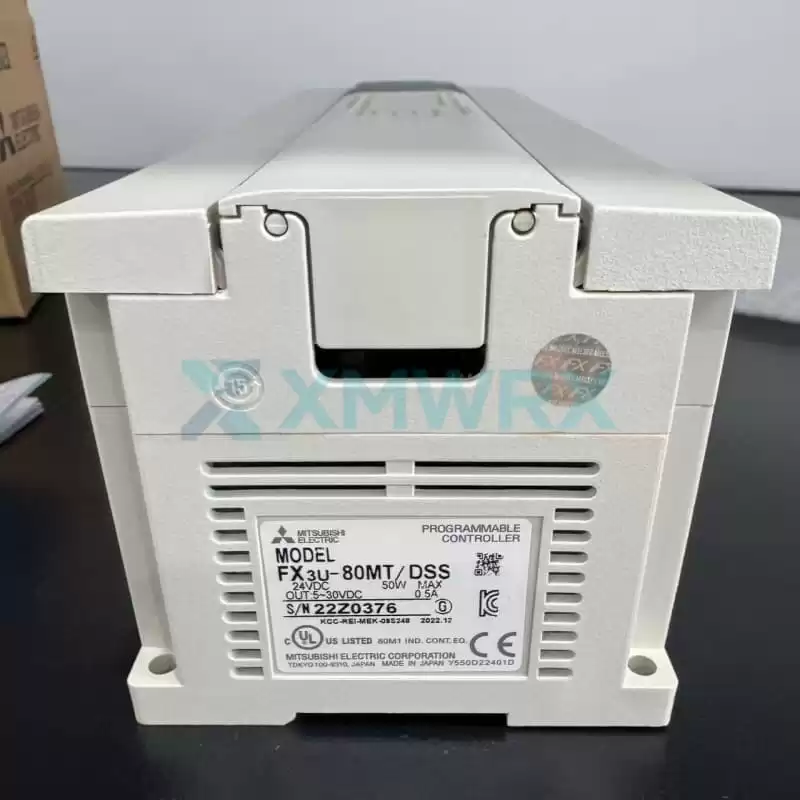

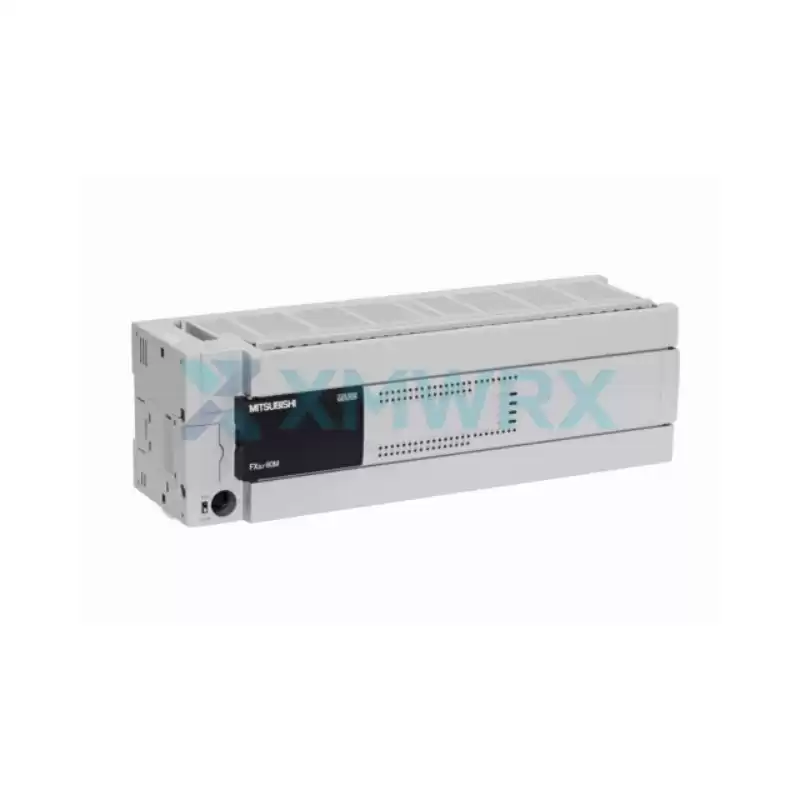

The Mitsubishi FX3U-80MT/DSS is a high-performance, compact, general-purpose basic unit belonging to the FX3U series.
Material Number: 231507
It provides 80 I/O points (40 inputs/40 outputs), operates on a 24V DC power supply, and features transistor-source (Sink) outputs.
It boasts high-speed processing capabilities and strong expandability, making it suitable for complex, high-precision automated control systems.
100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support Reliable Warranty
Technical Specifications
| Brand |
Mitsubishi Electric |
| Series |
MELSEC-F SERIES |
| Type |
FX3U |
| Power Supply (V) |
24 |
| Current Type |
DC |
| Program Memory |
64K STEPS |
| Program Memory Unit |
RAM |
| Integrated Digital Inputs |
40 |
| Integrated Digital Outputs |
40 |
| Output Type |
TRANSISTOR |
| Output Logic |
SOURCE |
| Local I/O Points |
256 |
| Local + Remote I/O Points |
384 |
| Expandable |
YES |
| Cycle Time LD (ns) |
65 |
| Cycle Time MOV (ns) |
642 |
| USB |
OPTION |
| RS-422 |
1 |
| Power Consumption (W) |
45 |
| Buffer Battery |
YES |
| Protection Class |
IP10 |
| Min. Ambient Temperature (°C) |
0 |
| Max. Ambient Temperature (°C) |
55 |
Conformity & Certifications
| CE |
COMPLIANT |
| UL / cUL |
COMPLIANT |
| UKCA |
COMPLIANT |
| Shipping Approvals |
ABS, BV, DNV GL, KR, LR, NK, RINA |
| EAC |
NON-COMPLIANT |
Why Source This Module From Us?
- Genuine Guarantee: Guaranteed original Mitsubishi Electric product. We say no to counterfeits or refurbished parts, ensuring the absolute stability of your machinery.
- Ready-to-Ship Inventory: Supported by a robust warehousing system, in-stock items are dispatched immediately upon order confirmation to minimize costly downtime.
- End-to-End Support: From pre-sales model verification to after-sales wiring guidance, our engineering team ensures a hassle-free procurement process.
- Competitive Pricing: Leveraging our strong supply chain network, we offer highly competitive pricing and exclusive discounts for bulk orders.
Applications
- Mechanical manufacturing and automated production lines: Used to control complex assembly, processing, and testing processes.
- Packaging and food processing machinery: Utilizes high-speed counting and pulse output capabilities to control servo motors, achieving precise cutting, sealing, and conveyor belt synchronization.
- Logistics and warehousing systems: Controls sorting machines, stacker cranes, and conveyor be
- Textile and printing machinery: Equipment requiring multi-axis linkage and high-precision tension control.
Engineer's Tip: The FX3U-80MT/DSS is a controller designed for automation equipment requiring high speed, high reliability, and a medium number of I/O points (80 points). It is best suited for servo/stepper motor positioning control, high-speed counting, and DC control systems requiring frequent switching outputs, and is a core component for single-machine equipment control in modern smart factories.
