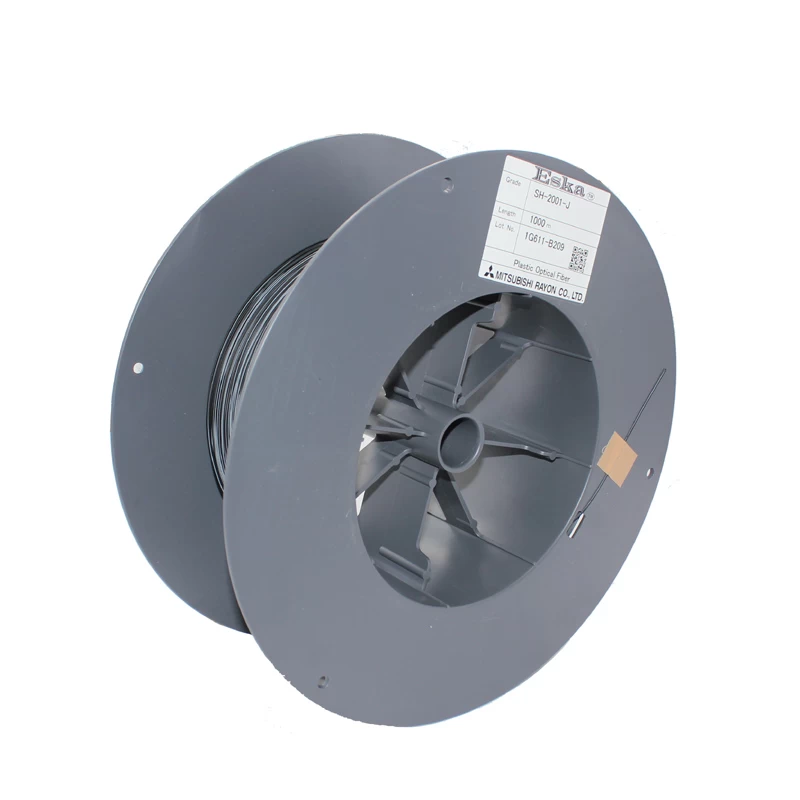

Product Item: Mitsubishi Plastic Fiber Optic Cable
Unjacketed Fiber Cable
|
Model
|
Fiber Dia.(mm)
|
Loss (dB/km)
|
Tensile strength (N)
|
N.W.(kg)
|
G.W.(kg)
|
Storage tem(℃)
|
Packing
|
|
CK-10
|
0.25
|
400
|
3
|
0.72
|
1.7
|
-55～+70
|
12000
|
|
CK-20
|
0.5
|
350
|
14
|
1.44
|
2.7
|
-55～+70
|
6000
|
|
CK-30
|
0.75
|
300
|
35
|
1.45
|
2.7
|
-55～+70
|
2700
|
|
CK-40
|
1
|
300
|
65
|
1.5
|
2.8
|
-55～+70
|
1500
|
|
CK-60
|
1.5
|
300
|
126
|
1.54
|
2.8
|
-55～+70
|
700
|
|
CK-80
|
2
|
300
|
224
|
0.95
|
1.7
|
-55～+70
|
350
|
|
CK-100
|
2.5
|
300
|
350
|
1.5
|
2.2
|
-55～+70
|
250
|
|
CK-120
|
3
|
300
|
504
|
1.29
|
2
|
-55～+70
|
150
|
Jacketed Fiber Optic Cable:
|
Model
|
Core Dia./QTY
|
O.D.
|
Packing
|
Outter Materials
|
Loss (dB/km)
|
|
SH1001
|
0.25mm×1
|
1.0±0.05
|
1000
|
PE
|
700
|
|
SH2001
|
0.5mm×1
|
1.0±0.05
|
1000
|
PE
|
210
|
|
SH2002
|
0.5mm×2
|
1.0×2.0±0.1
|
500
|
PE
|
210
|
|
SH3001
|
0.75mm×1
|
2.2±0.07
|
500
|
PE
|
200
|
|
SH3002
|
0.75mm×2
|
2.2×4.3±0.1
|
500
|
PE
|
200
|
|
SH4001
|
1.0mm×1
|
2.2±0.07
|
1000
|
PE
|
190
|
|
SH4002
|
1.0mm×2
|
2.2×4.3±0.1
|
500
|
PE
|
190
|
|
SH6001
|
1.5mm×1
|
3.0±0.15
|
500
|
PE
|
190
|
|
SH8001
|
2.0mm×1
|
3.0±0.15
|
500
|
PE
|
200
|
|
SHV4001
|
1.0mm×1
|
2.2±0.07
|
500
|
PVC
|
190
|
|
SHEV4001
|
1.0mm×1
|
4.0±0.2
|
500
|
PE/PVC
|
200
|
|
SHCP4001
|
1.0mm×1
|
2.2±0.07
|
500
|
CHLORINATED
|
200
|
|
SHCP4002
|
1.0mm×2
|
2.2×4.3±0.1
|
500
|
PE
|
200
|
|
SH-1004
|
0.25mm×4
|
1.0±0.05
|
1000
|
PE
|
650
|
|
SH-1009
|
0.25mm×9
|
1.3±0.05
|
500
|
PE
|
650
|
|
SH-1010
|
0.25mm×10
|
1.3±0.05
|
500
|
PE
|
650
|
|
SH1016
|
0.25mm×16
|
2.2±0.07
|
500
|
PE
|
650
|
|
SH1032
|
0.25mm×32
|
2.8±0.07
|
500
|
PE
|
650
|
|
SH1048
|
0.25mm×48
|
3.0±0.07
|
500
|
PE
|
650
|
|
SH1064
|
0.25mm×64
|
3.25±0.07
|
500
|
PE
|
650
|
|
GH4001
|
1.0mm×1
|
2.2±0.07
|
500
|
PE
|
170
|
|
GH4002
|
1.0mm×2
|
2.2×4.4±0.1
|
500
|
PE
|
170
|
|
GHV4001
|
1.0mm×1
|
2.2±0.07
|
500
|
PVC
|
170
|
|
GHV4002
|
1.0mm×2
|
2.2×4.3±0.1
|
500
|
PVC
|
170
|
|
GHEV4001
|
1.0mm×1
|
5.0±0.2
|
500
|
PE/PVC
|
170
|
|
GHEV4002
|
1.0mm×2
|
4.0×5.5±0.1
|
500
|
PE/PVC
|
170
|
|
GHN4001
|
1.0mm×1
|
2.2±0.07
|
500
|
NYLON
|
170
|
|
GHCP4001
|
1.0mm×1
|
2.2±0.07
|
500
|
CHLORINATED
|
170
|
|
GHCP4002
|
1.0mm×2
|
2.2×4.3±0.1
|
500
|
PE
|
170
|
|
GHTT4001
|
1.0mm×1
|
5.0±0.2
|
500
|
PE/PVC
|
170
|
|
GHTT4002
|
1.0mm×2
|
6.0±0.2
|
400
|
PE/PVC
|
170
|
|
BH-2001
|
0.5mm×1
|
1.0±0.05
|
1000
|
Crosslinked
|
250
|
|
BH-4001
|
1.0mm×1
|
2.2±0.07
|
500
|
PE
|
200
|
|
LH-2001
|
0.5mm(151cores)
|
1.0±0.05
|
1000
|
PE
|
400
|
|
LH-4001
|
1.0mm(151cores)
|
2.2±0.07
|
1000
|
PE
|
400
|
|
LH-4001-1.3
|
1.0mm(151cores)
|
1.3±0.05
|
1000
|
PE
|
400
|
