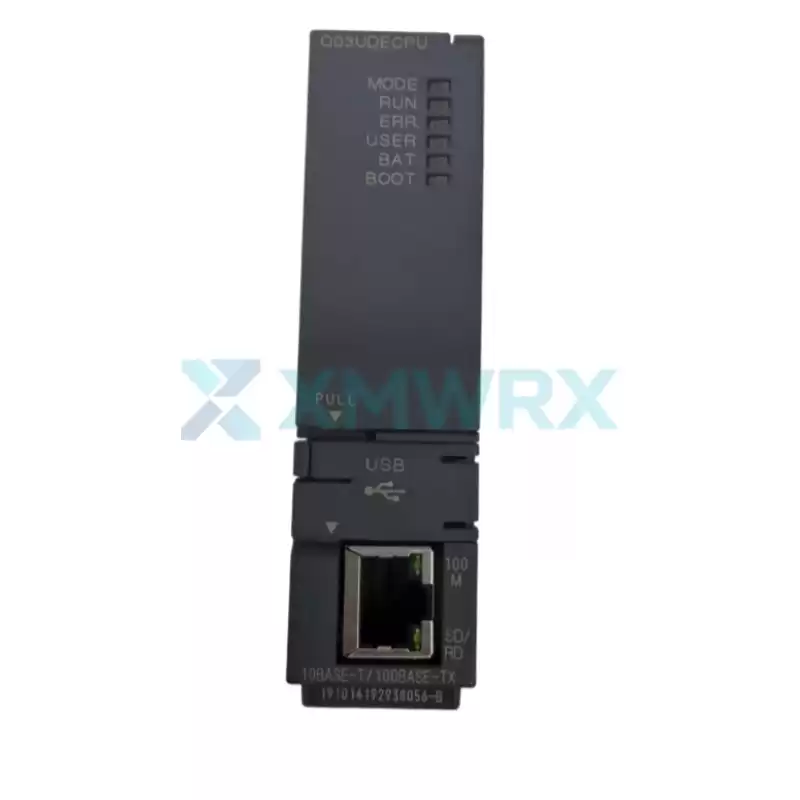

Mitsubishi Electric's Q03UDECPU is a high-performance general-purpose PLC CPU in the MELSEC-Q series, renowned for its high-speed processing capabilities (basic instruction processing speed of 20ns).
This product supports USB and Ethernet interfaces, integrating a 10BASE-T/100BASE-TX Ethernet port for easy networking, making it ideal for industrial automation applications requiring rapid response and complex control.
100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support Reliable Warranty
Technical Specifications
| Brand |
Mitsubishi Electric |
| Series |
MELSEC-Q SERIES |
| Type |
UNIVERSAL MODEL QCPU |
| Program Memory |
30K |
| Program Memory Unit |
STEPS |
| Local I/O Points |
4096 |
| Local + Remote I/O Points |
8192 |
| Cycle Time LD (ns) |
20 |
| Cycle Time MOV (ns) |
40 |
| USB |
1 |
| Ethernet Port |
1 |
| Buffer Battery |
YES |
| Int. Current Consumption (A) |
0,33 |
Conformity & Certifications
| CE |
COMPLIANT |
| UL / cUL |
COMPLIANT |
| UKCA |
COMPLIANT |
| Shipping Approvals |
ABS, BV, DNV GL, KR, LR, NK, RINA |
| EAC |
NON-COMPLIANT |
Why Source This Module From Us?
- Genuine Guarantee: Guaranteed original Mitsubishi Electric product. We say no to counterfeits or refurbished parts, ensuring the absolute stability of your machinery.
- Ready-to-Ship Inventory: Supported by a robust warehousing system, in-stock items are dispatched immediately upon order confirmation to minimize costly downtime.
- End-to-End Support: From pre-sales model verification to after-sales wiring guidance, our engineering team ensures a hassle-free procurement process.
- Competitive Pricing: Leveraging our strong supply chain network, we offer highly competitive pricing and exclusive discounts for bulk orders.
Applications
- High-speed and high-precision motion control system: The Q03UDECPU has powerful built-in motion control capabilities, allowing it to drive servo systems without the need for an additional motion control CPU.
- Complex Logic and Process Hybrid Control System: For scenarios that require both fast logical judgment and analog closed-loop control, the Q03UDECPU is an ideal choice.
- Factory information systems and Internet of Things (IIoT) integration: The "E" in the Q03UDECPU model name indicates that it comes standard with an Ethernet port, making it a key node connecting the IT and OT layers.
- Multi-CPU collaborative system: The Q03UDECPU supports coexistence with other CPU modules in multi-board systems, sharing different tasks.
Engineer's Tip: To ensure stable system operation, leverage its high performance, and avoid common malfunctions when using the Mitsubishi Q03UDECPU, the following key points must be considered, covering five aspects: hardware configuration, programming and storage, communication network, motion control, and maintenance. Please contact me if you need more details.
