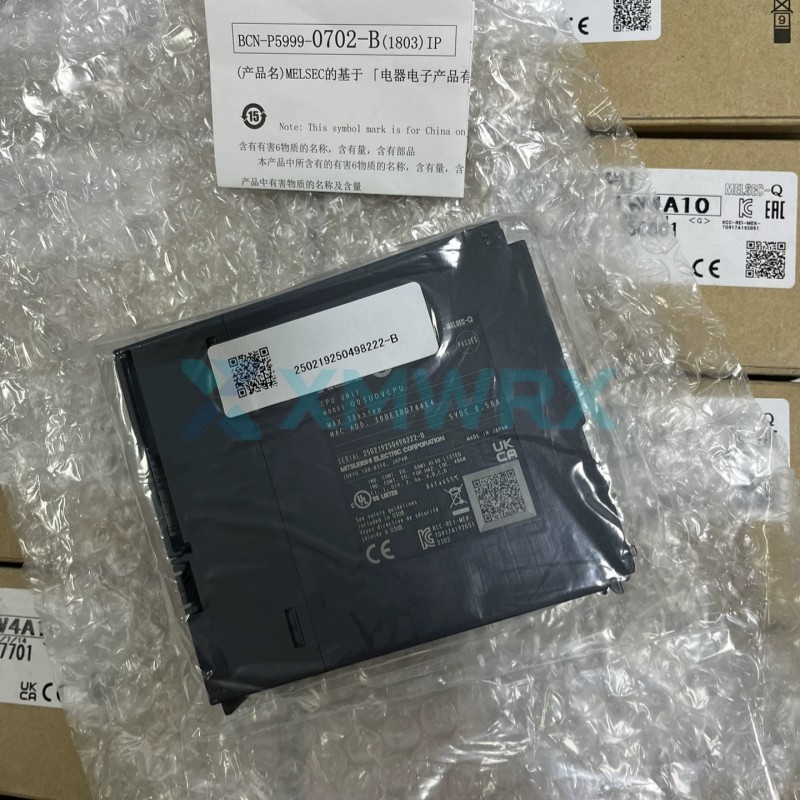

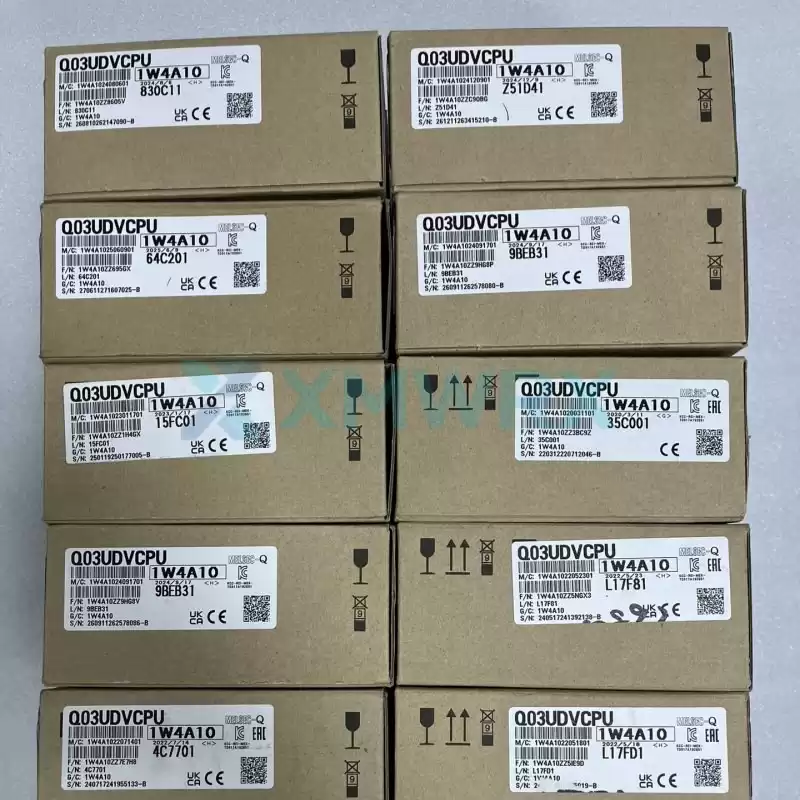

The Q03UDVCPU is a high-speed, general-purpose programmable logic controller (PLC) CPU module in Mitsubishi Electric's MELSEC-Q series.
Material Number: 266161
It is designed specifically to meet the needs of modern industry for high-speed, high-efficiency production processes and high-precision control, and can significantly shorten system operating cycle time and improve equipment uptime.
100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support Reliable Warranty
Technical Specifications
| Series |
MELSEC-Q SERIES |
| Type |
UNIVERSAL MODEL QCPU |
| Program Memory |
30K |
| Program Memory Unit |
STEPS |
| Local I/O Points |
4096 |
| Local + Remote I/O Points |
8192 |
| Cycle Time LD (ns) |
1,9 |
| Cycle Time MOV (ns) |
3,9 |
| USB |
1 |
| Ethernet Port |
1
|
| Buffer Battery |
YES |
| Int. Current Consumption (A) |
0,58 |
Conformity & Certifications
| CE |
COMPLIANT |
| UL / cUL |
COMPLIANT |
| UKCA |
COMPLIANT |
| Shipping Approvals |
ABS, BV, DNV GL, LR, NK, RINA |
| EAC |
NON-COMPLIANT |
Why Source This Module From Us?
- Genuine Guarantee: Guaranteed original Mitsubishi Electric product. We say no to counterfeits or refurbished parts, ensuring the absolute stability of your machinery.
- Ready-to-Ship Inventory: Supported by a robust warehousing system, in-stock items are dispatched immediately upon order confirmation to minimize costly downtime.
- End-to-End Support: From pre-sales model verification to after-sales wiring guidance, our engineering team ensures a hassle-free procurement process.
- Competitive Pricing: Leveraging our strong supply chain network, we offer highly competitive pricing and exclusive discounts for bulk orders.
Applications
- Manufacturing and High-Speed Production Lines: Suitable for automated production lines in industries such as automobile manufacturing, electronic equipment production, and food processing. It not only coordinates the connection between various processes but also achieves efficient control on high-speed production lines, significantly improving production efficiency and product quality.
- Precision Equipment and Multi-Axis Motion Control: Due to its extremely fast instruction processing speed (LD instructions require only 1.9ns), it is ideal for scenarios requiring precision control, such as robotic arms, robotic welding, assembly, and material handling. In multi-axis linkage and complex motion control, it ensures that equipment performs various high-precision tasks.
- Complex Processes and Process Control: Used in industries such as chemical, pharmaceutical, petroleum, and water treatment for real-time monitoring and closed-loop control of key process parameters such as temperature, pressure, and flow rate, ensuring the stability and safety of the production process.
- Intelligent Buildings and Building Automation: Used for the automated management of equipment such as air conditioning systems, lighting control, and elevator scheduling within buildings, achieving rational energy allocation and intelligent control, improving building comfort and energy efficiency.
- Other broad industrial sectors: In addition, the product also covers a wide range of fields such as metallurgy, textiles, power, wind power, semiconductors, photovoltaic solar energy, metal processing, packaging and printing machinery, plastics and tire processing, wood processing, glass machinery, and logistics transportation.
Engineer's Tip: When installing the module, hold the installation handle at the bottom of the module and fully insert the fixing protrusion into the base plate hole until it is locked in place. In environments with frequent vibration, bolts must be used to tighten the module within the specified torque range to prevent loosening, detachment, or damage to the module.
