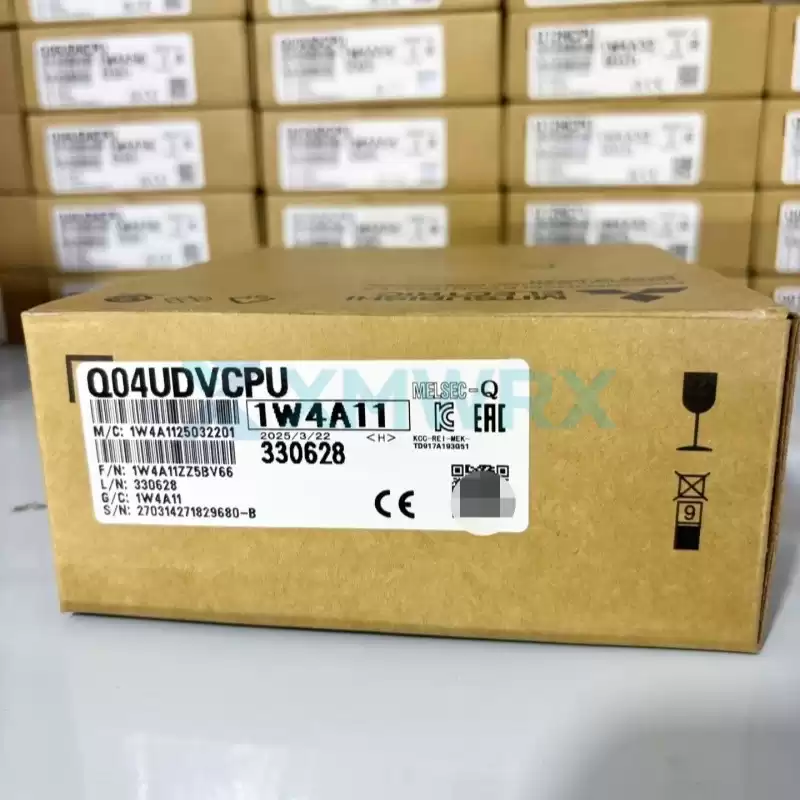

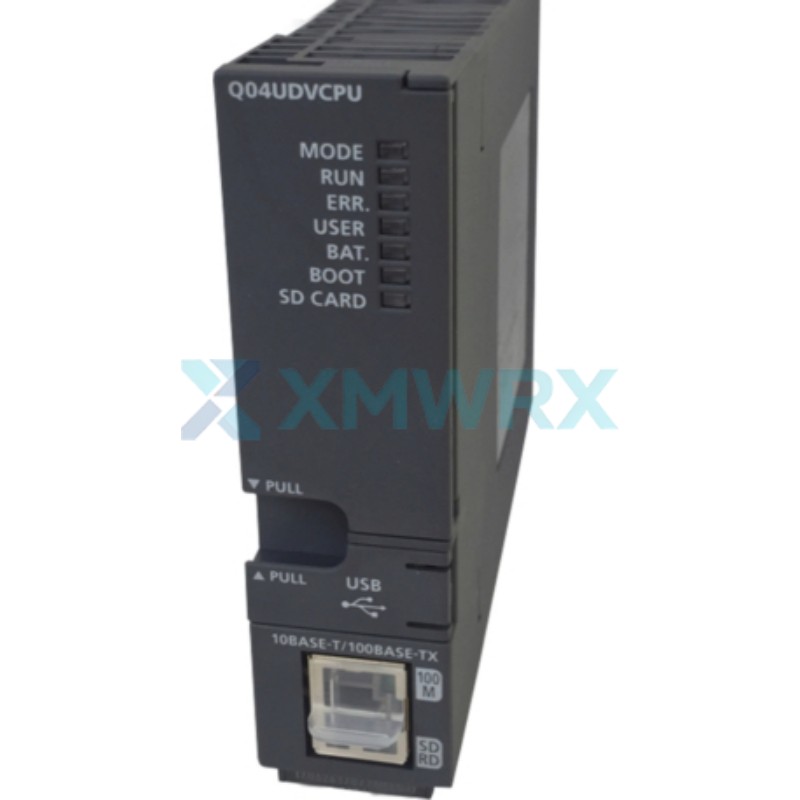

The Q04UDVCPU is a general-purpose, high-speed CPU module from Mitsubishi Electric's MELSEC-Q series.
Material Number: 266162
External Interfaces: Built-in USB and Ethernet ports facilitate communication with host computers and other network devices.
Multi-CPU High-Speed Communication: Supports multiple CPUs working collaboratively to process complex tasks within a single system.
Storage Expansion: Supports expanding storage capacity using extended SRAM memory cards (such as Q4MCA-1MBS / Q4MCA-2MBS).
100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support Reliable Warranty
Technical Specifications
| Series |
MELSEC-Q SERIES |
| Type |
UNIVERSAL MODEL QCPU |
| Program Memory |
40K |
| Program Memory Unit |
STEPS |
| Local I/O Points |
4096 |
| Local + Remote I/O Points |
8192 |
| Cycle Time LD (ns) |
1,9 |
| Cycle Time MOV (ns) |
3,9 |
| USB |
1 |
| Ethernet Port |
1 |
| Buffer Battery |
YES |
| Int. Current Consumption (A) |
0,58 |
Conformity & Certifications
| CE |
COMPLIANT |
| UL / cUL |
COMPLIANT |
| UKCA |
COMPLIANT |
| Shipping Approvals |
ABS, BV, DNV GL, LR, NK, RINA |
| EAC |
NON-COMPLIANT |
Why Source This Module From Us?
- Genuine Guarantee: Guaranteed original Mitsubishi Electric product. We say no to counterfeits or refurbished parts, ensuring the absolute stability of your machinery.
- Ready-to-Ship Inventory: Supported by a robust warehousing system, in-stock items are dispatched immediately upon order confirmation to minimize costly downtime.
- End-to-End Support: From pre-sales model verification to after-sales wiring guidance, our engineering team ensures a hassle-free procurement process.
- Competitive Pricing: Leveraging our strong supply chain network, we offer highly competitive pricing and exclusive discounts for bulk orders.
Applications
- High-speed packaging and labeling machines: Utilizing extremely high scanning speeds, they accurately capture sensor signals moving on high-speed production lines, enabling high-frequency, precise movements.
- Precision CNC machine tools and machining centers: Supporting complex double-precision floating-point operations and fixed scan interruptions up to 100μs, they suppress machining errors and improve finished product accuracy.
- Large-scale production lines and material handling: Supporting high-speed parallel processing of multiple CPUs (such as sequential control CPUs and motion control CPUs working together), enabling complex synchronous control.
- New energy and semiconductor equipment: Floating-point addition processing speeds up to 0.014μs, meeting the stringent speed and accuracy requirements of manufacturing processes such as silicon wafer cutting and lithium battery winding machines.
- Data acquisition and system integration: Built-in Ethernet interface, suitable as a data gateway for communication between Manufacturing Execution Systems (MES) and factory host computers, enhancing the overall intelligence of the equipment.
Engineer's Tip: It is specifically designed for automated equipment requiring high-precision, high-capacity, and high-speed data processing. With nanosecond-level instruction processing speeds, it significantly improves overall system performance and productivity.
