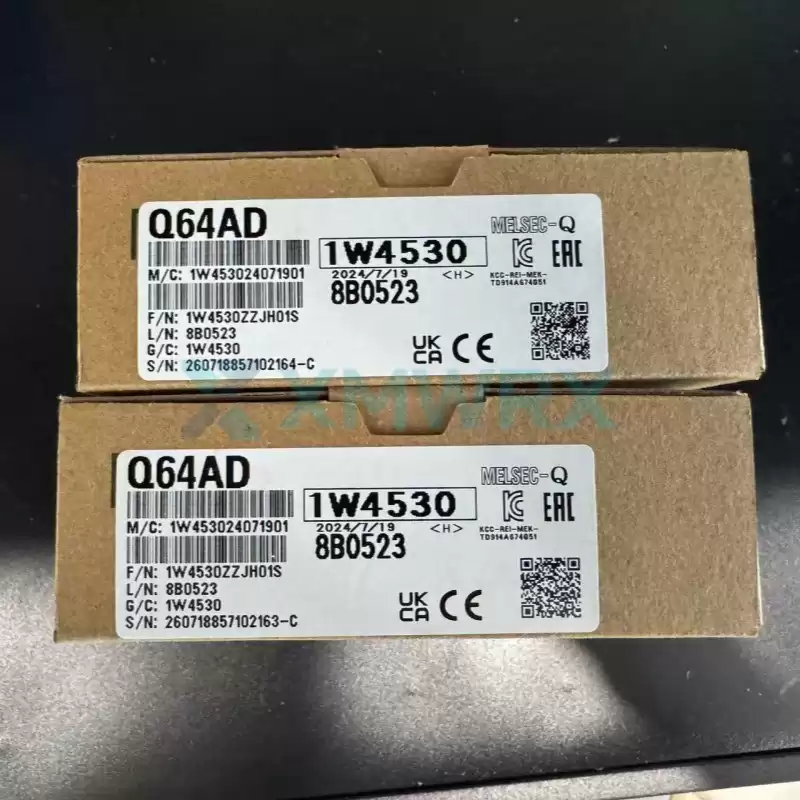

The Q64AD is an analog-to-digital (A/D) converter module in Mitsubishi Electric's MELSEC-Q series PLCs.
It is primarily used to convert analog signals (such as voltage or current) input from external devices like sensors into digital values that the PLC can process, and is widely used in industrial automation control systems.
100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support Reliable Warranty
Technical Specifications
| Brand |
Mitsubishi Electric |
| Series |
MELSEC-Q SERIES |
| Type |
ANALOG INPUT |
| Occupied I/O Points on PLC |
16 |
| Integrated Analogue Inputs |
4 |
| Input Voltage Range (V) |
-10-10; 0-10; 0-5; 1-5 |
| Wiring |
SCREW |
| Int. Current Consumption (A) |
0,63 |
Conformity & Certifications
| CE |
COMPLIANT |
| UL / cUL |
COMPLIANT |
| UKCA |
COMPLIANT |
| Shipping Approvals |
ABS, BV, DNV GL, LR, NK, RINA |
| EAC |
NON-COMPLIANT |
Why Source This Module From Us?
- Genuine Guarantee: Guaranteed original Mitsubishi Electric product. We say no to counterfeits or refurbished parts.

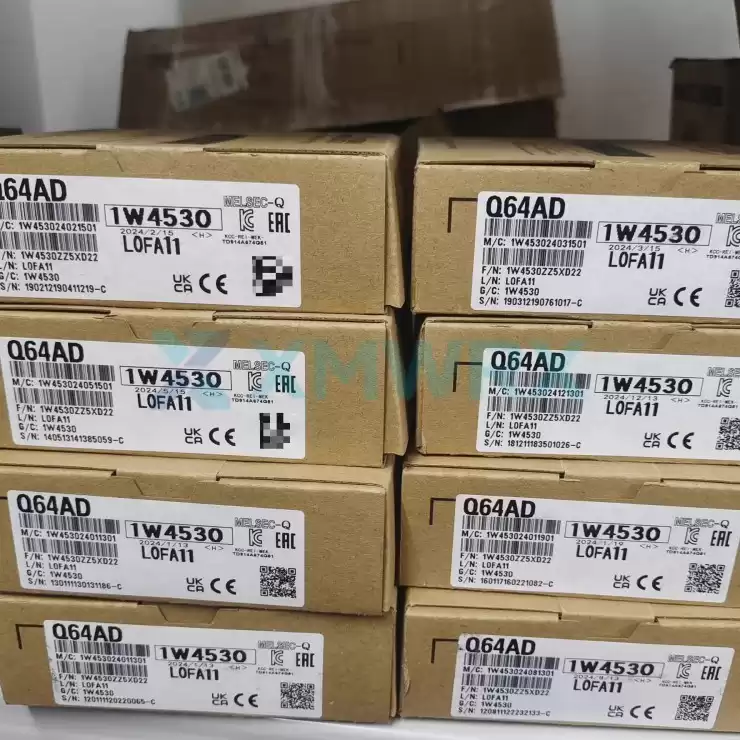

- Ready-to-Ship Inventory: In-stock PLC modules can be dispatched immediately to reduce industrial downtime.
- Technical Support: Our engineers assist with PLC model verification and wiring diagrams.
- Competitive Pricing: Strong supply chain ensures competitive prices and bulk order discounts.
Applications
- Industrial process control: In complex manufacturing processes, the Q64AD is often used to monitor key process variables in real time to achieve closed-loop control.
- High-precision detection and measurement: With its high-resolution mode (up to 1/16000), the Q64AD is suitable for inspection processes with stringent requirements for size and quality.
- Energy and Power Management: Provide stable and reliable data acquisition support for energy systems
Engineer's Tip: If more than four temperature points need to be measured, the number of modules usually needs to be increased; if a PT100 (platinum resistance) sensor is used on site, the Q64T module should be selected instead of the Q64AD.
